◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#161505) — 19 parça

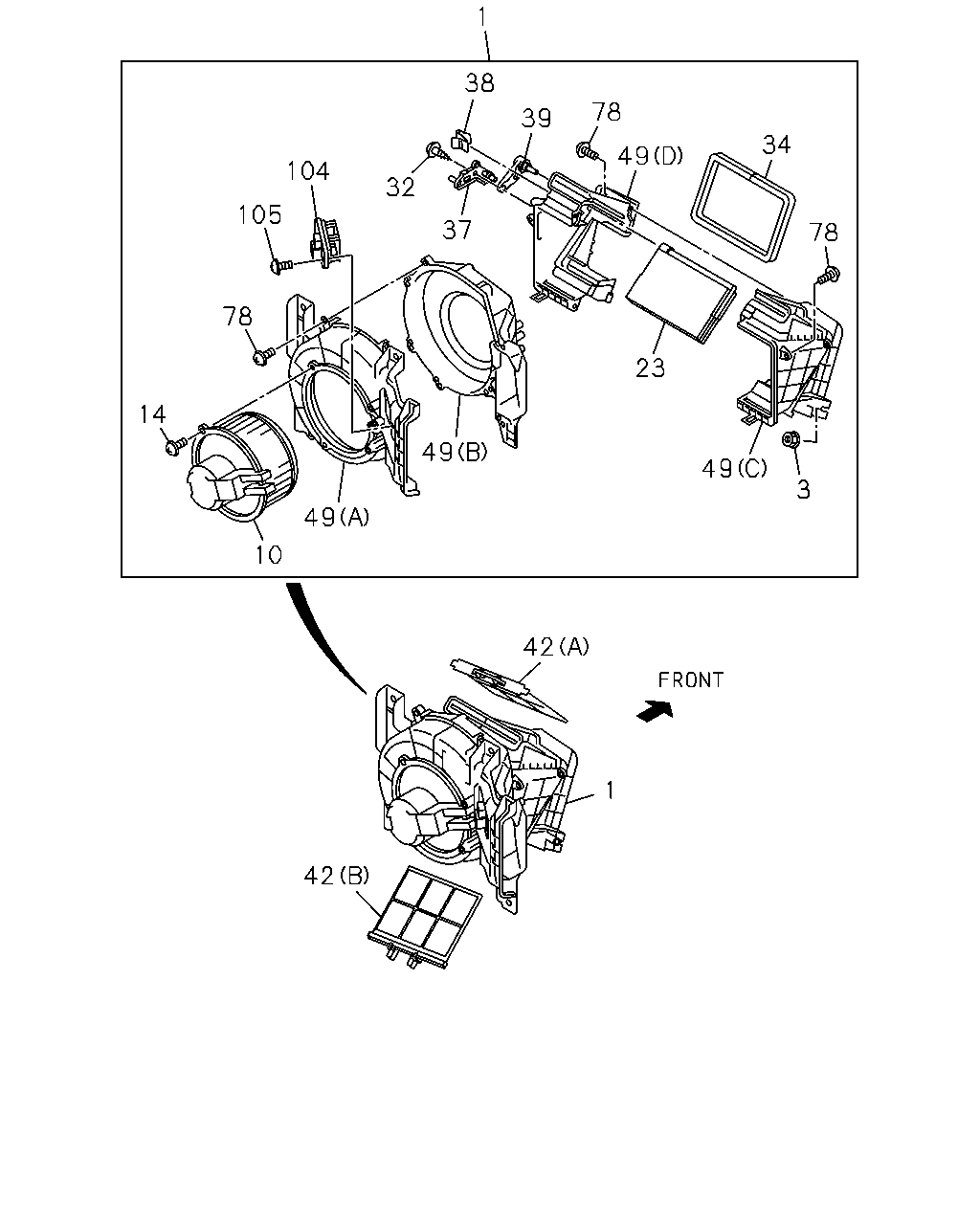

çizim 477100
1 38 32 104 105 37 78 14 49 10 49 23 49 78 39 34 78 49 3 42 1 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.855 BLOWER ASM 8-98183-589-0 01 1 1505- ● ● ●
3 08.855 NUT; CASE
09.190 M6 		1-83539-354-0 02 1 1505- ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98183-924-0 01 1 1505- ● ● ●
14 08.857 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 1505- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-98047-437-0 01 1 1505- ● ● ●
32 08.856 SCREW; LEVER
08.852 M4X16 		8-98047-416-0 01 1 1505- ● ● ●
34 08.856 LINING; BLOWER UNIT 8-98047-430-0 01 1 1505- ● ● ●
37 09.786 LEVER; MODE LEVER 8-98047-436-0 01 1 1505- ● ● ●
38 09.787 CLIP; BLOWER UNIT
08.854 		8-98047-417-0 01 1 1505- ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-98047-435-0 01 1 1505- ● ● ●
42 08.857 FILTER; BLOWER UNIT
(A) 		8-97387-096-1 01 1 1505- ● ● ●
42 08.857 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 1505- ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-98047-440-0 01 1 1505- ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-98047-441-0 01 1 1505- ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-98047-442-0 01 1 1505- ● ● ●
49 08.857 CASE; BLOWER UNIT
(D) 		8-98047-443-0 01 1 1505- ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1505- ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-98074-113-0 01 1 1505- ● ● ●
105 08.855 SCREW; RESISTOR
08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1505- ● ● ●
