Sayfa 8-71 - Isuzu EPC

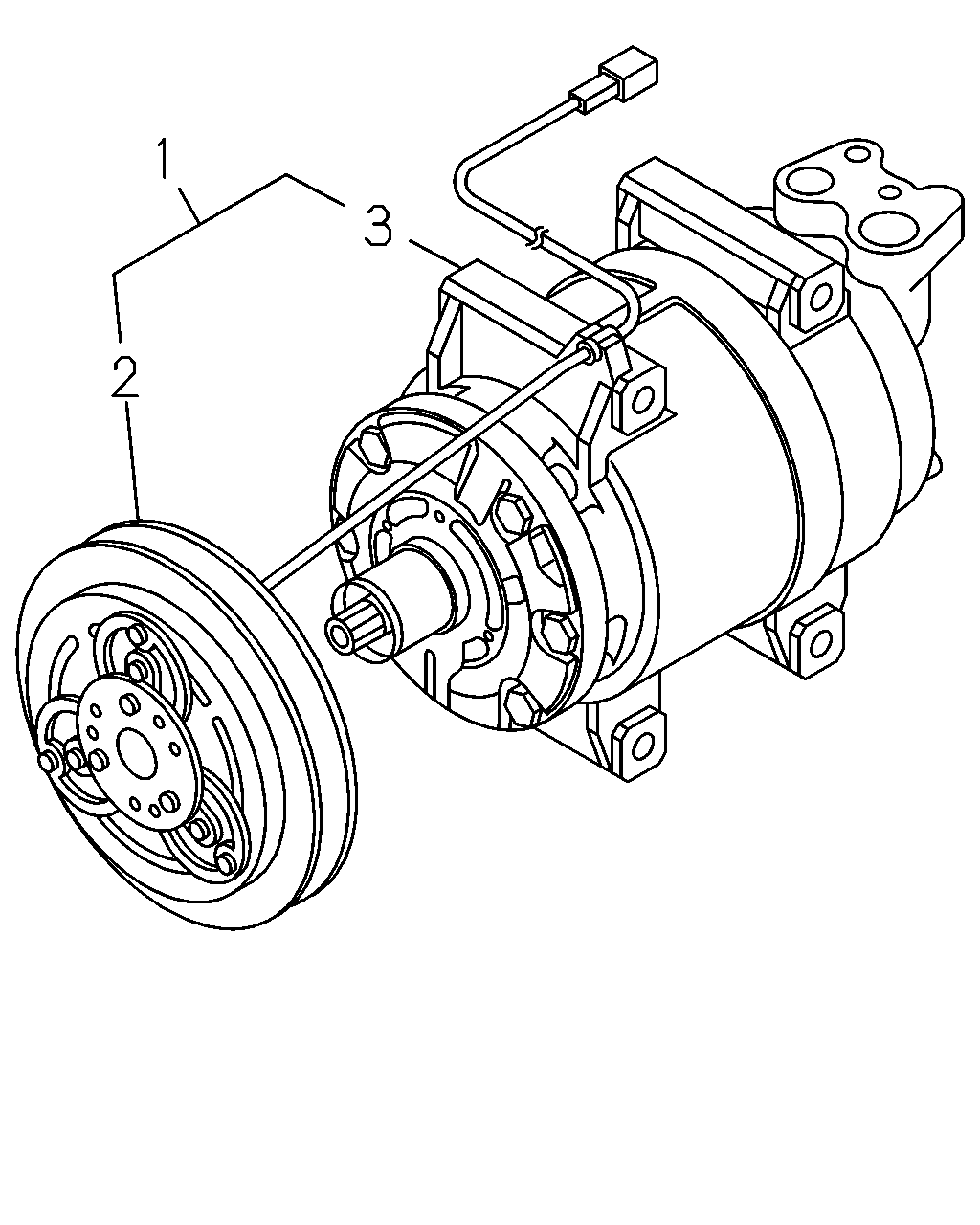

8-71 — COMPRESSOR; AIR CONDITIONING (#161504) — 5 parça

3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-98286-199-0	01	1	1505-	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-98286-197-0	01	1	1505-		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98208-772-1	01	1	1505-	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-98208-773-1	01	1	1505-		●	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98042-531-1	01	1	1505-	●	●	●
