◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#161503) — 13 parça

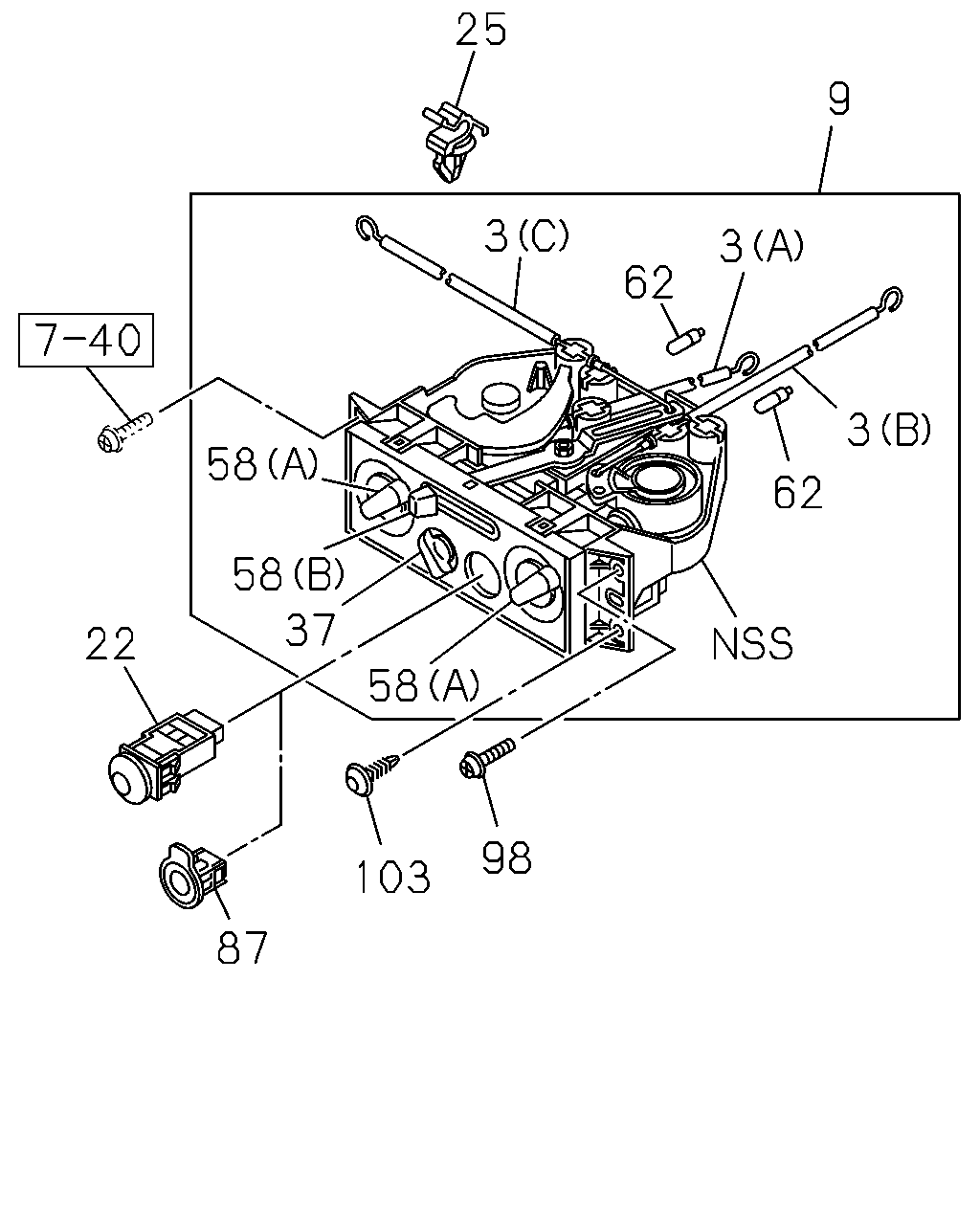

çizim 477073
25 3 58 58 22 37 103 87 98 58 62 3 3 62 9
BalonParca AdiParca NoAdetTipApplied Date A B C
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 1505- ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MIX 		8-98039-251-0 01 1 1505- ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 1505- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT 8-98037-363-2 01 1 1505- ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1505- ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 		8-94128-483-0 01 1 1505- ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1505- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 1505- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1505- ● ● ●
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1505- ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1505- ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1505- ● ● ●
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 1505- ● ● ●
