8-50 — AIR CONDITIONING SYSTEM; FRONT (#161500) — 41 parça

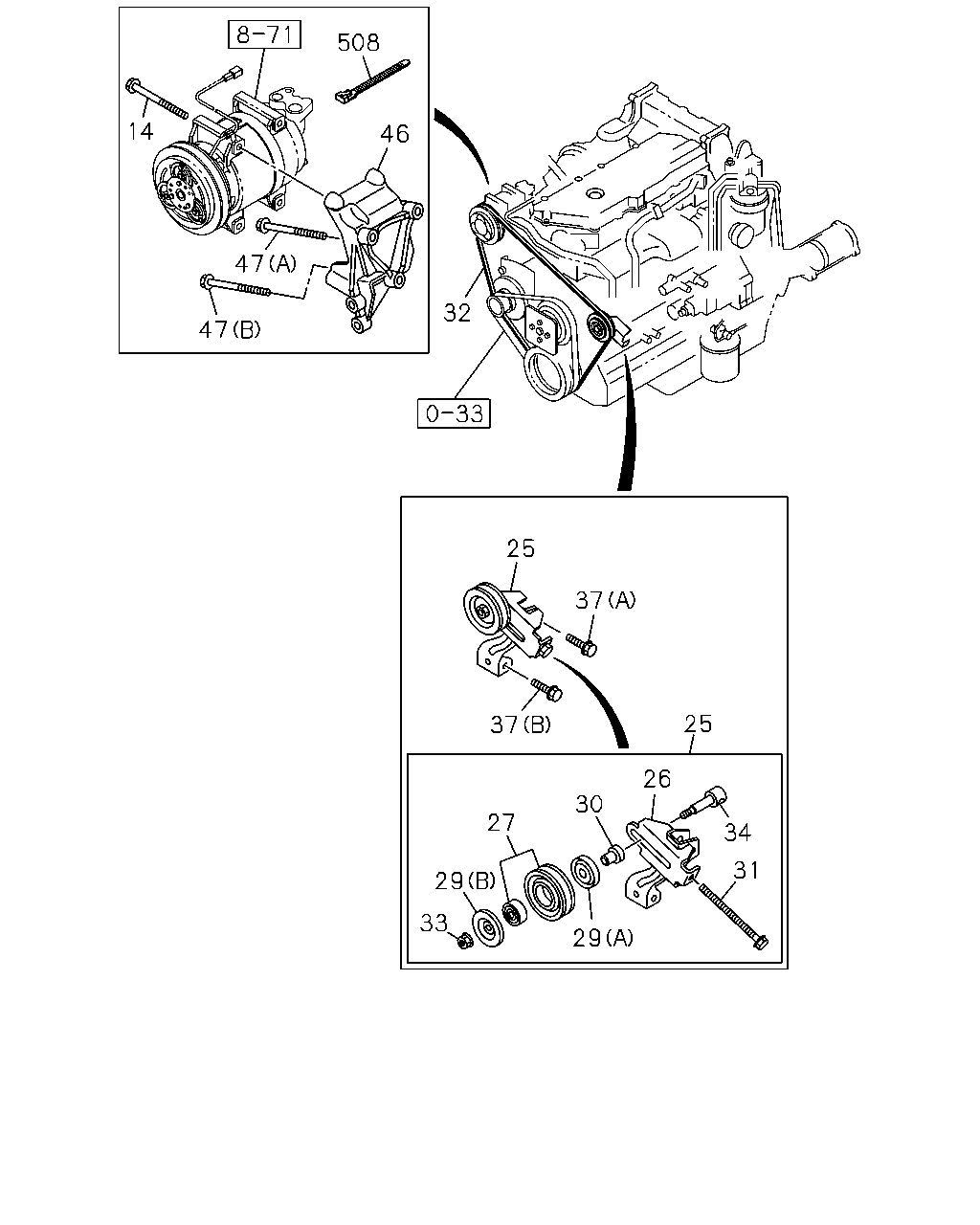

508 14 47 47 46 32 25 37 37 25 27 29 33 30 29 26 34 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1505-	●	●	●
14	09.171 BOLT; CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1505-		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1505-	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1505-		●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1505-		●	●
27	09.180 PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1505-		●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1505-		●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	1505-		●	●
30	09.181 COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1505-		●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1505-		●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1505-	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1505-	●	●	●
32	01.066 BELT; A/C CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1674	8-98010-841-1	01	1	1505-		●	●
33	09.181 NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1505-		●	●
34	09.181 SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1505-		●	●
37	09.173 BOLT; PULLEY BRKT 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1505-		●	●
37	09.173 BOLT; PULLEY BRKT 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	1505-		●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98211-424-1	01	1	1505-	●	●	●
46	09.171 BRACKET; CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98006-515-3	01	1	1505-		●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1505-	●	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE	0-28151-090-0	02	1	1505-		●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE	0-28156-012-0	01	1	1505-		●	●
508	09.181 CLIP; HARNESS 4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	02	1	1505-		●	●

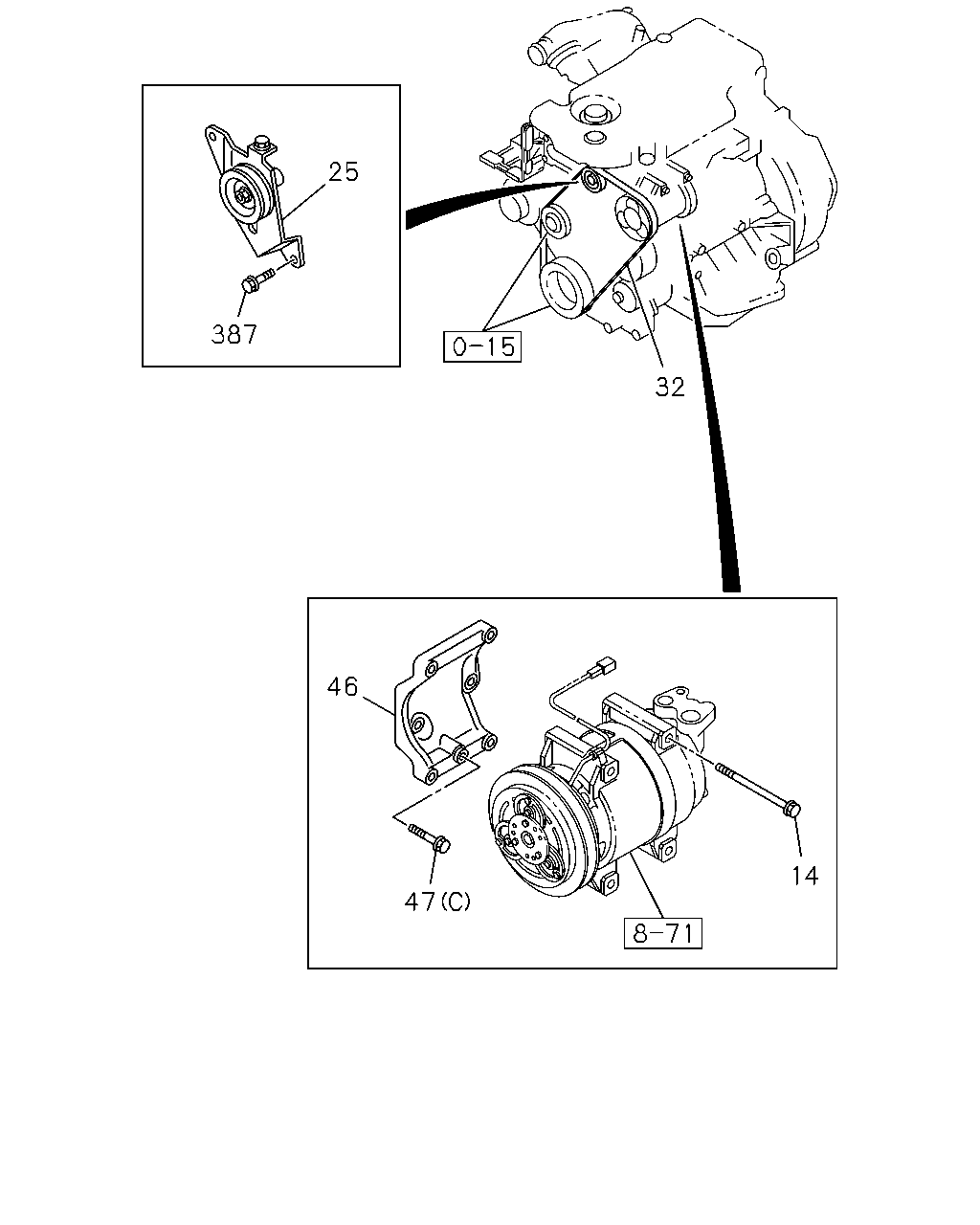

32 25 387 46 47 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	09.171 BOLT; CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE	0-28050-800-0	04	1	1505-	●	●	●
14	09.171 BOLT; CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1505-		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1505-	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1505-		●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1505-	●	●	●
32	01.066 BELT; A/C CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1505-	●	●	●
32	01.066 BELT; A/C CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1674	8-98010-841-1	01	1	1505-		●	●
46	09.171 BRACKET; CMPR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98211-424-1	01	1	1505-	●	●	●
46	09.171 BRACKET; CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242	8-98006-515-3	01	1	1505-		●	●
47	09.173 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1505-	●	●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE	0-28151-090-0	02	1	1505-		●	●
47	09.173 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE	0-28156-012-0	01	1	1505-		●	●
387	09.190 BOLT; TENSIONER FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-	●	●	●

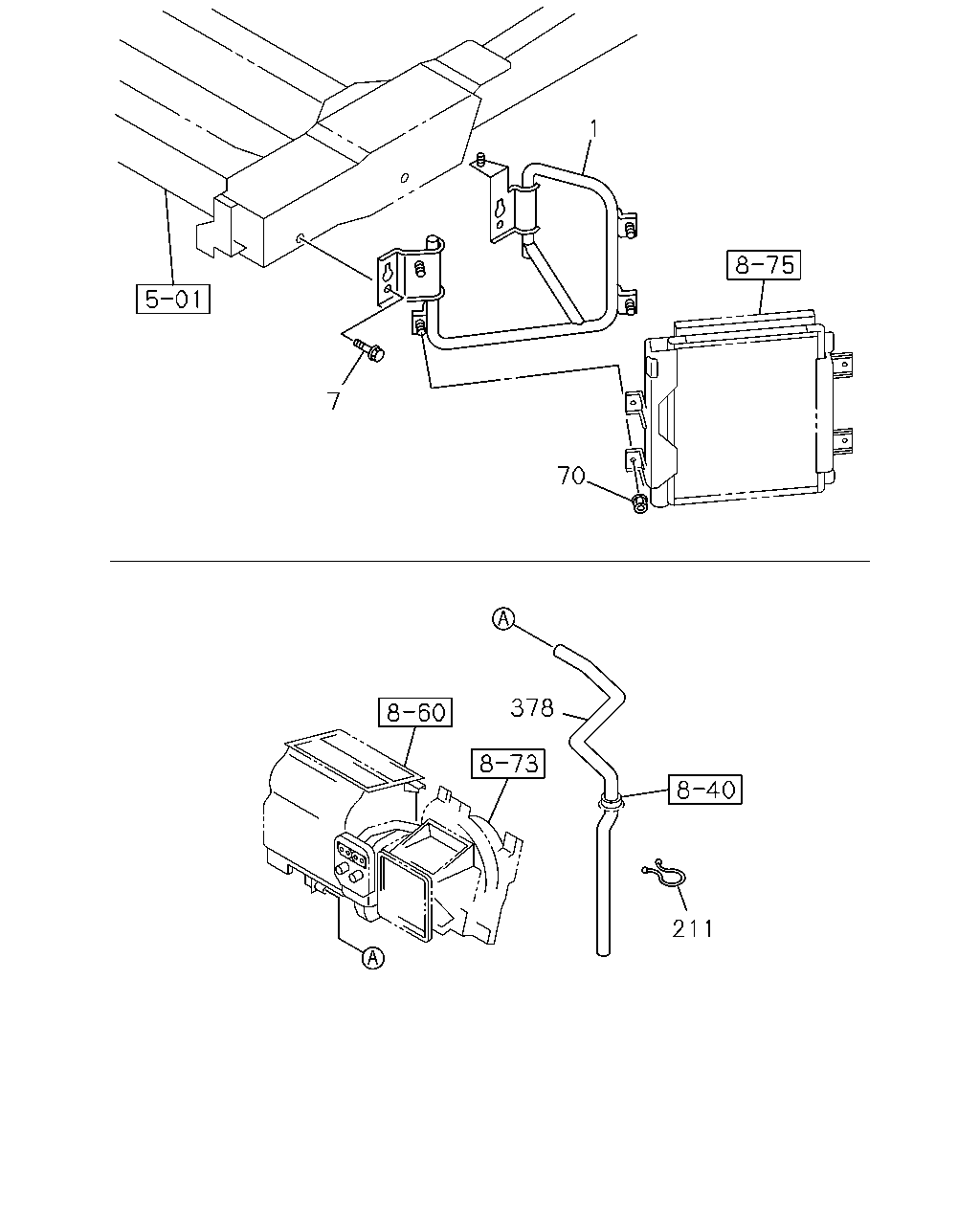

1 7 70 378 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98214-411-0	01	1	1505-	●	●	●
7	09.242 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE	0-28651-230-0	04	1	1505-	●	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-	●	●	●
211	09.190 CLIP; HOSE 03.278 ID=44	8-94463-508-0	01	1	1505-	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR	8-97387-174-2	01	1	1505-	●	●	●
