◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#1615) — 203 parça

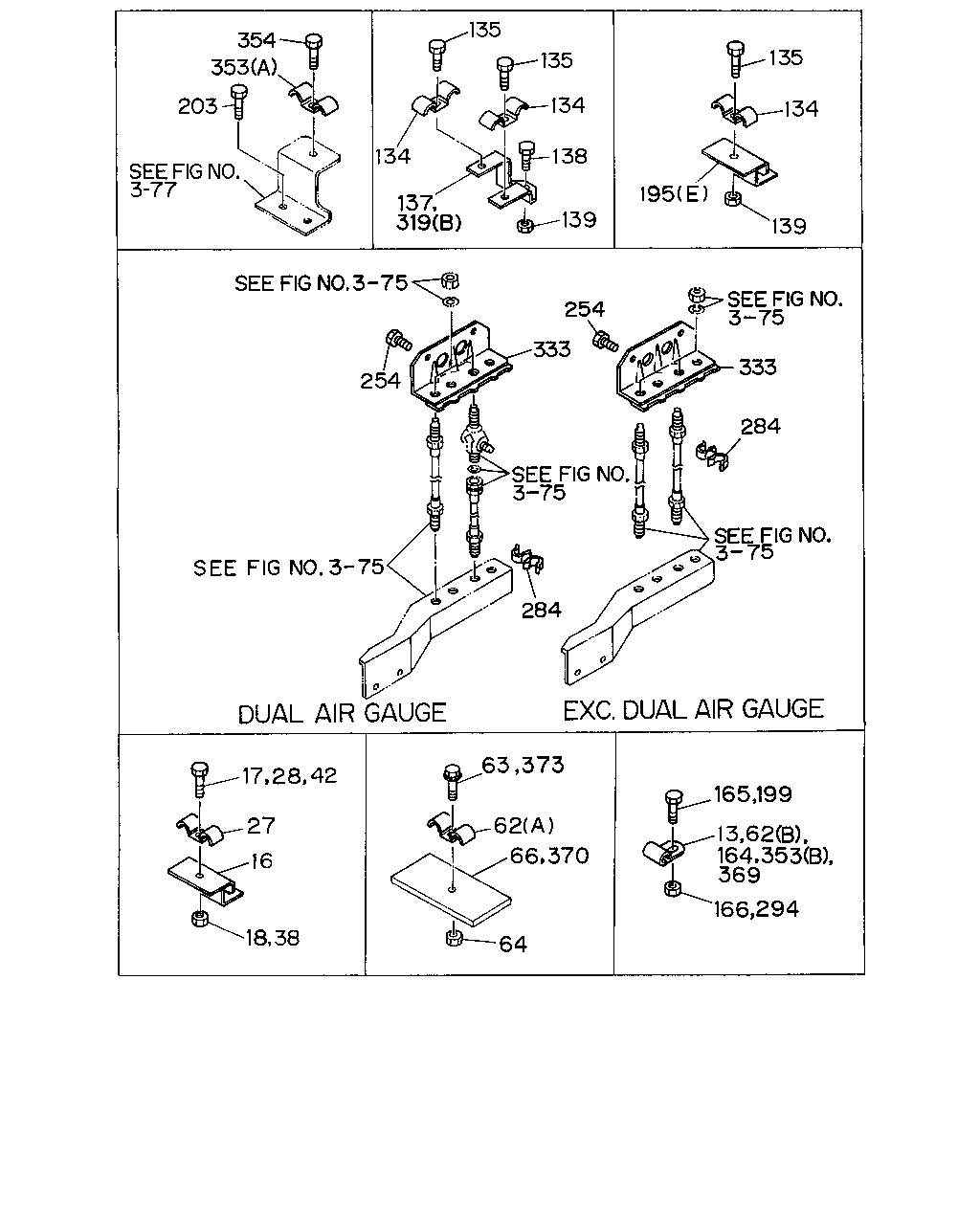

çizim 28983
203 353 354 135 134 135 134 138 137 319 139 139 195 134 135 254 333 254 333 284 284 17 28 42 27 16 18 38 64 66 370 62 63 373 165 199 13 62 353 164 166 294 369
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 CLIP; AIR PIPE
ID=5 & 8 		5-09700-165-0 01 1 9207- ● ● ● ● ●
16 BRACKET; PIPE CLIP 1-47465-168-1 01 1 9207- ● ● ● ● ●
17 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
18 NUT; CLIP
M8 		9-09110-408-0 01 1 9207- ● ● ●
27 CLIP; FLEX HOSE
MLD6D M/T(X5Q) ID=23 H=30 L=35 		1-09700-743-0 02 1 9207- ● ●
28 BOLT; CLIP,FLEX HOSE
MLD6D M/T(X5Q) M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
38 NUT; BRKT
M6 FLANGE 		1-09984-141-0 01 1 9207- ● ● ● ● ●
42 BOLT; CLIP,AIR PIPE
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9207- ● ● ● ● ●
62 CLIP; AIR PIPE
(A) 		1-09700-675-0 01 1 9207- ● ●
62 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (B) 		5-09700-351-0 01 1 9207- ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ●
64 NUT; CLIP
M8 		9-09110-408-0 01 1 9207- ● ●
66 BRACKET; CLIP,AIR PIPE
L=50 		1-47475-299-2 01 1 9207- ● ●
134 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9207- ● ●
134 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
134 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 9207- ● ● ●
135 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 9207- ● ● ● ● ●
137 BRACKET; PIPE CLIP
M8 W/NUT 		1-47475-439-2 03 1 9207- ● ● ● ● ●
138 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 03 1 9207- ● ● ● ● ●
139 NUT; CLIP BRKT
M8 		9-09110-408-0 03 1 9207- ● ● ● ● ●
164 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 01 1 9207- ● ● ●
165 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ●
166 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9207- ● ● ●
195 BRACKET; PIPE CLIP
(C) 		1-47475-299-2 01 1 9207- ● ●
195 BRACKET; PIPE CLIP
(E) 		1-47475-460-1 01 1 9207- ● ●
195 BRACKET; PIPE CLIP
(D) 		1-47475-746-2 01 1 9207- ● ●
195 BRACKET; PIPE CLIP
(B) 		1-47475-439-2 02 1 9207- ● ● ● ● ●
195 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 02 1 9207- ● ● ●
199 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 02 1 9207- ● ●
203 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ● ●
203 BOLT; CLIP BRKT
M8X40 FLANGE 		0-28080-840-0 02 1 9207- ● ● ● ● ●
203 BOLT; CLIP BRKT
REAR WHEEL PARKING(B3A) M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9207- ● ● ● ●
254 BOLT; PIPE CLIP
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9207- ● ● ● ● ●
284 CLIP; FLEX HOSE
ID=18 & 18 		8-94323-068-0 02 1 9207- ● ● ● ● ●
294 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 01 1 9207- ● ● ●
319 BRACKET; CLIP
(A) 		1-47475-427-1 01 1 9210- ● ● ●
319 BRACKET; CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9207- ● ●
333 BRACKET; BRK AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-79738-164-2 01 1 9207- ● ● ● ● ●
333 BRACKET; BRK AIR PIPE
DUAL AIR GAUGE<UG2> 		1-79738-179-1 01 1 9207- ● ● ● ●
353 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (A) ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 9207- ● ● ● ●
353 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (B) 		9-09524-832-0 02 1 9207-9301 ● ● ● ●
354 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9207- ● ● ● ●
354 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9207-9301 ● ● ● ●
369 CLIP; AIR PIPE
ID=9 L=20 		9-09524-835-0 01 1 9207-9208 ● ● ●
369 CLIP; AIR PIPE
ID=7 L=20 		9-09524-635-0 01 1 9209- ● ● ●
370 BRACKET; PIPE CLIP
MLD6D M/T(X5Q) L=50 		1-47475-299-2 02 1 9207- ● ●
373 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9207- ●
373 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X25 FLANGE 		0-28080-825-0 03 1 9207- ● ● ●

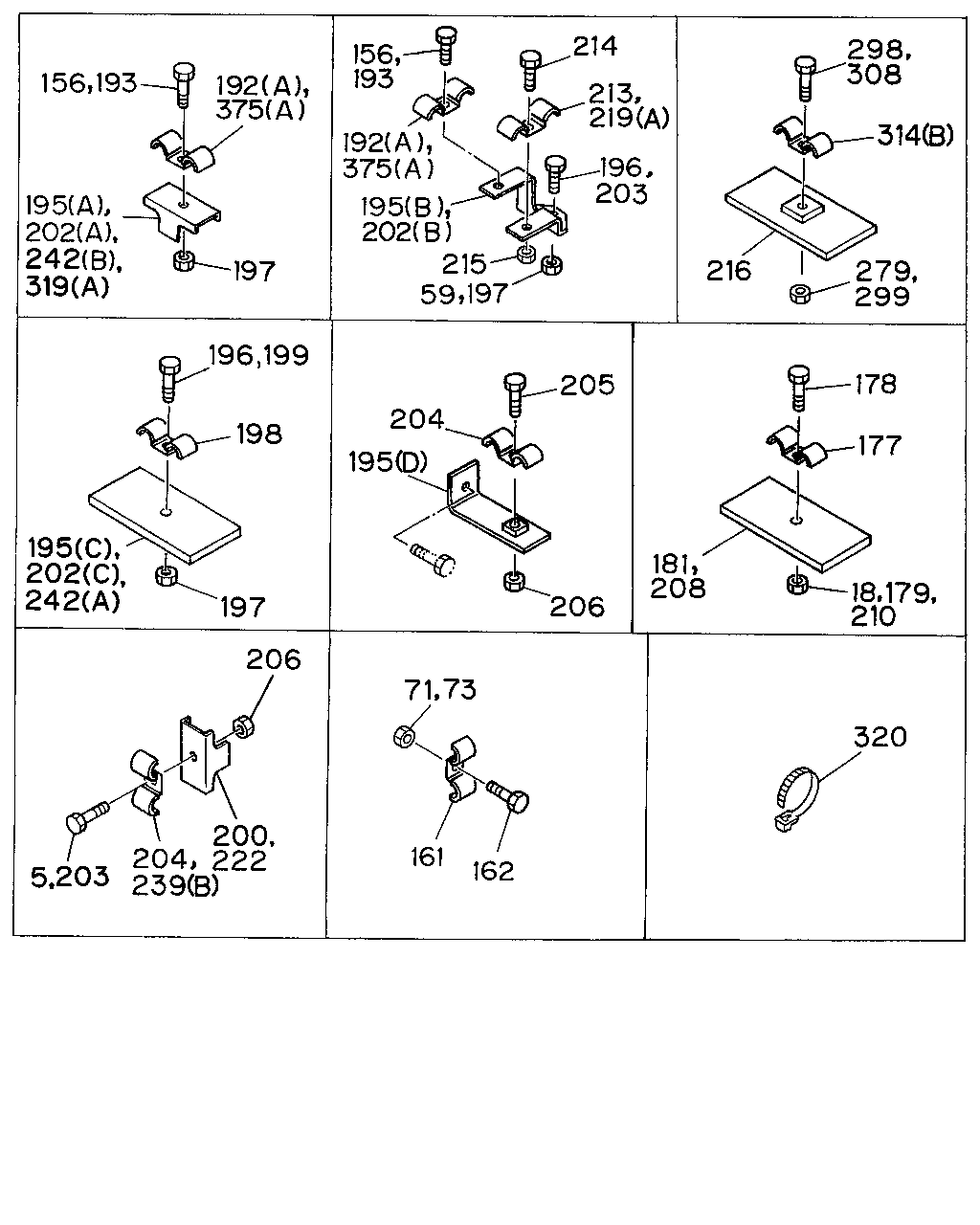

çizim 29454
320 162 161 73 71 206 200 222 239 5 203 204 197 242 202 195 198 199 196 204 195 205 206 208 181 18 179 210 177 178 216 299 279 314 308 298 214 156 193 213 219 196 203 197 59 215 202 195 375 192 192 375 197 193 156 195 319 242 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X25 FLANGE 		0-28080-825-0 01 1 9207- ●
18 NUT; CLIP
M8 		9-09110-408-0 01 1 9207- ● ● ●
59 NUT; CLIP BRKT
M8 		9-09110-408-0 04 1 9207- ● ● ● ●
59 NUT; CLIP BRKT
EXC. REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 04 1 9207- ●
59 NUT; CLIP BRKT
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 05 1 9207- ●
71 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ●
73 NUT; CLIP BRKT
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 01 1 9207- ●
156 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ● ● ●
156 BOLT; PIPE CLIP
EXC. REAR WHEEL PARKING(B3A) M8X16 FLANGE 		0-28080-816-0 02 1 9207- ●
156 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X16 FLANGE 		0-28080-816-0 03 1 9207- ●
161 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
161 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 9207- ● ● ●
162 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ●
162 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 9207- ● ● ●
177 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9207- ● ●
177 CLIP; AIR PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9207- ● ● ●
178 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
179 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9207- ● ●
181 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9207- ● ● ● ● ●
192 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ●
192 CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ● ●
192 CLIP; AIR PIPE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9207- ● ● ● ● ●
192 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9207- ● ● ●
192 CLIP; AIR PIPE
DUAL AIR GAUGE<UG2> (A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ● ●
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9207- ● ●
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ● ●
193 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ●
193 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 02 1 9207- ● ● ●
195 BRACKET; PIPE CLIP
(C) 		1-47475-299-2 01 1 9207- ● ●
195 BRACKET; PIPE CLIP
(E) 		1-47475-460-1 01 1 9207- ● ●
195 BRACKET; PIPE CLIP
(D) 		1-47475-746-2 01 1 9207- ● ●
195 BRACKET; PIPE CLIP
(B) 		1-47475-439-2 02 1 9207- ● ● ● ● ●
195 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 02 1 9207- ● ● ●
196 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 03 1 9207- ● ●
196 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ●
197 NUT; CLIP BRKT
M8 		9-09110-408-0 02 1 9207- ● ●
197 NUT; CLIP BRKT
M8 		9-09110-408-0 04 1 9207- ● ●
197 NUT; CLIP BRKT
M8 		9-09110-408-0 05 1 9207- ● ● ●
198 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9207- ● ●
199 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 02 1 9207- ● ●
200 BRACKET; PIPE CLIP 1-47475-427-1 02 1 9207- ● ●
202 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 02 1 9207- ● ● ● ● ●
202 BRACKET; PIPE CLIP
(B) 		1-47475-439-2 02 1 9207- ● ● ● ● ●
202 BRACKET; PIPE CLIP
REAR WHEEL PARKING(B3A) (C) 		1-47475-299-2 01 1 9207- ●
203 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ● ●
203 BOLT; CLIP BRKT
M8X40 FLANGE 		0-28080-840-0 02 1 9207- ● ● ● ● ●
203 BOLT; CLIP BRKT
REAR WHEEL PARKING(B3A) M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9207- ● ● ● ●
204 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9207- ● ●
205 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ●
206 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9207- ● ●
208 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9207- ● ●
210 NUT; CLIP BRKT
M8 		9-09110-408-0 02 1 9207- ● ●
213 CLIP; AIR PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
213 CLIP; AIR PIPE
DUAL AIR GAUGE<UG2> ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ● ●
213 CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 03 1 9207- ● ● ●
213 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 9207- ● ● ●
214 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ● ● ● ●
214 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
215 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9207- ● ● ● ● ●
216 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9207- ● ● ● ● ●
219 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
219 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 03 1 9207- ● ● ●
219 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9207- ● ● ●
222 BRACKET; PIPE CLIP 1-47475-427-1 01 1 9207- ● ● ●
239 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (A) 		1-09700-604-0 01 1 9207- ●
239 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (B) 9X9 		1-09700-651-0 01 1 9207- ● ● ●
239 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (B) 11X9 		1-09700-713-0 01 1 9209- ● ● ●
242 BRACKET; PIPE CLIP
REAR WHEEL PARKING(B3A) (B) 		1-47475-427-1 01 1 9207- ● ● ●
242 BRACKET; PIPE CLIP
REAR WHEEL PARKING(B3A) (A) L=50 		1-47475-299-2 01 1 9209- ● ● ●
279 NUT; BRKT
M8 		9-09110-408-0 01 1 9207- ● ● ●
298 BOLT; CLIP
MLD6D M/T(X5Q) M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ●
298 BOLT; CLIP
MLD6D M/T(X5Q) M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
299 NUT; CLIP
MLD6D M/T(X5Q) M8 		9-09110-408-0 04 1 9207- ● ●
308 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9207-9207 ● ● ●
308 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9208- ● ● ●
314 CLIP; AIR PIPE
EXC. PTO CONTROL<SV6> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9207- ● ● ● ● ●
314 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9207- ● ● ●
319 BRACKET; CLIP
(A) 		1-47475-427-1 01 1 9210- ● ● ●
319 BRACKET; CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9207- ● ●
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 9207- ● ● ● ● ●
375 CLIP; AIR PIPE
EXC. REAR WHEEL PARKING(B3A) (A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
375 CLIP; AIR PIPE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9207- ● ● ● ● ●
375 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 9207- ●
375 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ● ●
375 CLIP; AIR PIPE
MLD6D M/T(X5Q) (A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ●
375 CLIP; AIR PIPE
MLD6D M/T(X5Q) (B) ID=6 H=20 L=20 		1-09700-603-0 02 1 9207- ● ●

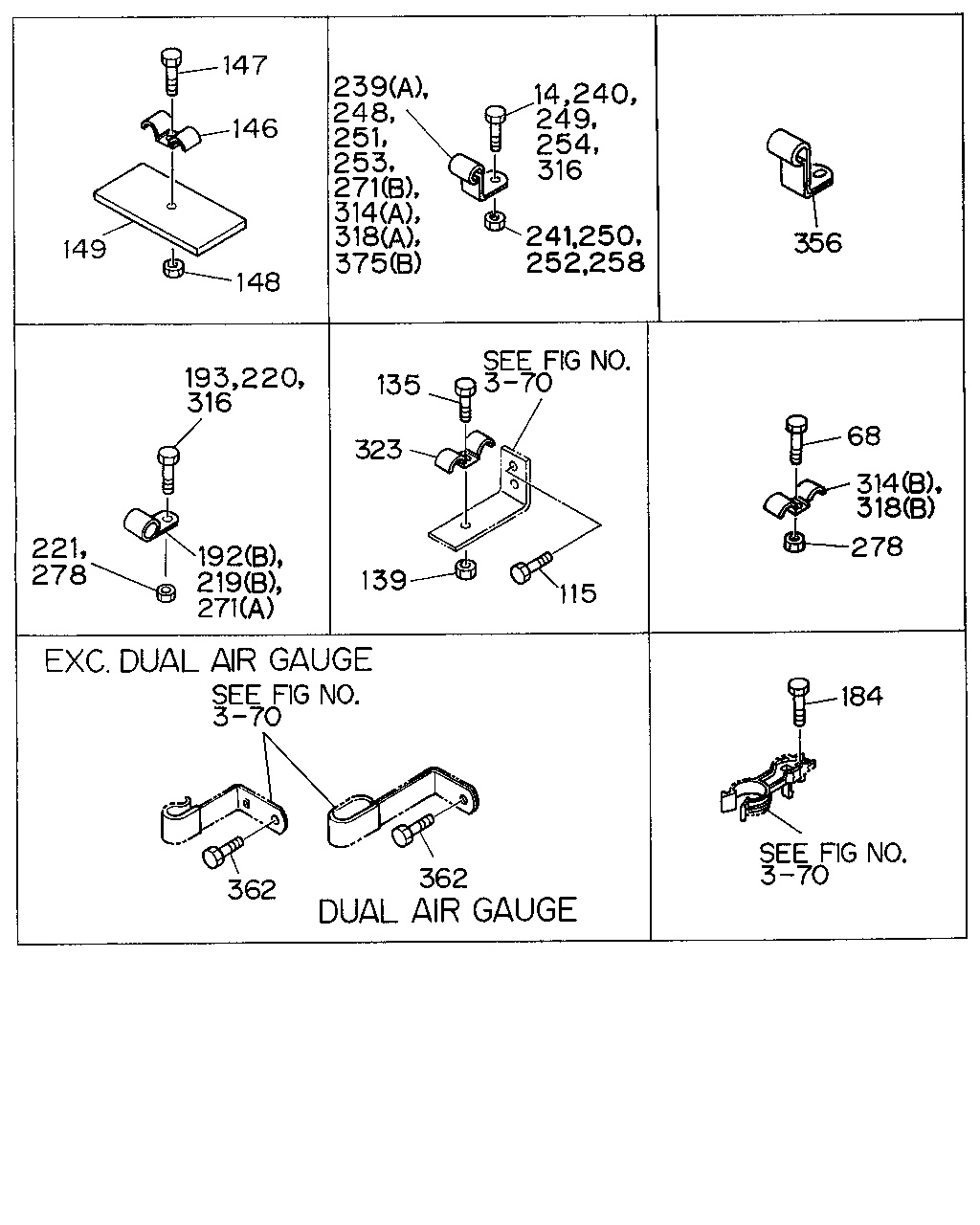

çizim 29893
362 362 184 278 318 314 68 356 115 139 323 135 271 278 221 219 192 316 193 220 148 149 146 147 14 240 249 254 316 241 250 258 252 375 318 314 271 253 251 248 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X25 FLANGE 		0-28080-825-0 04 1 9207- ● ● ● ●
68 BOLT; CLIP,AIR PIPE
EXC. PTO CONTROL<SV6> M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ● ● ●
115 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ●
135 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 9207- ● ● ● ● ●
139 NUT; CLIP BRKT
M8 		9-09110-408-0 03 1 9207- ● ● ● ● ●
146 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9207- ● ● ●
147 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ●
148 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9207- ● ● ●
149 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 9207- ● ● ●
184 BOLT; PIPE CLIP
DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER 		1-09980-497-0 01 1 9207- ● ● ● ●
192 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ●
192 CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ● ●
192 CLIP; AIR PIPE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9207- ● ● ● ● ●
192 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9207- ● ● ●
192 CLIP; AIR PIPE
DUAL AIR GAUGE<UG2> (A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ● ●
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9207- ● ●
193 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ● ●
193 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ●
193 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 02 1 9207- ● ● ●
219 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
219 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 03 1 9207- ● ● ●
219 CLIP; AIR PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9207- ● ● ●
220 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9207- ● ● ● ● ●
220 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ●
220 BOLT; PIPE CLIP
M8X40 FLANGE 		0-28080-840-0 01 1 9207- ● ● ●
221 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9207- ● ● ●
239 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (A) 		1-09700-604-0 01 1 9207- ●
239 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (B) 9X9 		1-09700-651-0 01 1 9207- ● ● ●
239 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (B) 11X9 		1-09700-713-0 01 1 9209- ● ● ●
240 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X25 FLANGE 		0-28080-825-0 01 1 9207- ●
240 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X40 FLANGE 		0-28080-840-0 01 1 9207- ● ● ●
240 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X20 FLANGE 		0-28080-820-0 01 1 9209- ● ● ●
241 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 01 1 9207-9208 ● ● ● ●
241 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 01 1 9209- ● ● ● ●
241 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 01 1 9209- ● ● ●
248 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9207-9304 ●
248 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9305- ●
249 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X16 FLANGE 		0-28080-816-0 01 1 9207- ●
249 BOLT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8X25 FLANGE 		0-28080-825-0 01 1 9305- ●
250 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 01 1 9305- ●
251 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9207- ●
251 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9207- ● ● ●
252 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 02 1 9207- ●
252 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 03 1 9207- ● ● ●
253 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) ID=8 H=20 L=20 		1-09700-604-0 04 1 9207- ● ● ● ●
254 BOLT; PIPE CLIP
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9207- ● ● ● ● ●
258 NUT; PIPE CLIP
REAR WHEEL PARKING(B3A) M8 		9-09110-408-0 04 1 9207- ● ● ● ●
271 CLIP; AIR PIPE FIX
REAR WHEEL PARKING(B3A) (A) ID=9 L=40 		9-09524-875-0 01 1 9207- ●
271 CLIP; AIR PIPE FIX
REAR WHEEL PARKING(B3A) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 9501- ●
271 CLIP; AIR PIPE FIX
REAR WHEEL PARKING(B3A) (A) ID=9 		9-09524-872-0 01 1 9207- ● ● ●
278 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 01 1 9207- ● ●
278 NUT; CLIP,AIR PIPE
EXC. PTO CONTROL<SV6> M8 		9-09110-408-0 01 1 9207- ● ● ●
314 CLIP; AIR PIPE
EXC. PTO CONTROL<SV6> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9207- ● ● ● ● ●
314 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9207- ● ● ●
316 BOLT; CLIP
REAR WHEEL PARKING(B3A) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9207-9412 ●
316 BOLT; CLIP
REAR WHEEL PARKING(B3A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9501- ●
316 BOLT; CLIP
REAR WHEEL PARKING(B3A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9207- ● ● ●
318 CLIP; AIR PIPE
(A) ID=6 		1-09700-603-0 01 1 9207-9209 ● ● ●
318 CLIP; AIR PIPE
(B) ID=7X2 		1-09700-745-0 01 1 9207-9209 ● ●
318 CLIP; AIR PIPE
(B) ID=7X2 		1-09700-745-0 02 1 9210- ● ●
323 CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9207- ● ● ●
356 CLIP; AIR PIPE
DUAL AIR GAUGE<UG2> ID=6 H=20 L=20 		9-09527-005-0 01 1 9207- ● ● ● ●
362 BOLT; FLEX HOSE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ● ●
375 CLIP; AIR PIPE
EXC. REAR WHEEL PARKING(B3A) (A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9207- ● ●
375 CLIP; AIR PIPE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 9207- ● ● ● ● ●
375 CLIP; AIR PIPE
REAR WHEEL PARKING(B3A) (A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 9207- ●
375 CLIP; AIR PIPE
(A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ● ●
375 CLIP; AIR PIPE
MLD6D M/T(X5Q) (A) ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 02 1 9207- ● ●
375 CLIP; AIR PIPE
MLD6D M/T(X5Q) (B) ID=6 H=20 L=20 		1-09700-603-0 02 1 9207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
