8-45 — HEATER PIPING (#161499) — 63 parça

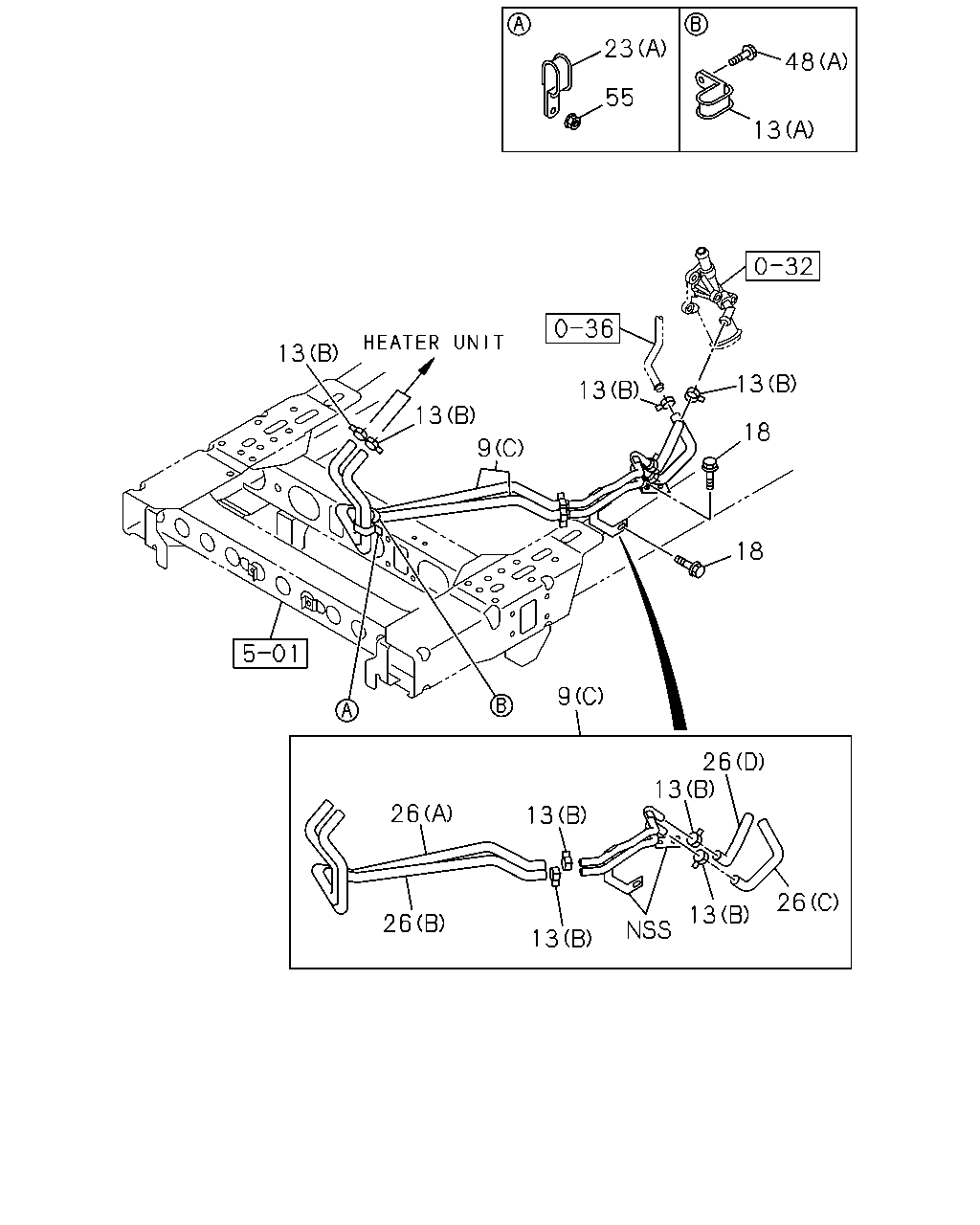

23 55 13 48 13 18 18 9 9 13 13 13 26 26 13 13 13 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98209-291-2	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98088-944-1	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1505-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C)	8-98205-053-1	01	1	1505-		●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (C)	8-98064-107-1	01	1	1505-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1505-		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1505-		●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1505-	●	●	●
18	08.866 BOLT; WATER HOSE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) B=14	8-98029-678-0	01	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) B=14	8-98029-678-0	02	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98000-101-2	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98114-718-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1505-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-293-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-294-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C)	8-98210-715-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (D)	8-98210-716-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (C)	8-98050-295-0	01	1	1505-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (D)	8-98050-296-0	01	1	1505-		●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●

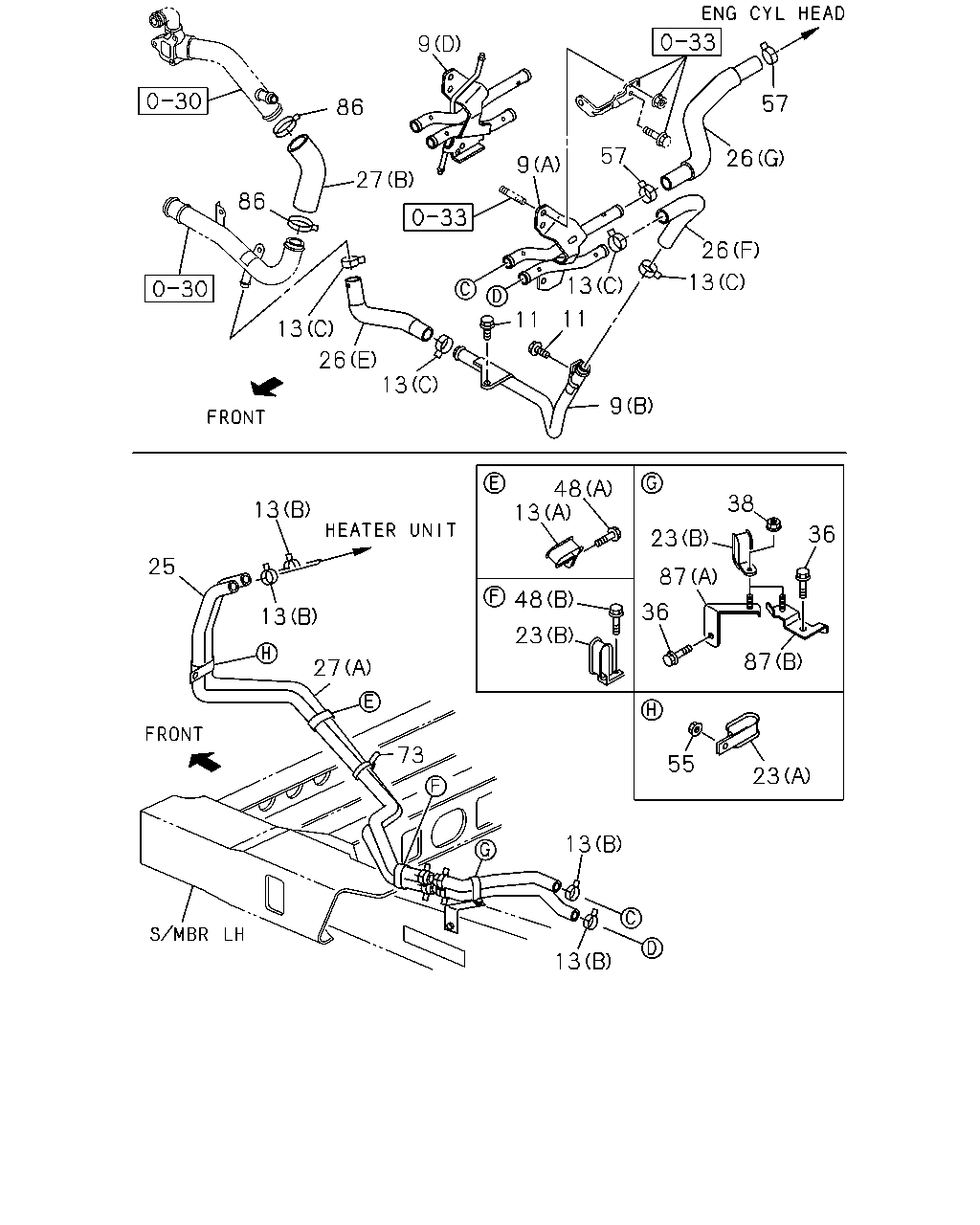

86 13 13 86 9 9 27 26 13 25 13 27 13 48 23 23 87 38 36 87 36 55 23 13 13 73 11 11 13 13 26 26 57 57 9 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98209-291-2	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98088-944-1	01	1	1505-	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1505-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C)	8-98205-053-1	01	1	1505-		●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (C)	8-98064-107-1	01	1	1505-		●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1505-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1505-		●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1505-		●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) B=14	8-98029-678-0	01	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) B=14	8-98029-678-0	02	1	1505-	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1505-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98091-453-1	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98000-101-2	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98114-718-0	01	1	1505-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1505-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-293-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-294-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C)	8-98210-715-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (D)	8-98210-716-0	01	1	1505-		●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (C)	8-98050-295-0	01	1	1505-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (D)	8-98050-296-0	01	1	1505-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98106-016-0	01	1	1505-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98091-425-1	01	1	1505-	●	●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1505-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1505-	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.559 L=250	5-09707-030-1	01	1	1505-	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98110-004-0	02	1	1505-	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP (A)	8-98025-918-4	01	1	1505-	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98025-918-4	01	1	1505-		●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98211-653-1	01	1	1505-		●	●
