◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#161497) — 25 parça

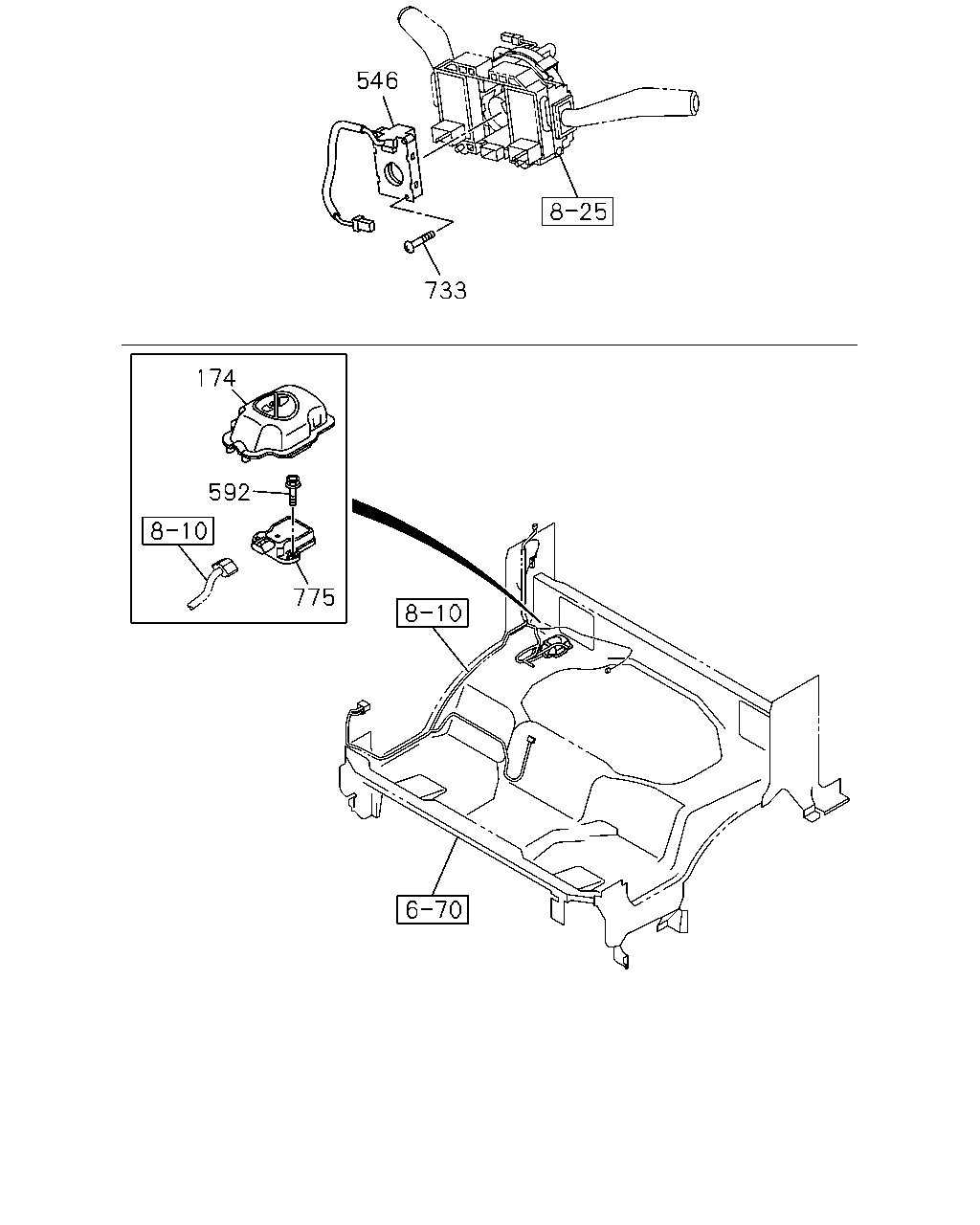

çizim 476665
733 546 174 592 775
BalonParca AdiParca NoAdetTipApplied Date A B C
174 02.510 COVER 8-97424-538-1 01 1 1505- ● ● ●
546 01.150 SENSOR; STEERING POSITION 8-98208-932-2 01 1 1505- ● ● ●
592 02.490 BOLT; SENSOR
06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1505- ● ● ●
733 00.010 SCREW; SENSOR
M3X25 TAPPING 		0-71240-325-0 03 1 1505- ● ● ●
775 01.150 SENSOR ASM; YAW RATE 8-98206-892-0 01 1 1505- ● ● ●
çizim 477035
531 666 333
BalonParca AdiParca NoAdetTipApplied Date A B C
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ● ●
531 02.769 RELAY; MAIN
4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1505- ● ● ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1505- ● ● ●

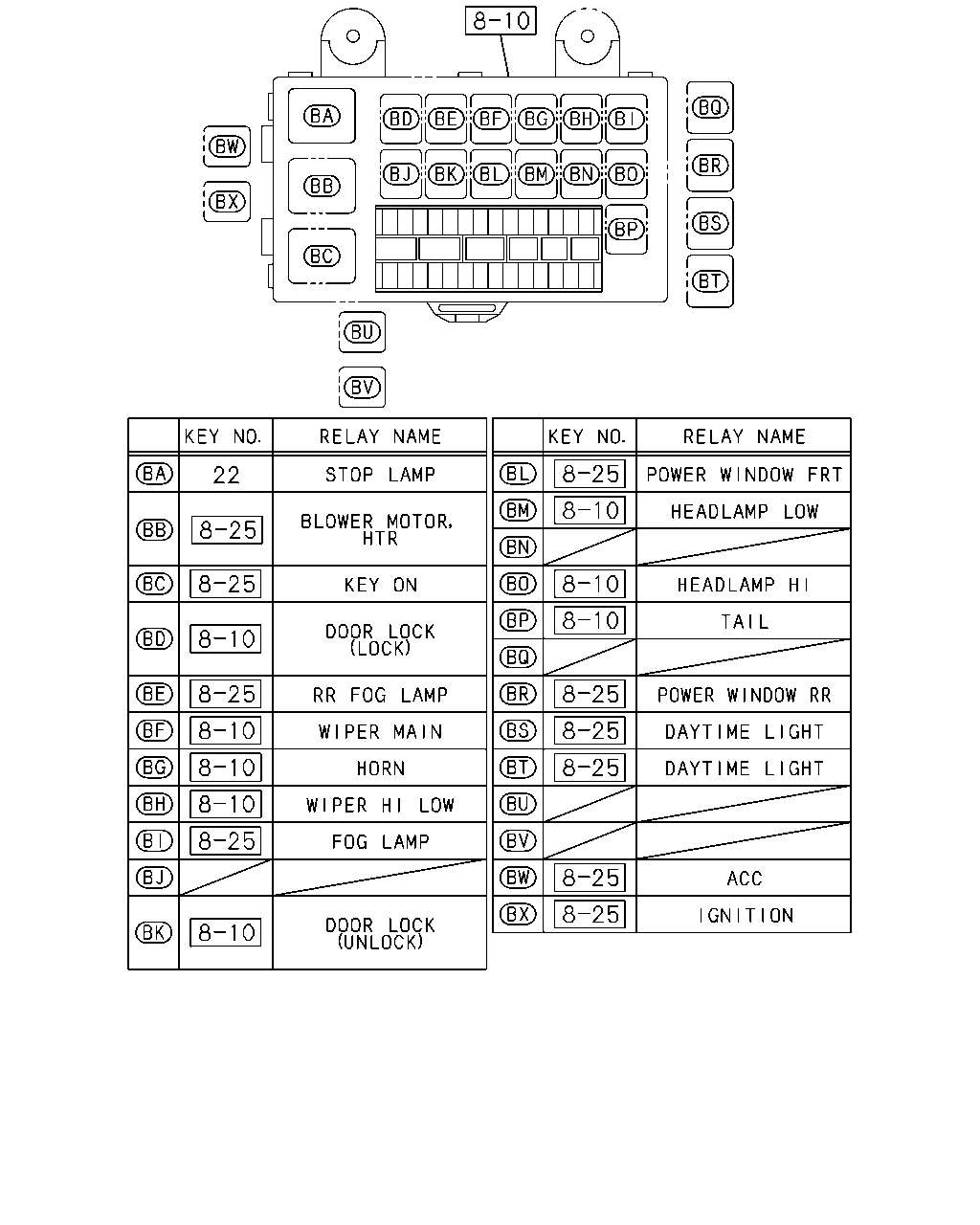

çizim 477038
22
BalonParca AdiParca NoAdetTipApplied Date A B C
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505- ● ● ●

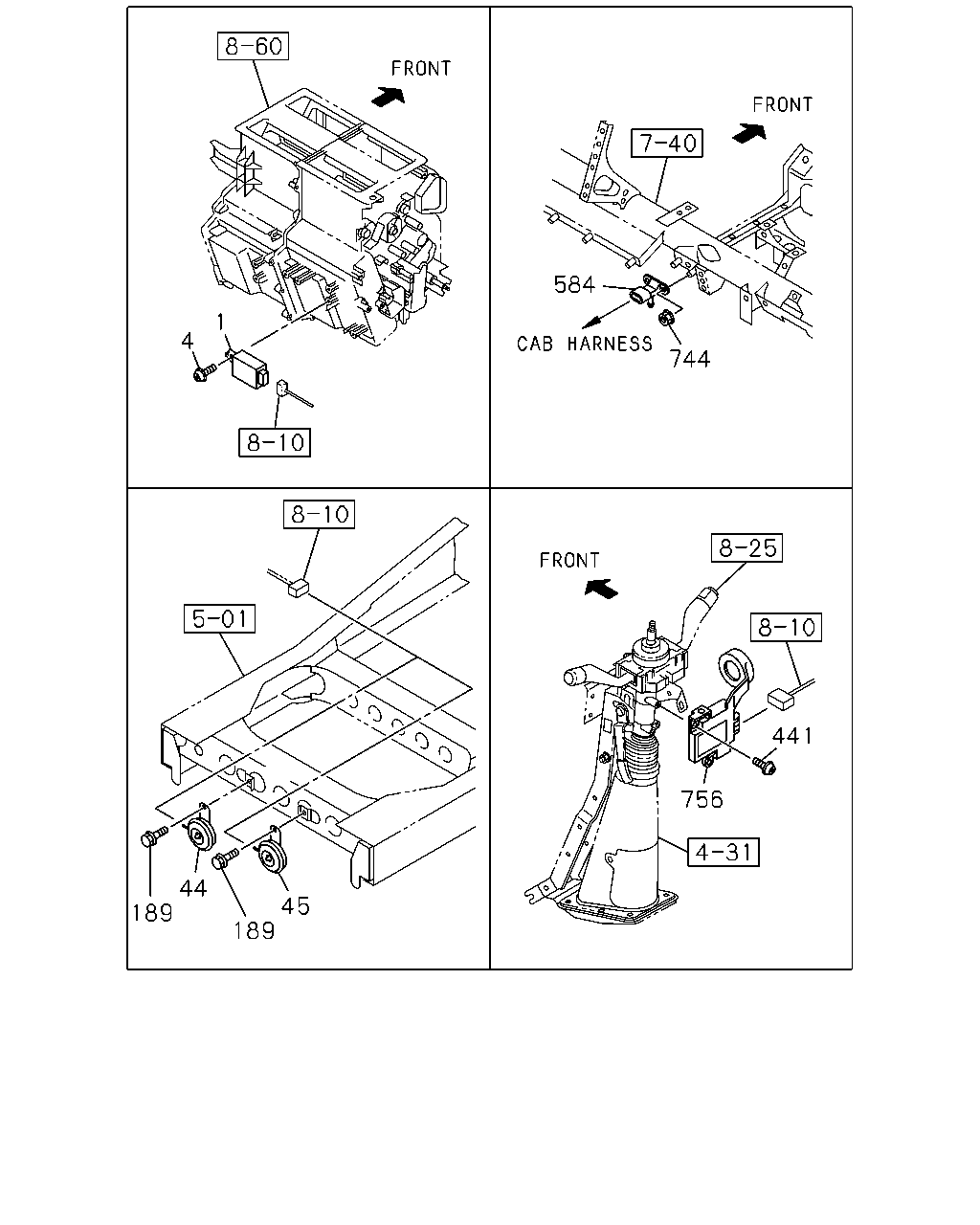

çizim 477052
1 4 584 744 44 189 189 45 441 756
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1505- ● ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505- ● ● ●
44 02.810 HORN; HIGH NOTE 8-98070-080-0 01 1 1505- ● ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1505- ● ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1505- ● ● ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1505- ● ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 03.331 		8-98020-514-0 01 1 1505- ●
744 09.277 NUT; SENSOR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1505- ● ● ●

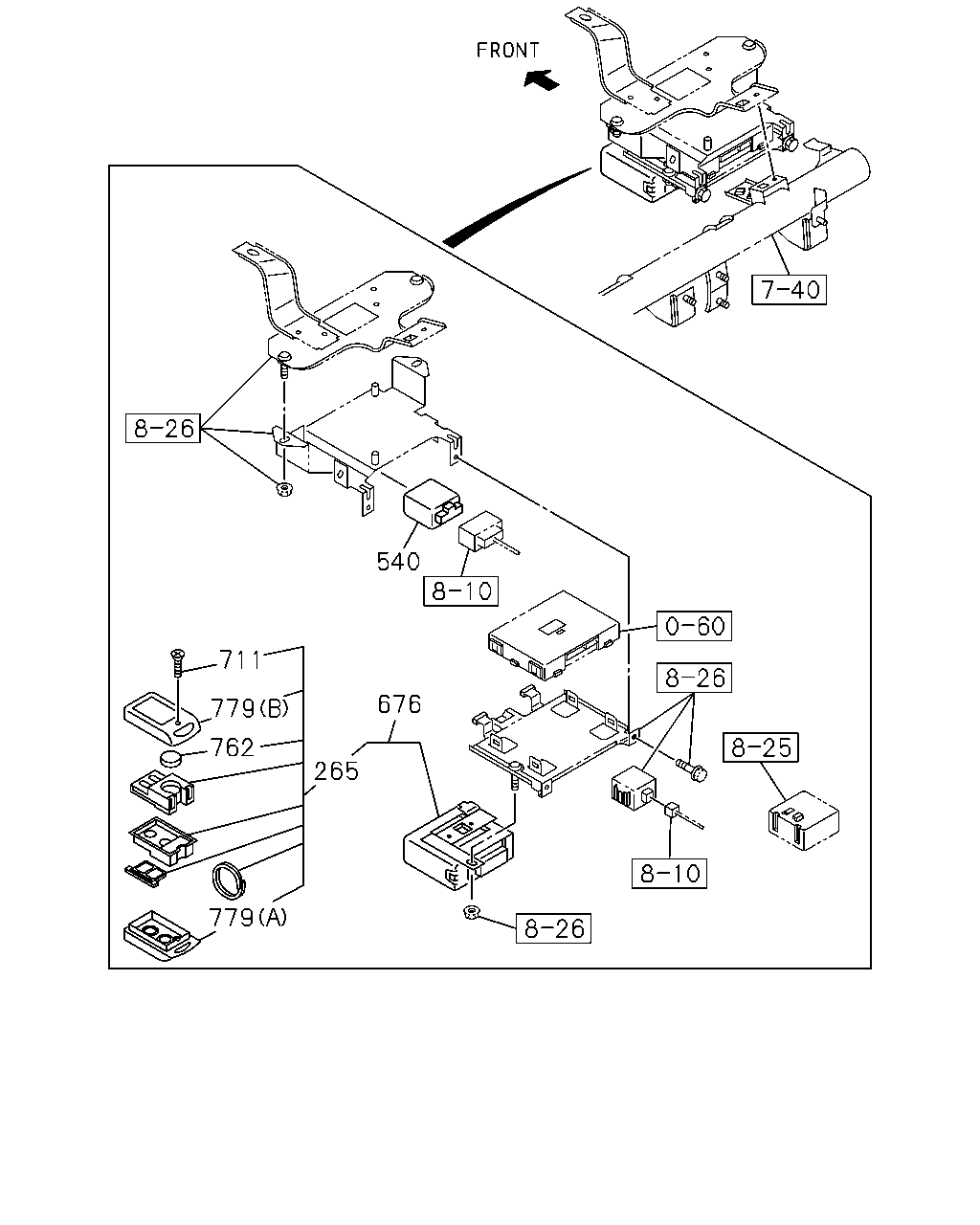

çizim 477114
540 676 265 711 779 762 779
BalonParca AdiParca NoAdetTipApplied Date A B C
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98218-236-0 02 1 1505- ● ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1505- ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98216-693-2 01 1 1505- ● ● ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1505- ● ● ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1505- ● ● ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (A) 		8-98218-240-0 02 1 1505- ● ● ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-243-0 02 1 1505- ● ● ●
