8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#161495) — 93 parça

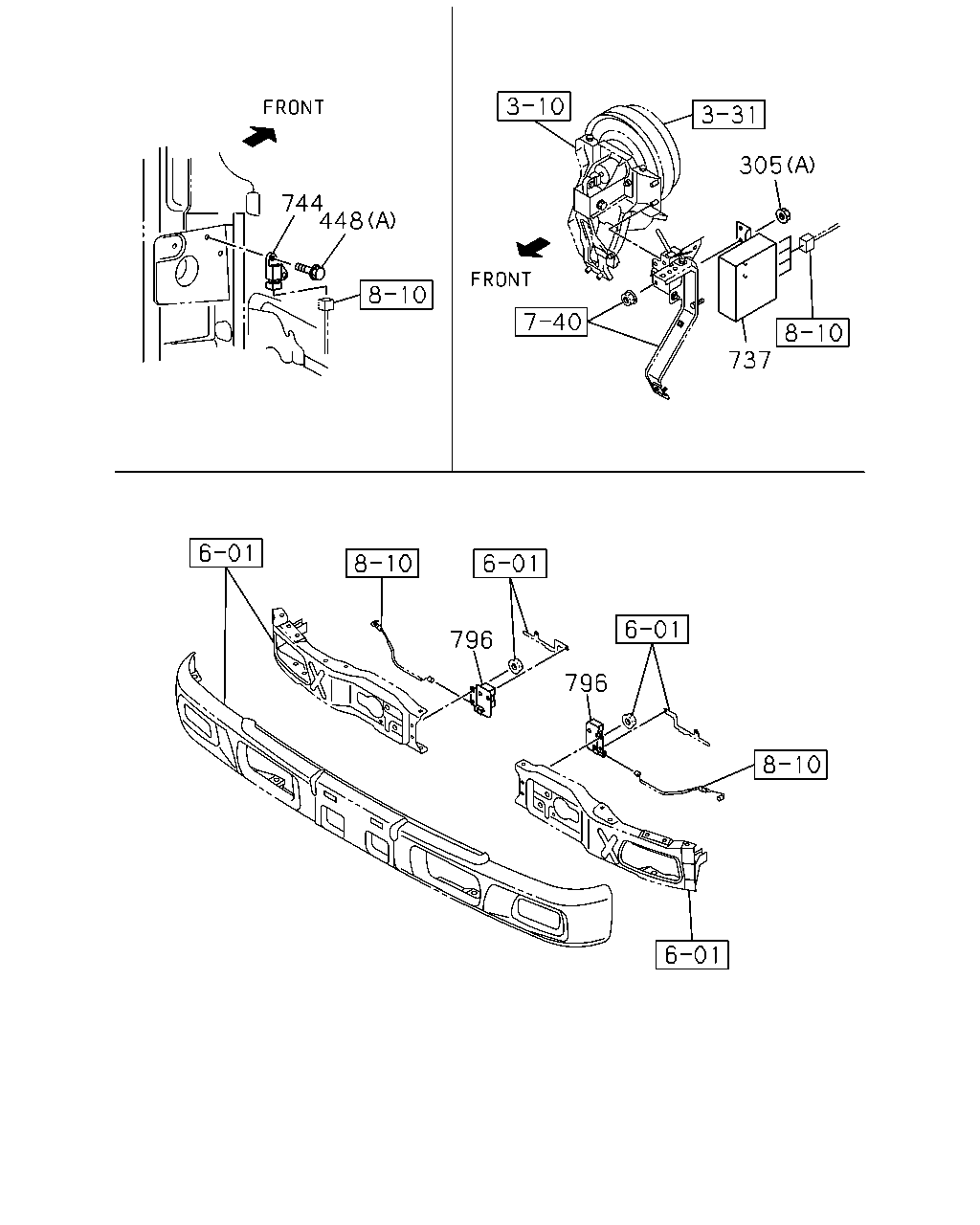

744 305 737 448 796 796

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1505-	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1505-		●	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1505-		●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1505-	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1505-		●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS)	8-98286-454-0	01	1	1505-	●	●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS)	8-98286-452-0	01	1	1505-	●
737	04.115 CONTROL UNIT; TRANSMISSION 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98286-456-0	01	1	1505-		●	●
744	03.682 SENSOR; AIR BAG AIR BAG DRIVER & PASSENGER<AK5>	8-98190-212-0	01	1	1505-	●	●	●
796	02.510 RESISTOR; DROPPING 07.247	8-98225-337-1	01	1	1505-	●	●	●
796	02.510 RESISTOR; DROPPING 07.247	8-98225-338-1	01	1	1505-	●	●	●

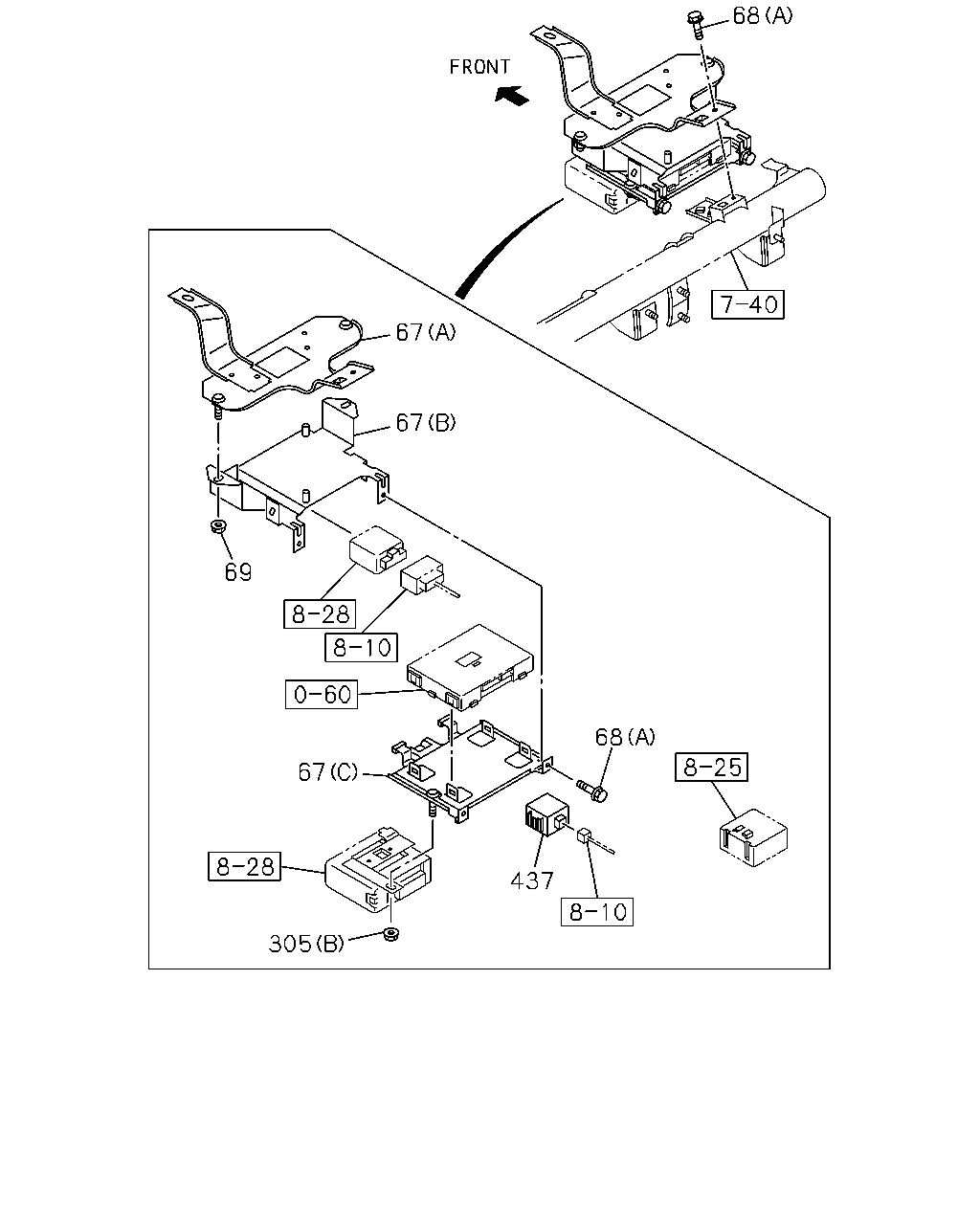

68 67 67 69 67 305 437 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
67	03.887 BRACKET; CONT UNIT (A)	8-98022-170-1	01	1	1505-	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98222-391-1	01	1	1505-	●	●	●
67	03.887 BRACKET; CONT UNIT (C)	8-98222-394-2	01	1	1505-	●	●	●
67	03.887 BRACKET; CONT UNIT CAN INTERFACE FMS STD(8PG) (D)	8-98222-208-0	01	1	1505-	●	●	●
68	02.500 BOLT; BRKT 08.143 (C) M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	1505-		●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	01	1	1505-1507	●	●	●
68	02.500 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-	●	●
68	02.500 BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-			●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1505-1507	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	01	1	1508-	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1505-	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	04	1	1505-		●	●
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1505-	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1505-		●	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1505-		●	●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	1505-	●	●	●

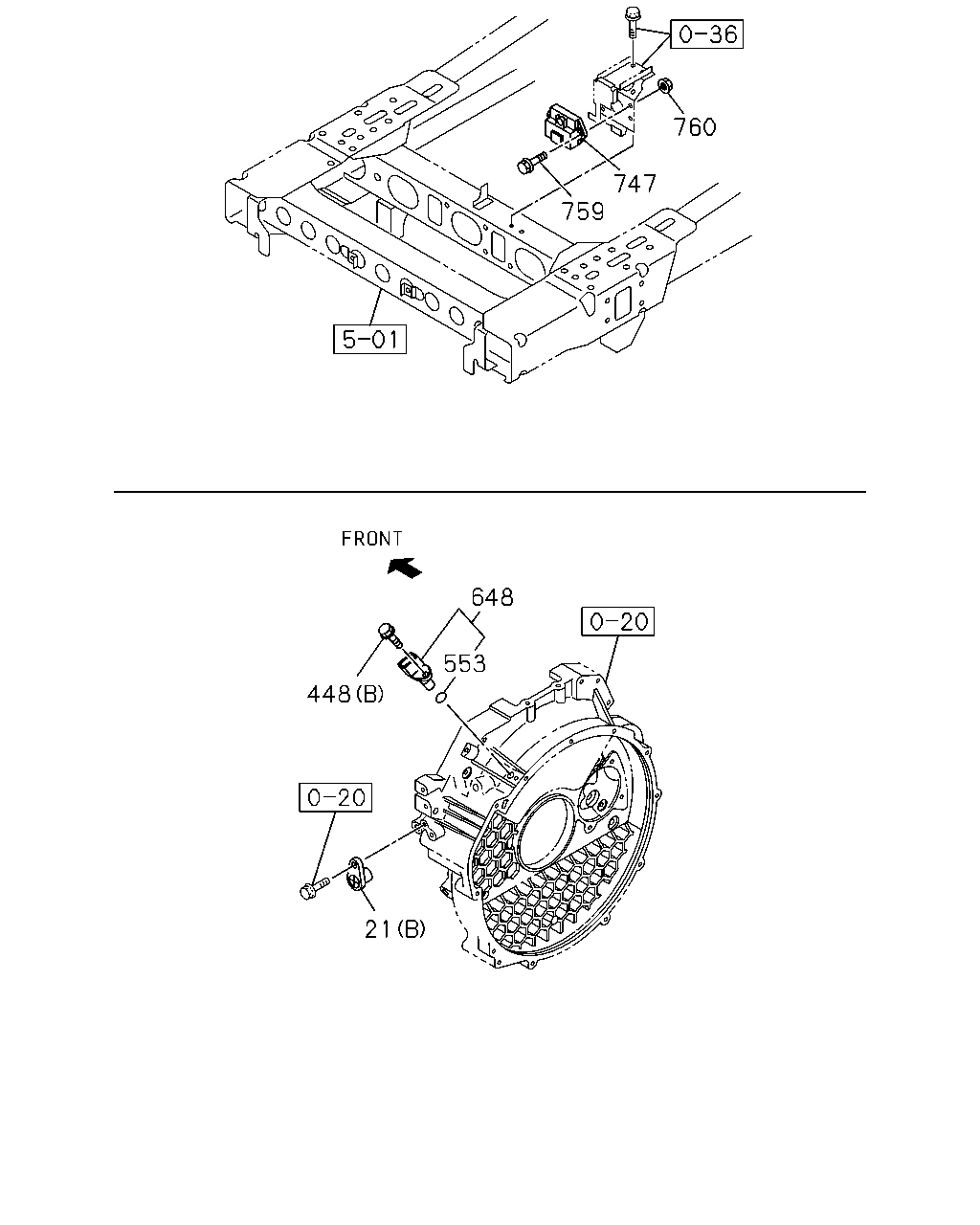

648 553 448 21 759 747 760

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1505-	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1505-	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1505-		●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A)	8-98025-954-1	01	1	1505-		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1505-		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1505-			●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	1505-		●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1505-	●	●	●
448	02.500 BOLT; SENSOR 4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1505-		●	●
553	02.500 GASKET 4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1505-		●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCS ENG(RJS)	8-97606-943-0	01	1	1505-		●	●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-98162-807-0	01	1	1505-		●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6)	8-98133-124-1	01	1	1505-		●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCS ENG(RJS)	8-98133-124-1	01	1	1505-			●
759	04.115 BOLT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1505-		●	●
760	04.115 NUT; CONT MODULE,TURBOCHARGER 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-		●	●

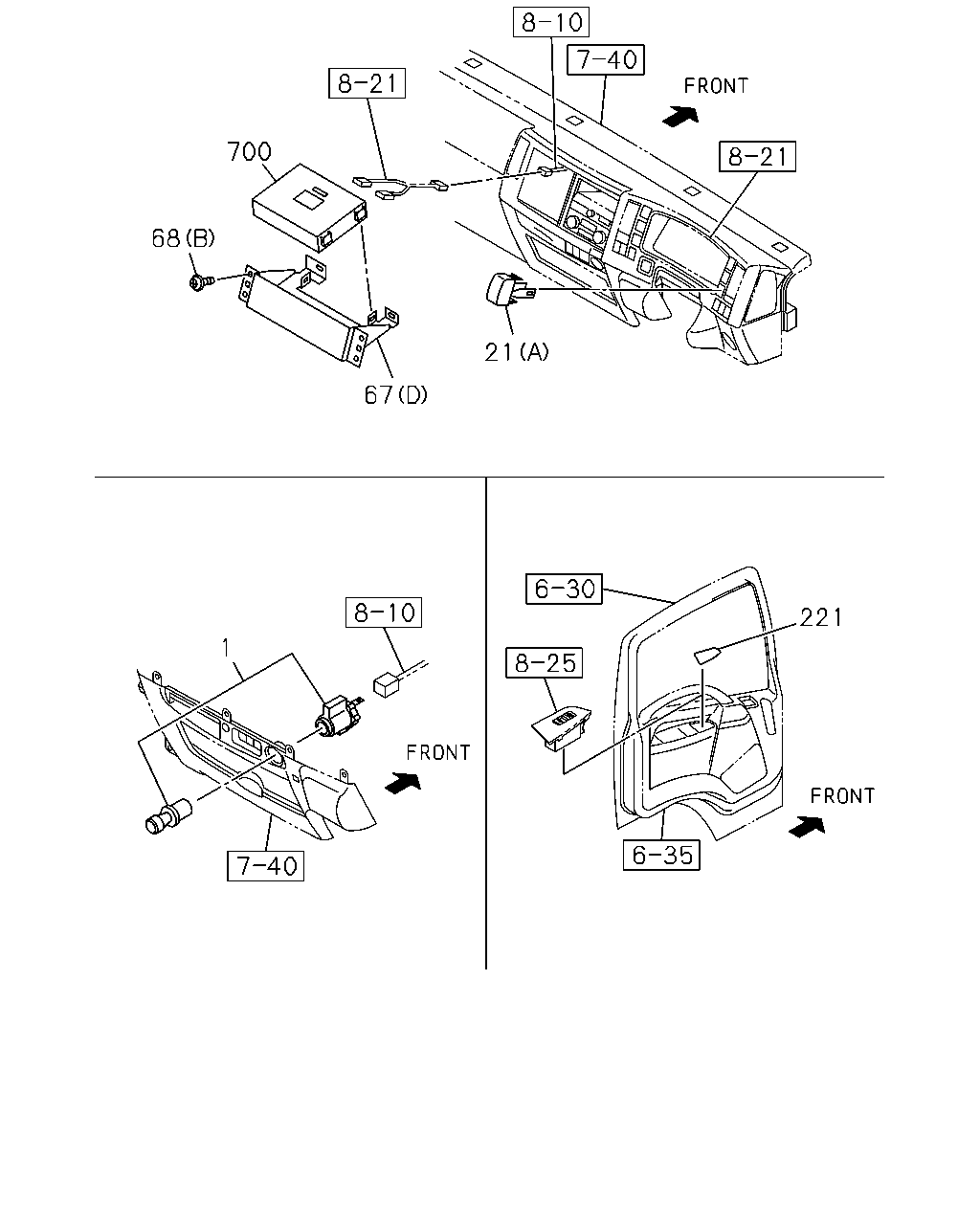

700 68 67 21 1 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	1505-	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1505-	●	●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 16.081 (A)	8-98025-954-1	01	1	1505-	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1505-		●	●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A)	8-98025-954-1	01	1	1505-		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1505-		●
21	09.744 COVER; HOLE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.081 (A)	8-98025-954-1	01	1	1505-			●
21	09.744 COVER; HOLE 4HK1-TCS ENG(RJS) 09.748 (B)	8-97101-974-0	01	1	1505-		●	●
67	03.887 BRACKET; CONT UNIT (A)	8-98022-170-1	01	1	1505-	●	●	●
67	03.887 BRACKET; CONT UNIT (B)	8-98222-391-1	01	1	1505-	●	●	●
67	03.887 BRACKET; CONT UNIT (C)	8-98222-394-2	01	1	1505-	●	●	●
67	03.887 BRACKET; CONT UNIT CAN INTERFACE FMS STD(8PG) (D)	8-98222-208-0	01	1	1505-	●	●	●
68	02.500 BOLT; BRKT 08.143 (C) M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	1505-		●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	01	1	1505-1507	●	●	●
68	02.500 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-	●	●
68	02.500 BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-			●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1505-1507	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	01	1	1508-	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1505-	●	●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1505-	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1505-	●
700	02.510 CONTROL UNIT; CAN CONVERTER CAN INTERFACE FMS STD(8PG)	8-98221-364-1	01	1	1505-	●	●	●

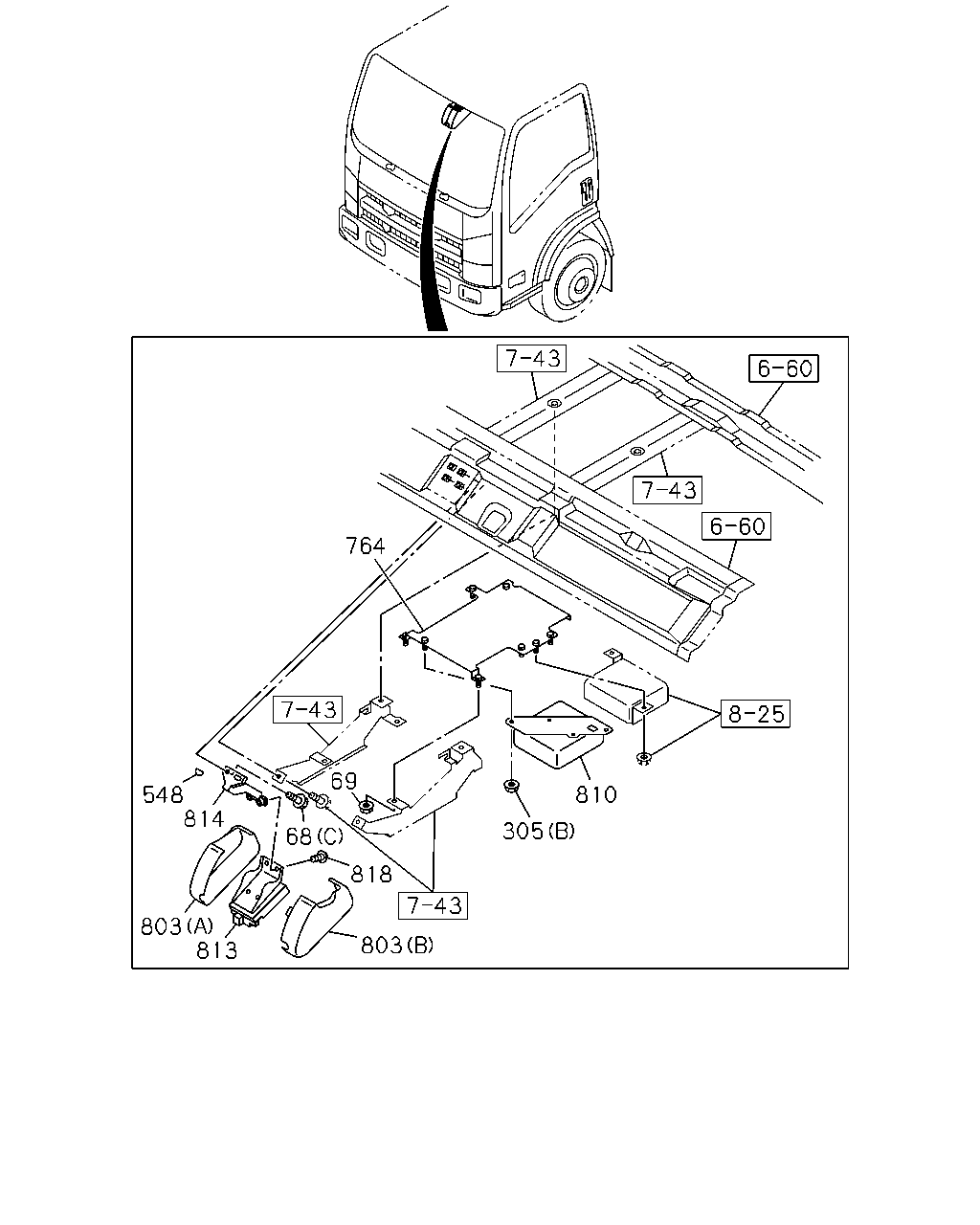

764 548 814 68 69 818 803 813 803 305 810

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
68	02.500 BOLT; BRKT 08.143 (C) M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	1505-		●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	01	1	1505-1507	●	●	●
68	02.500 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-	●	●
68	02.500 BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1508-			●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	02	1	1505-1507	●	●	●
68	02.500 BOLT; BRKT 00.206 (A) M6X12 FLANGE	0-28450-612-0	01	1	1508-	●	●	●
68	02.500 BOLT; BRKT CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1505-	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	04	1	1505-		●	●
305	08.915 NUT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●
305	08.915 NUT; CONT UNIT SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1505-	●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1505-		●	●
305	08.915 NUT; CONT UNIT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1505-		●	●
548	02.510 SEAL; NOISE 16.165 OD=25 BLACK	1-76798-019-0	01	1	1507-		●	●
764	09.743 BRACKET; CONTROL UNIT 03.415	8-98302-858-1	01	1	1505-		●	●
803	09.744 COVER; CAMERA (A) DARK GRAY	8-97466-021-2	01	1	1505-		●	●
803	09.744 COVER; CAMERA (B) DARK GRAY	8-97466-022-2	01	1	1505-		●	●
810	16.341 CONTROL UNIT; ISS 03.883	8-98253-224-4	01	1	1505-1509		●	●
810	16.341 CONTROL UNIT; ISS	8-98322-712-0	01	1	1510-		●	●
813	03.883 CAMERA ASM 09.744	8-98285-601-1	01	1	1505-		●	●
814	03.883 BRACKET ASM; CAMERA 09.744	8-98285-606-1	01	1	1505-		●	●
818	03.883 BOLT; CAMERA ASM 16.570 M6X16	0-38050-616-0	02	1	1505-		●	●
