◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#161491) — 289 parça

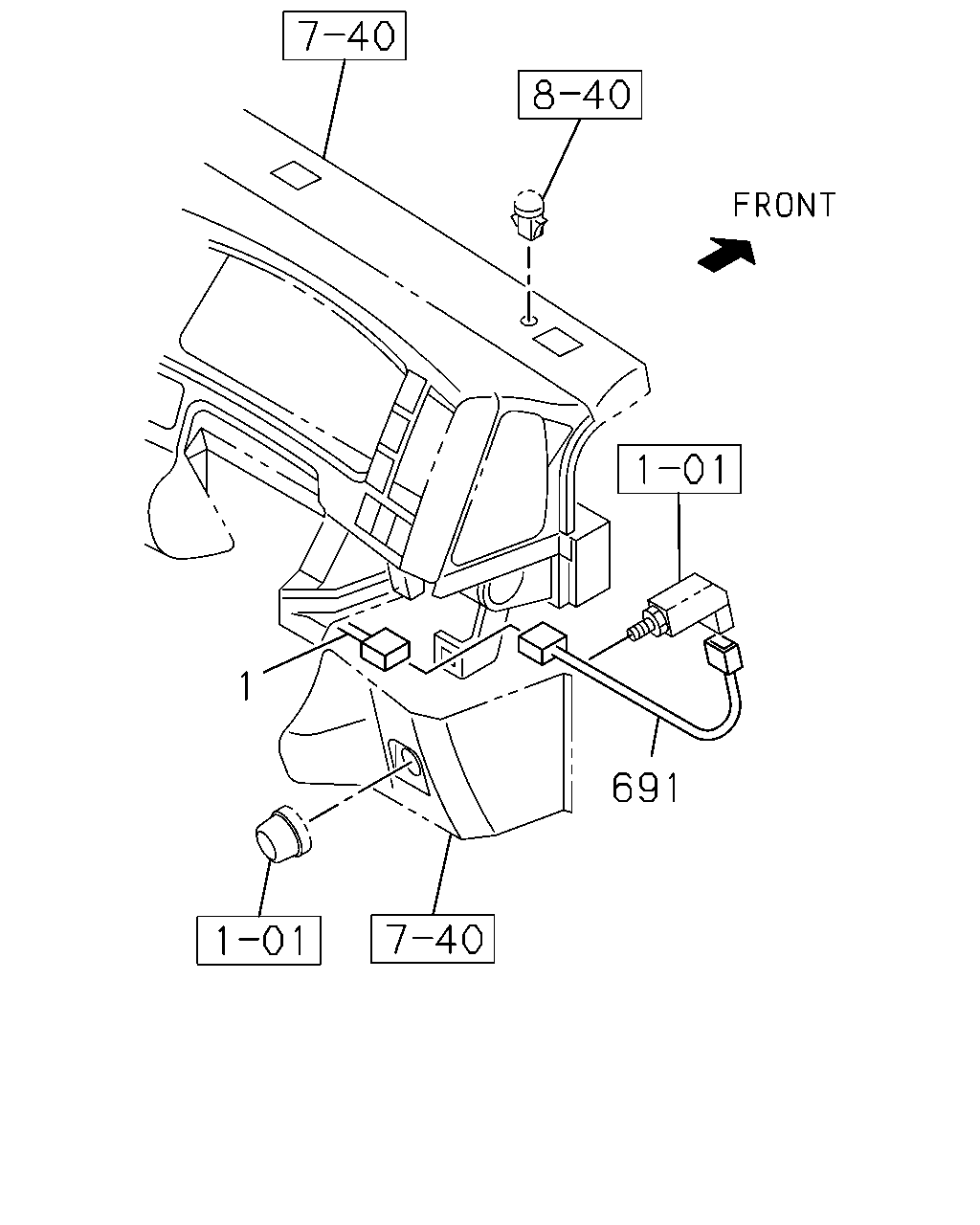

çizim 476435
691 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-072-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-072-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-075-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98288-075-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-074-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-077-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98288-076-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-073-1 01 1 1505- ●
691 02.480 HARNESS; IDLE CONT
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98049-014-2 01 1 1505- ● ● ●

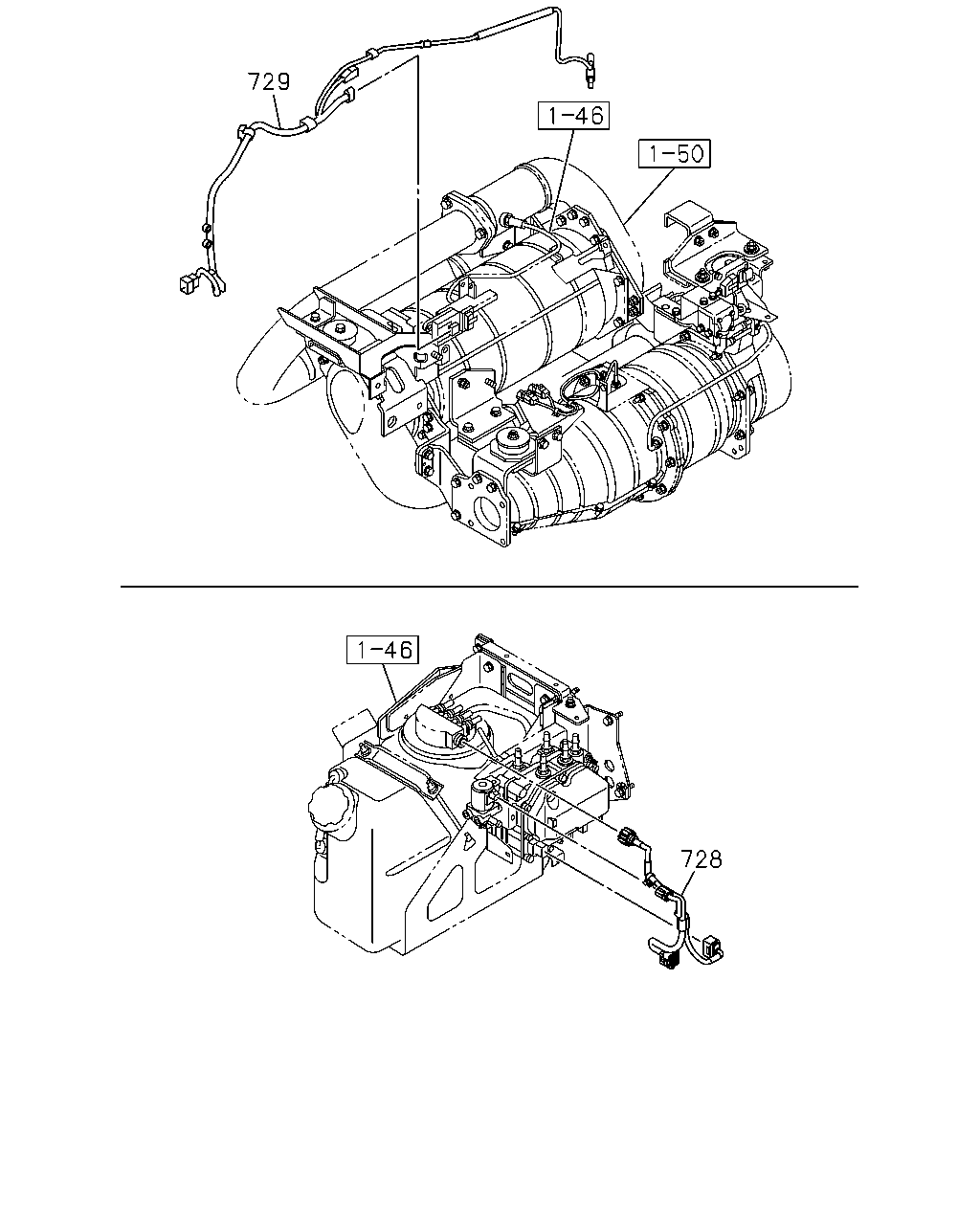

çizim 476552
729 728
BalonParca AdiParca NoAdetTipApplied Date A B C
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98223-200-2 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98223-201-2 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-202-0 01 1 1505- ●
çizim 476640
441 101 290 483 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-072-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-072-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-075-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98288-075-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-074-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-077-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98288-076-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-073-1 01 1 1505- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1505- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-169-2 01 1 1505- ● ●
290 02.483 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
290 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-98080-697-1 01 1 1505- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98080-697-1 01 1 1505- ● ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1505- ● ● ●

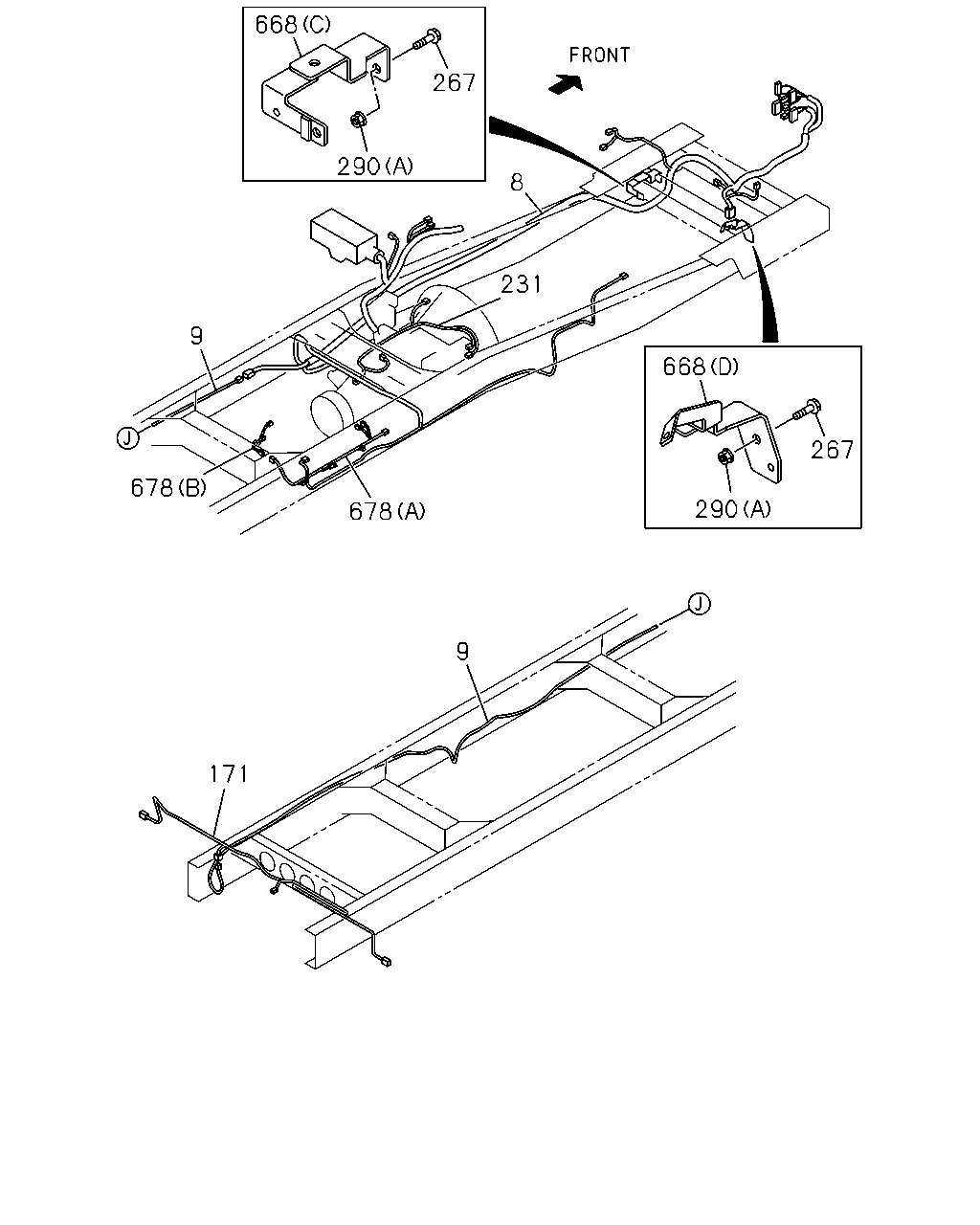

çizim 476766
290 668 267 8 231 678 678 668 290 267 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-909-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-910-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-911-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-911-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-913-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-913-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-548-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98287-702-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-677-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-676-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-888-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-224-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-914-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-912-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-890-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-225-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 		8-98046-995-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) 		8-98228-338-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98047-002-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-002-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98228-339-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-339-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98244-935-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98244-936-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98244-937-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-341-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-199-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-340-1 01 1 1505-1507 ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-340-1 01 1 1508- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
ROAD SWEEPER TRUCK(Y23) 		8-98156-025-0 01 1 1505- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98156-026-0 01 1 1505- ● ● ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ● ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1505-1507 ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1505-1507 ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98224-158-1 01 1 1505- ● ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM) 		8-98080-121-2 01 1 1505-1507 ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98080-121-2 01 1 1508- ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ●
290 02.483 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
290 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.672 (C) 		8-98207-479-1 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98226-452-1 01 1 1505- ● ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-426-2 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98145-581-1 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98145-581-1 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-427-2 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-430-3 01 1 1505- ●

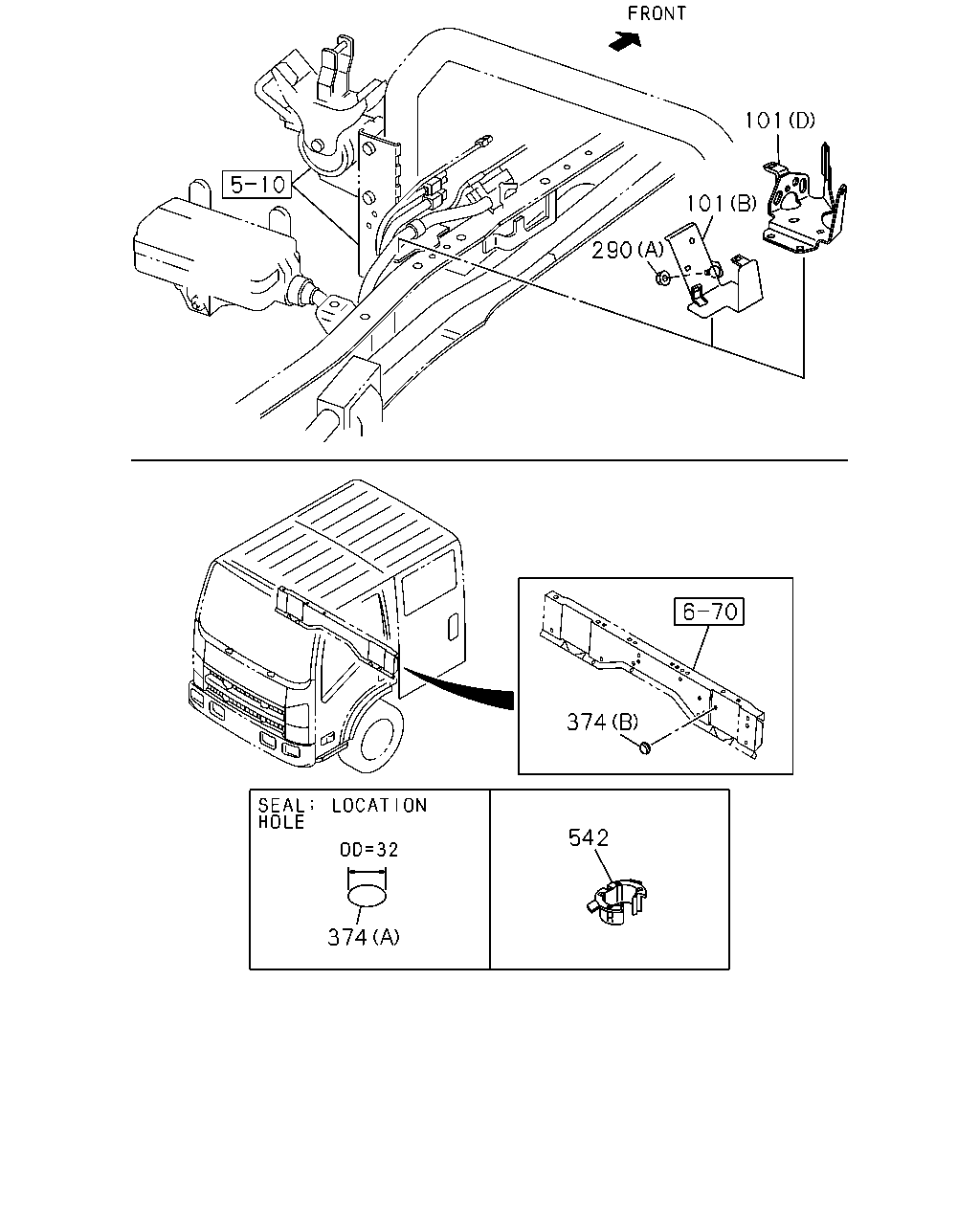

çizim 476827
290 101 101 374 542 374
BalonParca AdiParca NoAdetTipApplied Date A B C
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1505- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-169-2 01 1 1505- ● ●
290 02.483 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1508- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ● ●
290 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 1505- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (B) OD=24.5 T=7.5 		8-97224-683-0 01 1 1505- ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1505- ● ● ●

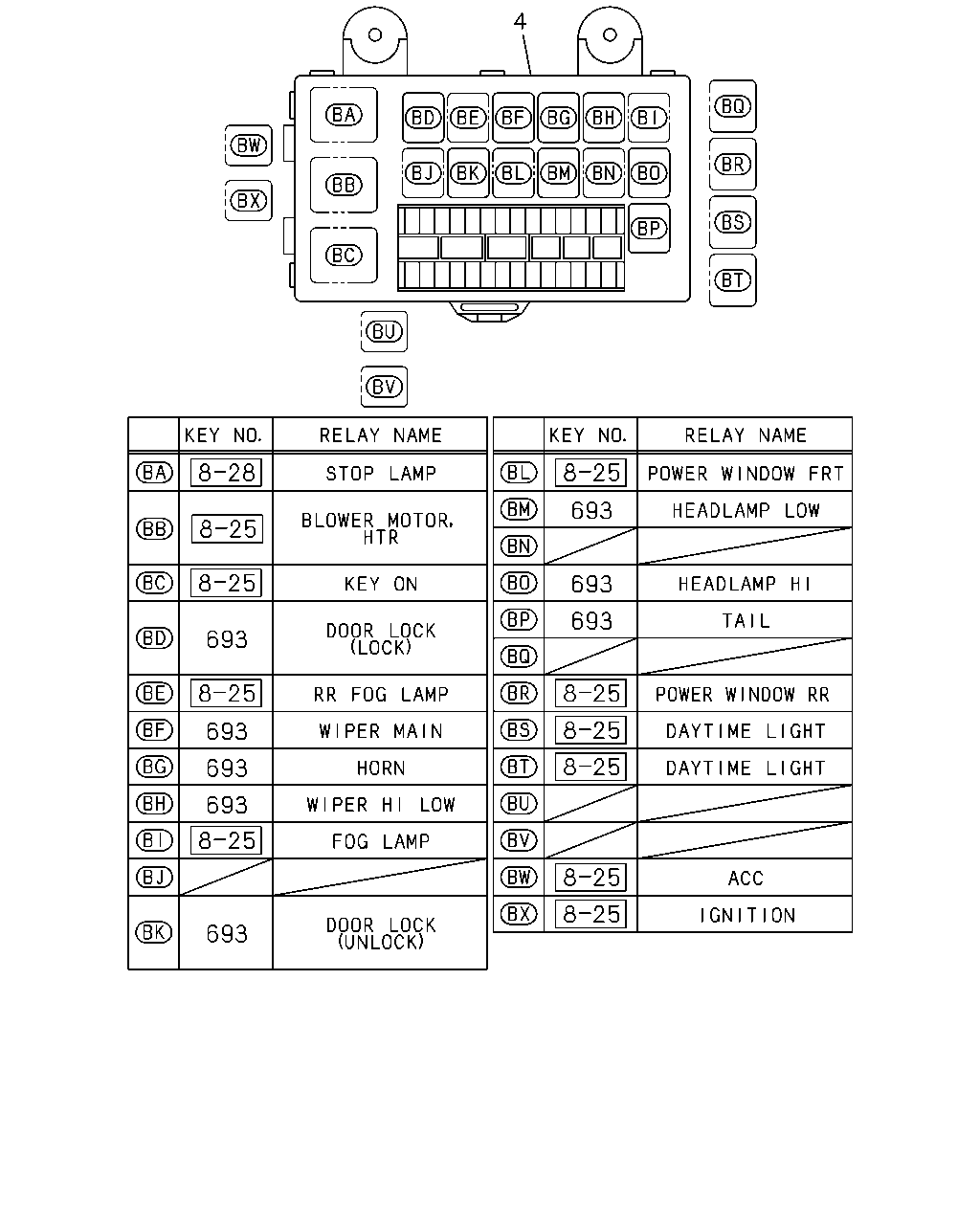

çizim 476846
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 AR 1 1504- ● ● ●
693 02.694 RELAY; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ●
693 02.694 RELAY; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ● ●

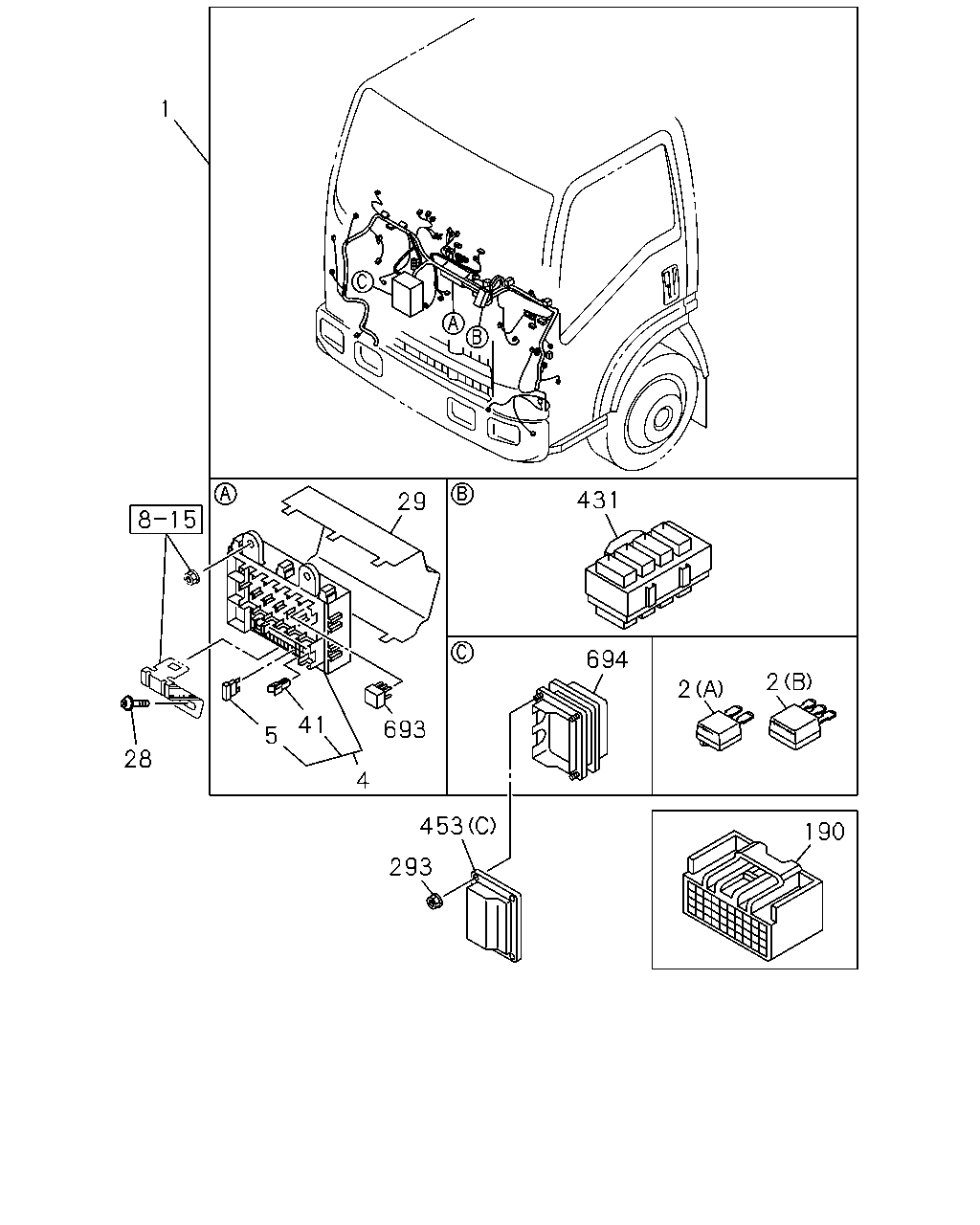

çizim 476908
1 28 5 41 4 693 29 431 694 2 2 190 453 293
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-072-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-072-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> SMOOTHER-EX(TYPE2)(8NS) 		8-98288-075-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98288-075-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-074-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98288-077-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98288-076-1 01 1 1505- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-073-1 01 1 1505- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1504- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1504- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 AR 1 1504- ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1505- ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1505- ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1505- ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505- ● ● ●
29 02.483 COVER; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98056-968-0 01 1 1505- ●
29 02.483 COVER; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) 		8-98056-968-0 01 1 1505- ● ●
41 08.821 PULLER; FUSE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98054-260-0 01 1 1505- ●
41 08.821 PULLER; FUSE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) 		8-98054-260-0 01 1 1505- ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 8-98302-775-0 01 1 1505- ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1505- ● ● ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98046-205-0 01 1 1505- ●
431 02.530 CONNECTOR; JOINT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) 		8-98046-205-0 01 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) (A) 		8-94417-716-0 04 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 04 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 04 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (A) 		8-94417-716-0 02 1 1505- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 03 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 03 1 1505- ●
693 02.694 RELAY; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ●
693 02.694 RELAY; FUSE BOX
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ● ●
694 02.483 BOX ASM; CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 		8-98057-772-0 01 1 1505- ●
694 02.483 BOX ASM; CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) 		8-98057-772-0 01 1 1505- ● ●

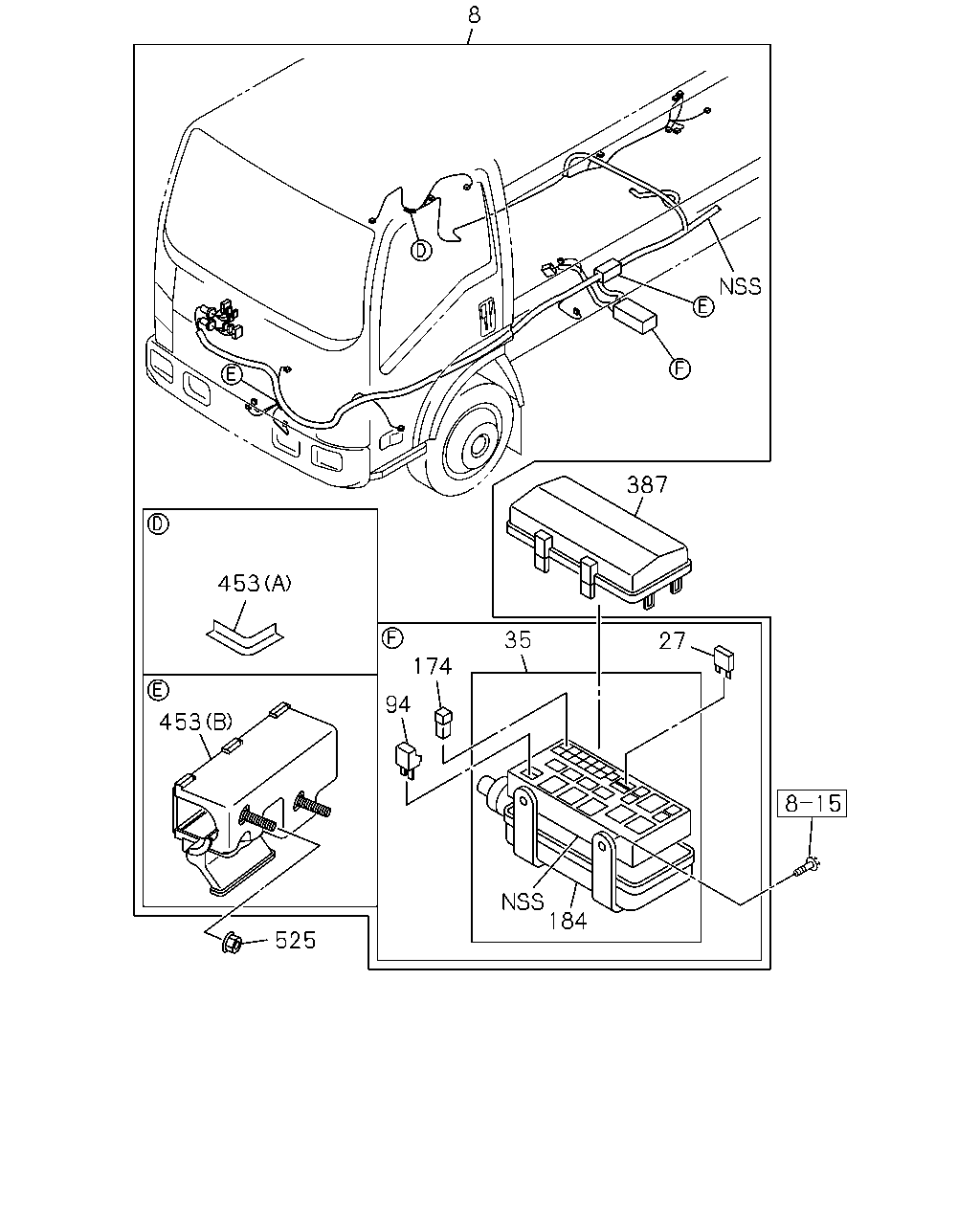

çizim 476921
8 387 27 35 174 94 184 525 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-909-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-910-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-911-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-911-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-913-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-913-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98293-548-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98287-702-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-677-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-676-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-888-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-224-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-914-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-912-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-890-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-225-1 01 1 1505- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1505- ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1505- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1505- ●
35 02.530 BOX; RELAY & FUSE
FRAME STRAIGHT TYPE<7KJ> 		8-98030-763-0 01 1 1505- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98030-763-0 01 1 1505- ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98030-763-0 01 1 1505- ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98030-763-0 01 1 1505- ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1505- ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1505- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1505- ●
184 02.559 COVER; RELAY & FUSE BOX
FRAME STRAIGHT TYPE<7KJ> 		8-98030-766-0 01 1 1505- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98030-766-0 01 1 1505- ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98030-766-0 01 1 1505- ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98030-766-0 01 1 1505- ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98031-620-1 01 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) (A) 		8-94417-716-0 04 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 04 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 04 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (A) 		8-94417-716-0 02 1 1505- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1505- ● ● ●
453 02.483 PROTECTOR; HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 03 1 1505- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 03 1 1505- ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ●

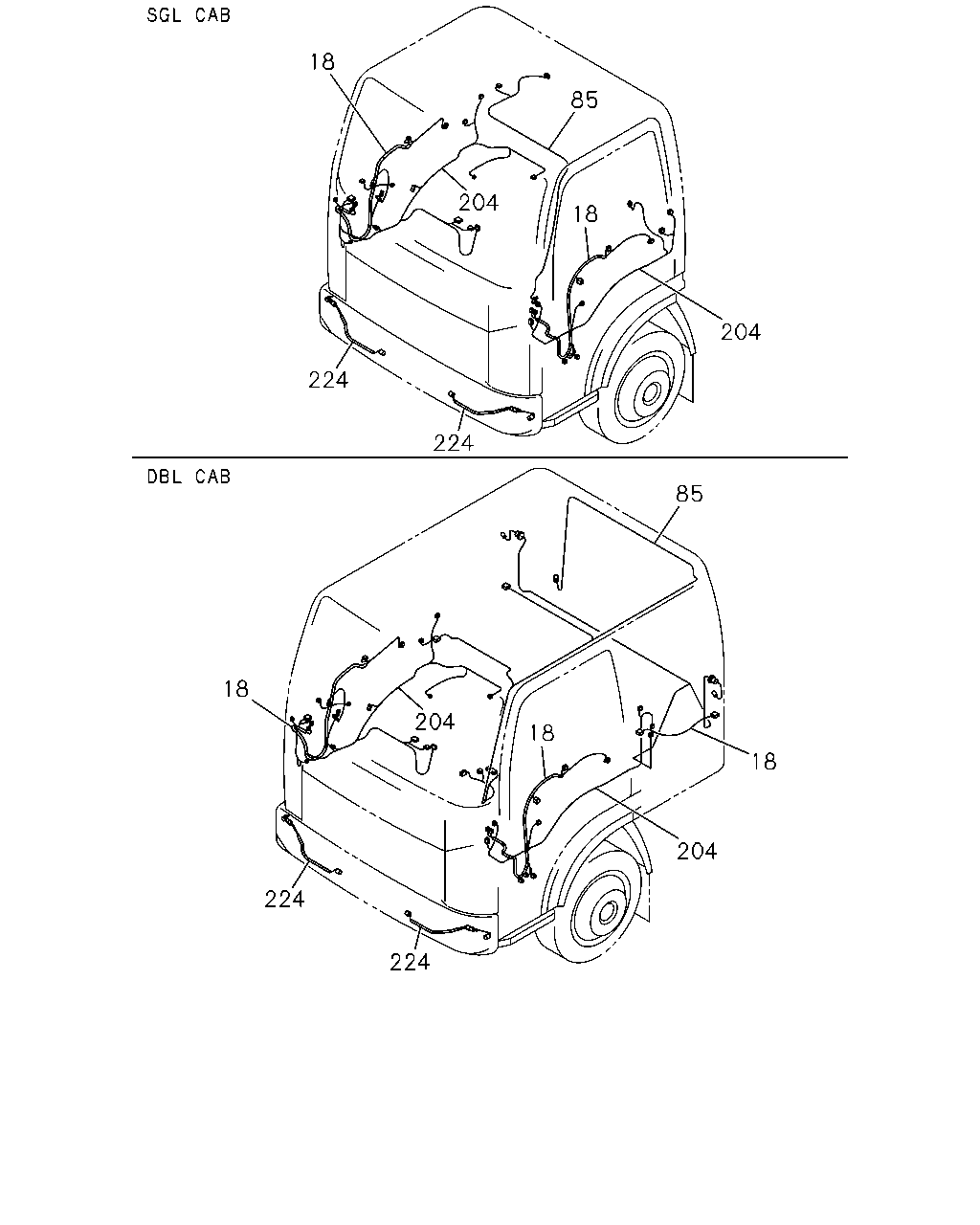

çizim 476940
18 204 18 85 204 85 18 224 224 224 204 18 204 18 224
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-078-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-076-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-077-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-568-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-565-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98286-567-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-564-0 01 1 1505- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR -O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-075-2 01 1 1505- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-560-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-569-2 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-566-2 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-559-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
REAR 		8-98202-555-0 02 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98071-092-2 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98298-961-1 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98298-962-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-505-1 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-507-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-507-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-850-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-850-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-849-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-512-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-510-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98257-329-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-810-3 01 1 1505- ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1505- ● ● ●

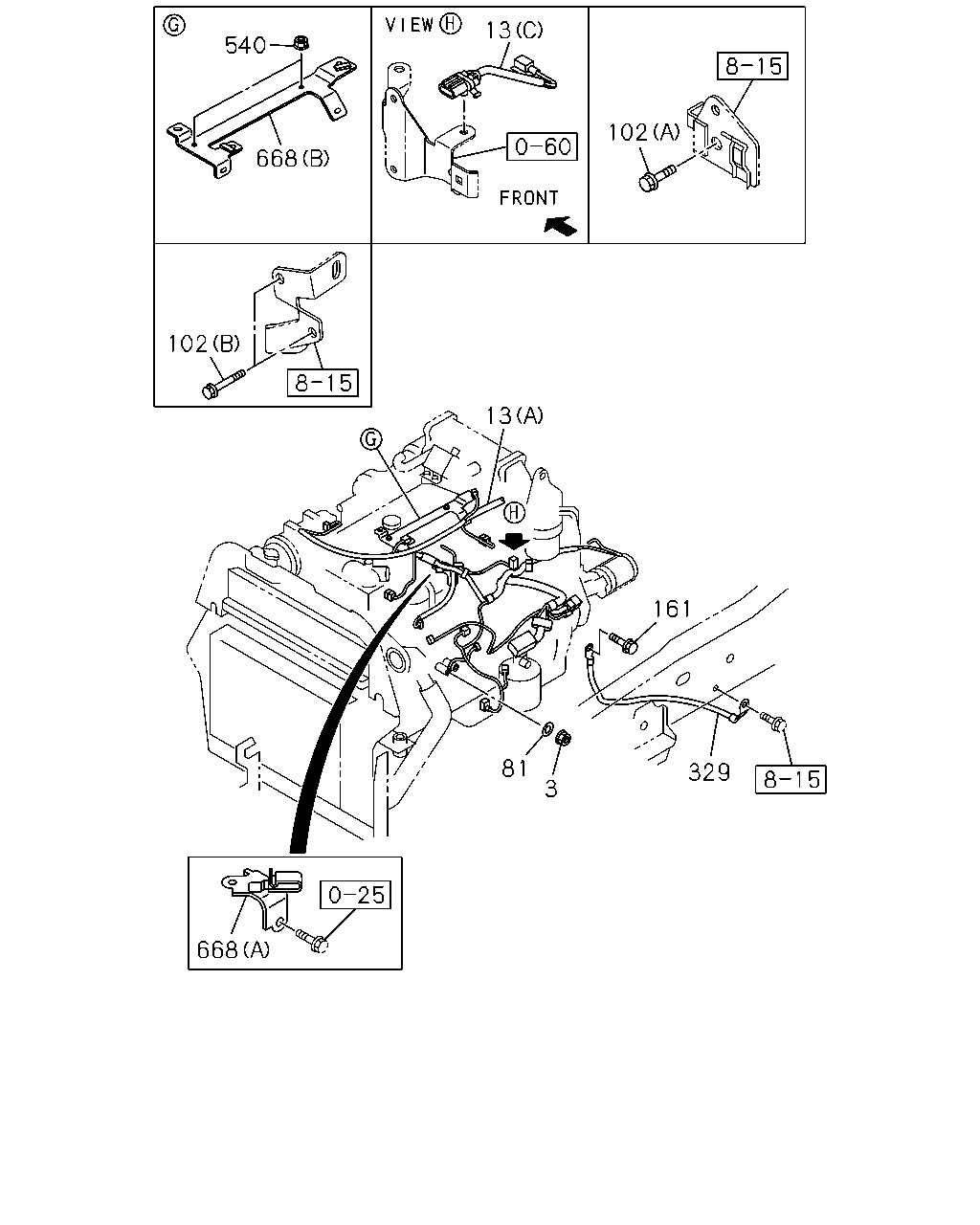

çizim 476965
540 668 13 102 102 13 161 329 3 81 668
BalonParca AdiParca NoAdetTipApplied Date A B C
3 02.559 NUT; GRAND
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1505- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1505- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1505- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1505- ● ●
81 00.010 WASHER; PL,EARTH
4HK1-TCS ENG(RJS) 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1505- ● ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1505- ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1505- ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ● ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ● ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1508- ●
161 02.559 BOLT; GROUND,HARNESS
FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1508- ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1508- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98228-810-1 01 1 1505- ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1505- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1505-1507 ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1508- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1505-1507 ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1508- ● ●
329 02.480 CABLE; ENG TO FRAME
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1508- ●
540 02.483 NUT; BRKT FIX
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.672 (C) 		8-98207-479-1 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98226-452-1 01 1 1505- ● ●

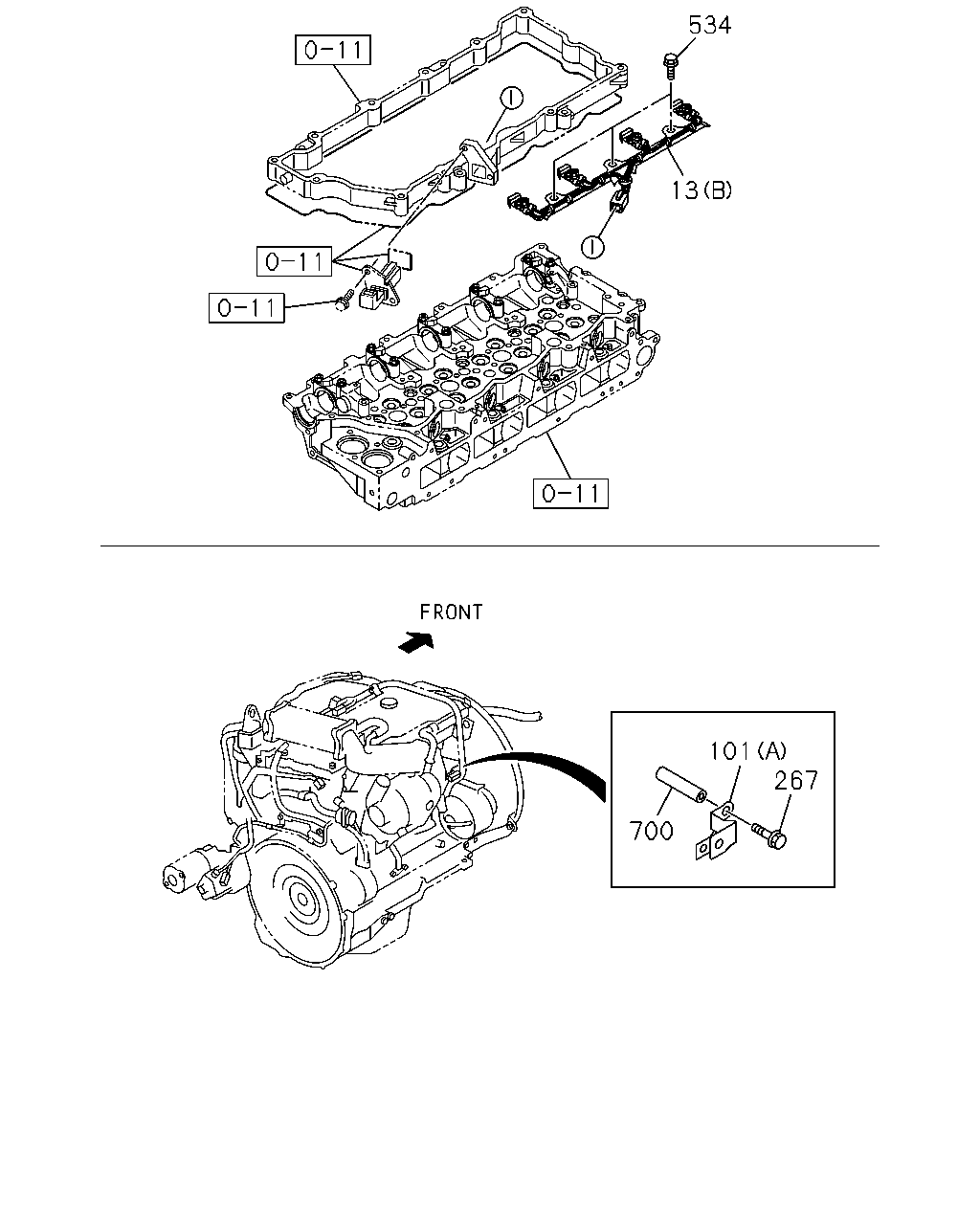

çizim 476976
534 13 267 101 700
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1505- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1505- ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1505- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1505- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-169-2 01 1 1505- ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ●
534 02.483 BOLT
4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1505- ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1505- ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1505- ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
