Isuzu WW
▶
TRUCKS
▶
NNR
▶
51616 - NNR/NPR RHD EUROPE EURO5B+,6
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#161487) — 45 parça
Tümü
A - NPR5WN
B - NPR5SE
C - NPR5SN
◀

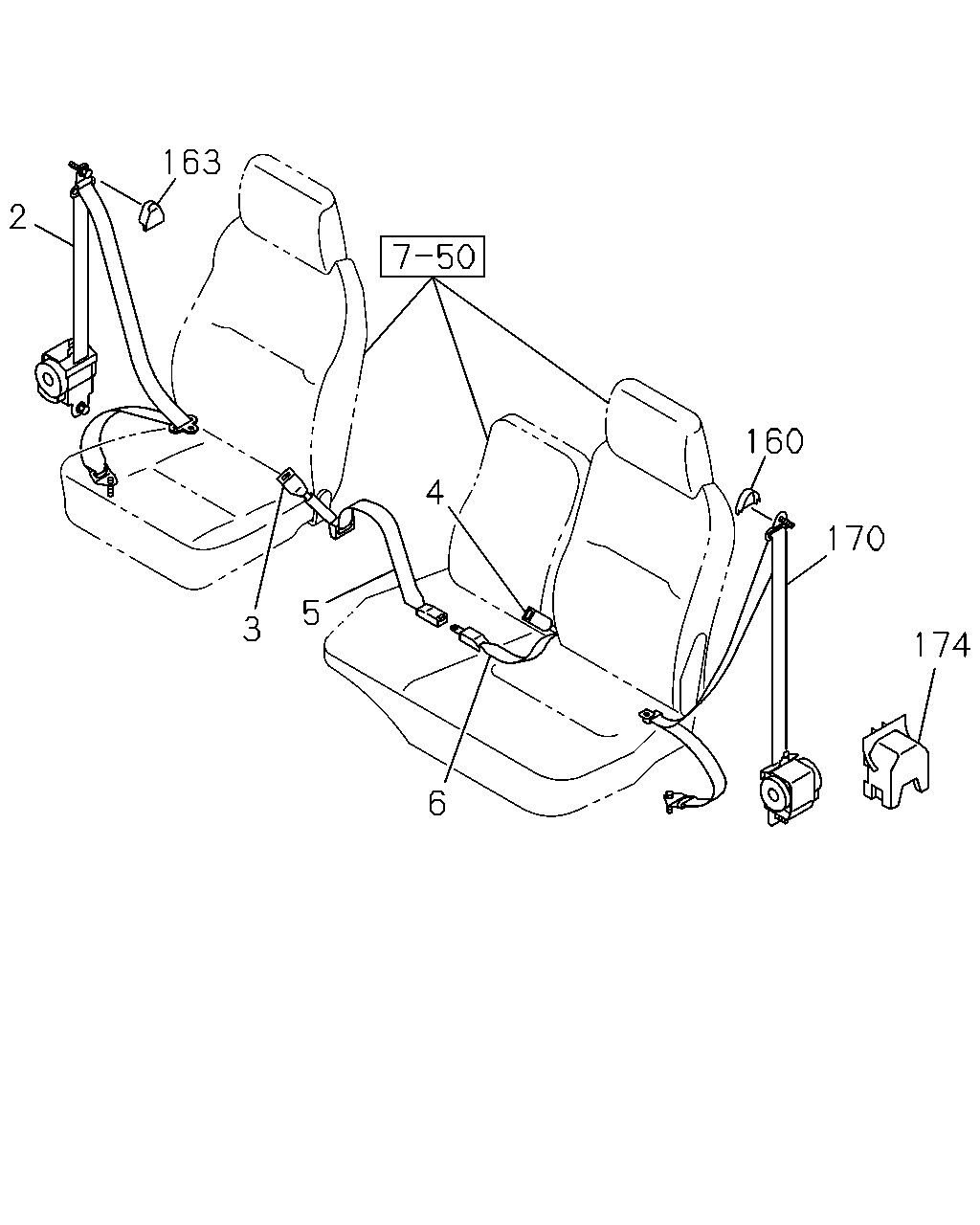

[760A] REAR SEAT (15 parça)
[760A] FRONT SEAT (18 parça)
[760A] SEAT BELT ANCHOR (12 parça)
▶
160
18
19
20
20
19
12
21
21
12
160
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
12
16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING
0-74360-414-0
04
1
1505-
●
18
16.714 BELT; SEAT,RR
SEATBELT COLOR RED<6SX>
8-97465-403-8
02
1
1505-
●
18
16.714 BELT; SEAT,RR
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97405-185-8
02
1
1505-
●
19
16.714 BELT; RR SEAT,BUCKLE SIDE
SEATBELT COLOR RED<6SX>
8-97465-404-3
02
1
1505-
●
19
16.714 BELT; RR SEAT,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97405-992-3
02
1
1505-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEATBELT COLOR RED<6SX>
8-97465-402-3
01
1
1505-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEATBELT COLOR RED<6SX>
8-97465-407-3
01
1
1505-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97411-511-3
01
1
1505-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97411-512-3
01
1
1505-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEATBELT COLOR RED<6SX>
8-97465-405-0
01
1
1505-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEATBELT COLOR RED<6SX>
8-97465-406-0
01
1
1505-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97405-993-0
01
1
1505-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97407-144-0
01
1
1505-
●
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1505-
●
●
●
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
1505-
●
160
170
174
6
5
3
4
163
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SEATBELT COLOR RED<6SX>
8-97465-395-0
01
1
1505-
●
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SEATBELT COLOR RED<6SX> GRAY
8-97428-456-0
01
1
1505-
●
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-457-1
01
1
1505-
●
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97405-175-2
01
1
1505-
●
●
●
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEATBELT COLOR RED<6SX>
8-97465-398-0
01
1
1505-
●
●
●
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97405-178-0
01
1
1505-
●
●
●
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEATBELT COLOR RED<6SX>
8-97465-396-1
01
1
1505-
●
●
●
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97405-182-1
01
1
1505-
●
●
●
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
SEATBELT COLOR RED<6SX>
8-97465-397-2
01
1
1505-
●
●
●
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY
8-97411-507-2
01
1
1505-
●
●
●
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1505-
●
●
●
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
1505-
●
163
16.714 COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
1505-
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> SEATBELT COLOR RED<6SX>
8-97465-395-0
01
1
1505-
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EXC. SEATBELT COLOR RED<6SX> GRAY
8-97428-456-0
01
1
1505-
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEATBELT COLOR RED<6SX> EXC. AIR BAG DRIVER & PASSENGER<AK5>
8-97465-399-1
01
1
1505-
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, SEATBELT COLOR RED<6SX> GRAY
8-97428-457-1
01
1
1505-
●
●
●
174
16.714 COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
1505-
●
●
165
166
169
168
167
166
161
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545
8-98015-216-2
01
1
1505-
●
●
165
16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA>
8-98040-143-0
01
1
1505-
●
●
165
16.714 HOOK; SEAT BELT ANCHOR
8-98040-143-0
01
1
1505-
●
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
05
1
1505-
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1505-
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1505-
●
166
16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE
0-28050-820-0
02
1
1505-
●
●
167
16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA>
8-97589-140-0
01
1
1505-
●
●
167
16.714 PLATE; ANCHOR
8-97589-140-0
01
1
1505-
●
168
16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE
0-91180-108-0
02
1
1505-
●
●
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
1505-
●
169
16.650 SEAL
02.580 OD=36 T=0.05 BLACK
5-76777-035-0
02
1
1505-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
