◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#161483) — 158 parça

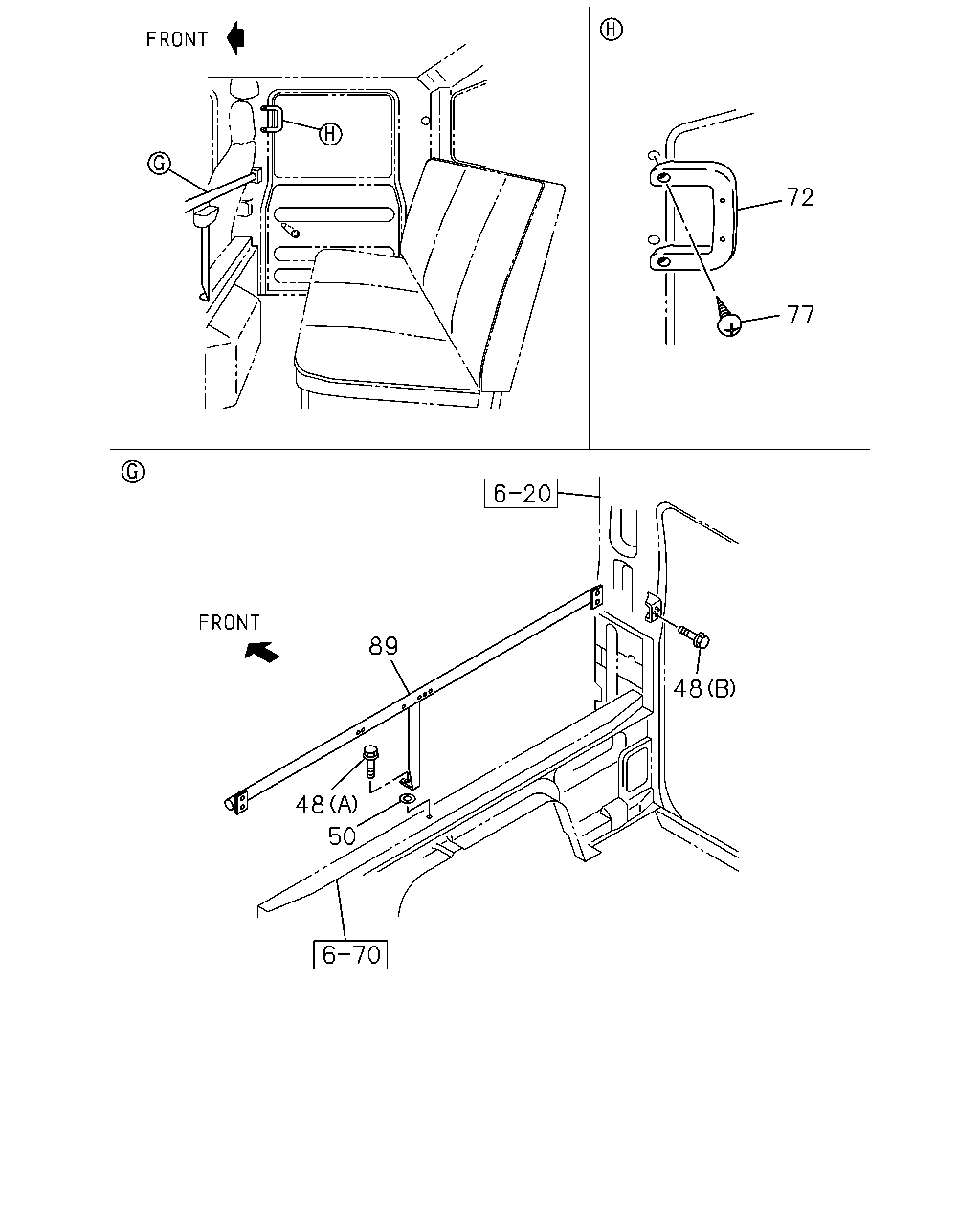

çizim 476294
72 77 48 89 48 50
BalonParca AdiParca NoAdetTipApplied Date A B C
48 16.450 BOLT; ASSIST GRIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 04 1 1505- ●
48 16.450 BOLT; ASSIST GRIP
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1505- ●
50 16.450 WASHER; PL,ASSIST GRIP
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1505- ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97405-249-2 02 1 1505- ●
77 16.450 SCREW; ASSIST GRIP
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M6X28 		8-98004-344-0 04 1 1505- ●
89 16.560 HANDLE; ASSIST 8-97583-743-3 01 1 1505- ●

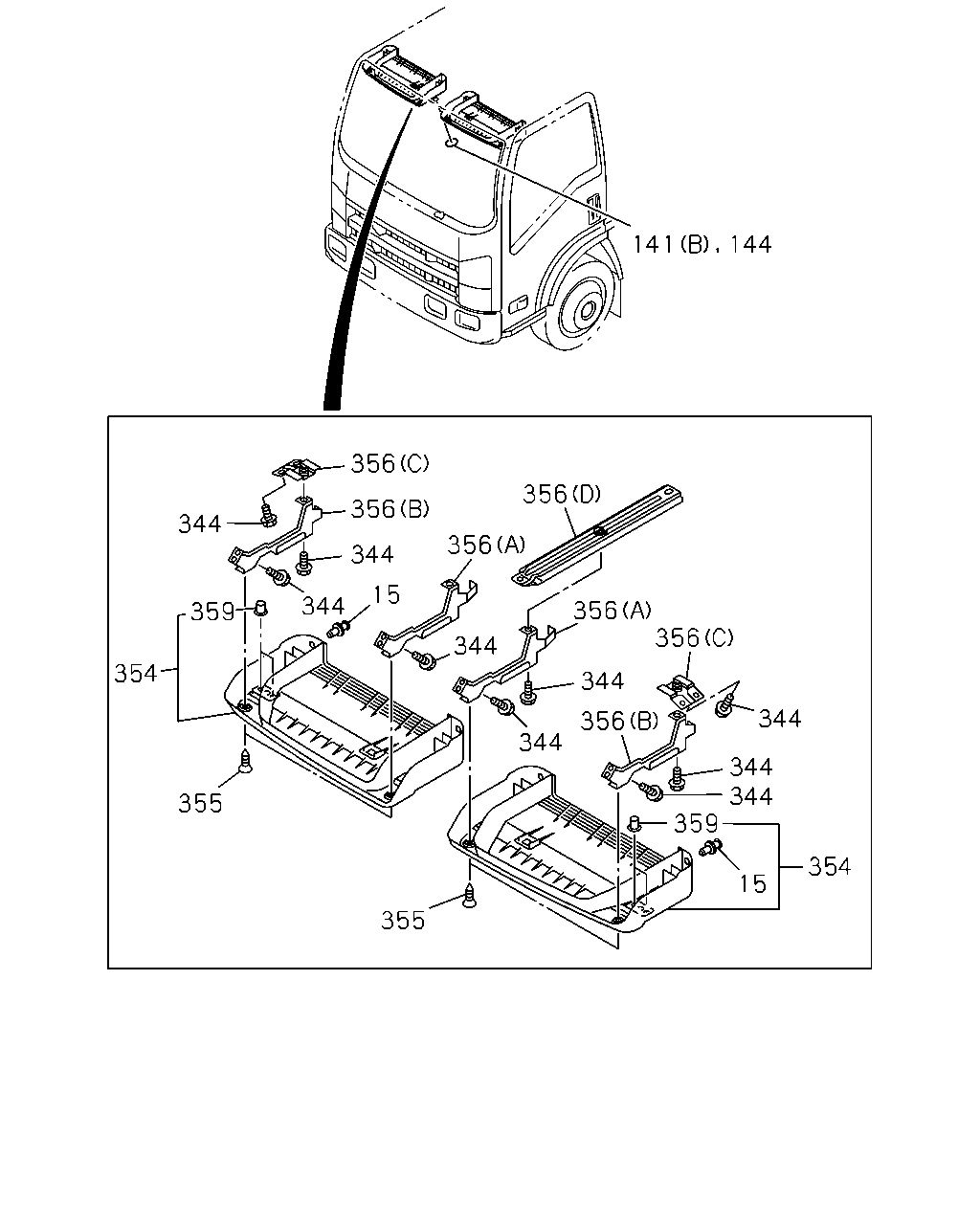

çizim 476799
354 15 359 344 344 344 356 356 356 344 344 344 356 356 344 356 356 359 344 344 354 355 355 15 141 144
BalonParca AdiParca NoAdetTipApplied Date A B C
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1505- ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1505- ●
15 16.742 FASTENER; HEADER SHELF BOARD
DARK GRAY 		8-97406-299-0 02 1 1505- ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
DARK GRAY 		8-97406-299-0 02 1 1505- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
(A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
(A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1505- ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1505- ●
344 16.450 BOLT; BRKT,FRT
03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1505- ● ●
344 16.450 BOLT; BRKT,FRT
03.604 M6X12 FLANGE 		8-97108-669-0 12 1 1505- ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-061-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-061-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-060-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
DARK GRAY 		8-97408-064-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97466-276-1 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97465-873-1 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
DARK GRAY 		8-97465-873-1 01 1 1505- ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ●
355 16.742 SCREW; TRAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ● ●
355 16.742 SCREW; TRAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(D) 		8-97585-577-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(A) 		8-98036-022-4 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(E) 		8-98277-080-0 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
(E) 		8-98277-081-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
(F) 		8-98289-393-0 02 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(C) 		8-97386-874-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(C) 		8-97386-874-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(B) 		8-97585-576-4 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(B) 		8-97585-576-4 01 1 1505- ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1505- ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1505- ●
359 16.070 HOLDER; HEADER TRAY 8-98041-754-0 02 1 1505- ● ●
359 16.070 HOLDER; HEADER TRAY 8-98041-754-0 02 1 1505- ●

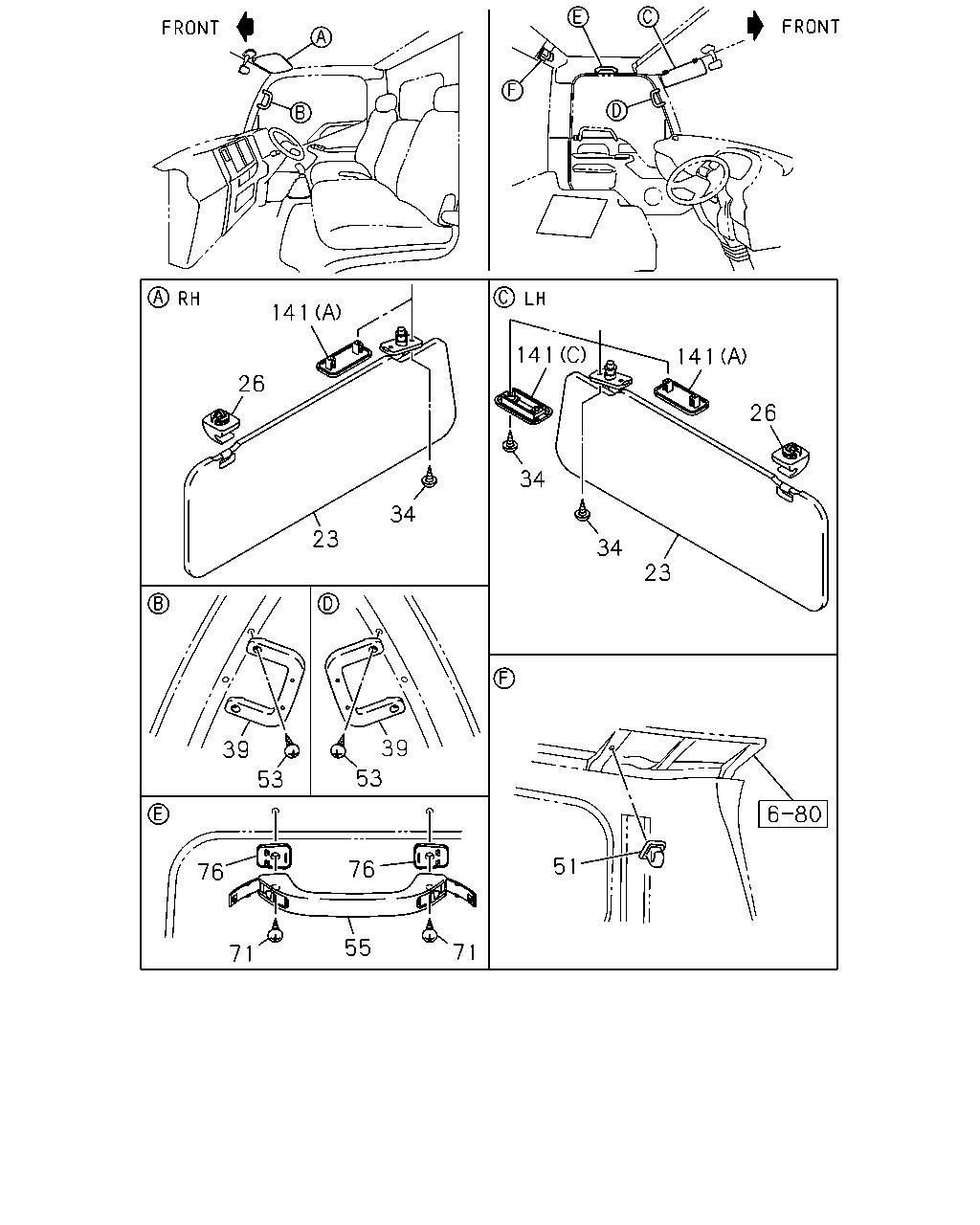

çizim 476844
141 26 23 34 141 141 26 23 34 34 39 53 53 39 51 71 55 76 71 76
BalonParca AdiParca NoAdetTipApplied Date A B C
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 1505- ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 1505- ●
23 16.070 SUN VISOR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97427-611-0 01 1 1505- ●
23 16.070 SUN VISOR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMO OTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97427-611-0 01 1 1505- ●
23 16.070 SUN VISOR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-EX(TYPE2)(8NS) DARK GRAY 		8-97427-611-0 01 1 1505- ●
23 16.070 SUN VISOR
CATALYSIS CONTROL WITH DPD & SCR(JCQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY 		8-97427-609-0 01 1 1505- ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) DARK GRAY 		8-97413-097-1 01 1 1505- ●
23 16.070 SUN VISOR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) DARK GRAY 		8-97413-097-1 01 1 1505- ●
23 16.070 SUN VISOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-095-1 01 1 1505- ●
23 16.070 SUN VISOR
DARK GRAY 		8-97466-278-0 01 1 1505- ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1505- ●
26 16.070 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1505- ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1505- ●
26 16.070 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1505- ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1505- ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1505- ●
34 16.070 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 1505- ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1505- ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1505- ●
34 16.070 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 1505- ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1505- ● ● ●
51 16.570 HOOK; COAT HANGER
COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-302-1 01 1 1505- ● ●
51 16.570 HOOK; COAT HANGER
COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.070 DARK GRAY 		8-97406-200-0 01 1 1505- ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1505- ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1505- ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1505- ● ● ●
76 16.742 SPACER; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-286-0 02 1 1505- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
(A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
(A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●

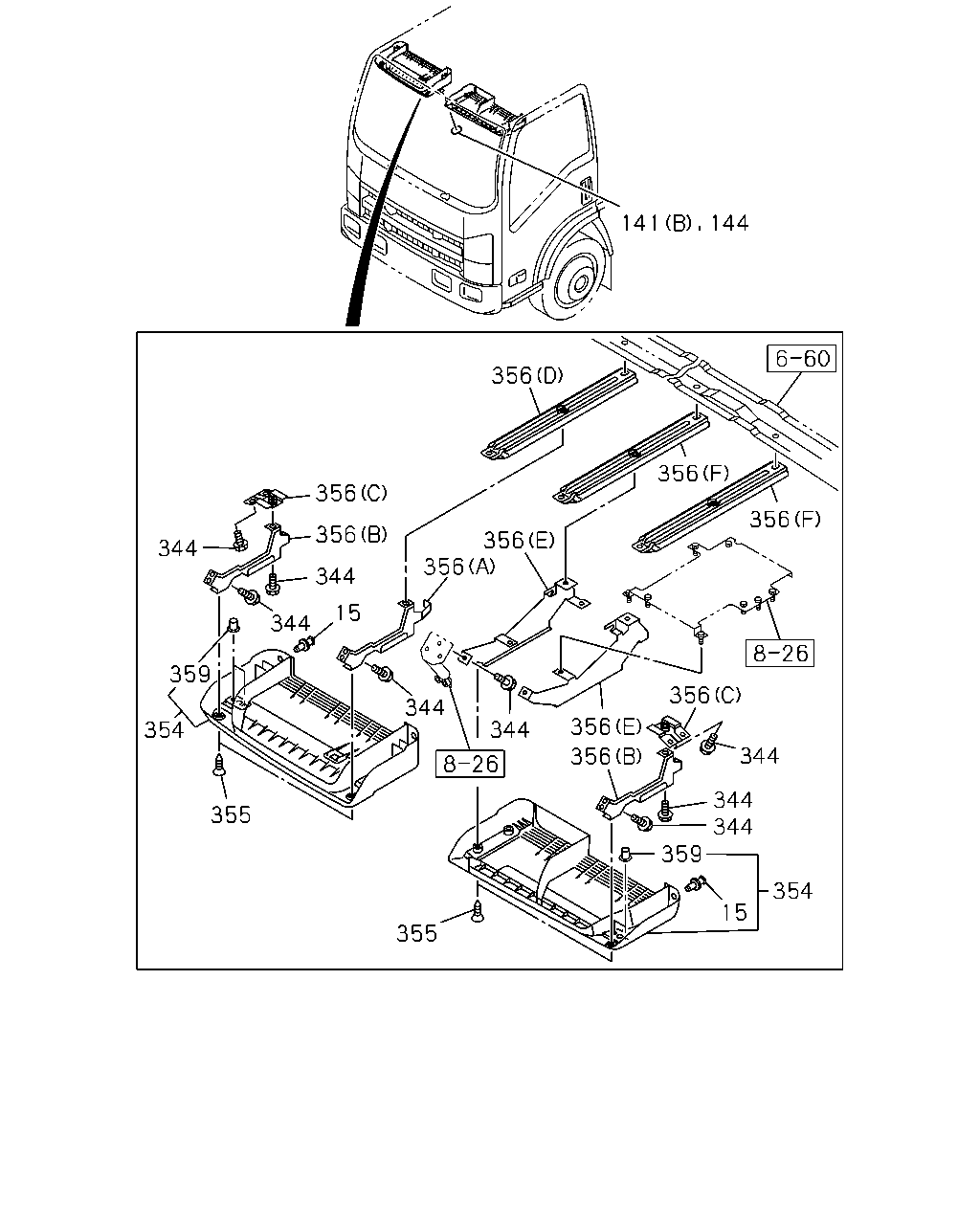

çizim 476962
141 144 356 356 356 356 344 344 344 354 15 359 356 356 344 344 15 344 356 356 356 356 344 359 344 354 355 355
BalonParca AdiParca NoAdetTipApplied Date A B C
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1505- ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1505- ●
15 16.742 FASTENER; HEADER SHELF BOARD
DARK GRAY 		8-97406-299-0 02 1 1505- ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
DARK GRAY 		8-97406-299-0 02 1 1505- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
(A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
141 16.070 COVER; SUN VISOR
(A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1505- ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1505- ●
344 16.450 BOLT; BRKT,FRT
03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1505- ● ●
344 16.450 BOLT; BRKT,FRT
03.604 M6X12 FLANGE 		8-97108-669-0 12 1 1505- ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-061-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-061-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-060-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
DARK GRAY 		8-97408-064-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97466-276-1 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97465-873-1 01 1 1505- ●
354 16.120 TRAY; HEADER ROOF
DARK GRAY 		8-97465-873-1 01 1 1505- ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ●
355 16.742 SCREW; TRAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ● ●
355 16.742 SCREW; TRAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(D) 		8-97585-577-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(A) 		8-98036-022-4 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(E) 		8-98277-080-0 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
(E) 		8-98277-081-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
(F) 		8-98289-393-0 02 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(C) 		8-97386-874-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(C) 		8-97386-874-1 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(B) 		8-97585-576-4 01 1 1505- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1505- ●
356 16.742 BRACKET; ROOF OUTER
(B) 		8-97585-576-4 01 1 1505- ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1505- ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1505- ●
359 16.070 HOLDER; HEADER TRAY 8-98041-754-0 02 1 1505- ● ●
359 16.070 HOLDER; HEADER TRAY 8-98041-754-0 02 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
