6-47 — MUD GUARD AND INSULATOR (#161462) — 119 parça

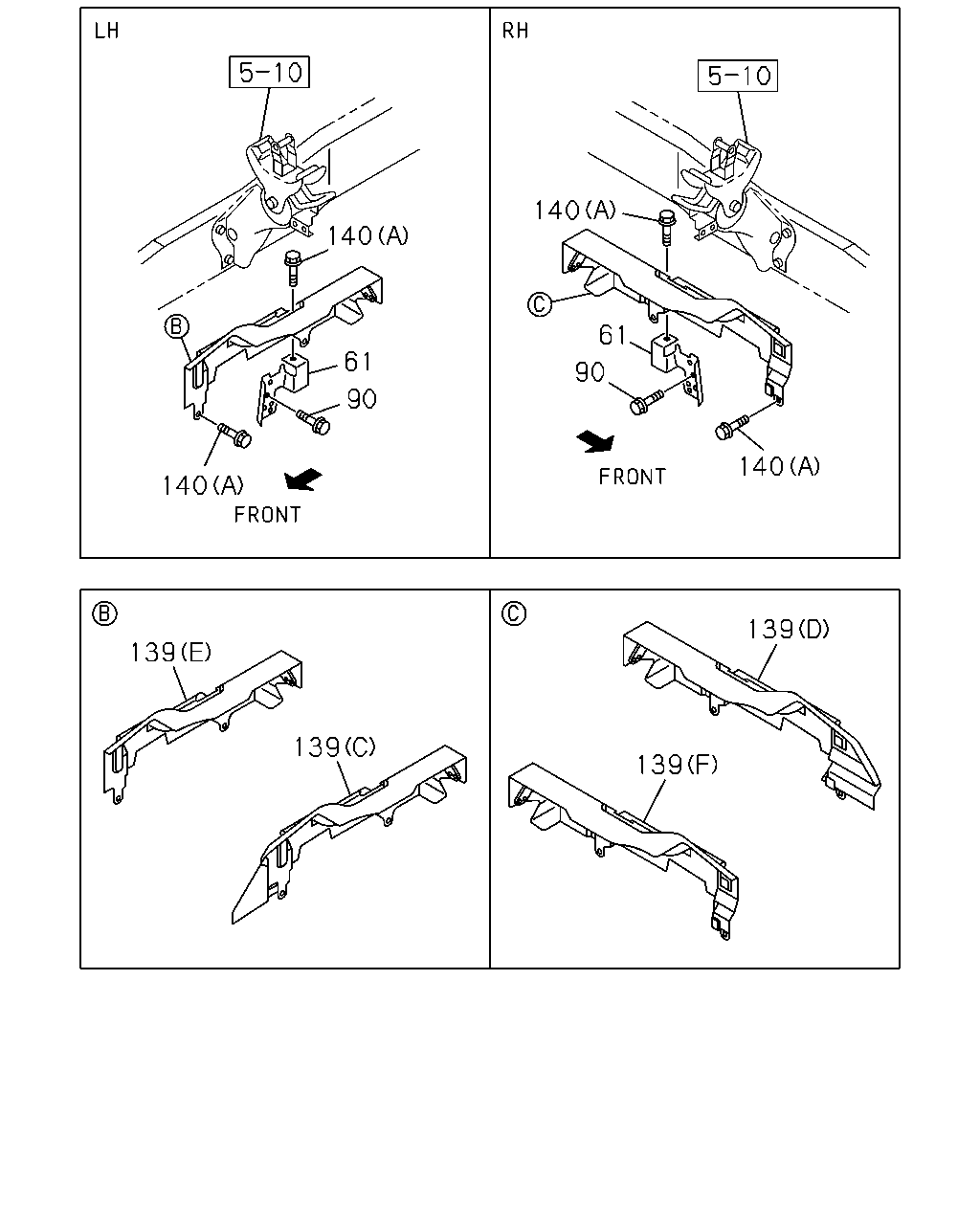

140 90 61 140 140 61 90 140 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	08.155 BRACKET; COVER 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5)	8-98040-465-1	01	1	1508-	●
61	08.155 BRACKET; COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-98040-465-1	01	1	1508-		●
61	08.155 BRACKET; COVER 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5)	8-98040-466-1	01	1	1508-	●
61	08.155 BRACKET; COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-98040-466-1	01	1	1508-		●
90	08.153 BOLT; COVER 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1508-	●
90	08.153 BOLT; COVER 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1508-		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97387-727-4	01	1	1508-	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	1508-		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97387-728-8	01	1	1508-	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	1508-		●
139	08.153 PANEL; SIDE EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98043-920-2	01	1	1508-		●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> (E)	8-98115-458-1	01	1	1508-		●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (A)	8-98150-233-1	01	1	1505-1507	●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) (A)	8-98150-233-1	01	1	1505-1507		●	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A)	8-98150-233-1	01	1	1508-	●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98150-233-1	01	1	1508-		●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) (A)	8-98150-233-1	01	1	1508-			●
139	08.153 PANEL; SIDE (B)	8-98109-500-2	01	1	1505-1507	●	●	●
139	08.153 PANEL; SIDE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98109-500-2	01	1	1508-	●	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B)	8-98109-500-2	01	1	1508-	●
139	08.153 PANEL; SIDE (B)	8-98109-500-2	01	1	1508-			●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) (A)	8-98150-232-1	01	1	1505-1507	●	●	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98150-232-1	01	1	1508-	●	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) (A)	8-98150-232-1	01	1	1508-			●
140	08.155 BOLT; SIDE PANEL EXC. EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1508-	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1508-	●
140	08.155 BOLT; SIDE PANEL (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1508-			●
140	08.155 BOLT; SIDE PANEL (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1505-1507	●	●	●
140	08.155 BOLT; SIDE PANEL EXC. EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1508-	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1508-	●
140	08.155 BOLT; SIDE PANEL (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1508-			●
140	08.155 BOLT; SIDE PANEL (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1505-1507	●	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1508-	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1508-		●

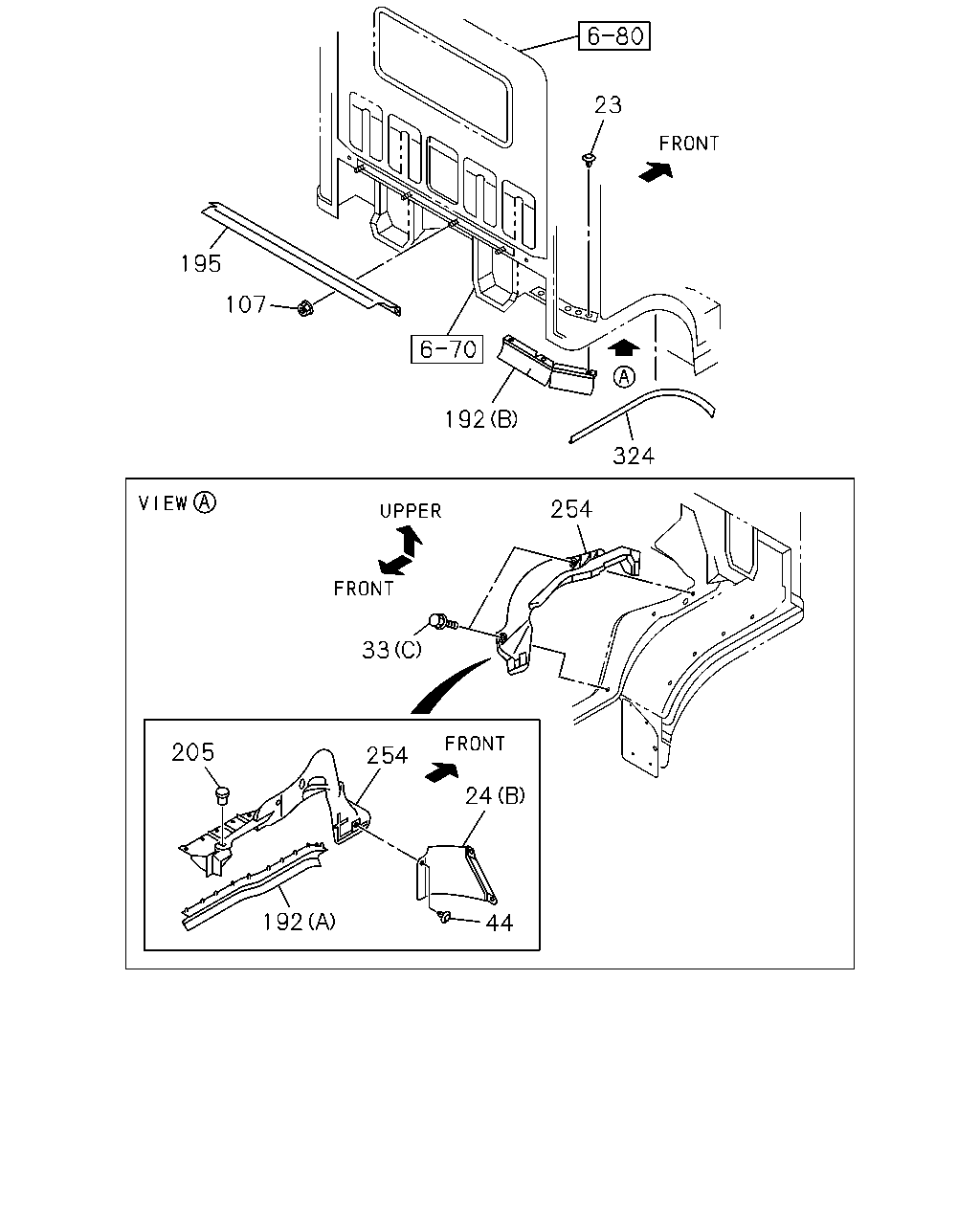

23 192 195 107 254 324 33 254 24 44 192 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1505-	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1505-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1505-	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1505-	●	●	●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	04	1	1505-	●
107	08.214 NUT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB) G.V.W. 5.5-6.0TON(RPU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.417 M6 FLANGE	8-94279-514-0	04	1	1505-		●
107	08.214 NUT; HEAT PROTECTOR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.417 M6 FLANGE	8-94279-514-0	04	1	1505-		●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1505-	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1505-	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1505-	●	●	●
195	03.602 PROTECTOR; HEAT	8-98028-224-1	01	1	1505-	●
195	03.602 PROTECTOR; HEAT 4JJ1-TCS ENG(LFB) G.V.W. 5.5-6.0TON(RPU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98028-224-1	01	1	1505-		●
195	03.602 PROTECTOR; HEAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-98028-224-1	01	1	1505-		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1505-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1505-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1505-	●	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1505-	●	●	●

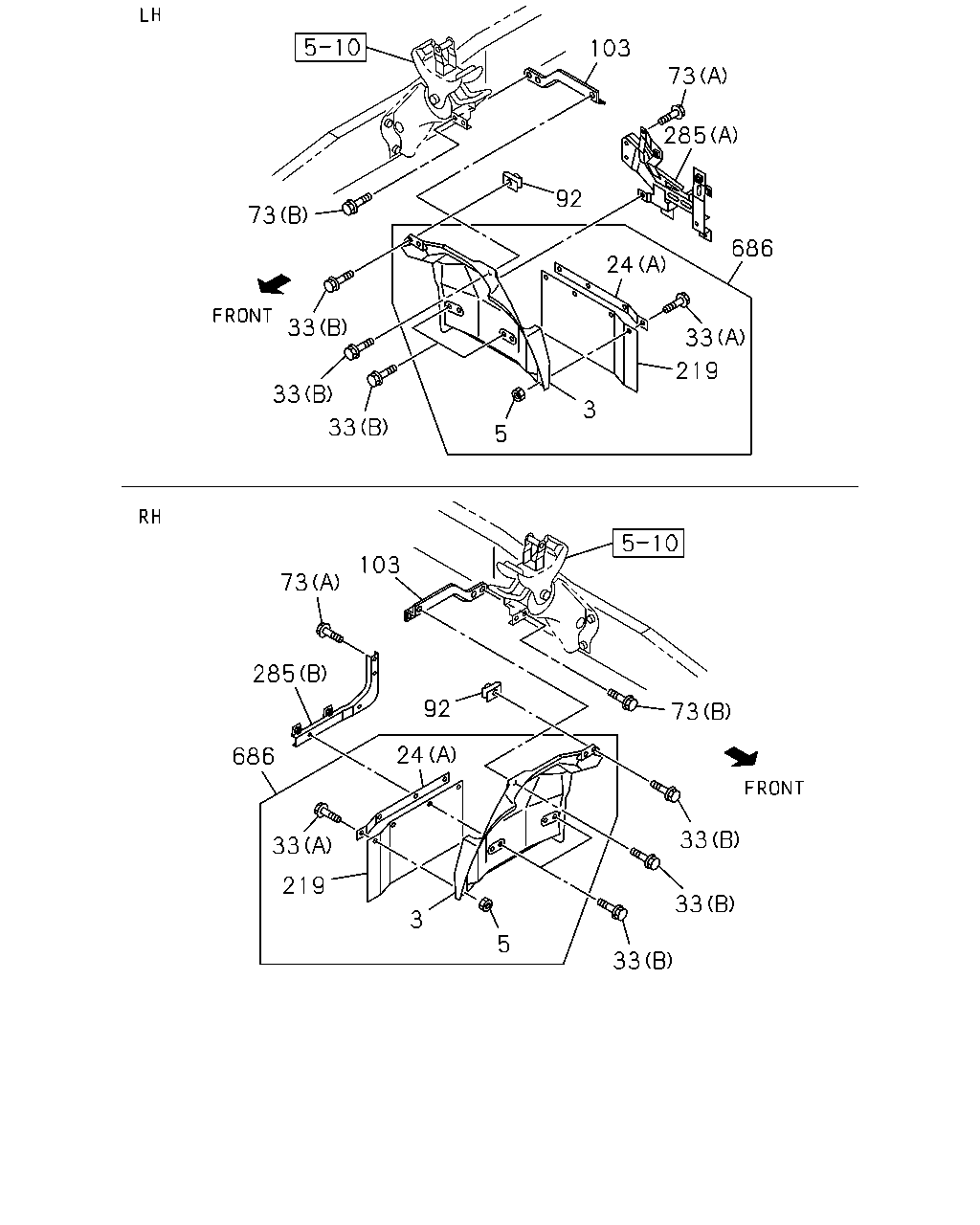

103 73 285 686 24 92 33 219 3 5 33 33 33 73 73 103 285 686 33 219 3 5 33 33 33 73 92 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	1505-	●	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1505-	●	●	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1505-	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1505-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1505-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1505-	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1505-	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1505-	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1505-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1505-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1505-	●	●	●
219	08.155 FLAP; MUD GUARD	8-98004-032-1	02	1	1505-	●
219	08.155 FLAP; MUD GUARD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-98004-032-1	02	1	1505-		●
219	08.155 FLAP; MUD GUARD G.V.W. 6.5-7.0TON(RPW)	8-98004-032-1	02	1	1505-			●
219	08.155 FLAP; MUD GUARD G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	1505-		●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1505-	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1505-	●	●	●
686	08.155 FLAP ASM; MUD	8-97387-746-7	01	1	1505-	●
686	08.155 FLAP ASM; MUD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97387-746-7	01	1	1505-		●
686	08.155 FLAP ASM; MUD G.V.W. 6.5-7.0TON(RPW)	8-97387-746-7	01	1	1505-			●
686	08.155 FLAP ASM; MUD	8-97387-747-6	01	1	1505-	●
686	08.155 FLAP ASM; MUD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97387-747-6	01	1	1505-		●
686	08.155 FLAP ASM; MUD G.V.W. 6.5-7.0TON(RPW)	8-97387-747-6	01	1	1505-			●
686	08.155 FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	1505-		●	●
686	08.155 FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	1505-		●	●

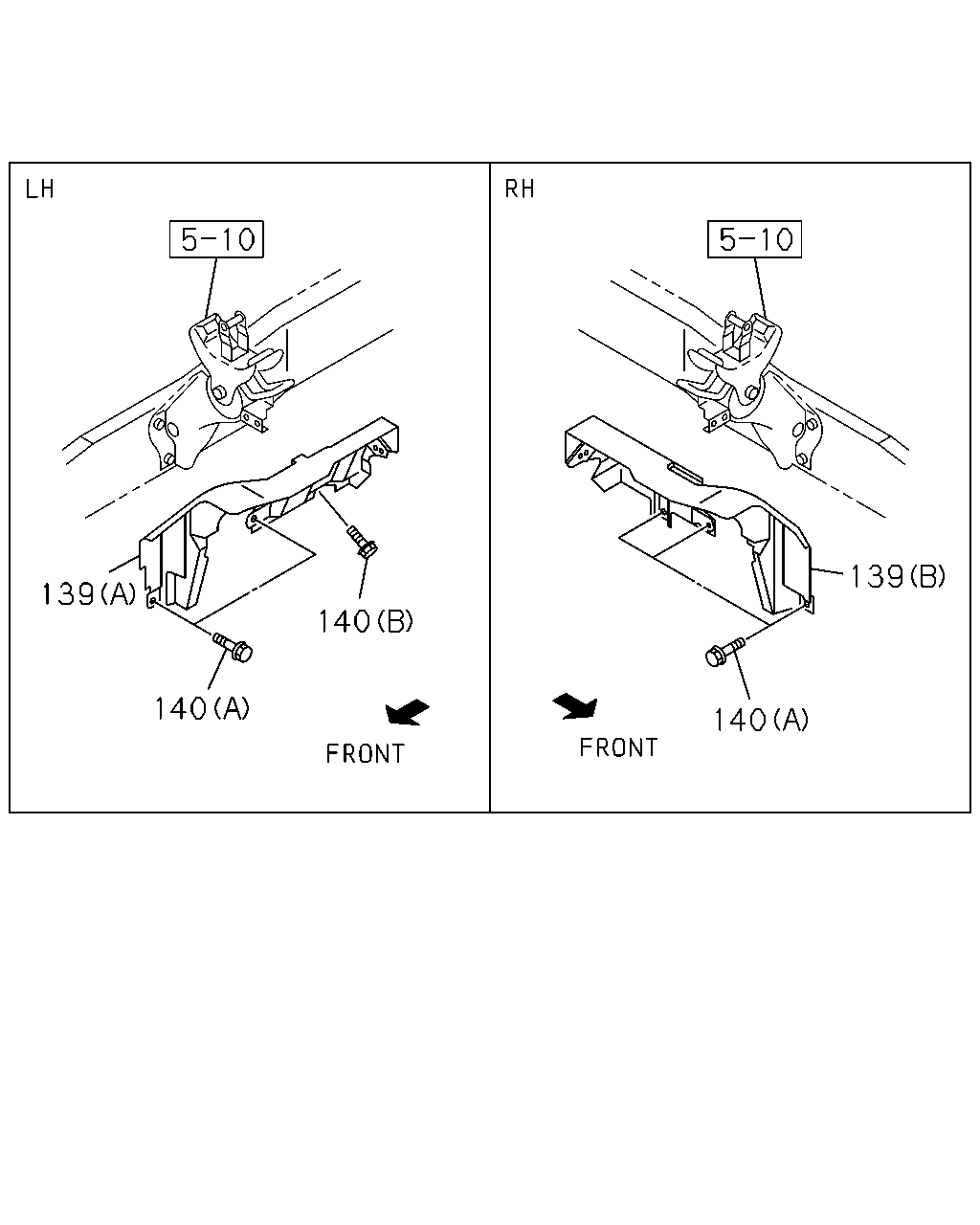

139 140 140 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97387-727-4	01	1	1508-	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	1508-		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97387-728-8	01	1	1508-	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	1508-		●
139	08.153 PANEL; SIDE EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98043-920-2	01	1	1508-		●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> (E)	8-98115-458-1	01	1	1508-		●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (A)	8-98150-233-1	01	1	1505-1507	●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) (A)	8-98150-233-1	01	1	1505-1507		●	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A)	8-98150-233-1	01	1	1508-	●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98150-233-1	01	1	1508-		●
139	08.153 PANEL; SIDE 4HK1-TCS ENG(RJS) (A)	8-98150-233-1	01	1	1508-			●
139	08.153 PANEL; SIDE (B)	8-98109-500-2	01	1	1505-1507	●	●	●
139	08.153 PANEL; SIDE EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98109-500-2	01	1	1508-	●	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B)	8-98109-500-2	01	1	1508-	●
139	08.153 PANEL; SIDE (B)	8-98109-500-2	01	1	1508-			●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) (A)	8-98150-232-1	01	1	1505-1507	●	●	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98150-232-1	01	1	1508-	●	●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) (A)	8-98150-232-1	01	1	1508-			●
140	08.155 BOLT; SIDE PANEL EXC. EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1508-	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1508-	●
140	08.155 BOLT; SIDE PANEL (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1508-			●
140	08.155 BOLT; SIDE PANEL (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1505-1507	●	●	●
140	08.155 BOLT; SIDE PANEL EXC. EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1508-	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1508-	●
140	08.155 BOLT; SIDE PANEL (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1508-			●
140	08.155 BOLT; SIDE PANEL (A) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1505-1507	●	●	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1508-	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1508-		●

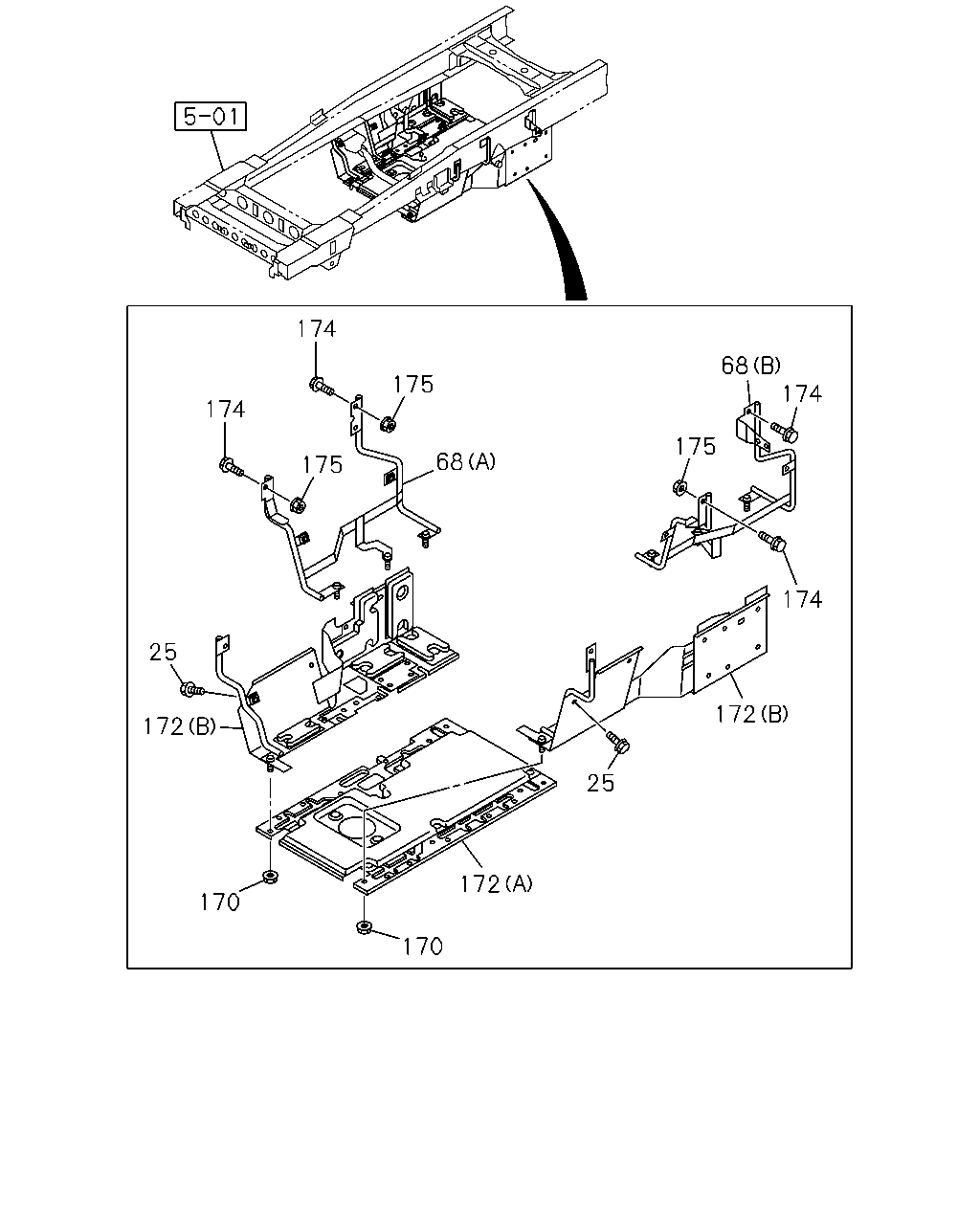

174 174 175 175 68 25 172 170 170 172 25 172 174 175 174 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1505-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98080-386-2	01	1	1505-1509	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98080-386-2	01	1	1510-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98207-098-1	01	1	1505-	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	1505-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98024-942-1	01	1	1505-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98079-017-4	01	1	1505-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98225-680-0	01	1	1505-	●	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1505-	●	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1505-	●	●
