6-20 — SIDE PANEL AND STEP (#161456) — 188 parça

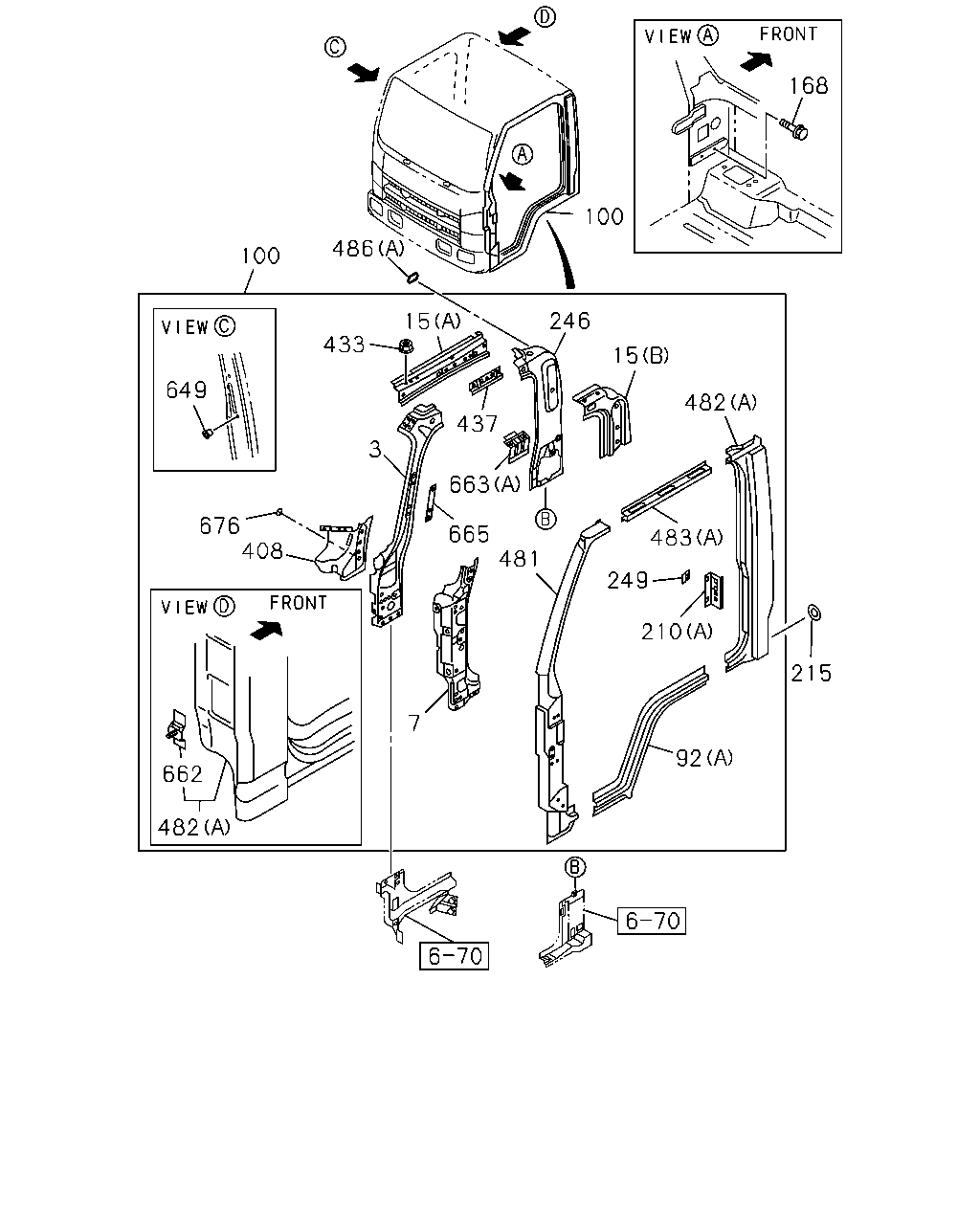

çizim 475689
100 486 100 168 649 433 15 3 676 408 662 482 7 481 665 663 437 246 482 15 483 249 210 215 92
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1505- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1505- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1505- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1505- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1505- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1505- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1505- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1505- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1505- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1505- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-2 01 1 1505- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1505- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-2 01 1 1505- ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1505- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1505- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1505- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1505- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1505- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1505- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1505- ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1505- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1505- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1505- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1505- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1505- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1505- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1505- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1505- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1505- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1505- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1505- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 1505- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1505- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1505- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 1505- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1505- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1505- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1505- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1505- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1505- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1505- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1505- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1505- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1505- ● ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1505- ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1505- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1505- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1505- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1505- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1505- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1505- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1505- ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1505- ● ● ●

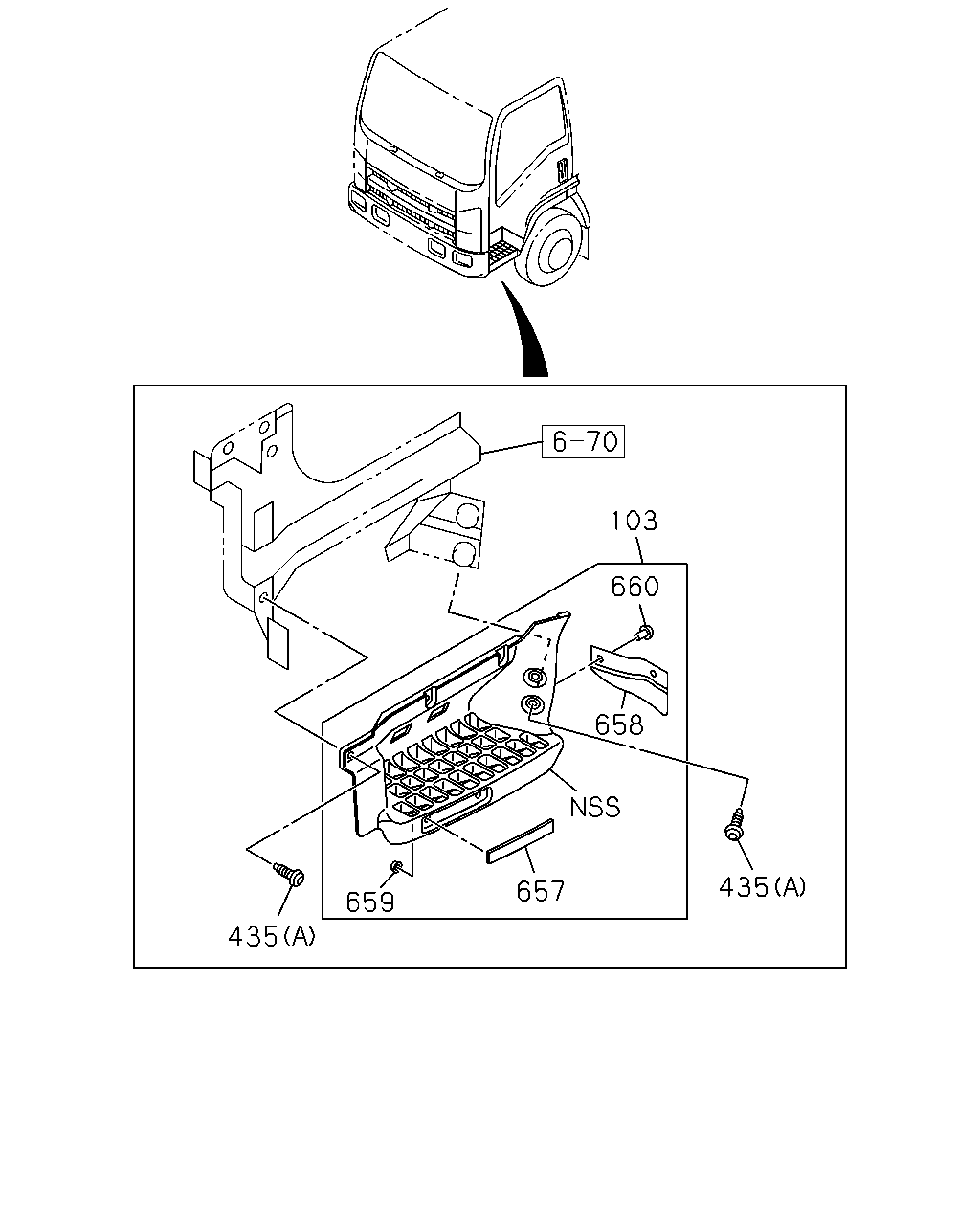

çizim 475691
435 658 660 103 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B C
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1505- ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1505- ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1505- ● ● ●
435 08.225 BOLT; RR STEP
4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1505- ●
435 08.225 BOLT; RR STEP
4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
435 08.225 BOLT; RR STEP
4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 09 1 1505- ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1505- ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1505- ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1505- ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1505- ● ● ●

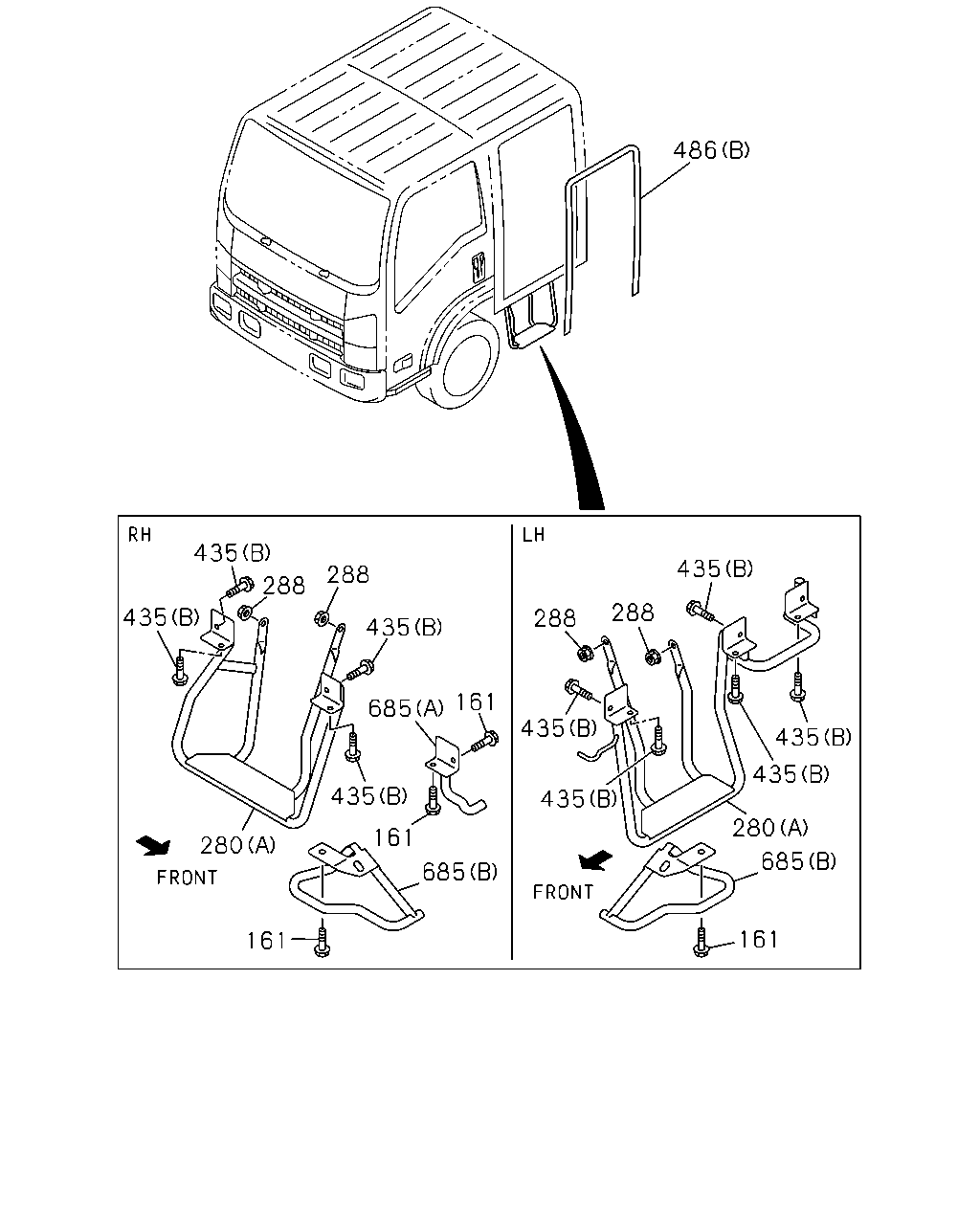

çizim 475739
486 435 288 288 435 435 280 685 435 161 435 161 685 161 435 685 161 280 435 435 288 435 288
BalonParca AdiParca NoAdetTipApplied Date A B C
161 08.225 BOLT; FIX
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1505-1507 ●
161 08.225 BOLT; FIX
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1508- ●
161 08.225 BOLT; FIX
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1505- ●
280 08.225 STEP ASM; RR
4JJ1-TCS ENG(LFB) (D) 		8-98279-450-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4JJ1-TCS ENG(LFB) (B) 		8-98302-928-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4JJ1-TCS ENG(LFB) (C) 		8-98304-010-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98202-894-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98222-528-0 01 1 1505- ●
288 08.225 NUT; STEP
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1505- ●
288 08.225 NUT; STEP
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1505- ●
288 08.225 NUT; STEP
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1505- ● ● ●
435 08.225 BOLT; RR STEP
4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1505- ●
435 08.225 BOLT; RR STEP
4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
435 08.225 BOLT; RR STEP
4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 09 1 1505- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1505- ●
685 08.225 BAR ASM; GUARD
(B) 		8-98240-398-0 01 1 1505- ●
685 08.225 BAR ASM; GUARD
(B) 		8-98240-399-0 01 1 1505-1507 ●
685 08.225 BAR ASM; GUARD
(B) 		8-98240-399-0 01 1 1508- ●
685 08.225 BAR ASM; GUARD
(A) 		8-98206-929-0 01 1 1505- ●

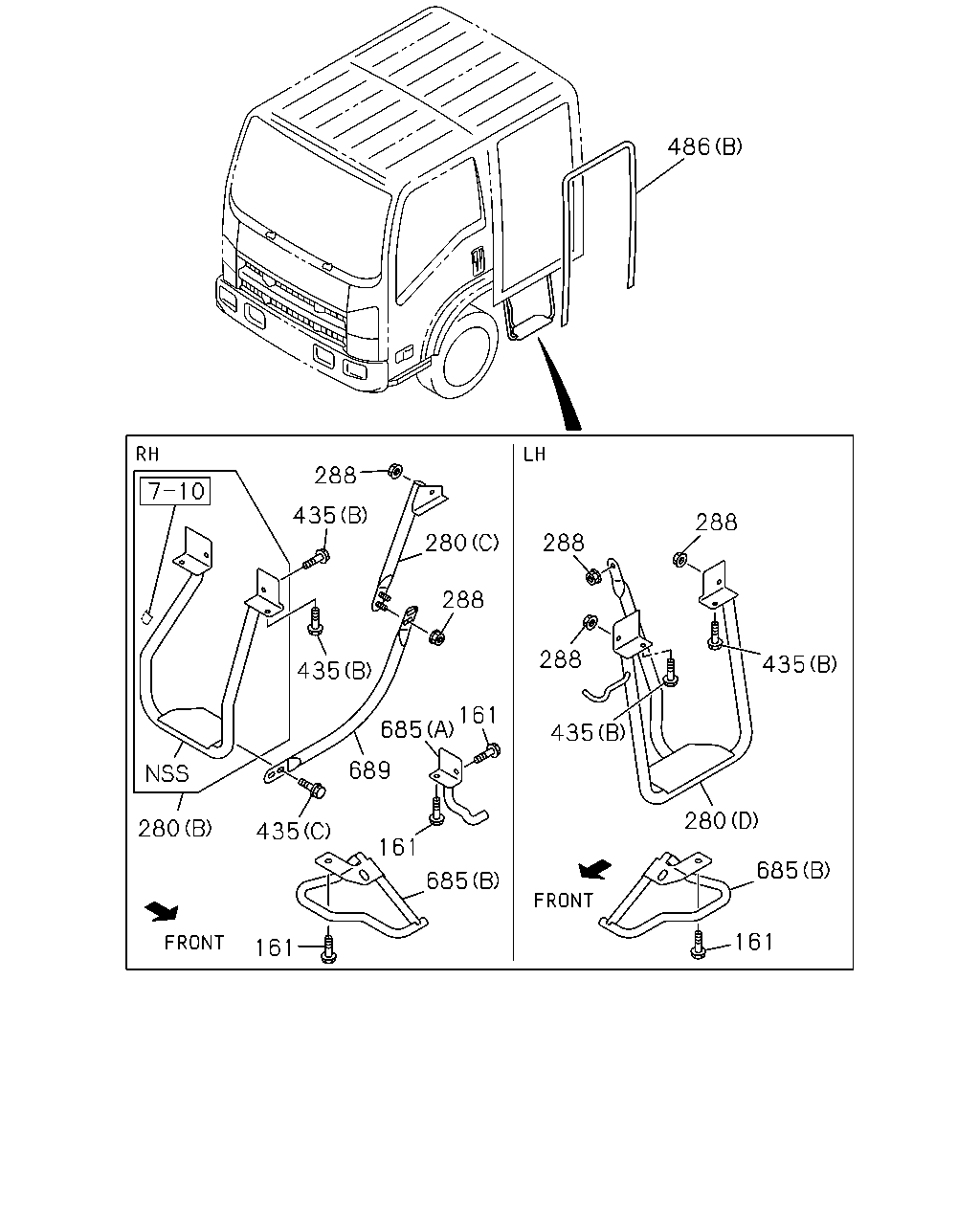

çizim 475766
486 288 288 435 280 685 161 435 288 288 435 280 288 435 685 161 161 689 685 435 161 280
BalonParca AdiParca NoAdetTipApplied Date A B C
161 08.225 BOLT; FIX
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1505-1507 ●
161 08.225 BOLT; FIX
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1508- ●
161 08.225 BOLT; FIX
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1505- ●
280 08.225 STEP ASM; RR
4JJ1-TCS ENG(LFB) (D) 		8-98279-450-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4JJ1-TCS ENG(LFB) (B) 		8-98302-928-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4JJ1-TCS ENG(LFB) (C) 		8-98304-010-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98202-894-0 01 1 1505- ●
280 08.225 STEP ASM; RR
4HK1-TCS ENG(RJS) (A) 		8-98222-528-0 01 1 1505- ●
288 08.225 NUT; STEP
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1505- ●
288 08.225 NUT; STEP
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 03 1 1505- ●
288 08.225 NUT; STEP
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1505- ● ● ●
435 08.225 BOLT; RR STEP
4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 06 1 1505- ●
435 08.225 BOLT; RR STEP
4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
435 08.225 BOLT; RR STEP
4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 09 1 1505- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1505- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1505- ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1505- ●
685 08.225 BAR ASM; GUARD
(B) 		8-98240-398-0 01 1 1505- ●
685 08.225 BAR ASM; GUARD
(B) 		8-98240-399-0 01 1 1505-1507 ●
685 08.225 BAR ASM; GUARD
(B) 		8-98240-399-0 01 1 1508- ●
685 08.225 BAR ASM; GUARD
(A) 		8-98206-929-0 01 1 1505- ●
689 08.225 SUPPORT; STEP REAR
4JJ1-TCS ENG(LFB) 		8-98303-882-0 01 1 1505- ●

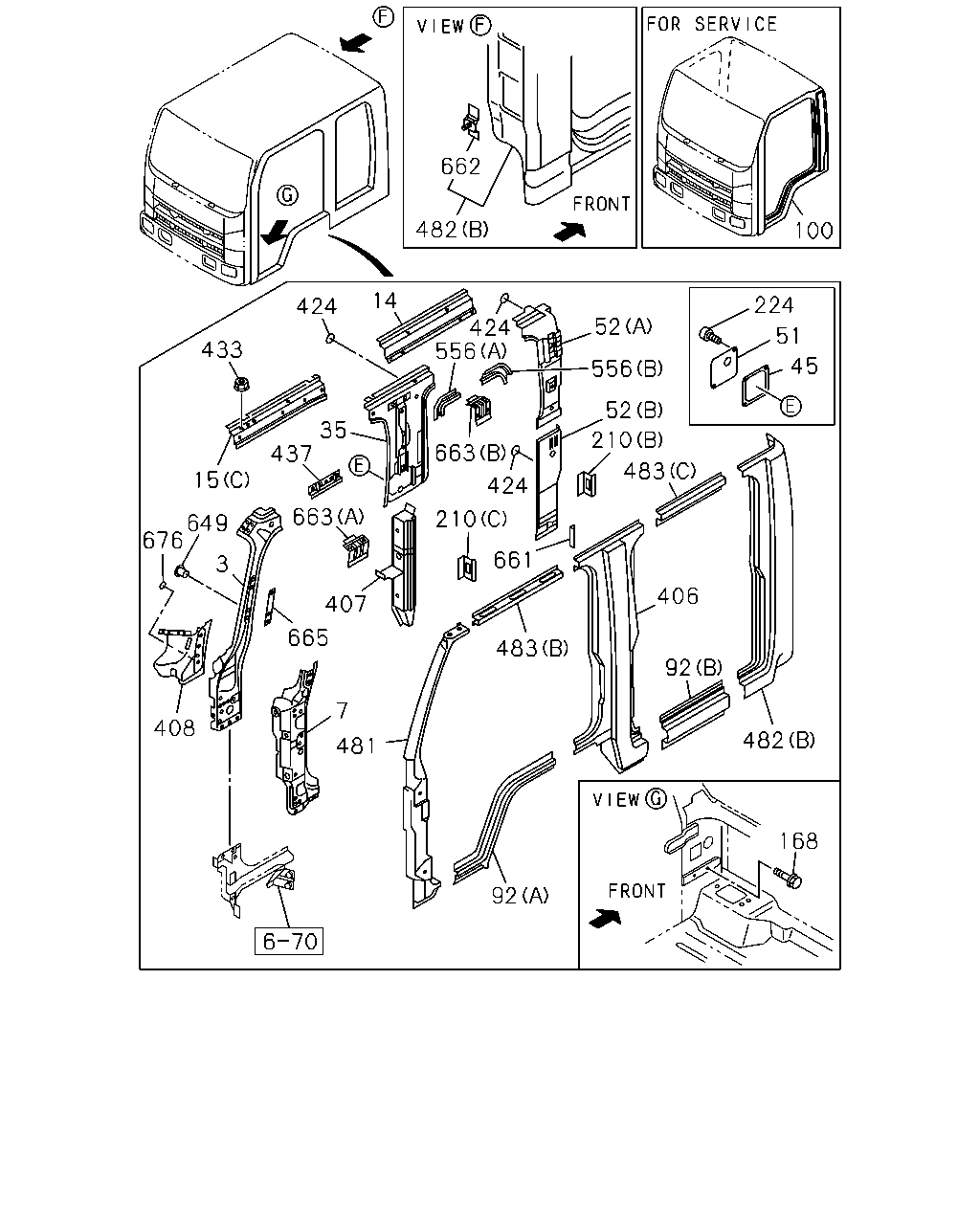

çizim 477136
662 482 100 424 14 433 35 424 556 52 224 51 556 45 52 210 406 483 92 482 168 92 481 408 676 665 649 437 15 663 407 3 7 661 210 663 483 424
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1505- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1505- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1505- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1505- ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1505- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1505- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1505- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1505- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1505- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1505- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1505- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1505- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1505- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1505- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1505- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1505- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 1505- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1505- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1505- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1505- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1505- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-2 01 1 1505- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1505- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-2 01 1 1505- ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1505- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1505- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1505- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1505- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1505- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1505- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1505- ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1505- ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 1505- ●
406 16.570 PILLAR; CENTER 8-98097-233-0 01 1 1505- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1505- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1505- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1505- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1505- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 1505- ●
424 16.570 SEAL; CLOSING
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 1505- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1505- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1505- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1505- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1505- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 1505- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1505- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1505- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 1505- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1505- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1505- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1505- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1505- ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1505- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1505- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1505- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1505- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1505- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1505- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1505- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1505- ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1505- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1505- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1505- ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1505- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1505- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1505- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1505- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1505- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1505- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1505- ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
