◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#161452) — 13 parça

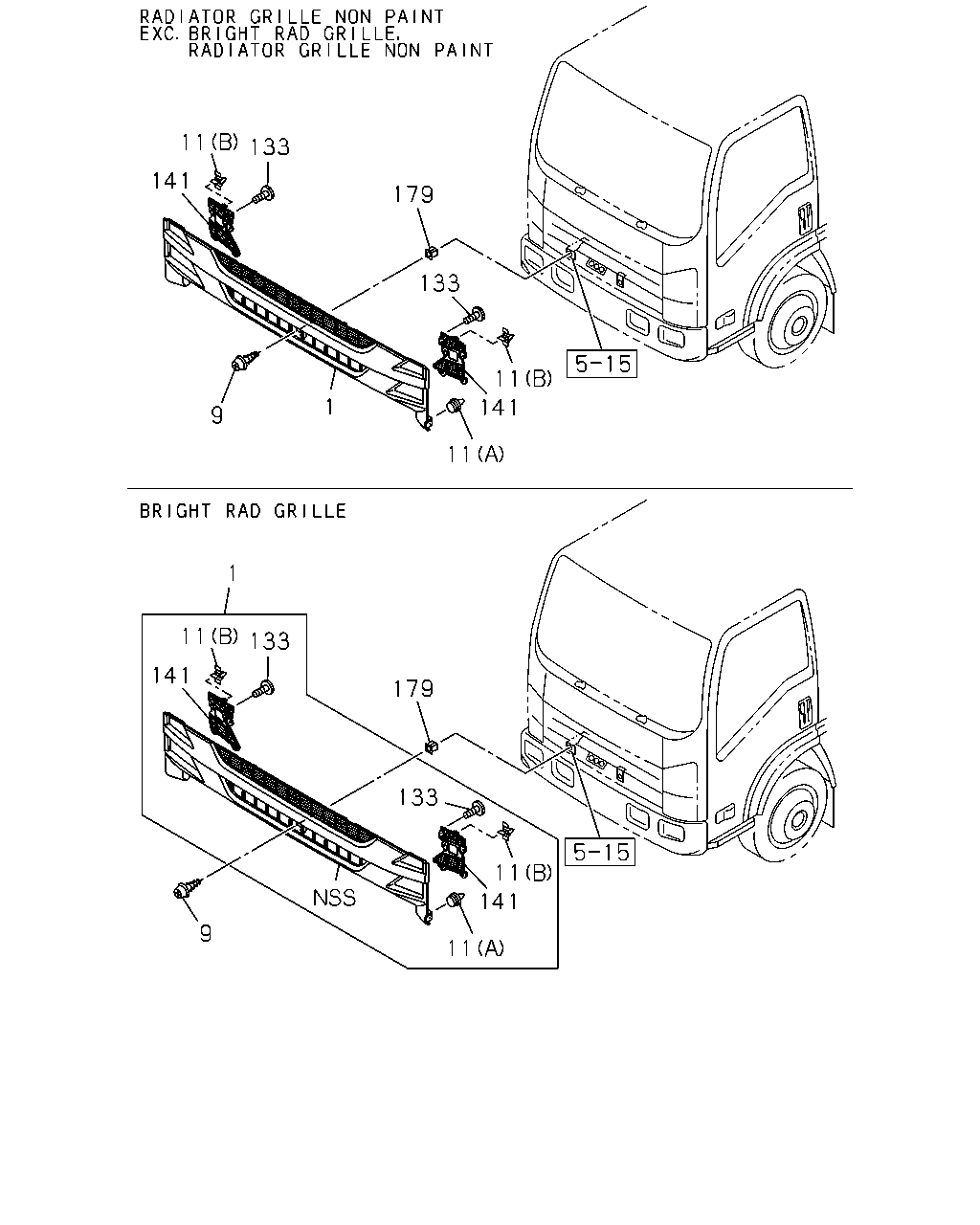

çizim 475649
11 141 133 179 133 11 11 141 9 1 1 11 133 179 141 9 133 11 141 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98241-071-1 01 1 1505- ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98244-209-1 01 1 1505- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-977-1 01 1 1505- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-989-1 01 1 1505- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97428-979-1 01 1 1505- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-978-1 01 1 1505- ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1505- ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1505- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1505- ● ● ●
133 01.269 SCREW; COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 1505- ● ● ●
141 01.266 COVER; RAD GRILLE 8-98244-212-0 01 1 1505- ● ● ●
141 01.266 COVER; RAD GRILLE 8-98244-213-0 01 1 1505- ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1505- ● ● ●
