◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#161436) — 56 parça

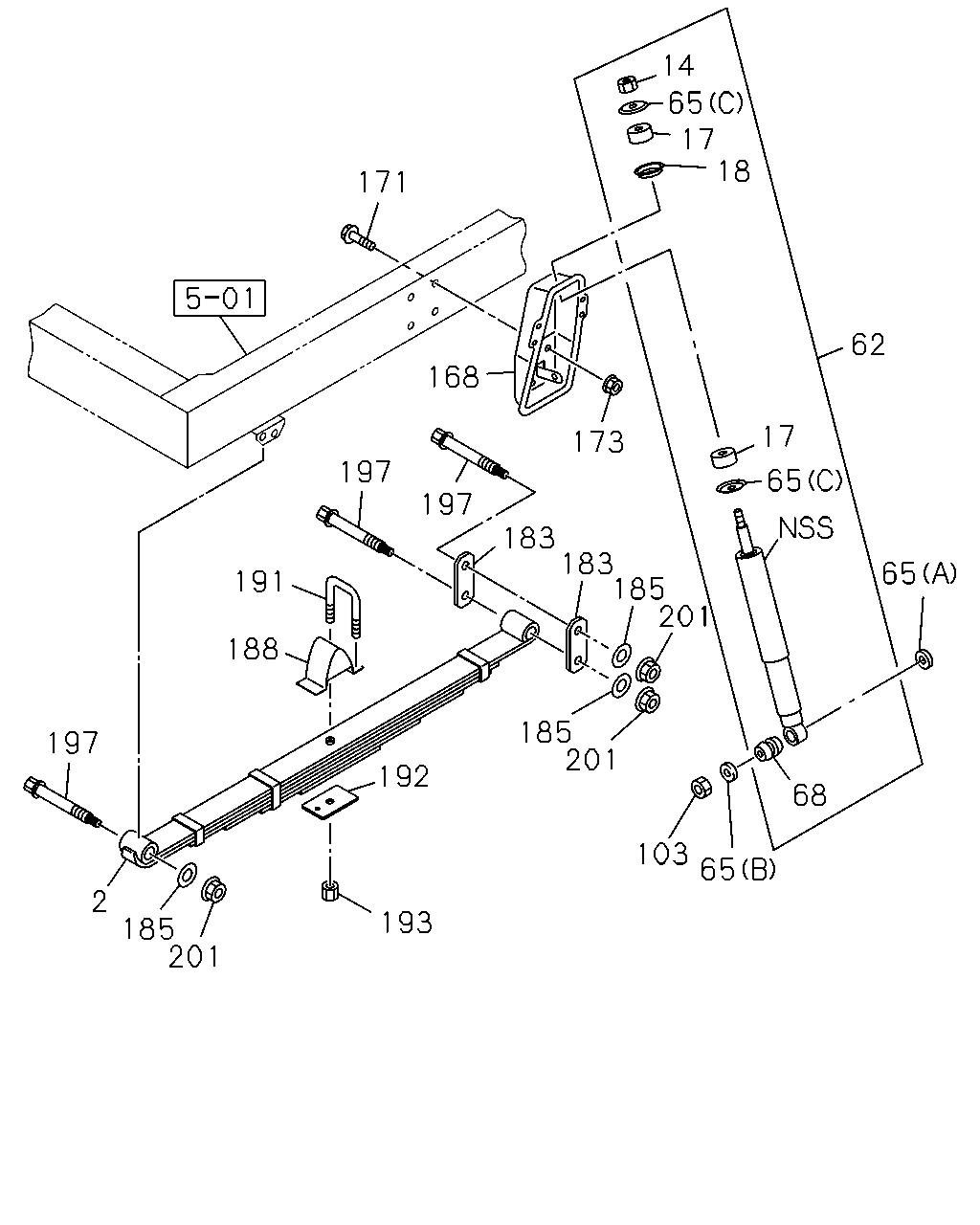

çizim 476032
171 14 17 65 18 62 17 65 65 183 173 183 185 201 103 65 68 201 185 197 197 191 188 192 193 201 185 197 168 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO5B+ SPECIFICATION(NT5) 2-LEAF 		8-98197-604-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO5B+ SPECIFICATION(NT5) 2-LEAF 		8-98197-605-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) 2-LEAF 		8-98233-294-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) 2-LEAF 		8-98233-295-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO5B+ SPECIFICATION(NT5) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98197-602-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO5B+ SPECIFICATION(NT5) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98197-603-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-161-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-162-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-018-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-018-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-019-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-019-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98079-966-0 02 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98079-966-0 02 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-016-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-016-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-017-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-017-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98079-918-0 02 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98079-918-0 02 1 1505- ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1505- ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1505- ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1505- ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-618-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-618-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-618-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98080-130-1 02 1 1505- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-129-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-129-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-129-1 02 1 1505- ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1505- ● ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1505- ● ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1505- ● ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1505- ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1505- ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-958-1 01 1 1505- ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-959-1 01 1 1505- ● ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1505- ● ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1505- ● ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1505- ● ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1505- ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1505- ● ● ●
191 07.417 U-BOLT; FRT SPR
EURO5B+ SPECIFICATION(NT5) L=115 		8-94412-504-3 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
EURO6 SPECIFICATION(NT6) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
EURO6 SPECIFICATION(NT6) L=125 		8-94119-671-5 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1505- ●
192 07.436 PIECE; DIST
WHEEL BASE 2700MM(27W) 		8-97093-554-1 02 1 1505- ●
192 07.436 PIECE; DIST
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1505- ● ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) 		8-97093-553-0 02 1 1505- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1505- ● ● ●
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1505- ● ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1505- ● ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1505- ● ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
