◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#161433) — 12 parça
çizim 476462
29 42 1 7 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98043-204-4 01 1 1505- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) 		8-98043-204-4 01 1 1505- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) 		8-98238-238-1 01 1 1505- ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1505- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCS ENG(RJS) M14X20 FLANGE 		0-28851-420-0 01 1 1505- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCS ENG(RJS) 		8-98036-532-0 01 1 1505- ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ● ●

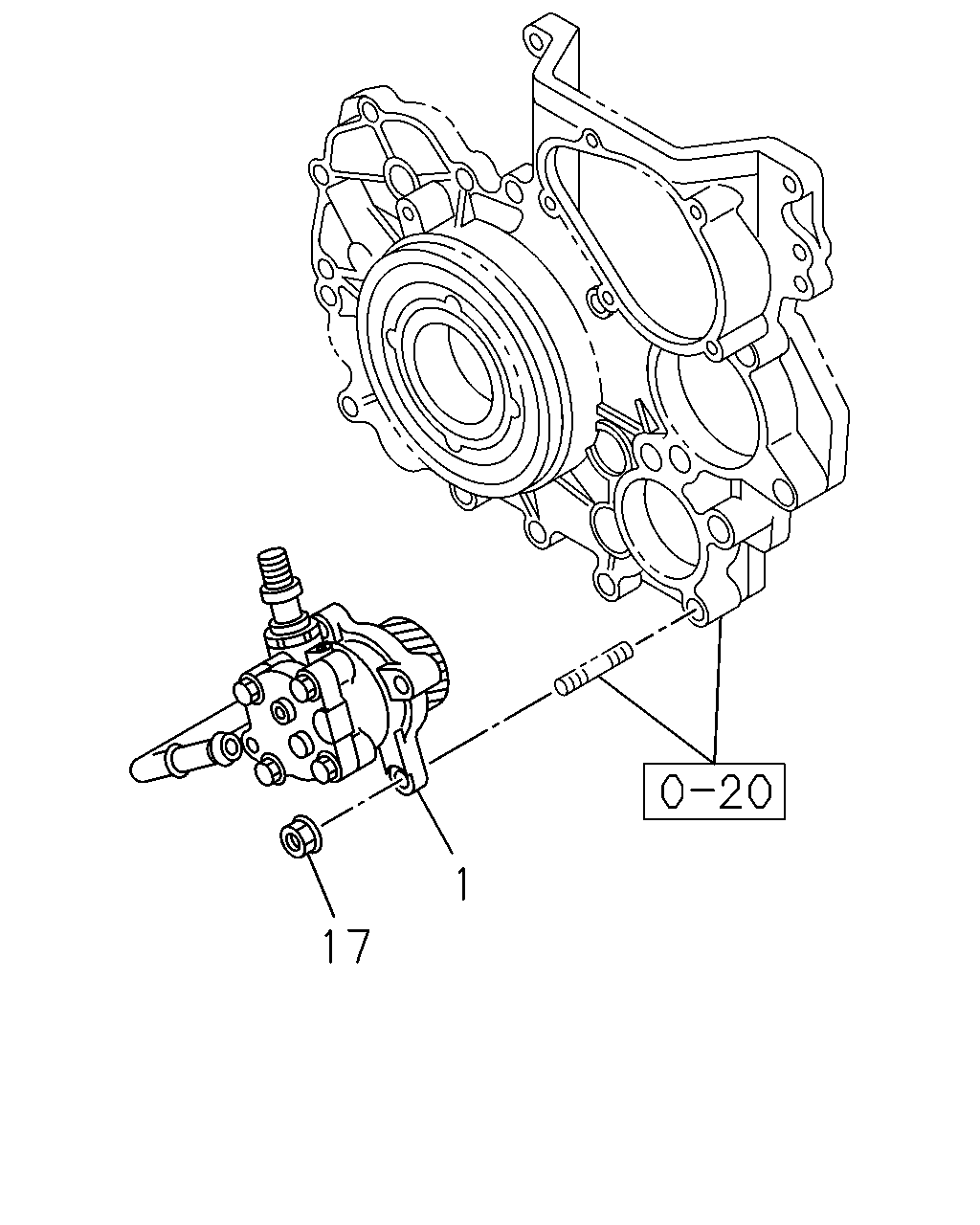

çizim 476667
17 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98043-204-4 01 1 1505- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) 		8-98043-204-4 01 1 1505- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) 		8-98238-238-1 01 1 1505- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1505- ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1505- ● ●
