4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#161432) — 136 parça

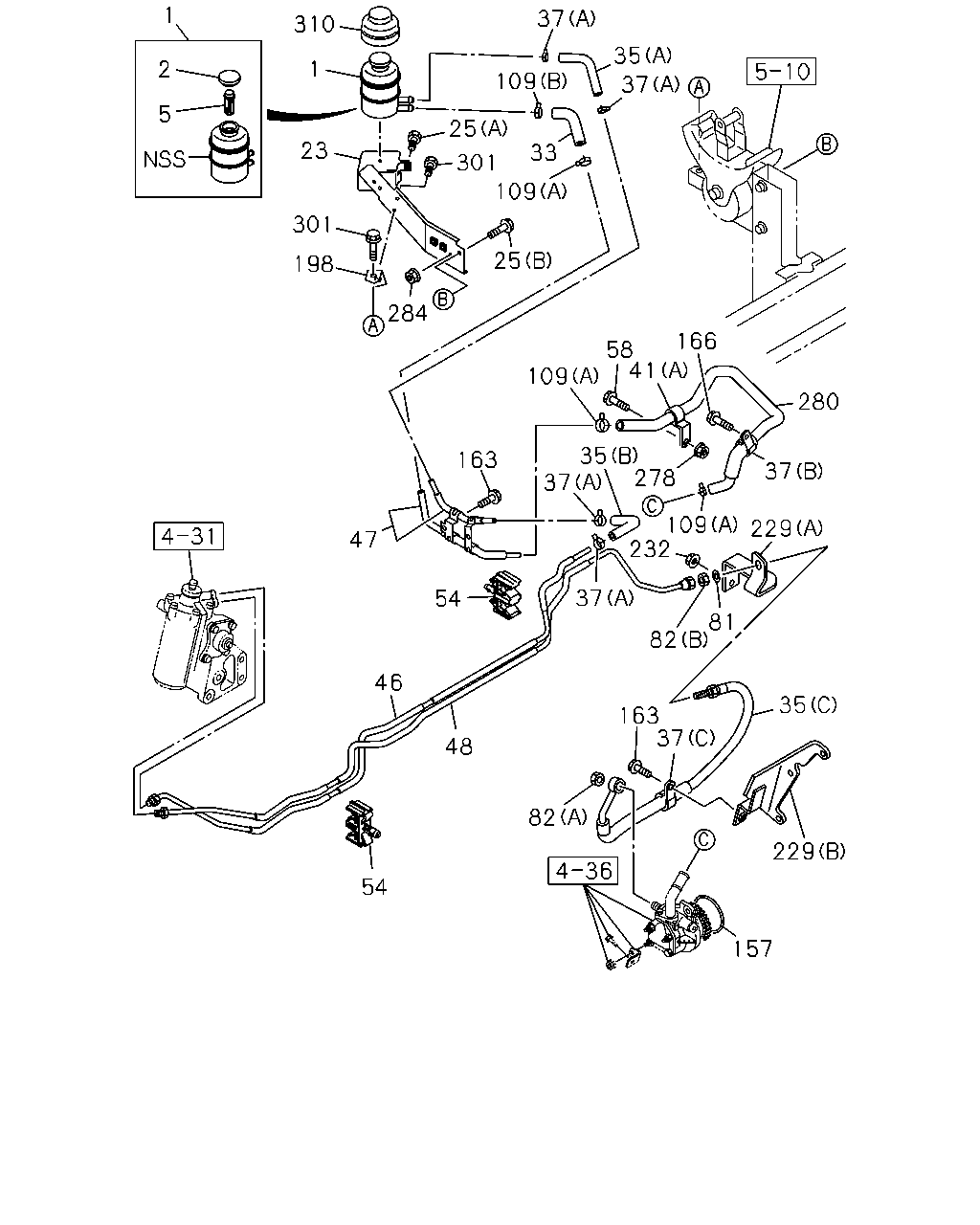

280 166 58 109 163 47 54 46 48 54 82 163 82 37 37 229 35 81 157 109 232 229 37 41 37 35 37 35 37 109 25 109 25 284 198 301 23 310 301 33 2 5 1 278 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1505-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1505-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1505-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1505-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1505-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1505-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1505-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1505-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1505-		●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1505-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1505-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1505-	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1505-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1505-		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-		●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1505-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1505-		●	●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-004-0	01	1	1505-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS)	8-98207-476-0	01	1	1505-		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1505-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1505-		●	●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98033-896-4	01	1	1505-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1505-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1505-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98212-881-0	01	1	1505-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS)	8-98207-474-0	01	1	1505-		●	●
54	06.672 CLIP; OIL PIPE	8-98057-283-0	02	1	1505-	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB)	8-98057-283-0	02	1	1505-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1505-		●	●
58	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1505-		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1505-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1505-		●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1505-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1505-	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1505-		●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97101-875-2	01	1	1505-		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1505-	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1505-		●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1505-		●	●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
166	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1505-	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	1505-		●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1505-		●	●
232	06.672 NUT; BRKT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-		●	●
278	06.670 NUT; HOSE CLIP 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=400	0-09814-400-0	01	1	1505-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=400	0-09814-400-0	01	1	1505-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98052-248-1	01	1	1505-		●	●
284	06.670 NUT; PIPE 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1505-	●	●

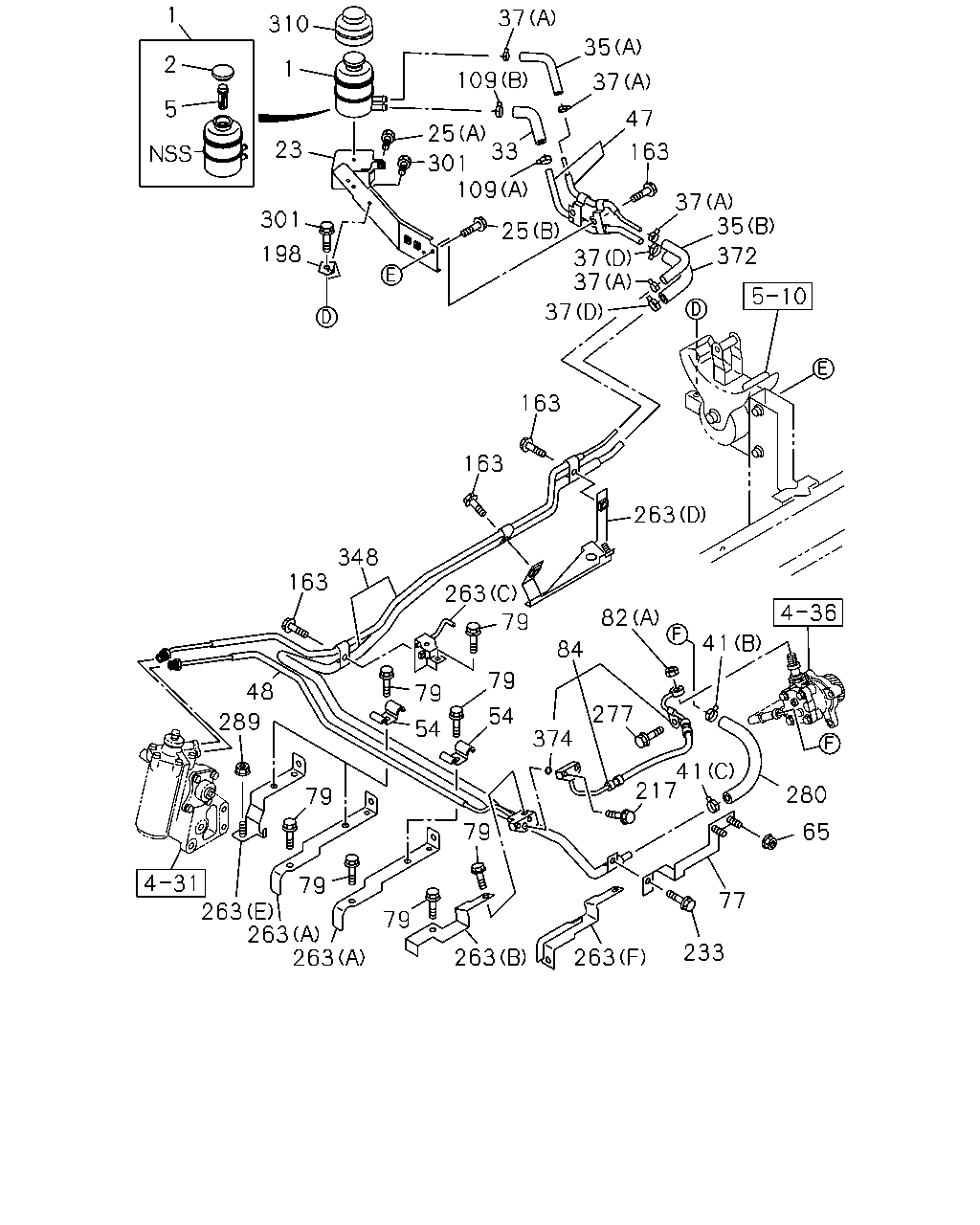

1 2 5 1 310 23 301 25 198 301 33 109 37 37 35 47 37 163 372 35 37 37 37 109 25 163 163 348 163 48 289 263 263 79 79 263 79 79 54 79 79 54 84 263 82 41 277 217 77 280 65 41 79 263 263 263 233 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1505-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1505-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1505-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1505-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1505-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1505-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1505-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1505-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1505-		●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1505-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1505-		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1505-	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1505-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1505-		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-		●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1505-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1505-		●	●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-004-0	01	1	1505-		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1505-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1505-		●	●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98033-896-4	01	1	1505-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1505-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1505-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98212-881-0	01	1	1505-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS)	8-98207-474-0	01	1	1505-		●	●
54	06.672 CLIP; OIL PIPE	8-98057-283-0	02	1	1505-	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB)	8-98057-283-0	02	1	1505-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1505-		●	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-		●	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	1505-1507	●
77	06.672 BRACKET; POWER STEERING HOSE 4JJ1-TCS ENG(LFB) EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1505-1507		●	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1508-	●	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1505-	●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1505-		●	●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1505-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1505-		●	●
84	06.670 HOSE; FLEX,P/S	8-98175-560-0	01	1	1505-	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98175-560-0	01	1	1505-		●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1505-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1505-	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1505-		●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1505-	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1505-		●	●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1505-		●	●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1505-	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1505-	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1505-		●	●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
263	06.672 BRACKET; P/S PIPE (D)	8-98006-233-1	01	1	1505-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	1505-		●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1505-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1505-		●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98047-050-1	01	1	1505-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98047-050-1	01	1	1505-		●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98117-646-1	02	1	1505-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98117-646-1	02	1	1505-		●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98212-882-0	01	1	1505-		●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E)	8-98212-883-1	02	1	1505-		●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=400	0-09814-400-0	01	1	1505-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=400	0-09814-400-0	01	1	1505-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98052-248-1	01	1	1505-		●	●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1505-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-610-1	01	1	1505-	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-610-1	01	1	1505-		●	●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98212-884-2	01	1	1505-		●	●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1505-	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB) 06.672	8-98171-278-0	01	1	1505-		●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1505-	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	1505-		●	●
