Sayfa 0-32 - Isuzu EPC

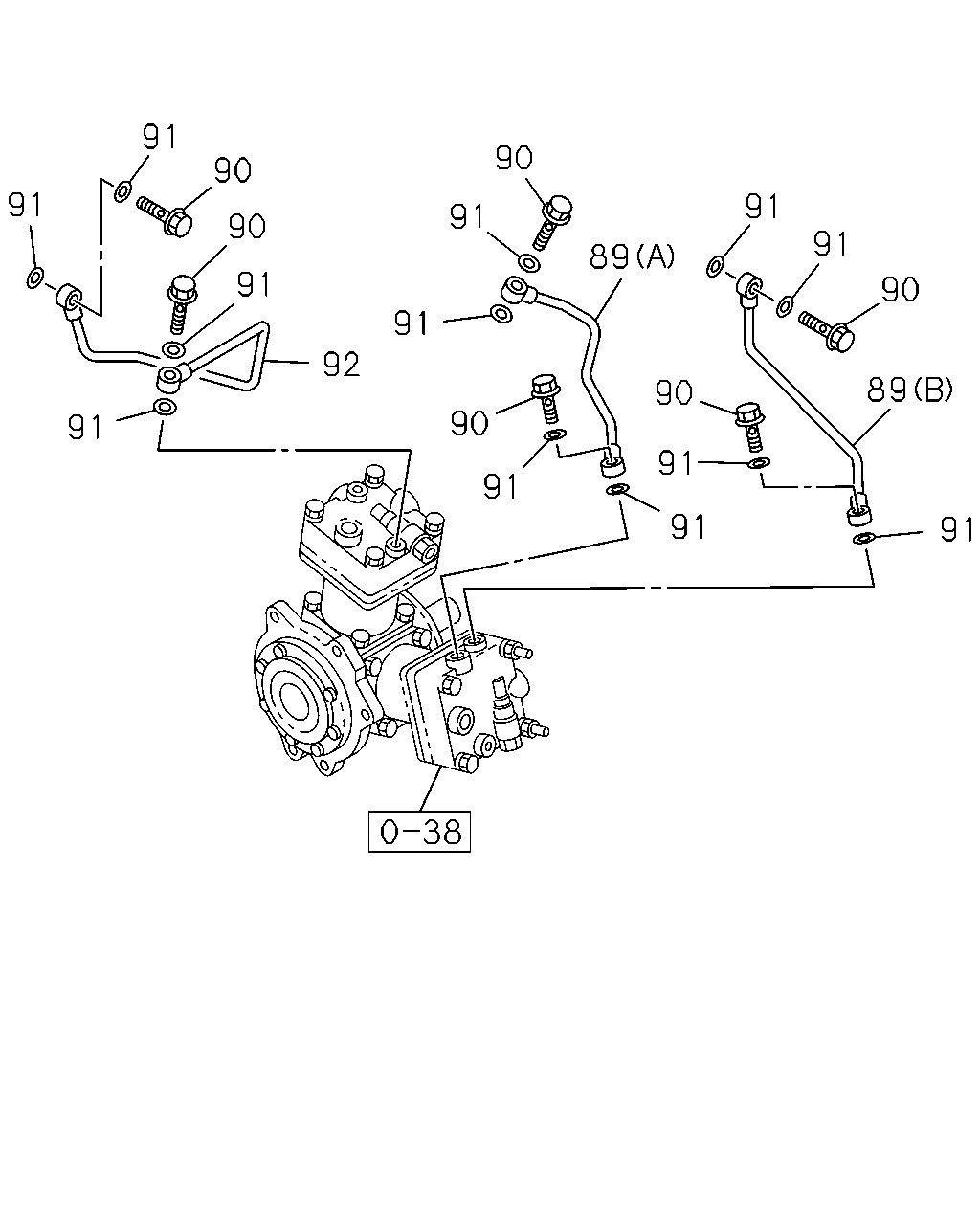

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	0904-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	0904-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0904-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0904-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0904-

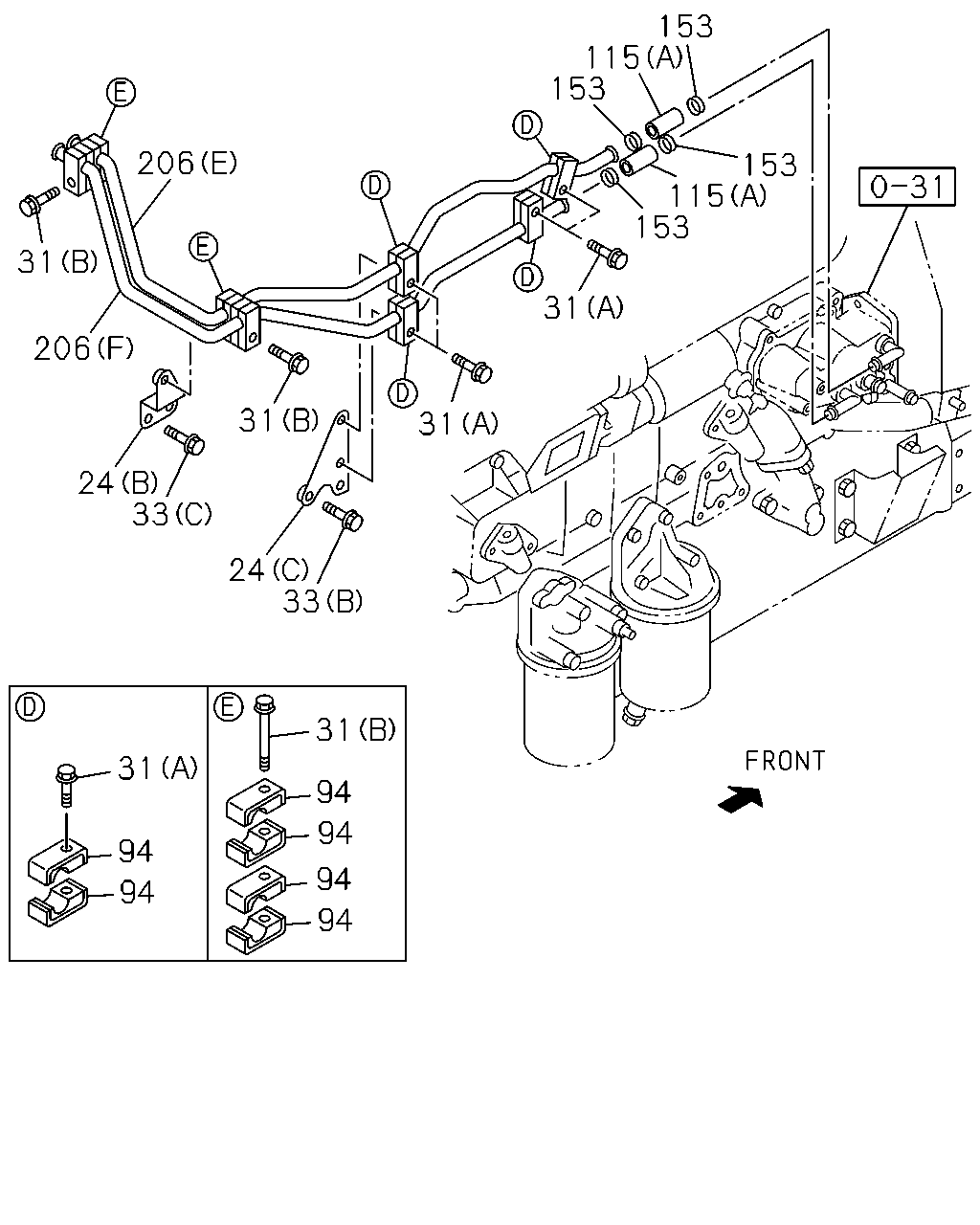

153 115 153 206 153 115 153 31 31 206 31 31 24 33 24 33 31 31 94 94 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0904-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0904-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0904-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0904-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0904-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0904-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0904-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0904-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0904-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0904-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0904-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0904-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0904-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0904-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0904-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0904-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0904-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0904-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0904-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0904-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0904-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0904-
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0904-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0904-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0904-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0904-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0904-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0904-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0904-

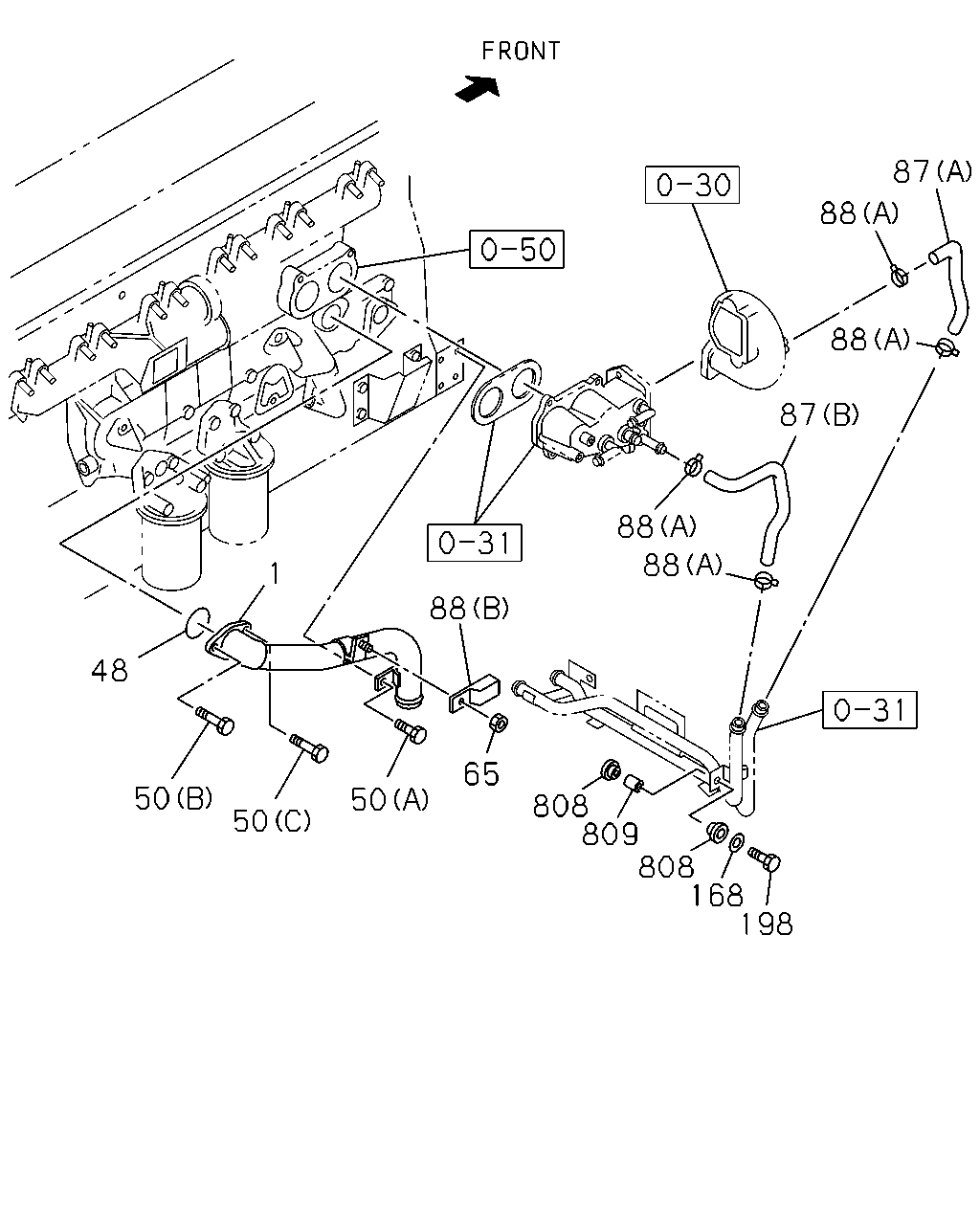

87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0904-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0904-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0904-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0904-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0904-
65	NUT M10 FLANGE	0-91180-110-0	01	1	0904-
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	0904-
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	0904-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0904-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0904-1206
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0904-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0904-
808	RUBBER; MTG	1-09337-017-0	04	1	0904-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0904-

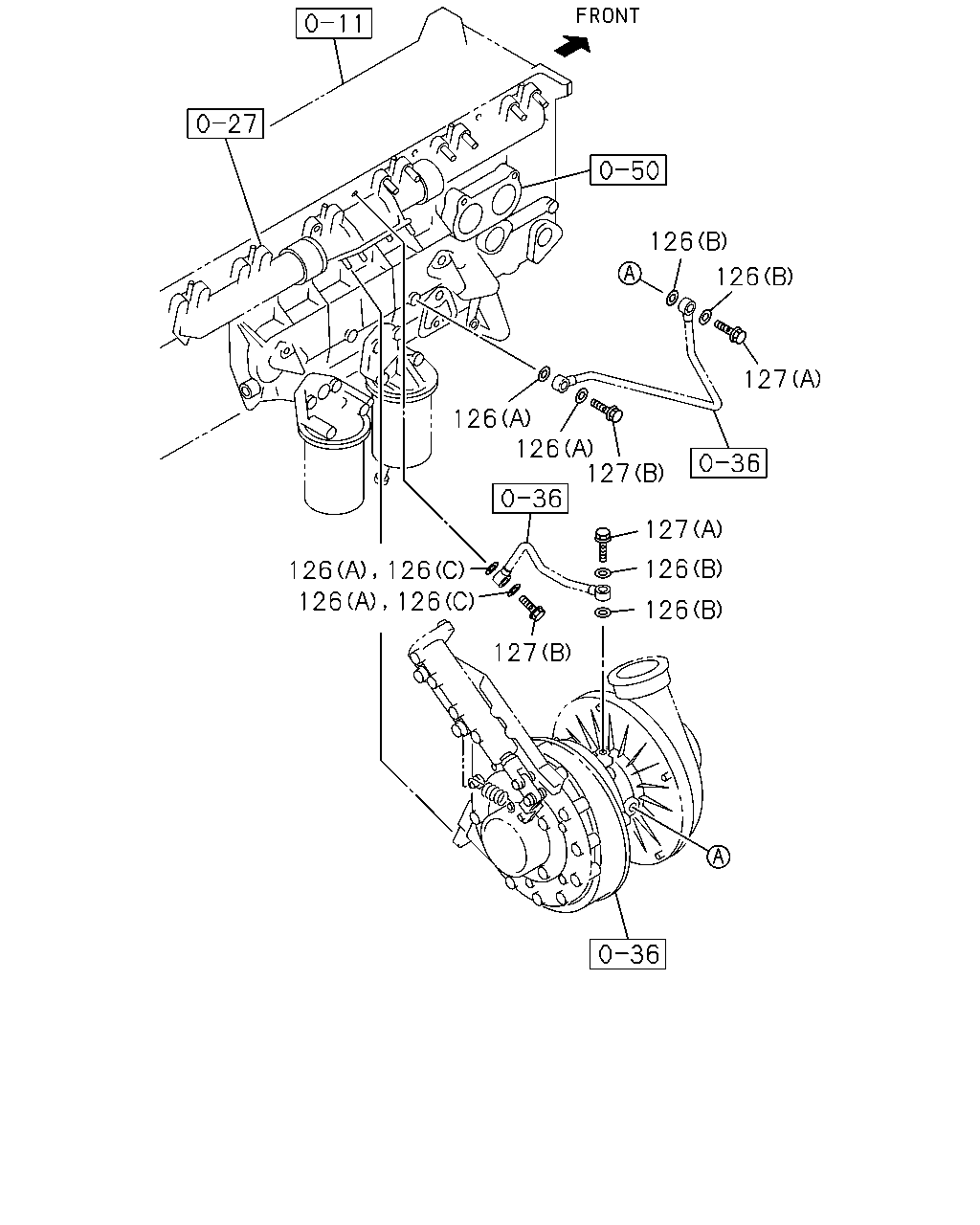

126 126 127 126 126 127 127 126 126 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0904-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0904-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0904-
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	0904-
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0904-

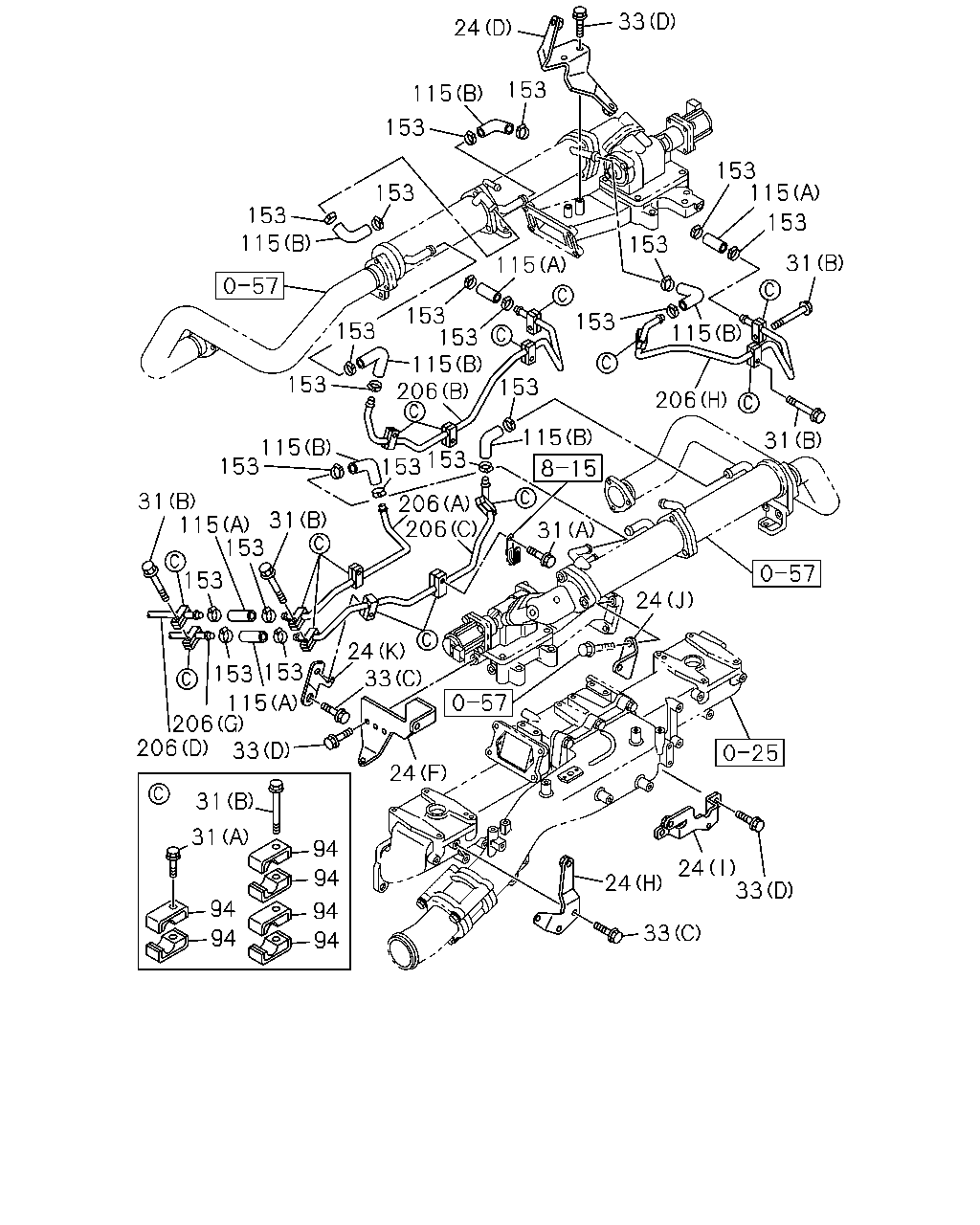

33 24 153 115 153 153 115 153 153 115 153 115 153 31 153 153 153 115 206 153 115 153 153 206 115 31 153 153 206 206 115 153 31 31 115 153 31 153 24 24 33 153 153 115 206 206 33 24 31 31 94 24 33 94 24 94 94 33 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0904-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0904-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0904-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0904-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0904-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0904-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0904-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0904-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0904-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0904-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0904-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0904-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0904-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0904-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0904-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0904-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0904-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0904-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0904-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0904-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0904-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0904-
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0904-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0904-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0904-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0904-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0904-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0904-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0904-

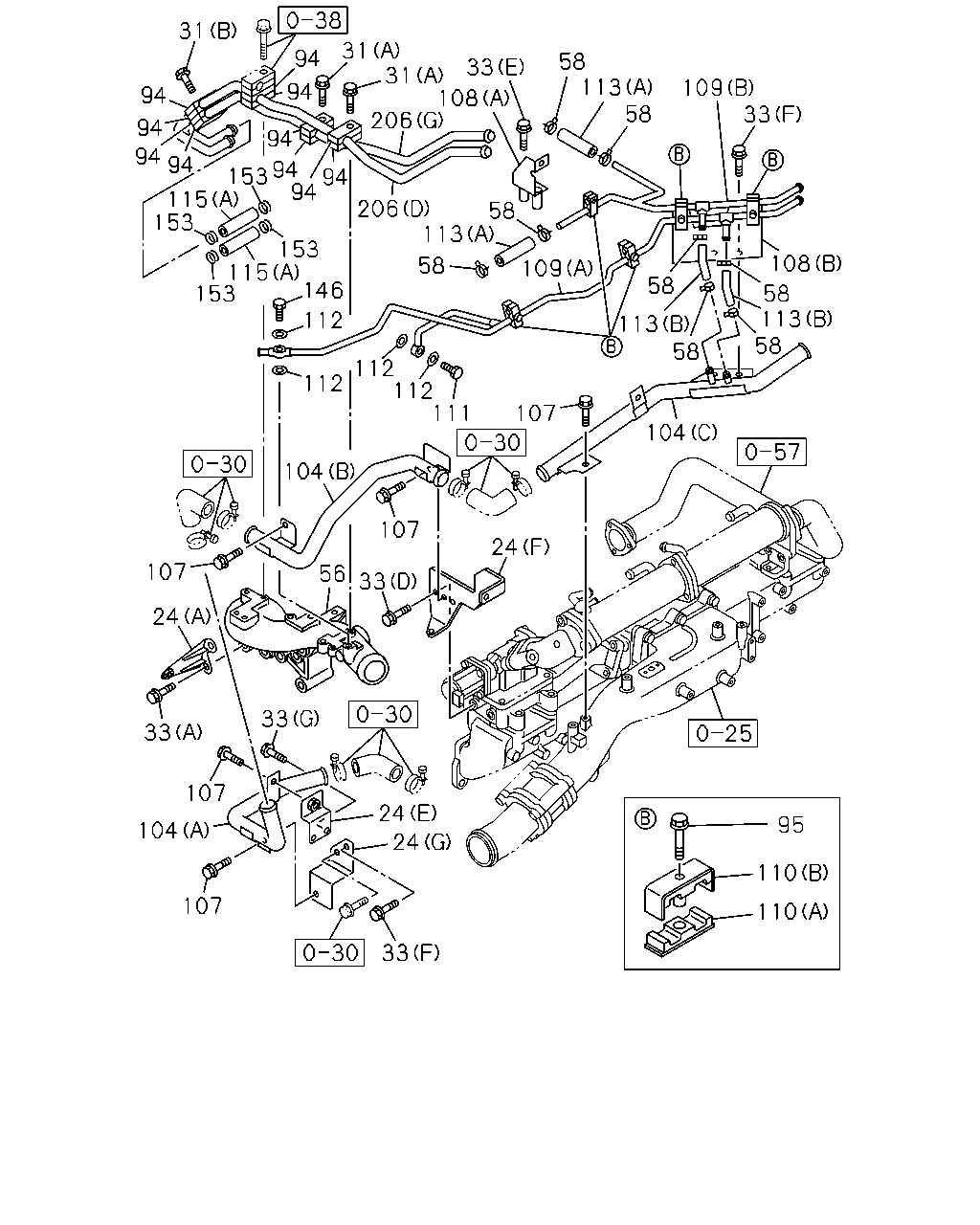

31 31 31 94 58 113 58 33 108 109 33 94 94 206 94 94 94 153 94 94 94 94 115 153 206 113 58 153 115 153 146 108 58 109 58 58 113 58 112 113 58 112 112 111 112 107 104 104 107 24 107 56 33 24 33 33 107 24 95 104 24 110 107 110 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	0904-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	0904-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	0904-
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	0904-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	0904-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	0904-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	0904-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	0904-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	0904-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	0904-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	0904-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	0904-
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	0904-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	0904-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	0904-
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	0904-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	0904-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	0904-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	0904-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	0904-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	0904-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	0904-1105
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	0904-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	05	1	0904-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	0904-
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	0904-1105
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1106-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	0904-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	0904-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	0904-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	0904-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	0904-1105
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-495-0	01	1	1106-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	0904-1105
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-496-0	01	1	1106-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0904-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0904-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0904-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0904-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	0904-
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	0904-
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	0904-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0904-
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	0904-
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	0904-
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	0904-
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	0904-
206	PIPE; WATER,EGR COOLER (D)	8-97613-003-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	0904-
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	0904-
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
