Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#161428) — 288 parça

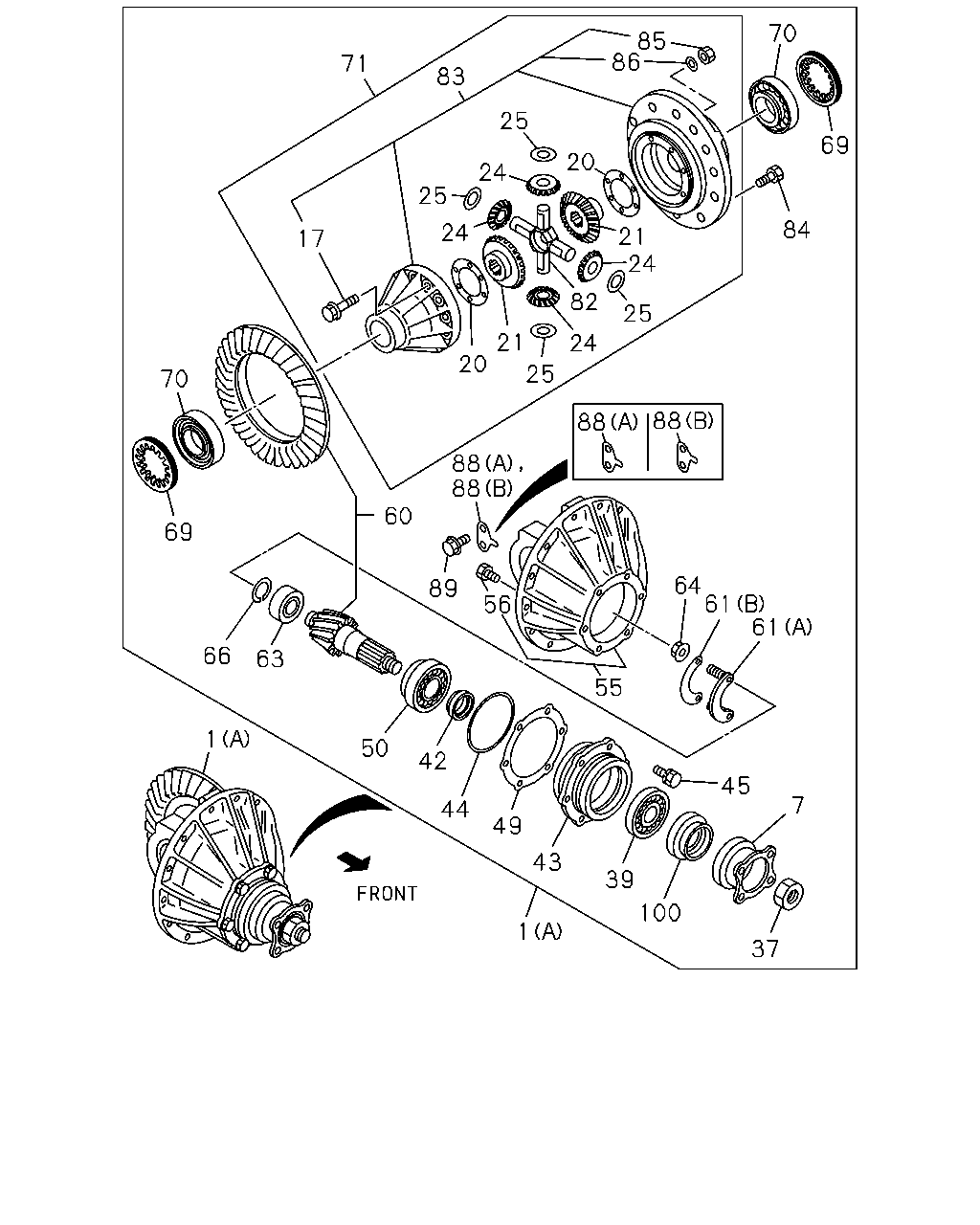

37 100 39 43 49 44 42 50 63 66 1 1 7 45 55 61 61 64 56 89 60 69 70 88 88 88 88 20 21 25 24 25 24 82 24 25 24 25 83 71 17 86 85 20 84 69 70 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR (B) 43/11	8-98015-134-0	01	1	1505-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) (B) 41/9	8-98015-124-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.5-6.0TON(RPU) (B) 41/9	8-98015-137-0	01	1	1505-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1505-		●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) (A) 39/7	8-97388-710-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A) 39/7	8-97388-710-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-97388-700-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 39/7	8-97388-705-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) (A) 39/7	8-97388-705-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-97388-701-0	01	1	1505-		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1505-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY)	8-97073-802-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-97073-802-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 41/10(GT5)	8-97047-095-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY)	8-97047-095-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97047-095-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C)	8-97047-095-2	01	1	1505-		●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1505-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1505-		●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1505-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1505-		●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1505-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 05.515 Z=20	8-97362-599-1	02	1	1505-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) Z=20	8-97362-598-1	02	1	1505-		●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1505-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1505-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1505-		●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1505-		●	●
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	1505-		●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1505-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1505-		●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1505-		●	●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	1505-		●	●
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	1505-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1505-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1505-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1505-		●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1505-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1505-		●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1505-		●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1505-	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	1505-		●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1505-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-		●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1505-		●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1505-	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1505-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1505-	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1505-		●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	1505-		●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1505-		●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1505-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1505-		●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1505-		●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1505-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	1505-		●	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-97263-251-1	01	1	1505-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1505-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1505-		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1505-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1505-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1505-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1505-		●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1505-		●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT NSK	8-97309-525-0	01	1	1505-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97309-526-0	01	1	1505-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1505-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1505-	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1505-		●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1505-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1505-	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1505-		●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1505-		●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1505-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1505-		●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-180-1	01	1	1505-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW)	8-98015-178-1	01	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU)	8-98015-181-1	01	1	1505-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1)	8-97047-100-4	01	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5)	8-97047-099-4	01	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C)	8-97047-099-4	01	1	1505-		●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1505-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1505-		●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF	8-97262-082-2	01	1	1505-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-398-1	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1)	8-98219-707-0	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5)	8-98219-705-0	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C)	8-98219-705-0	01	1	1505-		●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1505-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1505-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1505-		●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-		●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1505-		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1505-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (C)	8-97027-281-0	AR	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1505-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (D)	8-97027-282-0	AR	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (B) T=2.3	8-97087-821-0	AR	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (A) T=2.3	9-41124-015-0	AR	1	1505-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-		●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1505-		●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1505-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1505-		●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1505-		●	●

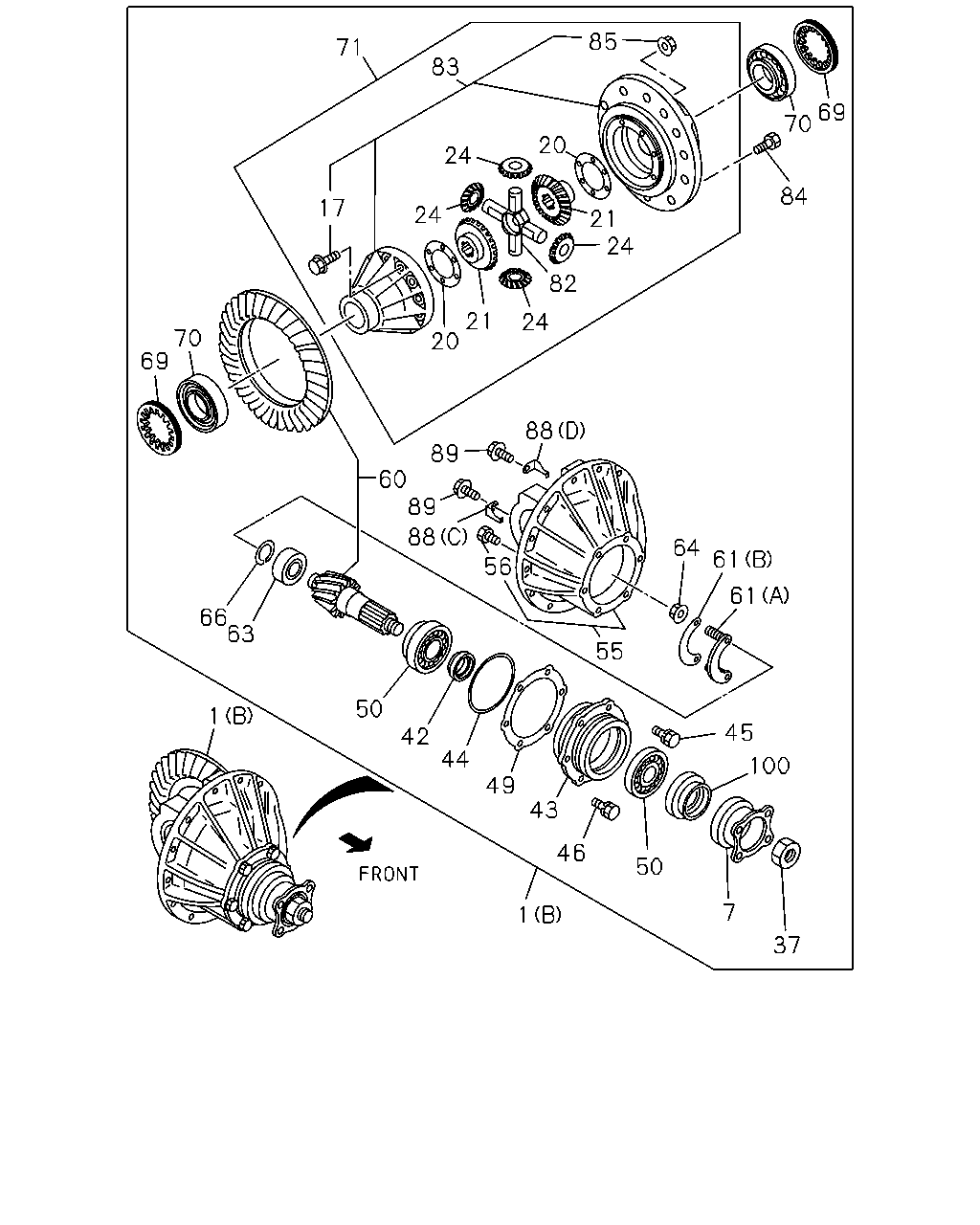

37 7 50 46 43 49 44 42 50 63 66 61 64 61 88 56 55 89 60 89 88 70 69 17 71 83 85 70 69 84 24 21 82 24 21 20 24 24 20 1 1 45 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR (B) 43/11	8-98015-134-0	01	1	1505-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) (B) 41/9	8-98015-124-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.5-6.0TON(RPU) (B) 41/9	8-98015-137-0	01	1	1505-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) (B) 43/10	8-98015-136-0	01	1	1505-		●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) (A) 39/7	8-97388-710-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A) 39/7	8-97388-710-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-97388-700-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 39/7	8-97388-705-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) (A) 39/7	8-97388-705-0	01	1	1505-		●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-97388-701-0	01	1	1505-		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1505-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY)	8-97073-802-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ)	8-97073-802-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 41/10(GT5)	8-97047-095-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY)	8-97047-095-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97047-095-2	01	1	1505-		●	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C)	8-97047-095-2	01	1	1505-		●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1505-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1505-		●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1505-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1505-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1505-		●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1505-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) 05.515 Z=20	8-97362-599-1	02	1	1505-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) Z=20	8-97362-598-1	02	1	1505-		●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1505-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1505-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1505-		●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1505-		●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1505-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1505-		●	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1505-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1505-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1505-		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1505-		●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1505-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1505-		●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1505-		●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1505-	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	1505-		●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1505-		●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1505-		●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1505-		●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1505-	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1505-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1505-		●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1505-		●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1505-	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1505-		●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1505-	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1505-		●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	1505-		●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1505-		●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1505-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1505-		●	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1505-		●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1505-	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	1505-		●	●
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/11	8-97263-251-1	01	1	1505-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1505-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1505-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1505-		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1505-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1505-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1505-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1505-		●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1505-		●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT NSK	8-97309-525-0	01	1	1505-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97309-526-0	01	1	1505-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1505-		●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1505-		●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1505-	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1505-		●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1505-		●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1505-	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1505-		●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1505-		●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1505-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1505-		●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-180-1	01	1	1505-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW)	8-98015-178-1	01	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU)	8-98015-181-1	01	1	1505-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1)	8-97047-100-4	01	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5)	8-97047-099-4	01	1	1505-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C)	8-97047-099-4	01	1	1505-		●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1505-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1505-		●	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF	8-97262-082-2	01	1	1505-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-398-1	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1)	8-98219-707-0	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5)	8-98219-705-0	01	1	1505-		●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C)	8-98219-705-0	01	1	1505-		●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1505-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1505-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1505-		●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1505-		●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1505-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (C)	8-97027-281-0	AR	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1505-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (D)	8-97027-282-0	AR	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (B) T=2.3	8-97087-821-0	AR	1	1505-		●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (A) T=2.3	9-41124-015-0	AR	1	1505-		●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-		●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1505-		●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1505-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1505-		●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1505-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
