1 |

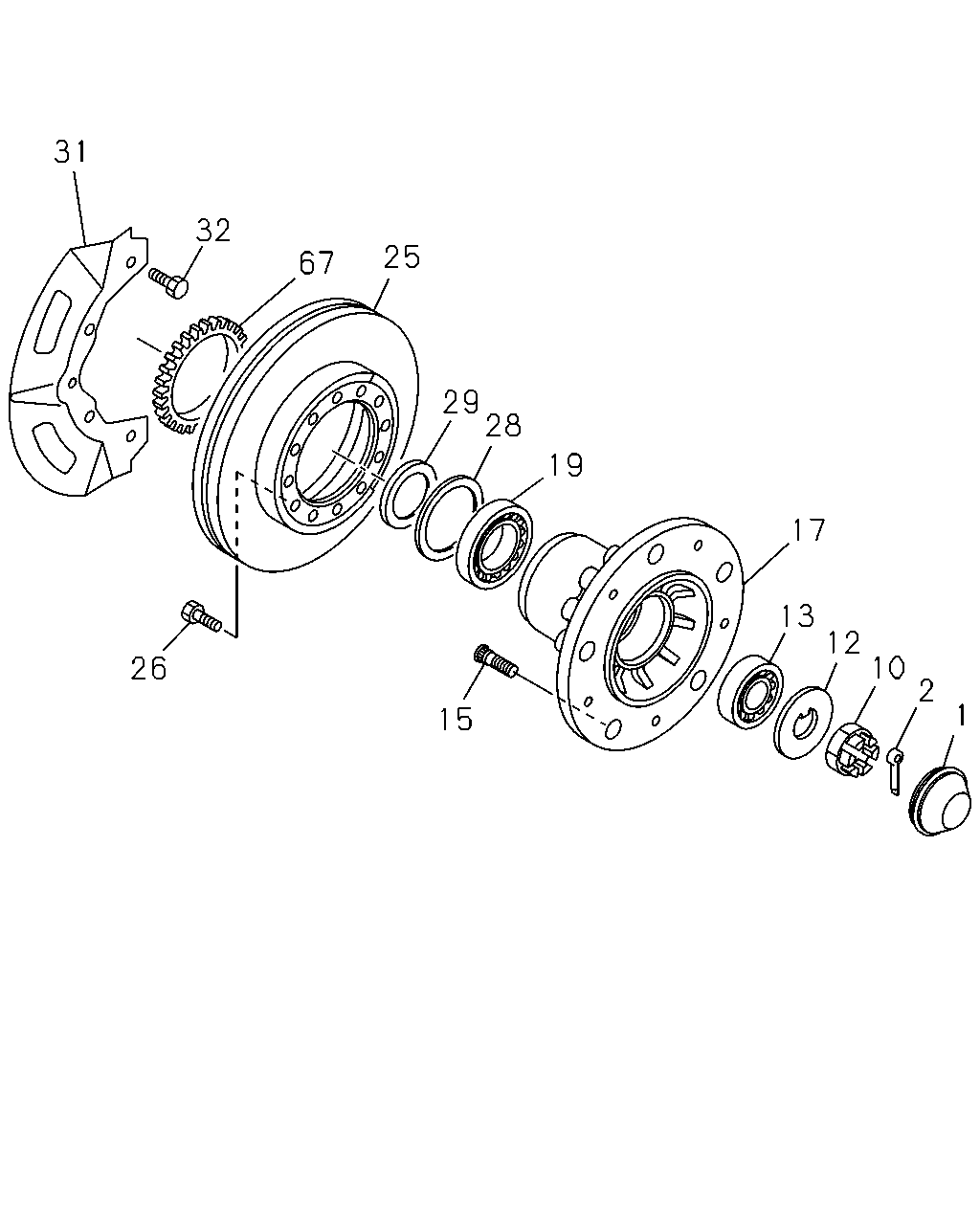

06.330 CAP; HUB,FRT AXLE
|
8-98276-604-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
|
0-81125-040-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
10 |
05.812 NUT; FRT HUB BRG
06.022
|
8-94247-357-1 |
02 |
1 |
1505- |
● |
● |
● |
| |
12 |
06.321 WASHER; LK,FRT HUB BRG
05.812
|
8-98282-435-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-172-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
|
5-87610-134-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD
|
8-98028-532-1 |
05 |
1 |
1505- |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S
ILVER(CYS),F&R 205/75R16C L.R.R RIB
16X5.5J-116.5 WHITE(CYT)
M18X46 RH THREAD
|
8-98028-532-1 |
05 |
1 |
1505- |
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD
|
8-98028-533-1 |
05 |
1 |
1505- |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S
ILVER(CYS),F&R 205/75R16C L.R.R RIB
16X5.5J-116.5 WHITE(CYT)
M18X46 LH THREAD
|
8-98028-533-1 |
05 |
1 |
1505- |
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127
WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG
17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5
RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215
/75R17.5 17.5X6.00-127 SILVER(CQU),
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S
ILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
M20X53 RH THREAD
|
8-97168-456-2 |
06 |
1 |
1505- |
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD
|
8-97168-456-2 |
06 |
1 |
1505- |
|
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127
WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG
17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5
RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215
/75R17.5 17.5X6.00-127 SILVER(CQU),
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S
ILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
M20X53 LH THREAD
|
8-97168-457-2 |
06 |
1 |
1505- |
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD
|
8-97168-457-2 |
06 |
1 |
1505- |
|
|
● |
| |
17 |
06.307 HUB; FRT AXLE
|
8-97035-160-0 |
02 |
1 |
1505- |
● |
|
|
| |
17 |
06.307 HUB; FRT AXLE
F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 S
ILVER(CYS),F&R 205/75R16C L.R.R RIB
16X5.5J-116.5 WHITE(CYT)
|
8-97035-160-0 |
02 |
1 |
1505- |
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127
WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG
17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5
RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215
/75R17.5 17.5X6.00-127 SILVER(CQU),
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S
ILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
|
8-97168-460-0 |
02 |
1 |
1505- |
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
|
8-97168-460-0 |
02 |
1 |
1505- |
|
|
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
|
8-98171-254-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
|
1-87610-134-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
|
8-97387-229-0 |
02 |
1 |
1505- |
● |
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
|
8-97387-229-0 |
02 |
1 |
1505- |
|
● |
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY)
|
8-98248-895-0 |
02 |
1 |
1505- |
|
● |
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
|
8-94474-923-0 |
24 |
1 |
1505- |
● |
● |
● |
| |
28 |
06.326 SEAL; OIL,FRT HUB
|
8-94248-117-1 |
02 |
1 |
1505- |
● |
● |
● |
| |
29 |
06.326 DISTANCE PIECE; HUB BRKT
NTN
|
8-97234-513-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-98037-377-0 |
02 |
1 |
1505- |
● |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
02.343
M8X12 FLANGE
|
0-28050-812-0 |
08 |
1 |
1505- |
● |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
|
8-97387-159-0 |
02 |
1 |
1505- |
● |
● |
● |
