◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#161423) — 807 parça

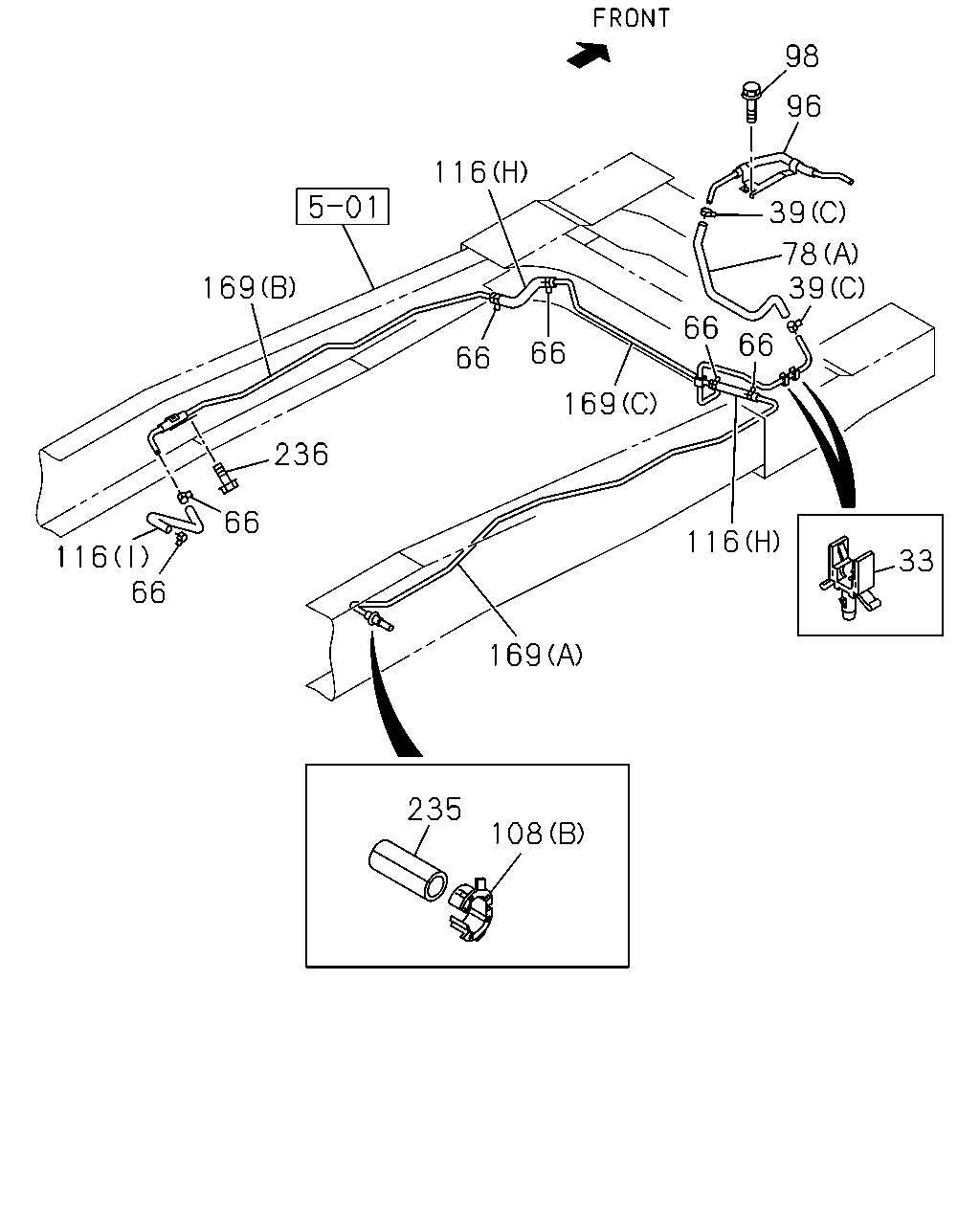

çizim 475703
108 235 169 116 66 66 169 66 66 116 39 78 39 96 98 33 236 66 169 66 116
BalonParca AdiParca NoAdetTipApplied Date A B C
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1505-1507 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1508- ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 ID=16 		8-98008-098-0 08 1 1508- ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1505- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98106-711-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1508- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C) 		8-98207-456-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1508- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1505- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1505- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98212-871-0 01 1 1505- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98067-259-2 01 1 1505- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98210-357-1 01 1 1505- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98222-220-0 01 1 1505-1507 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98222-220-0 01 1 1508- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) (B) 		8-98222-219-0 01 1 1505- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1505- ● ● ●
236 04.930 BOLT; PIPE
4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
çizim 475745
157 13 12 12 157 116 184 184 39 165 39 116
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 02 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98255-535-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-548-0 01 1 1505- ● ● ●

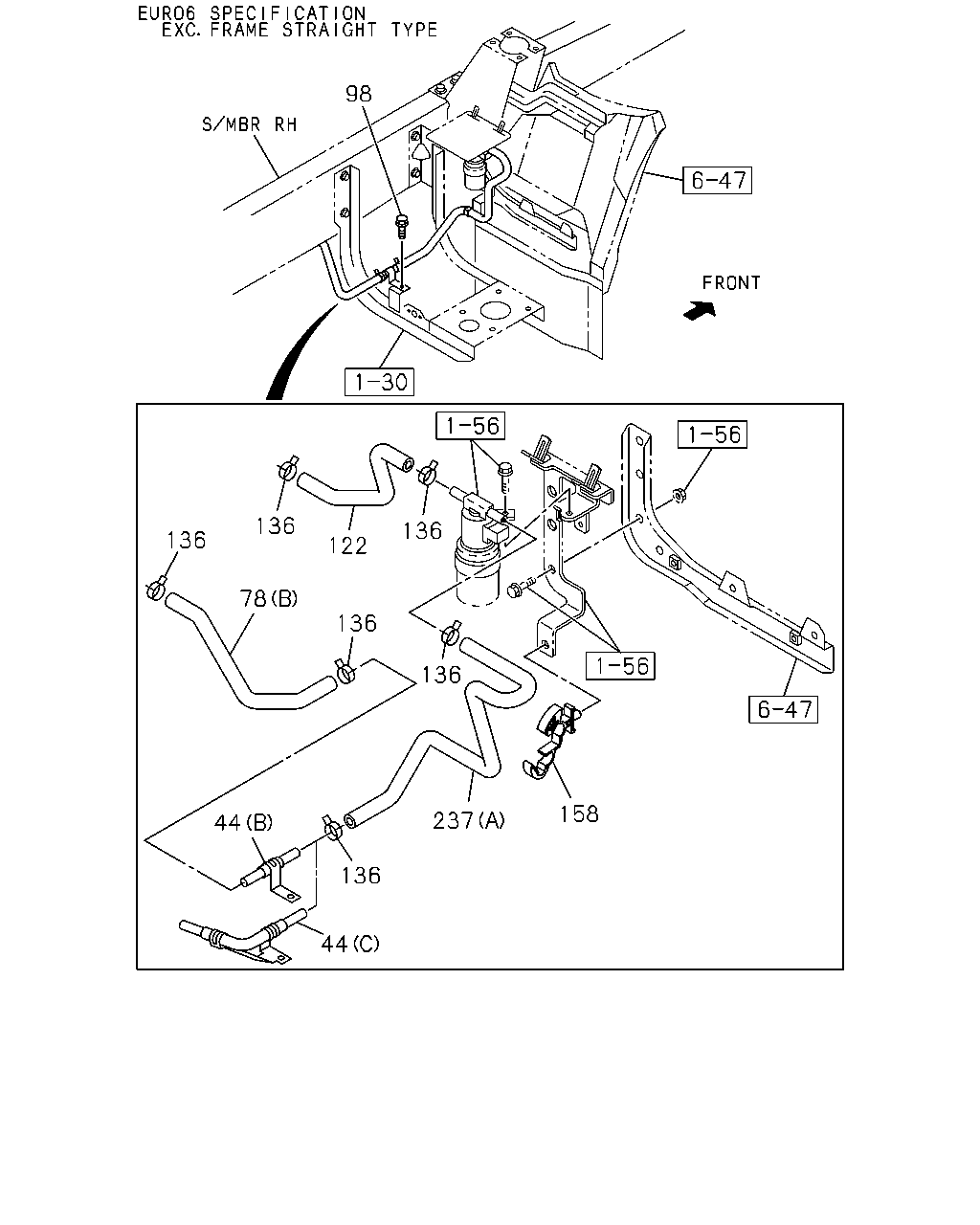

çizim 475747
98 122 136 136 136 136 136 78 44 237 136 158 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) (B) 		8-98063-777-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505-1507 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1508- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (C) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-112-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-112-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1505- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98106-711-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1508- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C) 		8-98207-456-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505-1507 ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1508- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505- ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1508- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1505-1507 ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 ID=14-20 		8-97061-603-0 01 1 1505-1507 ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1508- ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 ID=14-20 		8-97061-603-0 01 1 1508- ● ●
158 04.681 CLIP; HOSE
EURO5B+ SPECIFICATION(NT5) 02.559 ID=14-20 		8-97061-603-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.630 (C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●

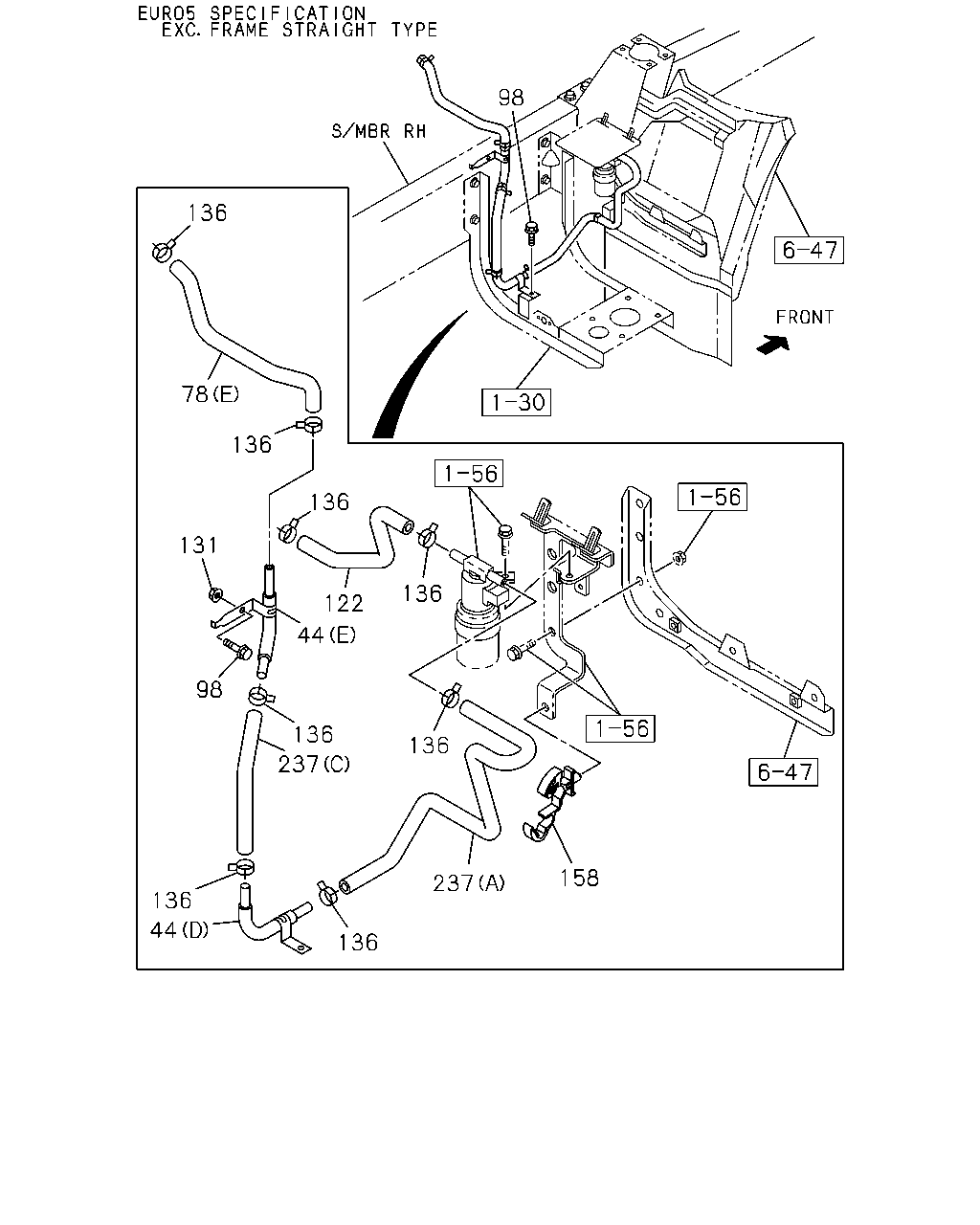

çizim 475761
136 78 136 131 136 122 44 98 136 136 237 136 158 237 136 136 44 98
BalonParca AdiParca NoAdetTipApplied Date A B C
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) (B) 		8-98063-777-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505-1507 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1508- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (C) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-112-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-112-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1505- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98106-711-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1508- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C) 		8-98207-456-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505-1507 ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1508- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
131 04.930 NUT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505- ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1508- ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1505-1507 ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 ID=14-20 		8-97061-603-0 01 1 1505-1507 ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1508- ●
158 04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 ID=14-20 		8-97061-603-0 01 1 1508- ● ●
158 04.681 CLIP; HOSE
EURO5B+ SPECIFICATION(NT5) 02.559 ID=14-20 		8-97061-603-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.630 (C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●

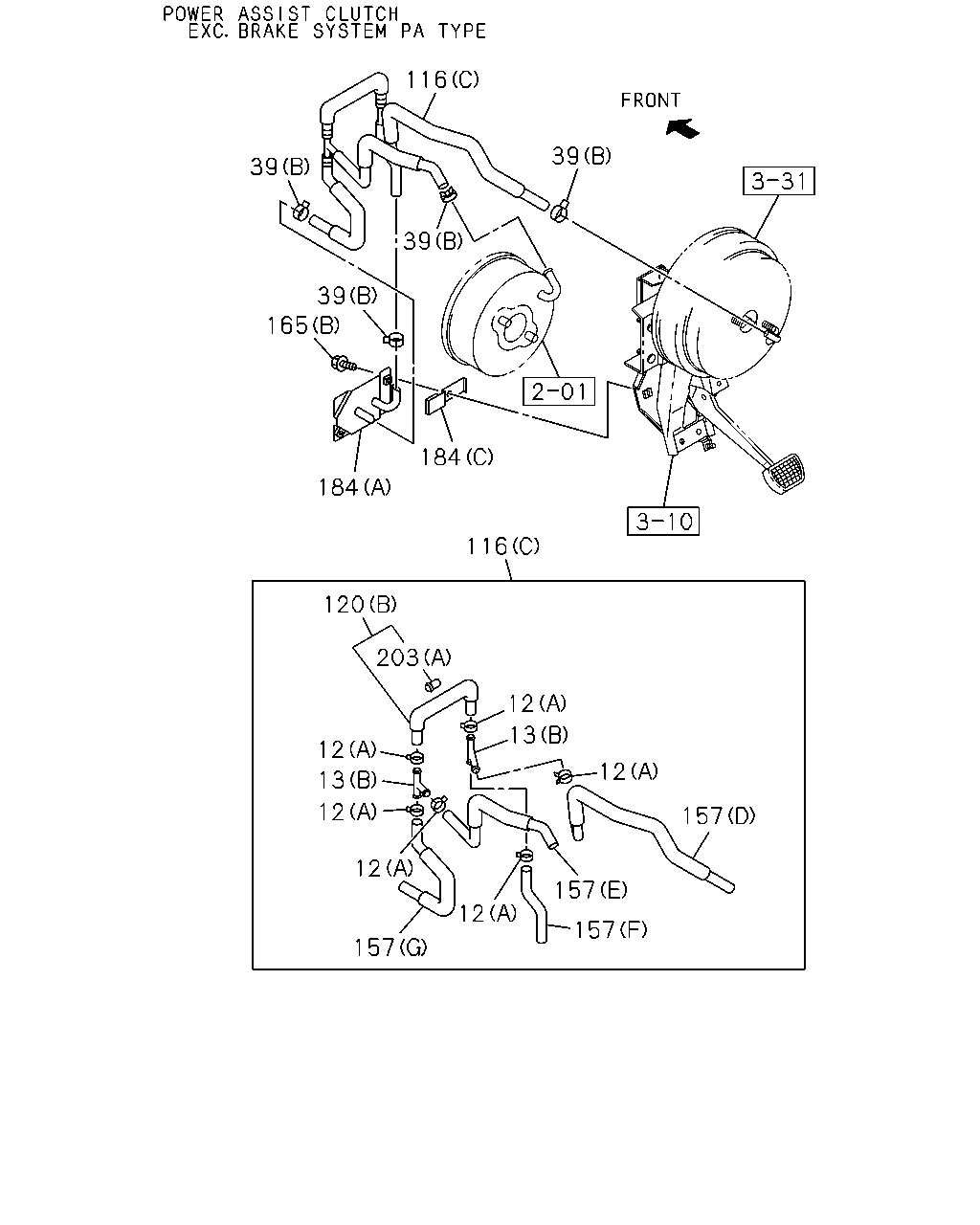

çizim 475790
157 157 157 12 13 12 203 120 12 13 12 12 157 12 116 184 184 165 39 39 39 116 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 02 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98255-535-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-548-0 01 1 1505- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1505- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1505- ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-94386-540-0 01 1 1505- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (A) 		8-94386-540-0 01 1 1505- ●

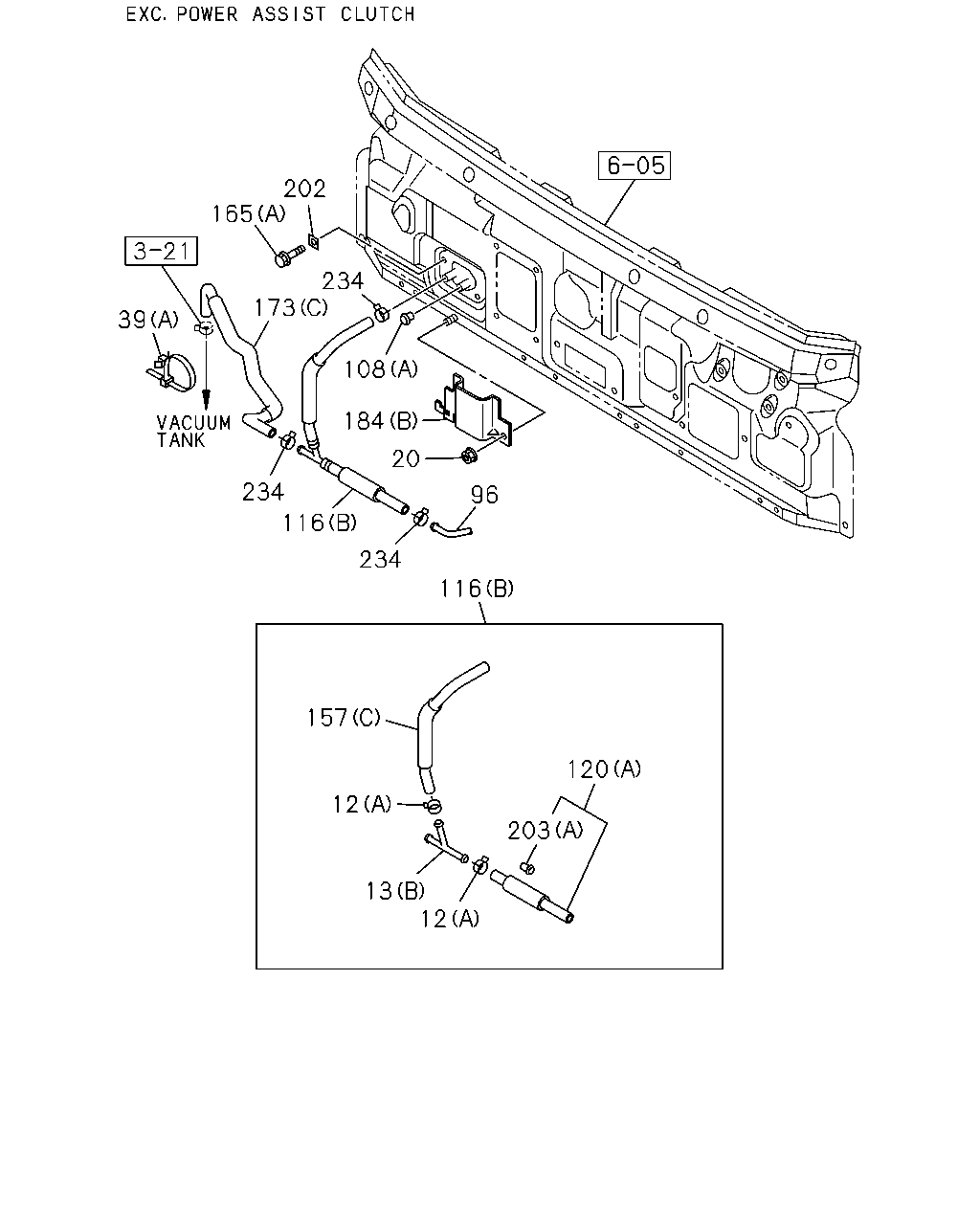

çizim 475856
12 13 12 157 120 203 116 234 96 20 184 116 234 39 173 234 202 165 108
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 02 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1505- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1505- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1505- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1505- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98255-535-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-548-0 01 1 1505- ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1505- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1505- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1505- ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-94386-540-0 01 1 1505- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (A) 		8-94386-540-0 01 1 1505- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1505- ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1505- ● ● ●

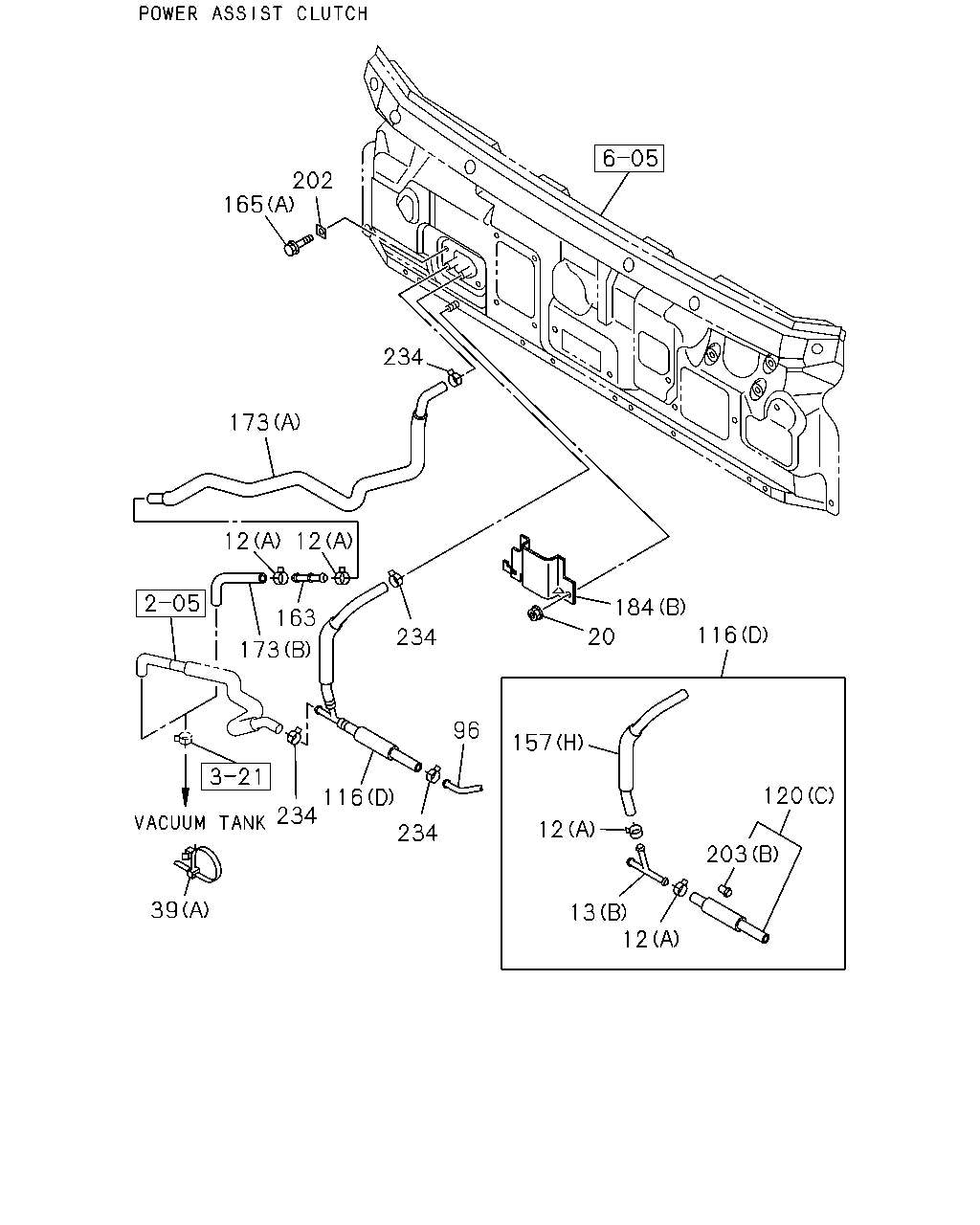

çizim 475903
12 13 203 12 157 120 116 184 20 234 96 234 116 234 39 173 163 12 12 173 234 165 202
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 02 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 1505- ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1505- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1505- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98255-535-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-548-0 01 1 1505- ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1505- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1505- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1505- ●
203 04.690 VALVE; CHECK
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-94386-540-0 01 1 1505- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (A) 		8-94386-540-0 01 1 1505- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1505- ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1505- ● ● ●
çizim 476247
157 12 12 157 247 247 12 12 13 116 246 248 246 251 157 157 120 12 13 12 120 12 13 12 12 157 12 12 13 12 12 157 157 116 184 165 39 184 39 39 116 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 02 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1505- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (D) 		8-98260-478-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98255-535-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-548-0 01 1 1505- ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-415-1 02 1 1505- ●
246 01.150 SENSOR; VAC 8-98241-415-1 02 1 1505- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-416-1 01 1 1505- ●
248 06.672 BRACKET; SENSOR VAC 8-98241-416-1 01 1 1505- ●
251 04.930 BOLT; SENSOR
BRAKE SYSTEM PA TYPE(8BX) 00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
251 04.930 BOLT; SENSOR
00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
çizim 476346
122 136 136 136 136 44 237 106 106 106 136 136 78
BalonParca AdiParca NoAdetTipApplied Date A B C
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) (B) 		8-98063-777-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1505-1507 ● ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98063-777-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1508- ● ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (C) 		8-98260-530-0 01 1 1505- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-112-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98227-112-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1505-1507 ●
44 04.930 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (D) 		8-98227-113-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1505-1507 ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98109-719-0 01 1 1508- ●
44 04.930 PIPE; VAC,MAG VLV
4HK1-TCS ENG(RJS) (A) 		8-98109-719-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1505- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98106-711-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1508- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C) 		8-98207-456-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1508- ●
106 04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1505-1507 ● ●
106 04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) ID=10 H=40 		8-94462-219-0 03 1 1508- ●
106 04.930 CLIP; PIPE
4HK1-TCS ENG(RJS) ID=10 H=40 		8-94462-219-0 03 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1505-1507 ● ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98092-677-0 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1508- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1505-1507 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 		8-98155-961-1 01 1 1508- ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCS ENG(RJS) 		8-98155-961-1 01 1 1508- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505- ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1505- ●
136 04.681 CLIP; VAC HOSE
4HK1-TCS ENG(RJS) 03.162 ID=16 		8-98008-098-0 06 1 1505- ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1505-1507 ●
136 04.681 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 08 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) 		8-98171-288-0 01 1 1505-1507 ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1508- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.630 (C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1505-1507 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 03.630 (C) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1505-1507 ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (B) 		8-98109-825-2 01 1 1508- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
4HK1-TCS ENG(RJS) (B) 		8-98109-825-2 01 1 1508- ●
çizim 476745
157 12 13 12 246 248 246 251 247 247 157 12 12 116 157 12 157 157 12 13 12 157 12 13 12 116 184 165 184 39 116 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 06 1 1505- ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1505- ● ● ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) 03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
03.163 (B) ID=11 		8-94238-570-0 04 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 09 1 1505- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 05 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98035-106-0 04 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 02 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(C) 		8-98260-486-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 06 1 1505- ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1505- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 01 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (H) 		8-98017-168-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-351-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98027-353-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (G) 		8-98027-354-2 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98125-532-1 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98022-868-3 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98125-849-1 01 1 1505- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (B) 		8-97389-671-3 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
(K) 		8-98260-479-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(L) 		8-98260-484-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
(M) 		8-98260-485-1 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98260-482-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (J) 		8-98260-481-0 01 1 1505- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (I) 		8-98260-483-0 01 1 1505- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1505- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98255-535-0 01 1 1505- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-548-0 01 1 1505- ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-415-1 02 1 1505- ●
246 01.150 SENSOR; VAC 8-98241-415-1 02 1 1505- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98241-416-1 01 1 1505- ●
248 06.672 BRACKET; SENSOR VAC 8-98241-416-1 01 1 1505- ●
251 04.930 BOLT; SENSOR
BRAKE SYSTEM PA TYPE(8BX) 00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
251 04.930 BOLT; SENSOR
00.206 M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 1505- ●
çizim 477139
235 108 80 116 116 66 85 66 80 78 39 96 98 33 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 04 1 1505- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1505- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (B) ID=16 		8-94238-568-0 02 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 05 1 1505- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 03 1 1505- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1505- ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1505-1507 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1508- ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1505-1507 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 ID=16 		8-98008-098-0 08 1 1508- ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1505- ● ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98106-711-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) (B) 		8-98106-711-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1508- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) (B) 		8-98260-531-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1505-1507 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) (E) 		8-98207-022-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1505- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1505- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1505-1507 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C) 		8-98207-456-0 01 1 1508- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) (C) 		8-98207-456-0 01 1 1508- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 1505- ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1505- ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-596-0 01 1 1505-1507 ● ● ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-596-0 01 1 1508- ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1505-1507 ● ● ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1508- ● ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1505- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505-1507 ● ● ●
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1508- ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1505- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1505- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (H) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (C) 		8-98115-385-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1505- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (A) 		8-98115-399-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98212-894-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (H) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (I) 		8-98158-378-0 01 1 1505- ● ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
(E) 		8-98254-600-1 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (G) 		8-98242-679-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		8-98242-680-0 01 1 1505- ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
