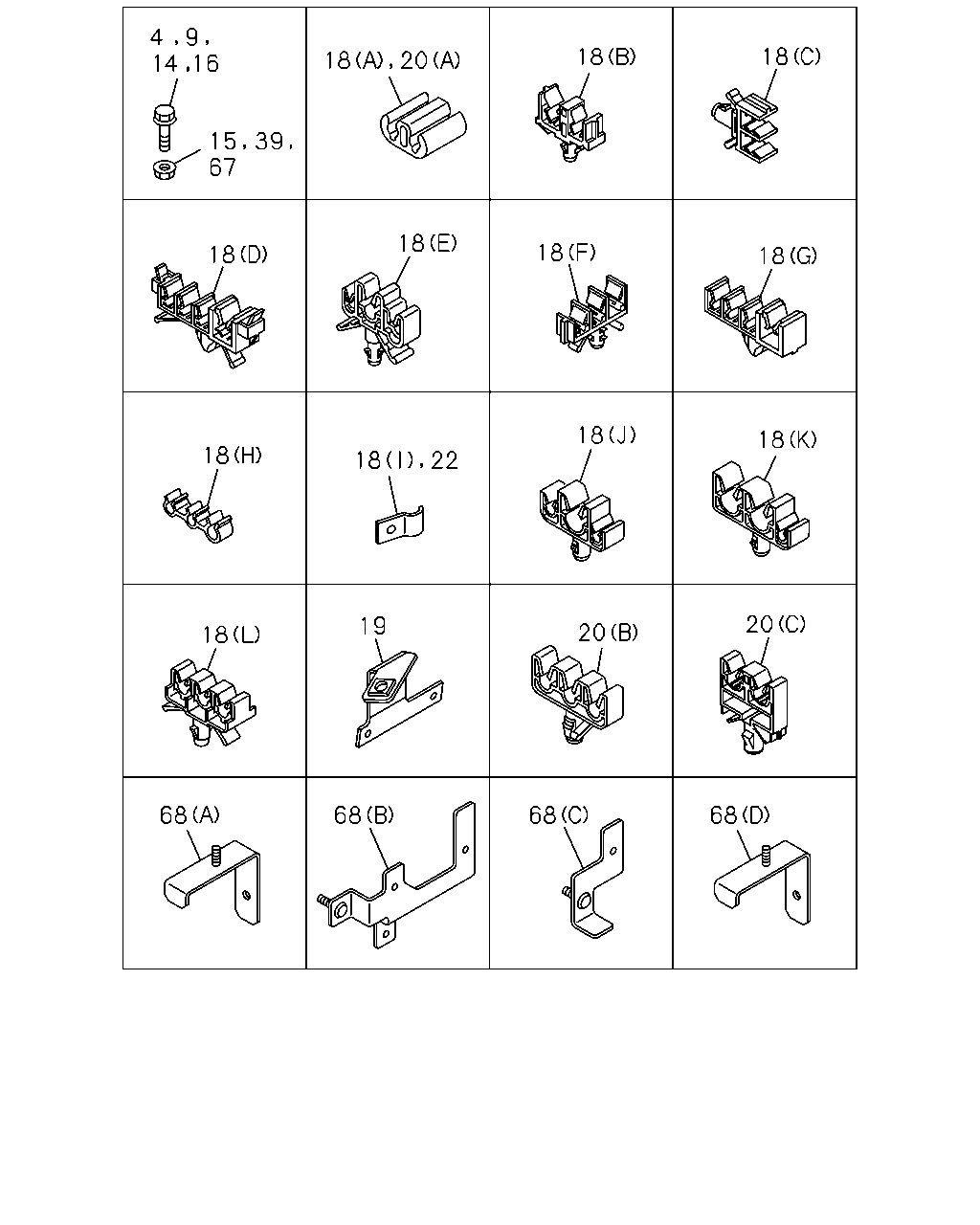

3-58 — FIXING PARTS; OIL PIPING (#161422) — 69 parça

68 68 68 68 18 19 20 20 18 18 22 18 18 18 18 18 18 18 18 20 18 39 67 15 16 14 9 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
14	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●
14	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-		●	●
14	04.686 BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-		●	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-	●	●	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	1505-	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	1505-		●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1505-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1505-		●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	01	1	1505-1507	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	1508-	●	●	●
18	04.686 CLIP; BRK PIPE (L) ID=4.76X3	8-97314-976-0	01	1	1505-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=4.76X3	8-97314-976-0	01	1	1505-		●	●
18	04.686 CLIP; BRK PIPE SMOOTHER-EX(TYPE2)(8NS) 04.128 (K) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	1505-1507	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.128 (K) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	1508-	●	●	●
18	04.686 CLIP; BRK PIPE EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (K) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	1508-	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3	8-97326-158-1	02	1	1505-	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	1505-1507	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	01	1	1508-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	1508-		●	●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	03	1	1505-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	03	1	1505-		●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1505-	●	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	1508-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (I) B=18 L=20	1-09700-372-0	02	1	1505-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1505-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1508-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1508-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	1505-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2	8-94389-060-0	01	1	1505-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2	8-94455-816-0	01	1	1505-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	01	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE EURO5B+ SPECIFICATION(NT5) 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	02	1	1508-		●
18	04.686 CLIP; BRK PIPE WHEEL BASE 4400MM(44W) (D) ID=10 & 4.76X3	8-97326-158-1	08	1	1505-1507		●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3	8-97326-158-1	08	1	1508-		●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	01	1	1508-		●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1505-	●	●	●
19	04.686 BRACKET; OIL PIPE	8-97389-845-2	01	1	1505-	●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	1505-	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98196-265-0	02	1	1505-	●	●	●
20	04.686 CLIP; BRK PIPE (C)	8-98204-480-0	01	1	1505-	●	●	●
22	04.686 CLIP; PIPE TO FRAME B=18 L=20	1-09700-372-0	02	1	1505-	●
22	04.686 CLIP; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20	1-09700-372-0	02	1	1505-		●	●
39	04.686 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●	●	●
67	04.686 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-1507	●	●	●
67	04.686 NUT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
67	04.686 NUT; BRKT 00.837 M10	8-98034-487-1	01	1	1505-	●
67	04.686 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-1	01	1	1505-		●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●
67	04.686 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507		●	●
67	04.686 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	03	1	1508-	●
67	04.686 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	03	1	1508-		●	●
68	04.686 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98049-137-1	01	1	1505-1507	●	●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98049-137-1	01	1	1508-	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98049-137-1	01	1	1508-		●	●
68	04.686 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D)	8-98060-016-3	01	1	1505-1507	●	●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98060-016-3	01	1	1508-	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D)	8-98060-016-3	01	1	1508-		●	●
68	04.686 BRACKET; CLIP (B)	8-98017-159-0	01	1	1505-	●
68	04.686 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98017-159-0	01	1	1505-		●	●
68	04.686 BRACKET; CLIP (C)	8-98034-786-0	01	1	1505-	●
68	04.686 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-786-0	01	1	1505-		●	●
