◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#161419) — 60 parça

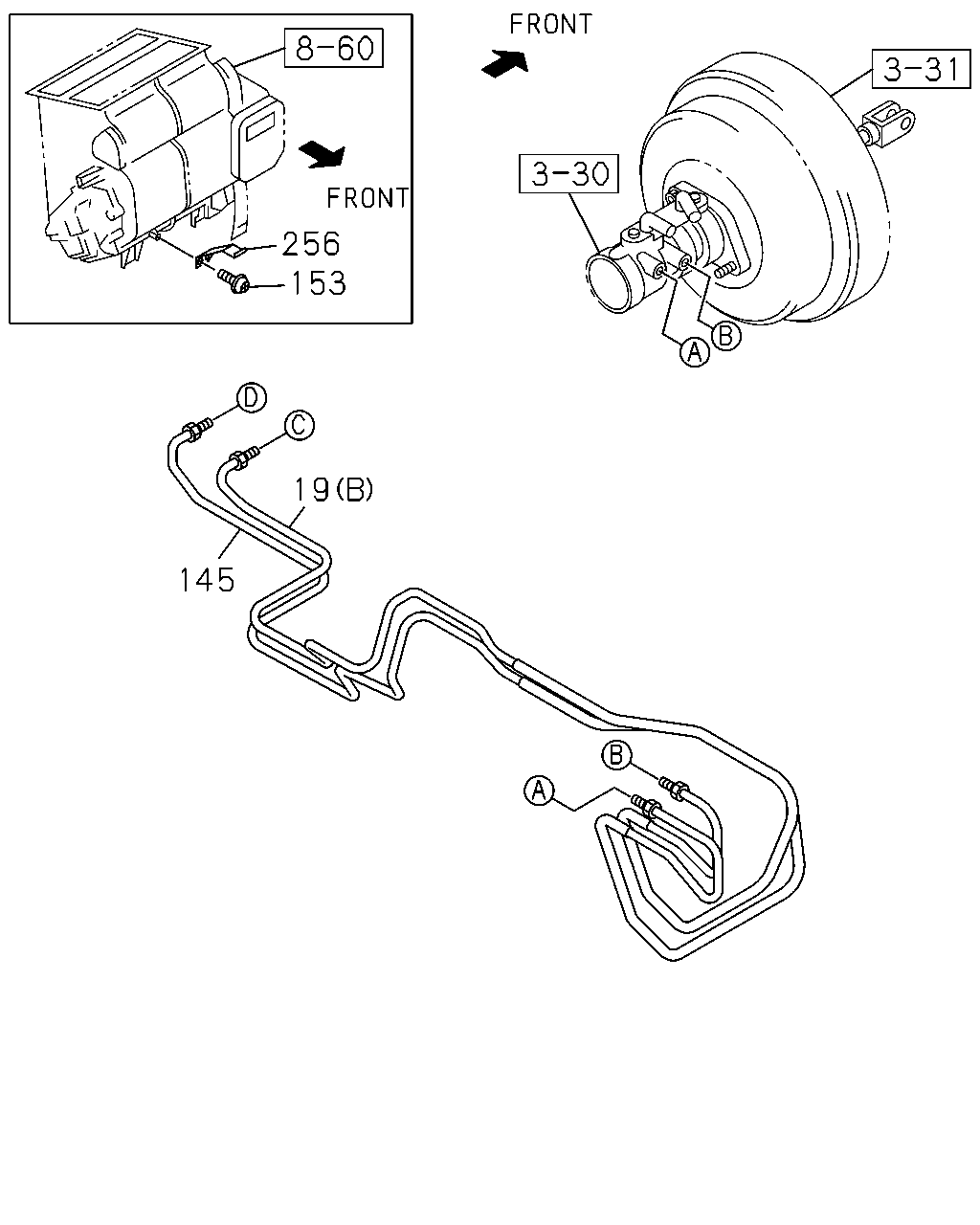

çizim 475611
145 19 153 256
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-790-2 02 1 1505- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1505- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1505- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98204-479-1 01 1 1505- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98204-479-1 01 1 1505- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98220-477-1 01 1 1505- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. BRAKE SYSTEM PA TYPE(8BX) 		8-98220-477-1 01 1 1505- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
BRAKE SYSTEM PA TYPE(8BX) 		8-98204-478-1 01 1 1505- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98204-478-1 01 1 1505- ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1505- ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1505- ● ● ●
çizim 475638
89 103 72 197 179 94 184 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1505- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 		8-98305-831-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98305-830-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 		8-98305-829-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 		8-98305-828-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ>,BRAKE SYSTEM PA TYPE(8BX) 		8-98305-823-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98305-821-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98305-821-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-817-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-817-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98305-820-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98305-820-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-816-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-816-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-815-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-815-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-814-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-814-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-813-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-813-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-812-0 01 1 1505- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98305-812-0 01 1 1505- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-875-2 01 1 1505- ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1505- ● ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1505- ● ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1505- ● ● ●

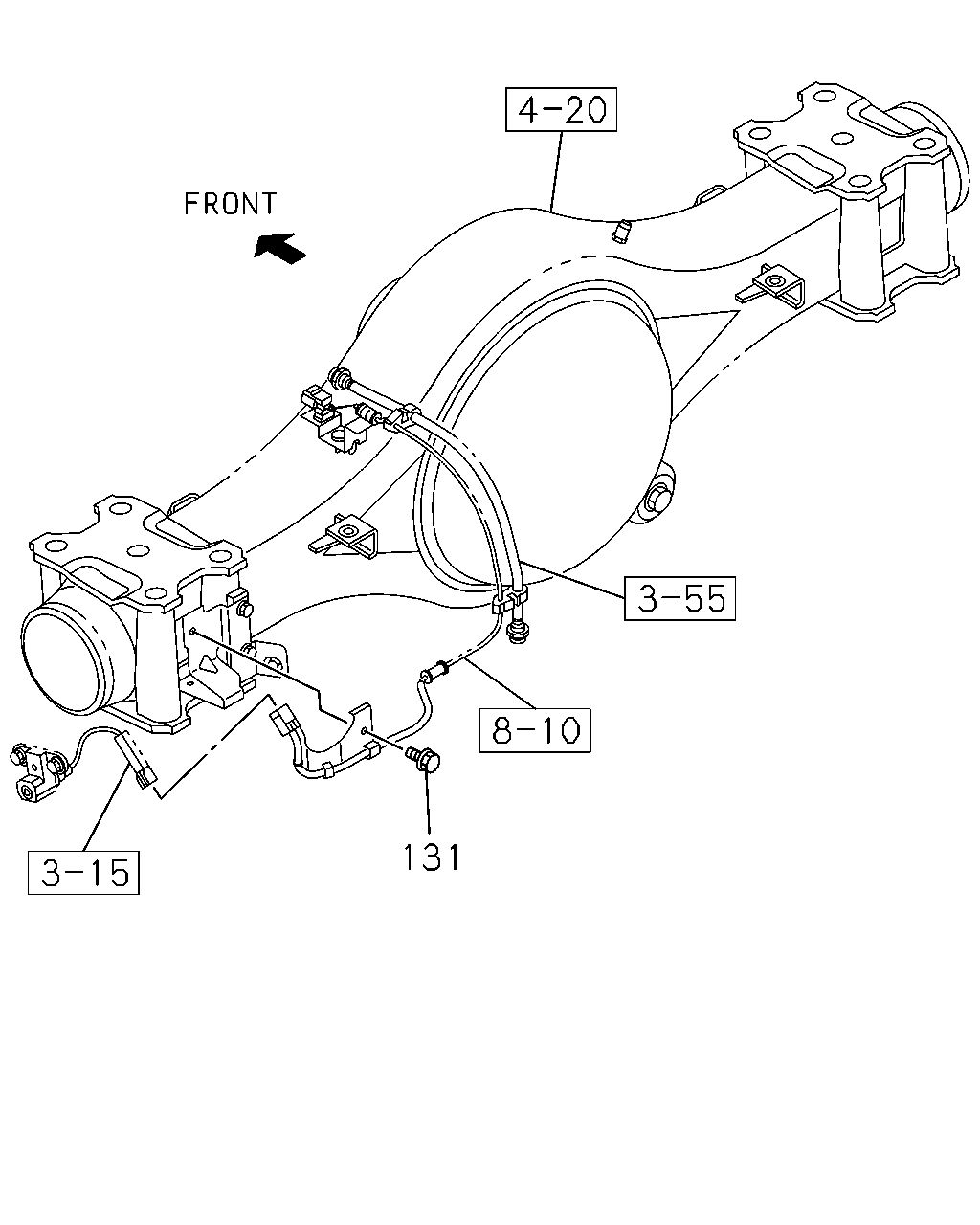

çizim 476150
131
BalonParca AdiParca NoAdetTipApplied Date A B C
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1505- ● ● ●

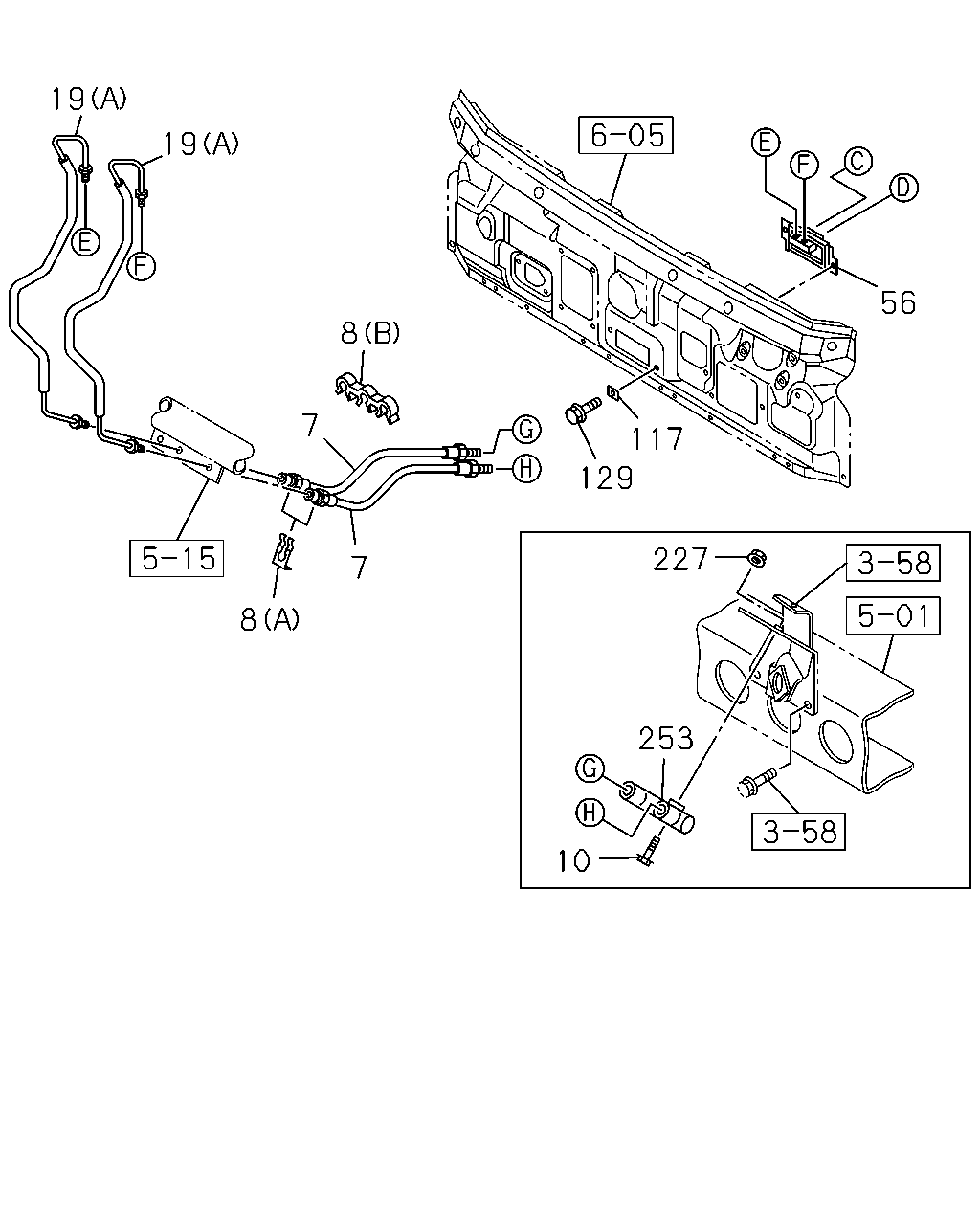

çizim 477137
253 10 227 129 117 56 8 7 7 8 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98191-785-0 02 1 1505- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 1505- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1505- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1505- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98206-790-2 02 1 1505- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98220-478-1 01 1 1505- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98220-478-1 01 1 1505- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98204-479-1 01 1 1505- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98204-479-1 01 1 1505- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-244-0 01 1 1505- ● ● ●
56 04.686 BRACKET; UNION,BRK
SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1505- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-245-0 01 1 1505- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1505- ● ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1505- ● ● ●
227 04.685 NUT; JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505-1507 ● ●
227 04.685 NUT; JOINT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
253 04.840 JOINT 8-98192-436-0 01 1 1505- ● ● ●
