Sayfa 2-85 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶

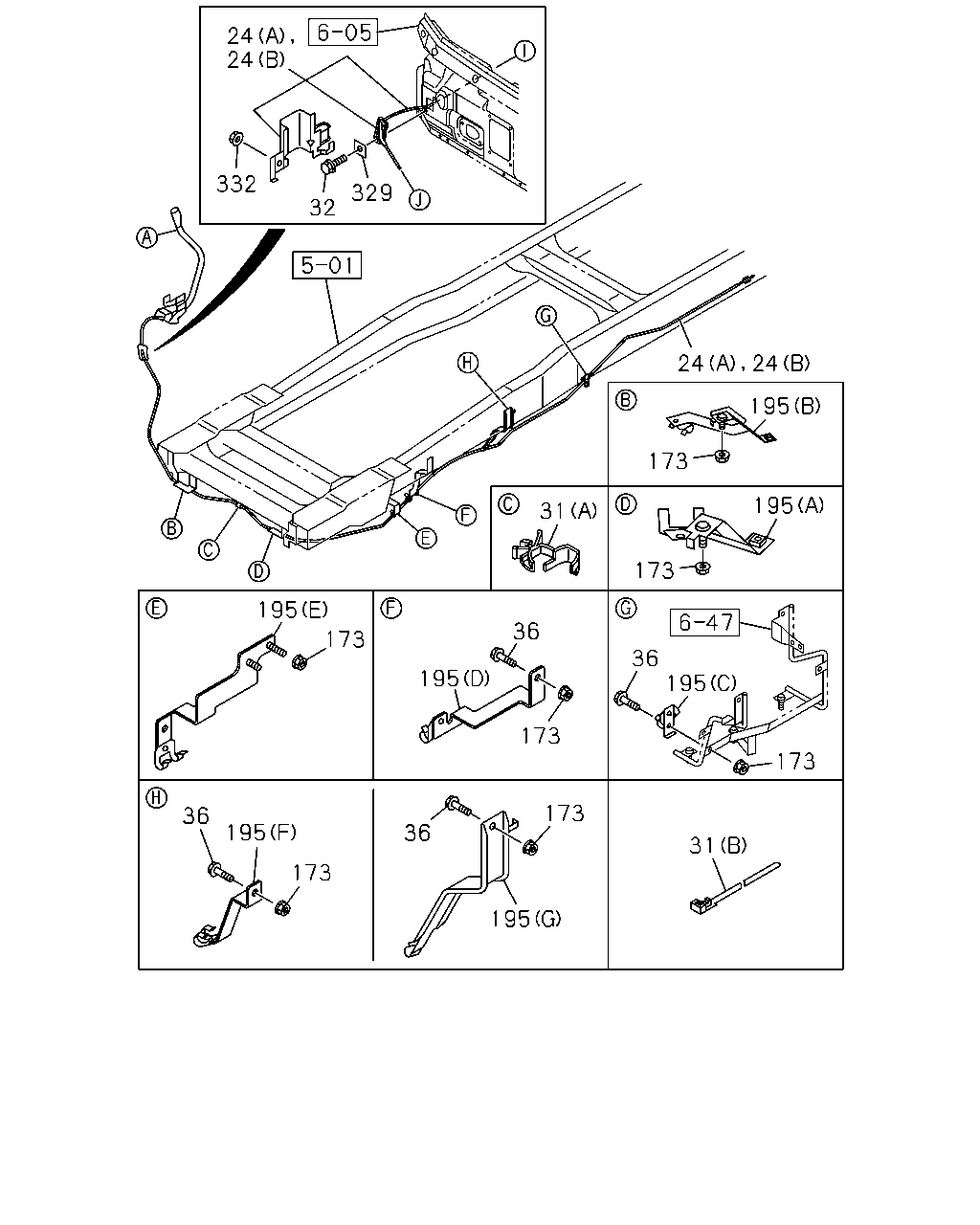

2-85 — POWER TAKE OFF CONTROL (#161408) — 99 parça

31 173 195 36 173 195 36 173 195 195 173 36 173 195 36 173 195 173 31 195 24 24 329 32 332 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3532	8-98223-344-0	01	1	1505-1507	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=3532	8-98223-344-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3610	8-98223-345-0	01	1	1505-1507	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3610	8-98223-345-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (A) L=3608	8-98211-647-1	01	1	1505-	●		●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3534	8-98211-646-1	01	1	1505-	●		●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=3904	8-98223-357-0	01	1	1505-				●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=3844	8-98223-356-0	01	1	1505-				●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1505-	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1505-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1505-	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=16	8-97040-812-0	01	1	1505-	●		●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1505-	●	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1505-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-	●		●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1505-				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-				●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	1505-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98049-570-1	01	1	1505-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98101-144-0	01	1	1505-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98101-145-0	01	1	1505-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> (G)	8-98223-087-1	01	1	1505-	●		●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98102-494-0	01	1	1505-				●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98102-495-1	01	1	1505-				●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98086-271-2	01	1	1505-				●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1505-	●	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●	●

96 190 287 121 222 264 330 258 260 261 225 287 259 262 74 219 80 300 15 24 24 16 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1505-	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1505-	●	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3532	8-98223-344-0	01	1	1505-1507	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=3532	8-98223-344-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3610	8-98223-345-0	01	1	1505-1507	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3610	8-98223-345-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (A) L=3608	8-98211-647-1	01	1	1505-	●		●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3534	8-98211-646-1	01	1	1505-	●		●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=3904	8-98223-357-0	01	1	1505-				●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=3844	8-98223-356-0	01	1	1505-				●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1505-	●	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1505-	●	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1505-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1505-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1505-				●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (C)	8-94366-842-2	01	1	1505-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1505-	●	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	0-82154-025-0	01	1	1505-				●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1505-	●	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1505-	●	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1505-	●	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98152-960-1	01	1	1505-	●	●	●	●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	1505-	●	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1505-	●	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	1505-	●	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	1505-	●	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1505-	●	●	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1505-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1505-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1505-	●	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1505-	●	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1505-	●	●	●	●

24 121 21 190 24 191 190 191 27 21 21 64 46 46 8 6 4 9 10 7 1 5 7 155 12 193 13 14 142 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1505-	●	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1505-	●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1505-	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1505-	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1505-	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1505-	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1505-	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1505-	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1505-	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1505-	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1505-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1505-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1505-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1505-				●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3532	8-98223-344-0	01	1	1505-1507	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=3532	8-98223-344-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=3610	8-98223-345-0	01	1	1505-1507	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3610	8-98223-345-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (A) L=3608	8-98211-647-1	01	1	1505-	●		●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=3534	8-98211-646-1	01	1	1505-	●		●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=3904	8-98223-357-0	01	1	1505-				●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=3844	8-98223-356-0	01	1	1505-				●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	1505-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	1505-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98081-815-0	01	1	1505-	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1505-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1505-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1505-				●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1505-	●	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) SMOOTHER-EX(TYPE2)(8NS) 01.240 T=5.5	5-09709-047-0	01	1	1505-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (C)	8-94366-842-2	01	1	1505-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1505-	●	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	0-82154-025-0	01	1	1505-				●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	1505-	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1505-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
