2-53 — TRANSMISSION OIL COOLER SYSTEM (#161406) — 126 parça

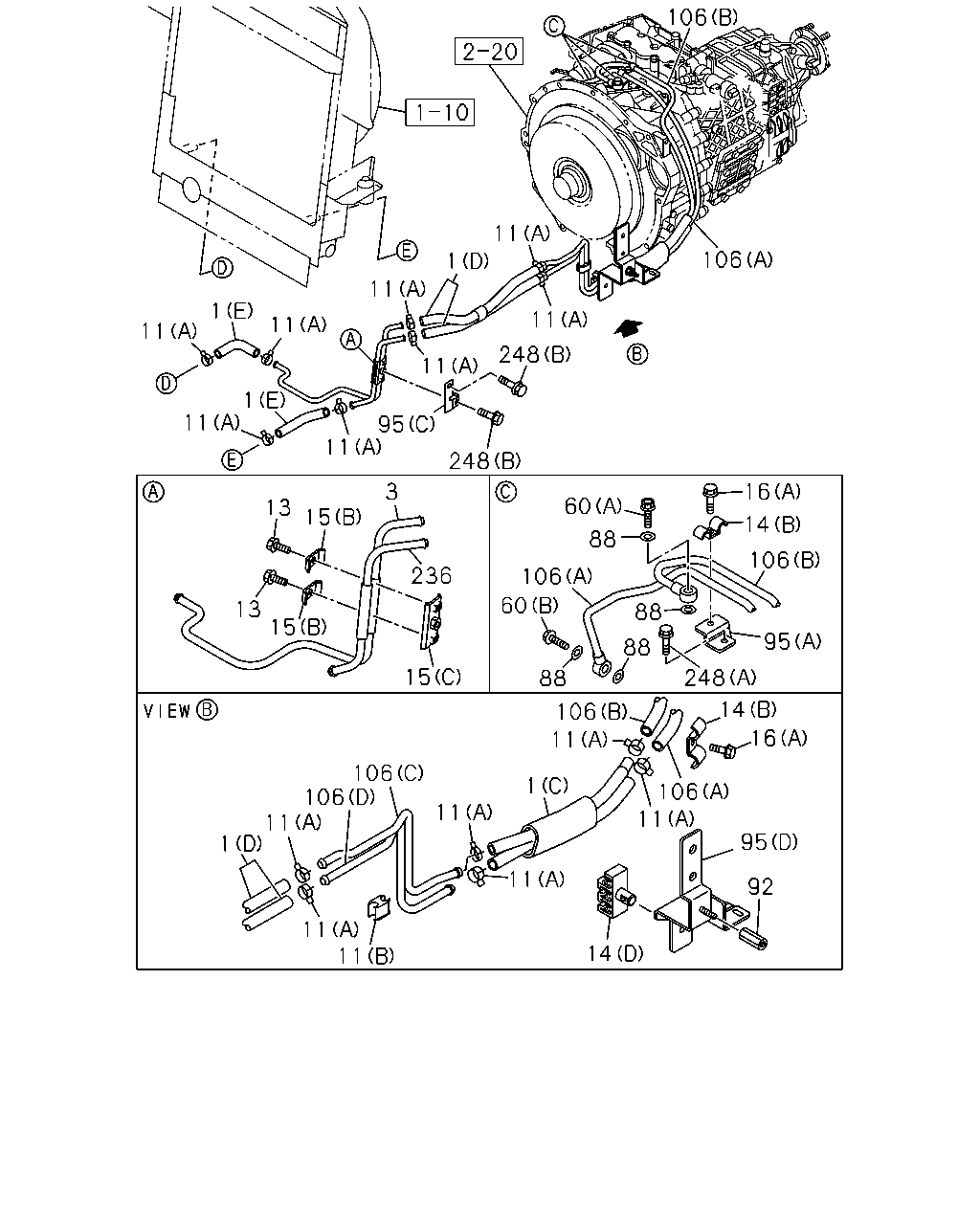

11 1 11 11 1 11 95 11 11 1 11 248 248 11 106 106 3 15 13 13 15 15 236 60 106 88 60 88 88 88 248 106 95 14 16 14 16 106 11 11 106 1 11 11 14 95 92 106 106 1 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) (E)	8-98086-380-0	02	1	1505-	●	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1505-	●	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1505-	●	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (G)	8-98118-174-1	01	1	1505-	●		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (F)	8-98212-896-1	01	1	1505-	●		●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1505-				●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1505-				●
3	04.128 PIPE; OIL,A/T TO OIL COOLER SMOOTHER-EX(TYPE2)(8NS)	8-98006-093-1	01	1	1505-	●	●	●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) 01.097 (A) ID=16	8-97329-628-0	12	1	1505-	●	●	●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	01	1	1505-	●	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (A) ID=16	8-97329-628-0	08	1	1505-				●
13	04.128 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) M6X25 W/LK WASHER	0-50540-625-0	02	1	1505-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1505-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1505-	●		●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (C)	8-98035-763-0	01	1	1505-	●	●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-764-0	02	1	1505-	●	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98041-180-3	01	1	1505-1507	●		●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) (A)	8-98041-180-3	01	1	1508-	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1505-	●	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1505-1507	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1508-	●		●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1505-	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1505-	●	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1505-	●	●	●	●
92	04.128 NUT; CLIP SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-1	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) (C)	8-98035-762-0	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-97349-876-0	01	1	1505-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-840-5	01	1	1505-				●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98135-505-0	01	1	1505-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98135-506-0	01	1	1505-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-638-0	01	1	1505-	●	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98094-577-0	01	1	1505-	●	●	●	●
236	04.128 PIPE; OIL,OIL COOLER TO A/T SMOOTHER-EX(TYPE2)(8NS)	8-98006-094-1	01	1	1505-	●	●	●
248	04.128 BOLT; RETAINER SMOOTHER-EX(TYPE2)(8NS) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-	●	●	●	●

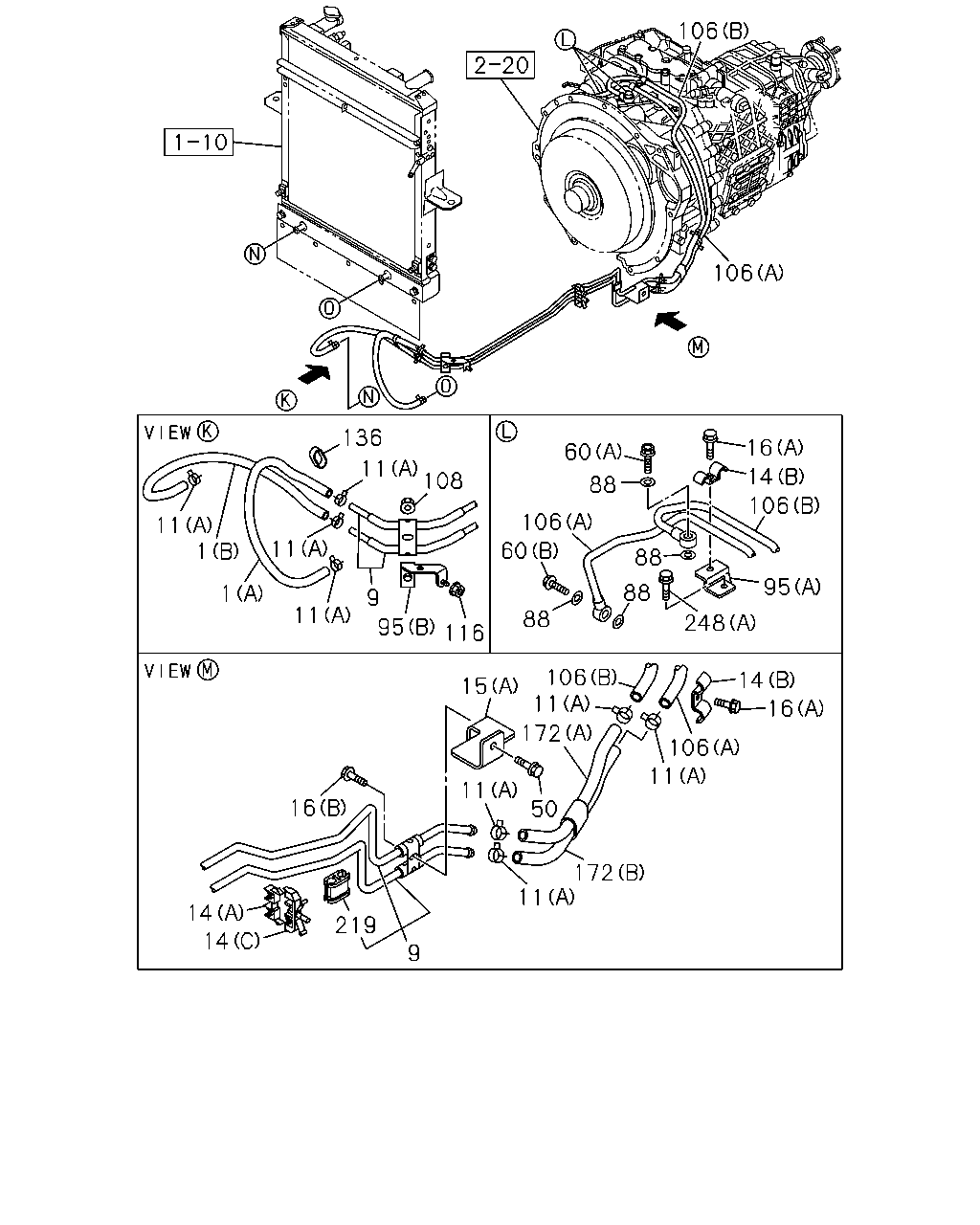

106 106 60 106 60 88 88 88 248 106 16 95 14 88 14 16 106 11 172 15 11 50 172 11 11 106 16 14 14 219 9 116 95 9 11 1 1 11 11 11 136 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) (E)	8-98086-380-0	02	1	1505-	●	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1505-	●	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1505-	●	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (G)	8-98118-174-1	01	1	1505-	●		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (F)	8-98212-896-1	01	1	1505-	●		●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1505-				●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1505-				●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS)	8-98212-880-2	01	1	1505-	●		●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1505-				●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) 01.097 (A) ID=16	8-97329-628-0	12	1	1505-	●	●	●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	01	1	1505-	●	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (A) ID=16	8-97329-628-0	08	1	1505-				●
14	04.128 CLIP; PIPE TO ENG SIDE SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1505-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1505-	●		●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (C)	8-98035-763-0	01	1	1505-	●	●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-764-0	02	1	1505-	●	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98041-180-3	01	1	1505-1507	●		●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) (A)	8-98041-180-3	01	1	1508-	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1505-	●	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1505-1507	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1508-	●		●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●		●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●		●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1505-	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1505-	●	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1505-	●	●	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) (C)	8-98035-762-0	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-97349-876-0	01	1	1505-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-840-5	01	1	1505-				●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98135-505-0	01	1	1505-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98135-506-0	01	1	1505-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-638-0	01	1	1505-	●	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98094-577-0	01	1	1505-	●	●	●	●
108	04.128 NUT; PIPE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-				●
116	04.128 NUT; BRKT,FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-				●
136	04.128 CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	1505-				●
172	04.128 HOSE; FLEX,ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	1505-				●
172	04.128 HOSE; FLEX,ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	1505-				●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	1505-	●		●
219	04.128 CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1505-				●
248	04.128 BOLT; RETAINER SMOOTHER-EX(TYPE2)(8NS) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-	●	●	●	●

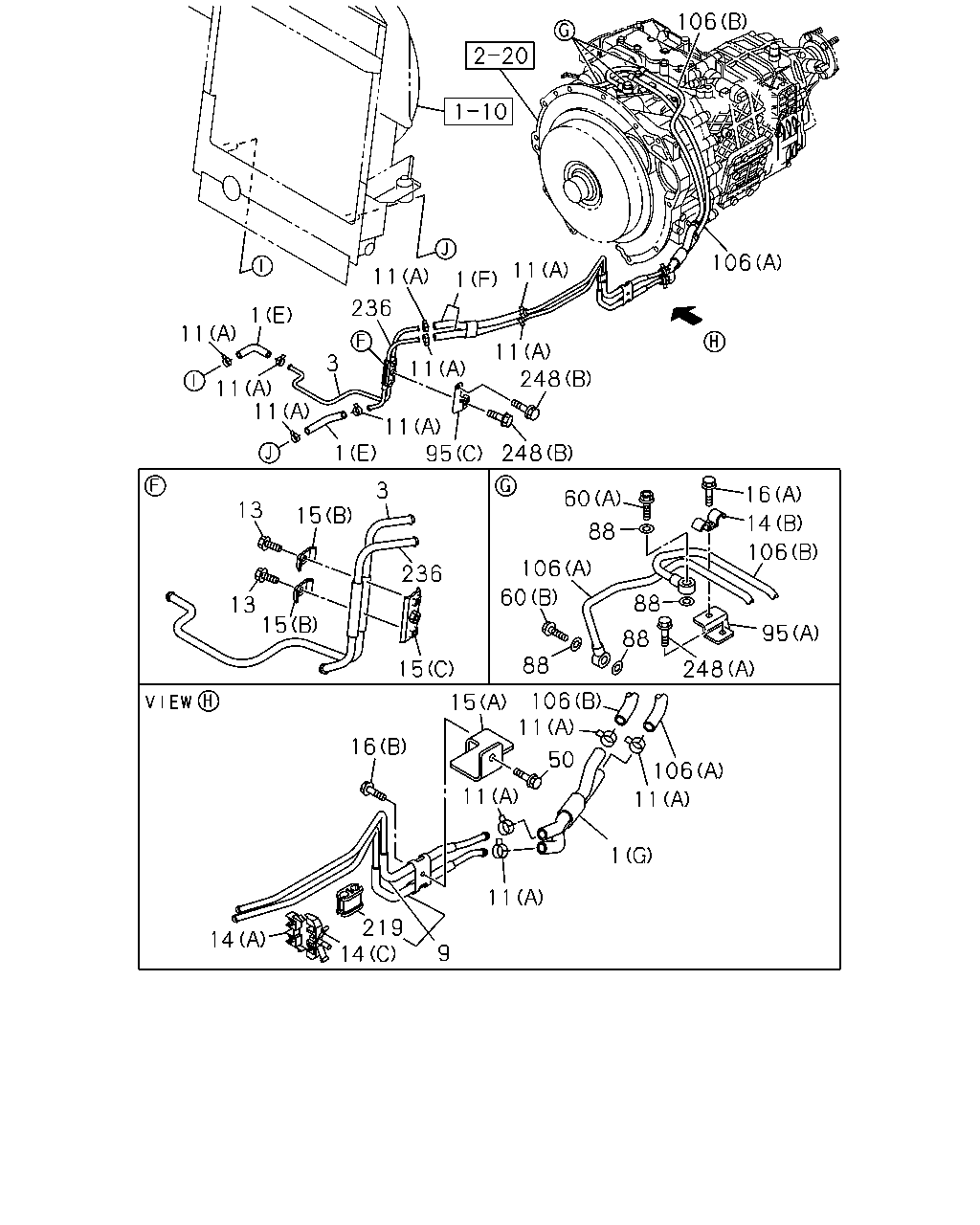

11 1 236 11 1 106 106 11 11 248 248 95 11 11 11 11 3 1 13 15 3 13 15 236 15 60 106 60 88 88 16 14 106 95 248 88 88 106 11 1 11 11 50 11 106 15 16 14 14 219 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) (E)	8-98086-380-0	02	1	1505-	●	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1505-	●	●	●
1	04.128 HOSE; ATF SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1505-	●	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (G)	8-98118-174-1	01	1	1505-	●		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) (F)	8-98212-896-1	01	1	1505-	●		●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1505-				●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1505-				●
3	04.128 PIPE; OIL,A/T TO OIL COOLER SMOOTHER-EX(TYPE2)(8NS)	8-98006-093-1	01	1	1505-	●	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS)	8-98212-880-2	01	1	1505-	●		●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1505-				●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) 01.097 (A) ID=16	8-97329-628-0	12	1	1505-	●	●	●
11	04.128 CLIP; PIPE SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	01	1	1505-	●	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (A) ID=16	8-97329-628-0	08	1	1505-				●
13	04.128 BOLT; BRKT SMOOTHER-EX(TYPE2)(8NS) M6X25 W/LK WASHER	0-50540-625-0	02	1	1505-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1505-	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1505-	●	●	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1505-	●		●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1505-	●		●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (C)	8-98035-763-0	01	1	1505-	●	●	●
15	04.128 BRACKET; ATF PIPE SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-764-0	02	1	1505-	●	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98041-180-3	01	1	1505-1507	●		●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) (A)	8-98041-180-3	01	1	1508-	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1505-	●	●	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1505-1507	●		●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1508-	●		●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●		●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●		●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1505-	●	●	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1505-	●	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1505-	●	●	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) (C)	8-98035-762-0	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1505-	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-97349-876-0	01	1	1505-	●	●	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-840-5	01	1	1505-				●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98135-505-0	01	1	1505-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98135-506-0	01	1	1505-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B)	8-98035-638-0	01	1	1505-	●	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98094-577-0	01	1	1505-	●	●	●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> SMOOTHER-EX(TYPE2)(8NS) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	1505-	●		●
219	04.128 CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1505-				●
236	04.128 PIPE; OIL,OIL COOLER TO A/T SMOOTHER-EX(TYPE2)(8NS)	8-98006-094-1	01	1	1505-	●	●	●
248	04.128 BOLT; RETAINER SMOOTHER-EX(TYPE2)(8NS) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1505-	●	●	●	●
