◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#161405) — 8 parça

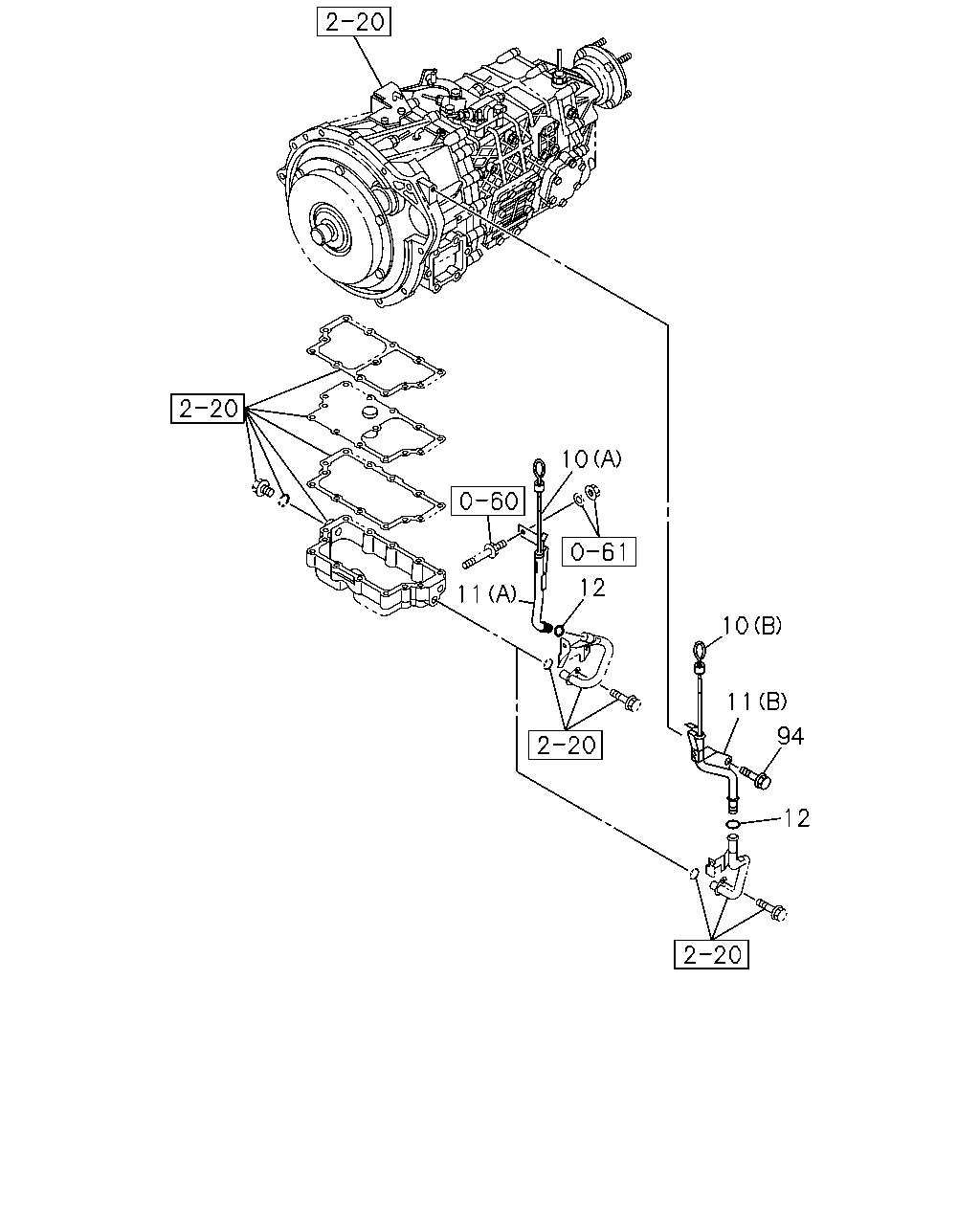

çizim 475568
11 12 10 10 11 94 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 04.197 GAUGE; OIL LEVEL
SGL CAB(NP**S*) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97325-010-1 01 1 1505- ● ● ●
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-446-0 01 1 1505- ●
10 04.197 GAUGE; OIL LEVEL
DBL CAB(NP**W*) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-447-1 01 1 1505- ●
11 04.197 TUBE; OIL FILLER
SGL CAB(NP**S*) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98147-074-0 01 1 1505- ● ● ●
11 04.197 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98060-185-0 01 1 1505- ●
11 04.197 TUBE; OIL FILLER
DBL CAB(NP**W*) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97368-278-1 01 1 1505- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) ID=12.3 		8-97313-558-0 01 1 1505- ● ● ● ●
94 04.197 BOLT; OIL FILLER TUBE
SMOOTHER-EX(TYPE2)(8NS) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 1505- ● ● ●
