2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#161403) — 42 parça

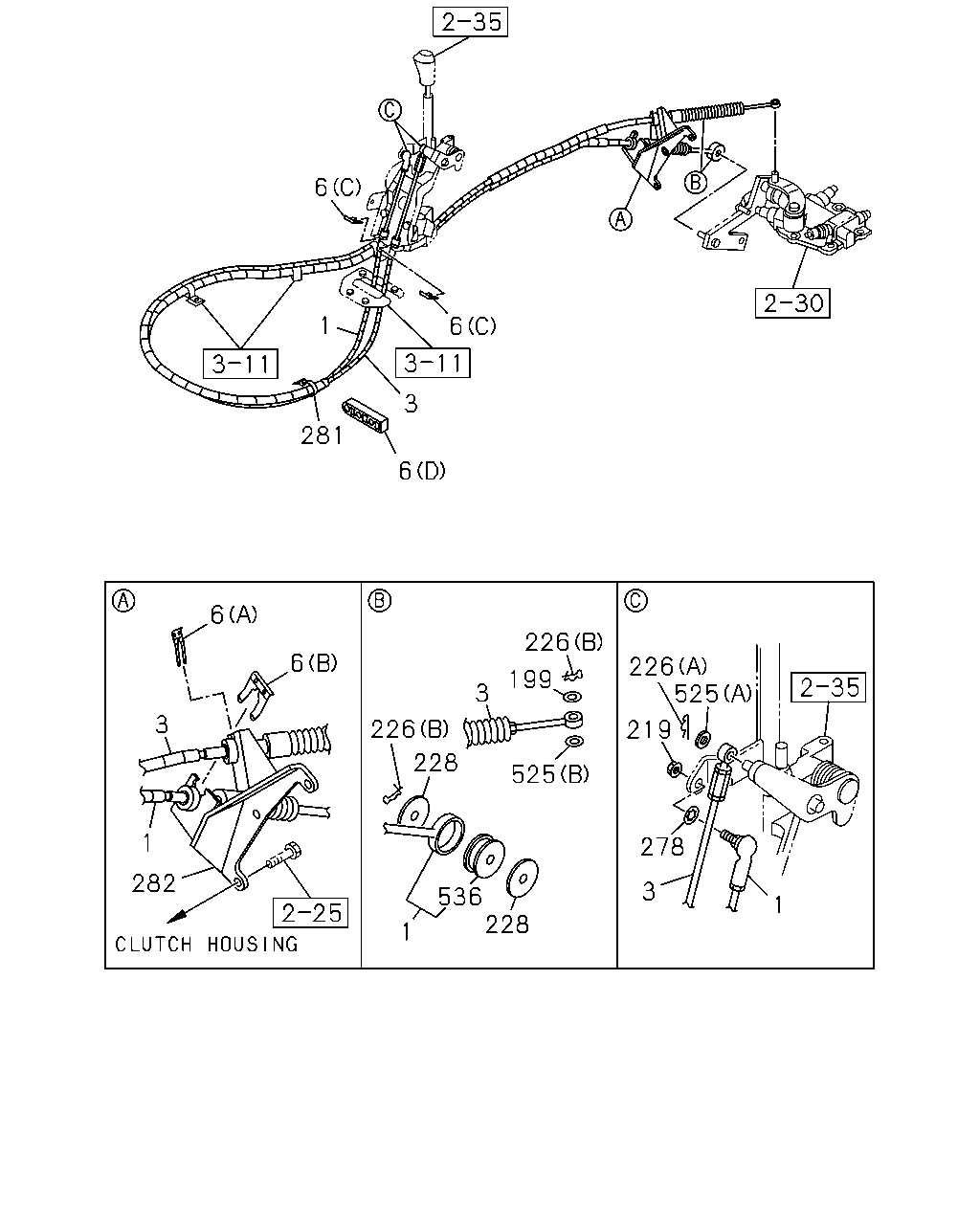

çizim 475563
6 1 3 6 6 281 6 6 3 1 282 226 228 536 228 525 199 226 226 525 219 278 3 1 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> L=3095 		8-98162-849-0 01 1 1505-1507 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) L=3095 		8-98162-849-0 01 1 1508- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090 		8-98207-260-0 01 1 1505- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3060 		8-98211-618-1 01 1 1505-1507 ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3060 		8-98211-618-1 01 1 1508- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3116 		8-98146-876-0 01 1 1505- ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> L=3175 		8-98162-859-0 01 1 1505-1507 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) L=3175 		8-98162-859-0 01 1 1508- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3205 		8-98207-267-0 01 1 1505- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3160 		8-98211-622-1 01 1 1505-1507 ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3160 		8-98211-622-1 01 1 1508- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3229 		8-98025-443-4 01 1 1505- ●
6 04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1505-1507 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1508- ● ● ● ●
6 04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97011-448-0 02 1 1505-1507 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97011-448-0 02 1 1508- ● ● ● ●
6 04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=19.2 		8-97211-011-0 01 1 1505-1507 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) (B) ID=19.2 		8-97211-011-0 01 1 1508- ● ● ● ●
6 04.047 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1505-1507 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.008 (D) 		8-97093-491-1 01 1 1508- ● ● ● ●
199 04.012 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1505-1507 ● ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1508- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1505-1507 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1508- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1505-1507 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1508- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=23 		8-94170-378-0 02 1 1505-1507 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) (B) L=23 		8-94170-378-0 02 1 1508- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 OD=40 		8-97182-975-0 02 1 1505-1507 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) ID=8.2 OD=40 		8-97182-975-0 02 1 1508- ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1505-1507 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1508- ● ● ● ●
281 04.042 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140 		5-09707-031-1 01 1 1505-1507 ● ● ● ●
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 03.162 L=140 		5-09707-031-1 01 1 1508- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-509-1 01 1 1505- ● ●
282 04.010 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98200-183-1 01 1 1505- ●
282 04.010 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-396-2 01 1 1505- ●
525 04.047 WASHER; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1505-1507 ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1508- ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1505-1507 ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1508- ● ● ● ●
536 00.854 DAMPER; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98097-681-0 01 1 1505- ● ● ● ●
