2-30 — GEAR SHIFTER AND QUADRANT BOX (#161401) — 218 parça

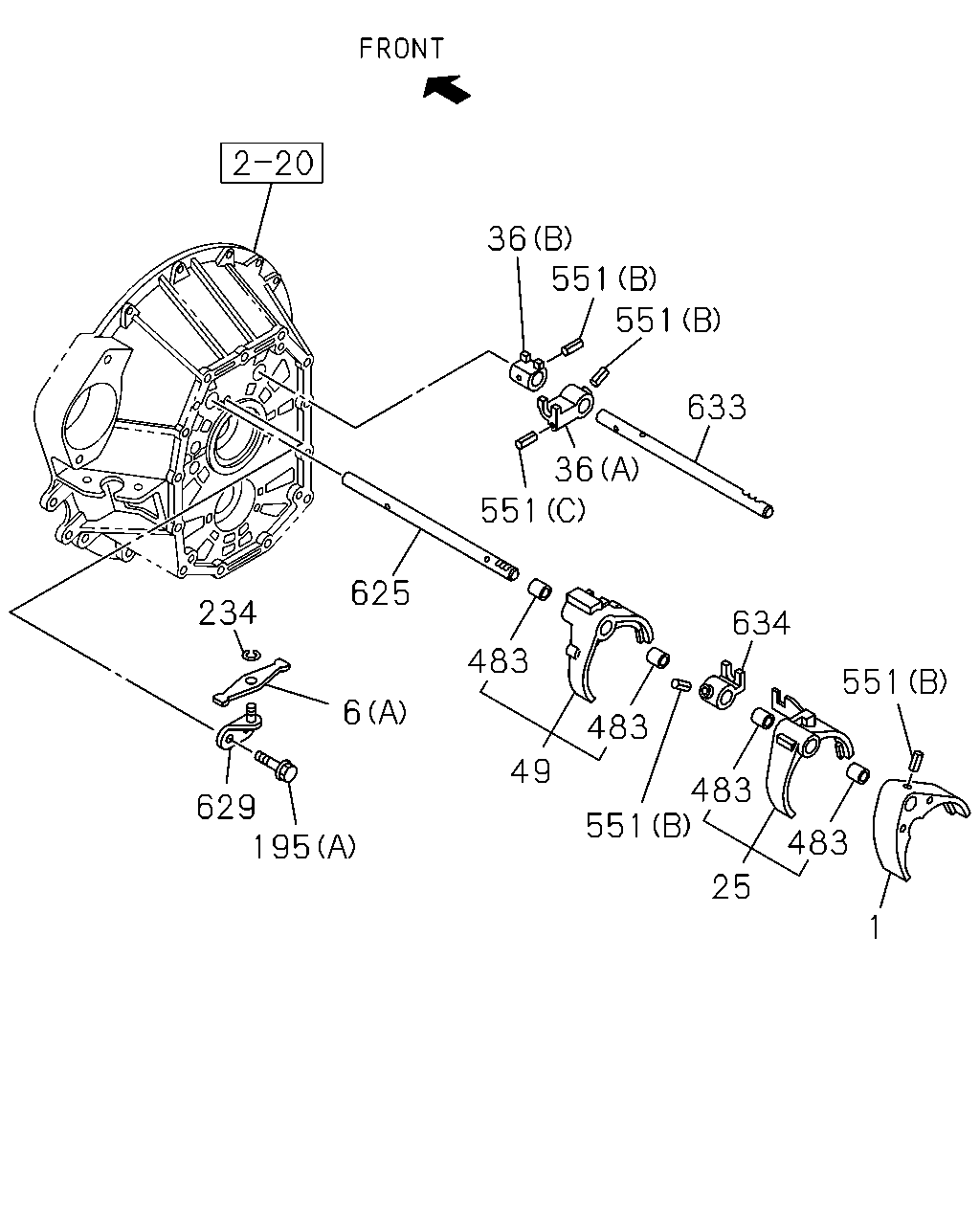

çizim 475474
551 633 551 36 36 551 625 234 6 629 195 49 483 483 634 551 483 483 1 25 551
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1505- ● ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1505- ●
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1505- ● ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1505- ● ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1505- ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1505- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1505- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1505- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1505- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1505- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1505- ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1505- ● ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ● ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1505- ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1505- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1505- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1505- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1505- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1505- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1505- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1505- ● ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1505- ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1505- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1505- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-743-0 01 1 1505- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
SMOOTHER-EX(TYPE2)(8NS) 		8-98206-518-0 01 1 1505- ● ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1505- ● ●

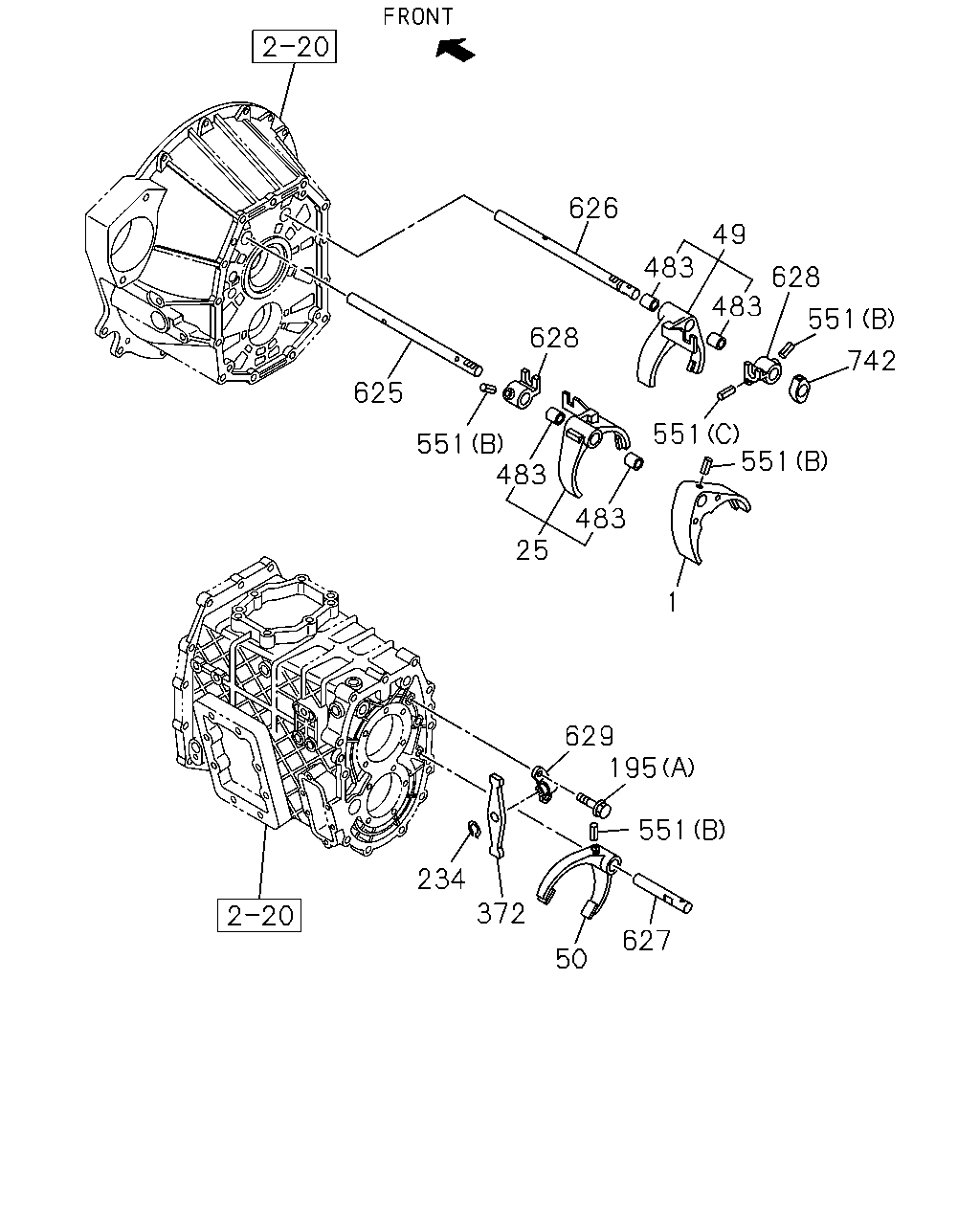

çizim 475480
626 49 551 628 483 551 628 551 742 483 25 483 551 625 1 629 195 551 627 50 372 234 483
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1505- ● ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1505- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1505- ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1505- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1505- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1505- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1505- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1505- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 1505- ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1505- ● ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ● ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1505- ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1505- ● ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1505- ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 1505- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1505- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1505- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1505- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1505- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1505- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1505- ● ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1505- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
SMOOTHER-EX(TYPE2)(8NS) 		8-98331-689-0 01 1 1510- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97383-754-0 01 1 1505- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98107-548-0 01 1 1505- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1505-1509 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97366-024-1 01 1 1510- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1505- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1505- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1505- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1505- ● ●
742 04.162 COLLAR; ROD
SMOOTHER-EX(TYPE2)(8NS) 		8-98331-722-0 01 1 1510- ●

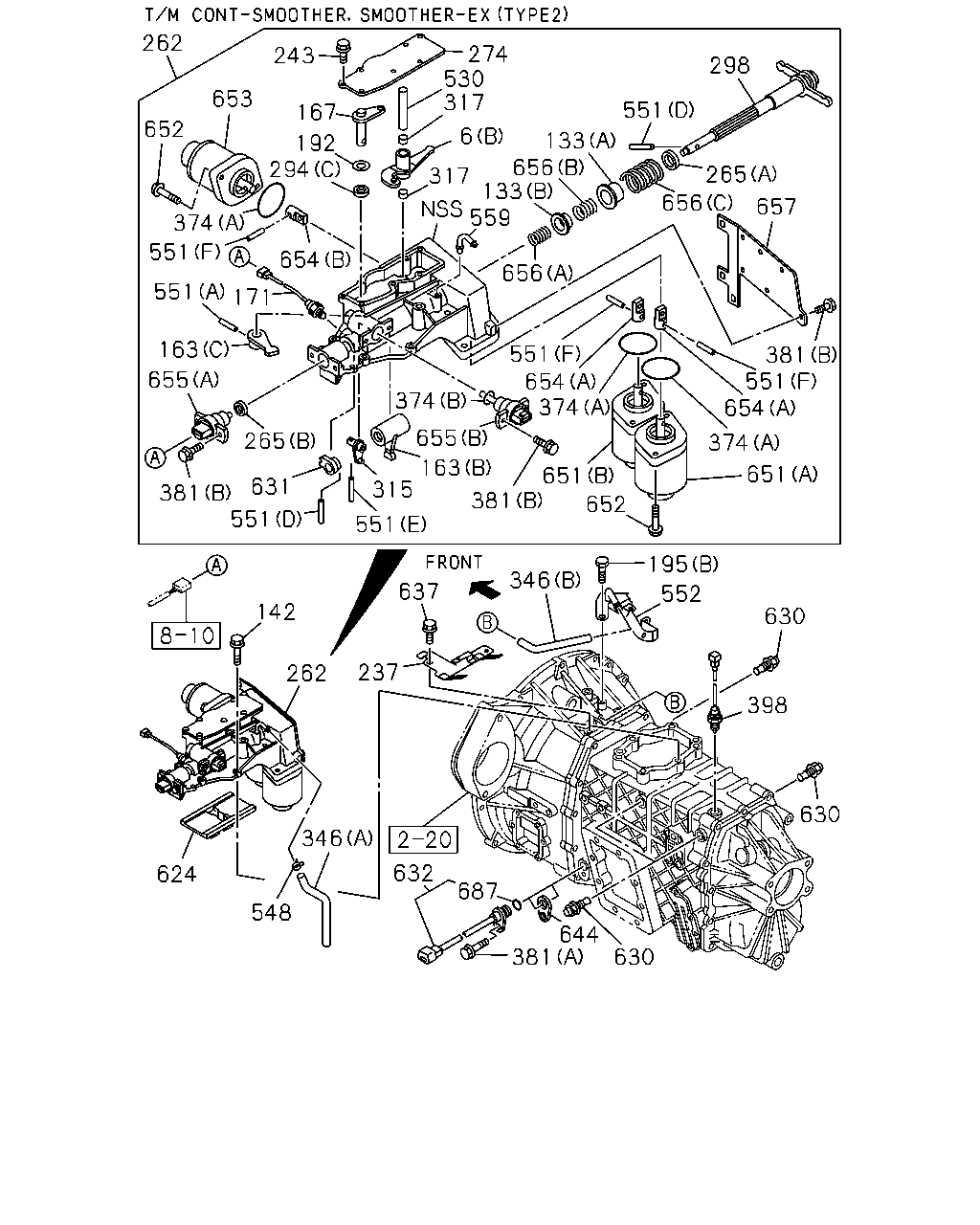

çizim 476437
262 653 243 274 530 6 167 294 192 374 652 551 654 551 171 163 655 265 381 631 551 315 551 163 655 374 654 551 656 374 651 381 652 559 133 656 133 551 298 265 656 657 381 551 374 654 651 195 552 346 637 630 398 630 237 262 142 346 624 548 632 687 644 630 381 317 317
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.302 LEVER; RELAY
(A) 		8-97241-344-0 01 1 1505- ● ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-995-0 01 1 1505- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-667-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1505- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-989-0 01 1 1505- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1505- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1505- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1505- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1505- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1505- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1505- ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1505- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 1505- ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1505- ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1505-1509 ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1505- ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1505- ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1505- ● ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1505- ● ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1505- ● ● ● ●
237 04.057 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98018-905-1 01 1 1505- ● ● ● ●
243 04.105 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1505- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1505- ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-993-2 01 1 1505- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-2 01 1 1505- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98296-529-0 01 1 1505-1509 ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1510- ● ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97363-225-0 01 1 1505- ● ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-981-0 01 1 1505- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-711-0 01 1 1505- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1505- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1505- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1505- ● ● ● ●
298 04.309 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-978-0 01 1 1505- ● ● ● ●
315 04.302 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98296-526-0 01 1 1505- ● ● ● ●
317 04.302 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-997-0 02 1 1505- ● ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1505- ● ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1505- ● ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-571-0 03 1 1505- ● ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-573-0 01 1 1505- ● ● ● ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1505- ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1505- ● ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1505- ● ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1505- ● ● ● ●
530 04.302 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-996-0 01 1 1505- ● ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1505- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1505- ●
552 04.105 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		8-97385-018-2 01 1 1505- ●
552 04.105 BRACKET
SMOOTHER-EX(TYPE2)(8NS) 		8-97349-914-1 01 1 1505- ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1505- ● ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1505- ● ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1505- ● ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1505- ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1505- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1505- ● ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1505- ● ● ● ●
632 04.054 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97315-604-1 01 1 1505- ● ● ● ●
637 04.105 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1505- ● ● ● ●
644 04.302 SPACER; SENSOR
SMOOTHER-EX(TYPE2)(8NS) 		8-97255-489-1 01 1 1505- ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98002-759-0 01 1 1505- ● ● ● ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98002-760-0 01 1 1505- ● ● ● ●
652 04.309 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1505- ● ● ● ●
653 04.309 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98002-761-0 01 1 1505- ● ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-473-0 02 1 1505- ● ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97380-419-0 01 1 1505- ● ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98107-823-0 01 1 1505- ● ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98107-824-0 01 1 1505- ● ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-985-0 01 1 1505- ● ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-986-0 01 1 1505- ● ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-987-0 01 1 1505- ● ● ● ●
657 04.105 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-712-0 01 1 1505- ● ● ● ●
687 04.075 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.307 		9-09567-113-0 01 1 1505- ● ● ● ●

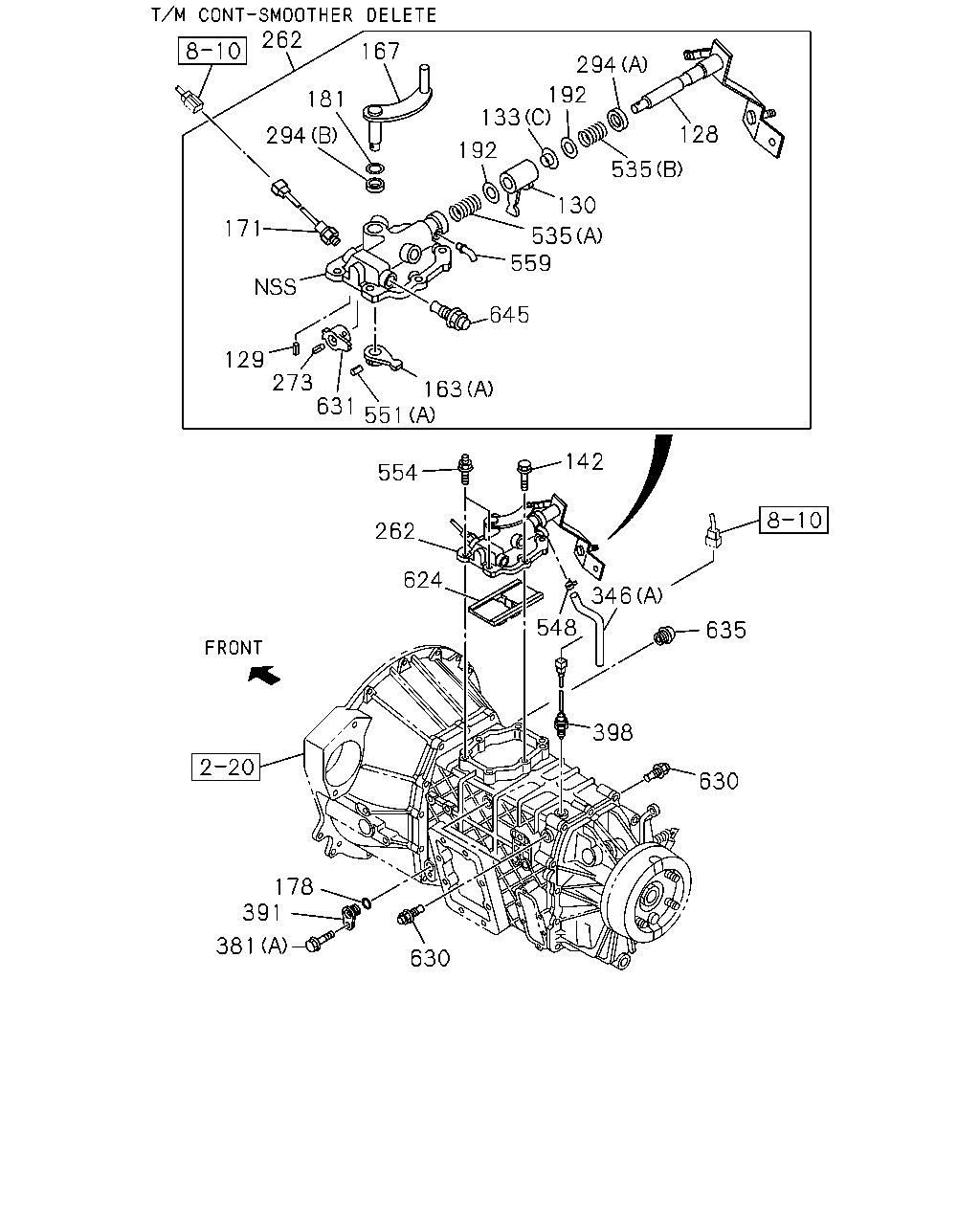

çizim 476723
262 181 167 294 171 192 133 192 294 535 128 130 535 559 645 163 554 551 631 273 129 142 262 624 548 635 346 630 398 630 178 391 381
BalonParca AdiParca NoAdetTipApplied Date A B C D
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-725-0 01 1 1505- ● ●
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97363-226-0 01 1 1505- ●
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-595-0 01 1 1505- ●
129 04.027 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1505- ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1505- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-667-0 01 1 1505- ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1505- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-989-0 01 1 1505- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1505- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1505- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1505- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1505- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1505- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1505- ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1505- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 1505- ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1505- ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1505-1509 ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1505- ● ● ● ●
181 04.302 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1505- ● ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1505- ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1505- ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1505- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1505- ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-993-2 01 1 1505- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-2 01 1 1505- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98296-529-0 01 1 1505-1509 ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1510- ● ● ● ●
273 04.309 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 1505- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1505- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1505- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1505- ● ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1505- ● ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1505- ● ● ● ●
381 04.105 BOLT
SMOOTHER-EX(TYPE2)(8NS) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1505- ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1505- ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1505- ● ● ● ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1505- ● ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1505- ● ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1505- ● ● ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97323-771-0 01 1 1505- ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97323-772-0 01 1 1505- ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-659-0 01 1 1505- ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-660-0 01 1 1505- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1505- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1505- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1505- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1505- ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1505- ● ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1505- ● ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1505- ● ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1505- ● ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1505- ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1505- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1505- ● ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1505- ● ● ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1505- ● ●
645 04.311 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 		8-98019-536-0 01 1 1505- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
