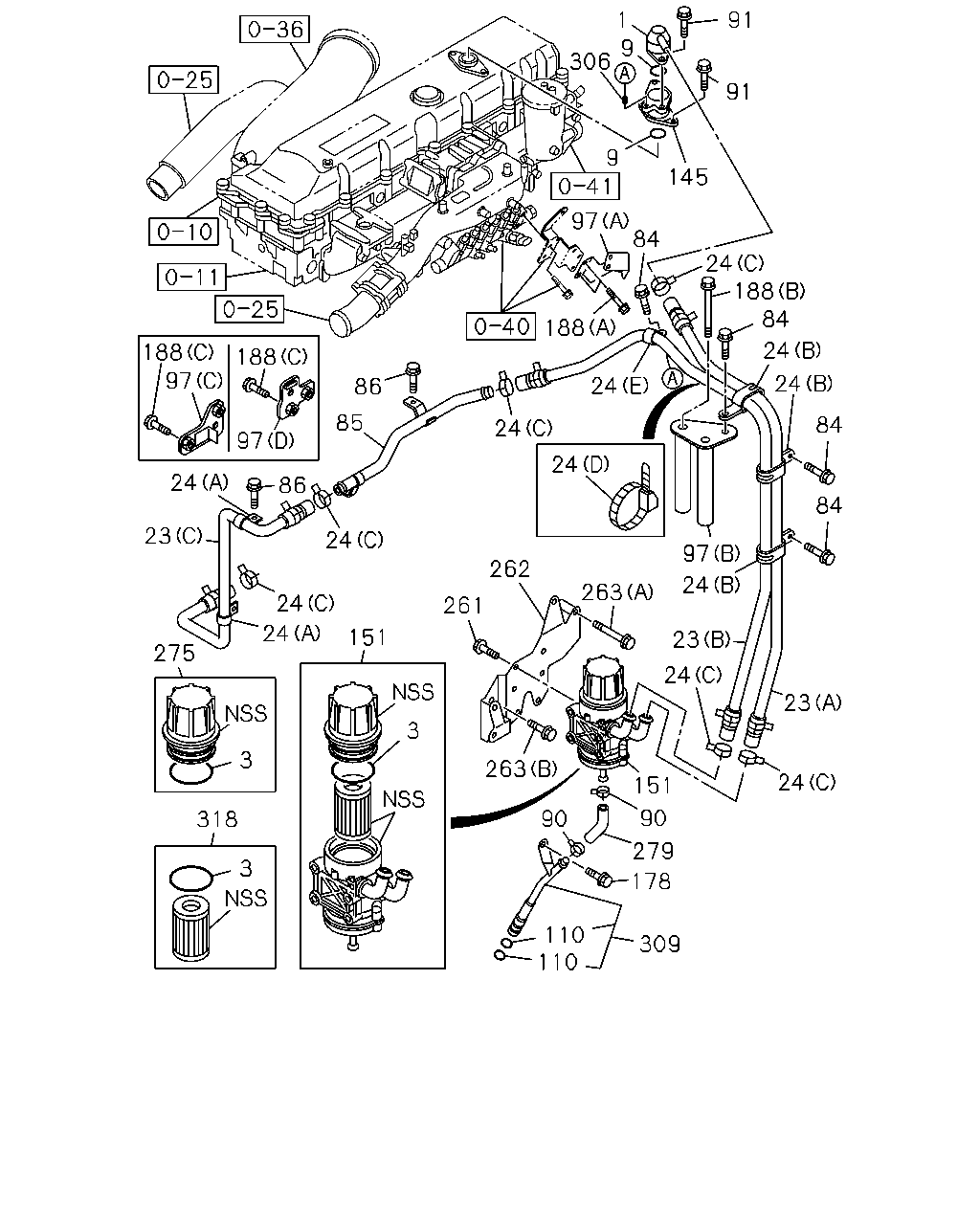

1 |
BREATHER; AIR
|
1-11740-181-1 |
01 |
1 |
0904- |
| |
3 |
GASKET; BODY TO CAP
|
8-97385-921-0 |
01 |
1 |
0904- |
| |
9 |
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=59.6
|
1-09623-565-0 |
02 |
1 |
0904- |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(A)
|
8-97611-033-3 |
01 |
1 |
0904-1210 |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(A)
|
8-98122-989-0 |
01 |
1 |
1211-1309 |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(A)
|
8-98254-532-0 |
01 |
1 |
1310- |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(B)
|
8-97611-034-2 |
01 |
1 |
0904-1210 |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(B)
|
8-98227-927-0 |
01 |
1 |
1211- |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(C)
|
8-97611-035-3 |
01 |
1 |
0904-1210 |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(C)
|
8-98227-928-0 |
01 |
1 |
1211- |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(E)
ID=31 L=30
|
1-09700-969-0 |
01 |
1 |
0904-1210 |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(E)
ID=29 L=30
|
8-98225-679-0 |
08 |
1 |
1211- |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(B)
ID=30X2 L=28
|
1-09701-266-0 |
03 |
1 |
0904-1210 |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(C)
ID=28.5
|
1-09707-150-0 |
06 |
1 |
0904- |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(D)
L=250
|
5-09707-030-1 |
01 |
1 |
0904-1205 |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(D)
L=250
|
8-98216-430-0 |
01 |
1 |
1206- |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(A)
ID=33 L=30
|
8-97619-250-0 |
02 |
1 |
0904-1210 |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
0904-1210 |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE
|
0-28050-816-0 |
07 |
1 |
1211- |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
0904- |
| |
85 |
PIPE; BREATHER
|
8-97611-021-1 |
01 |
1 |
0904- |
| |
86 |
BOLT; BREATHER PIPE
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0904- |
| |
90 |
CLIP; RUBBER HOSE
ID=14
|
1-09704-102-0 |
02 |
1 |
0904- |
| |
91 |
BOLT; AIR BREATHER
M10X20 FLANGE
|
0-28151-020-0 |
04 |
1 |
0904- |
| |
97 |
BRACKET; HOSE
(C)
|
8-98227-930-0 |
01 |
1 |
1211- |
| |
97 |
BRACKET; HOSE
(D)
|
8-98227-931-0 |
01 |
1 |
1211- |
| |
97 |
BRACKET; HOSE
(A)
|
1-15419-726-0 |
01 |
1 |
0904- |
| |
97 |
BRACKET; HOSE
(B)
|
8-97620-560-0 |
01 |
1 |
0904-1210 |
| |
97 |
BRACKET; HOSE
(B)
|
8-98227-929-0 |
01 |
1 |
1211- |
| |
110 |
GASKET; PIPE
ID=11
|
1-09623-469-0 |
02 |
1 |
0904- |
| |
145 |
ADAPTER; AIR BREATHER
|
8-98073-548-0 |
01 |
1 |
0904- |
| |
151 |
SEPARATOR; OIL,PCV
|
8-97604-118-0 |
01 |
1 |
0904- |
| |
178 |
BOLT; PIPE
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0904- |
| |
188 |
BOLT; BRKT
(C)
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
1211- |
| |
188 |
BOLT; BRKT
(B)
M10X140 FLANGE
|
0-28156-014-0 |
02 |
1 |
0904- |
| |
188 |
BOLT; BRKT
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0904- |
| |
261 |
BOLT; SEPARETOR
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0904- |
| |
262 |
BRACKET; OIL SEPARETOR
|
1-13345-220-1 |
01 |
1 |
0904- |
| |
263 |
BOLT; BRKT,OIL SEPARETOR
(A)
M10X90 FLANGE
|
0-28151-090-0 |
01 |
1 |
0904- |
| |
263 |
BOLT; BRKT,OIL SEPARETOR
(B)
M14X25 FLANGE
|
0-28951-425-0 |
02 |
1 |
0904- |
| |
275 |
CAP; PCV
|
8-97385-918-0 |
01 |
1 |
0904- |
| |
279 |
HOSE; RUBBER,OIL DRAIN
L=90
SERVICED BY L=1000
|
0-02759-100-0 |
01 |
1 |
0904- |
| |
306 |
SPACER; CLIP
L=33
|
8-97329-615-0 |
01 |
1 |
0904- |
| |
309 |
PIPE ASM; OIL SEPARATOR
|
1-13314-045-1 |
01 |
1 |
0904- |
| |
318 |
ELEMENT KIT; PCV
|
8-97385-919-0 |
01 |
1 |
0904- |
