Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#1614) — 215 parça

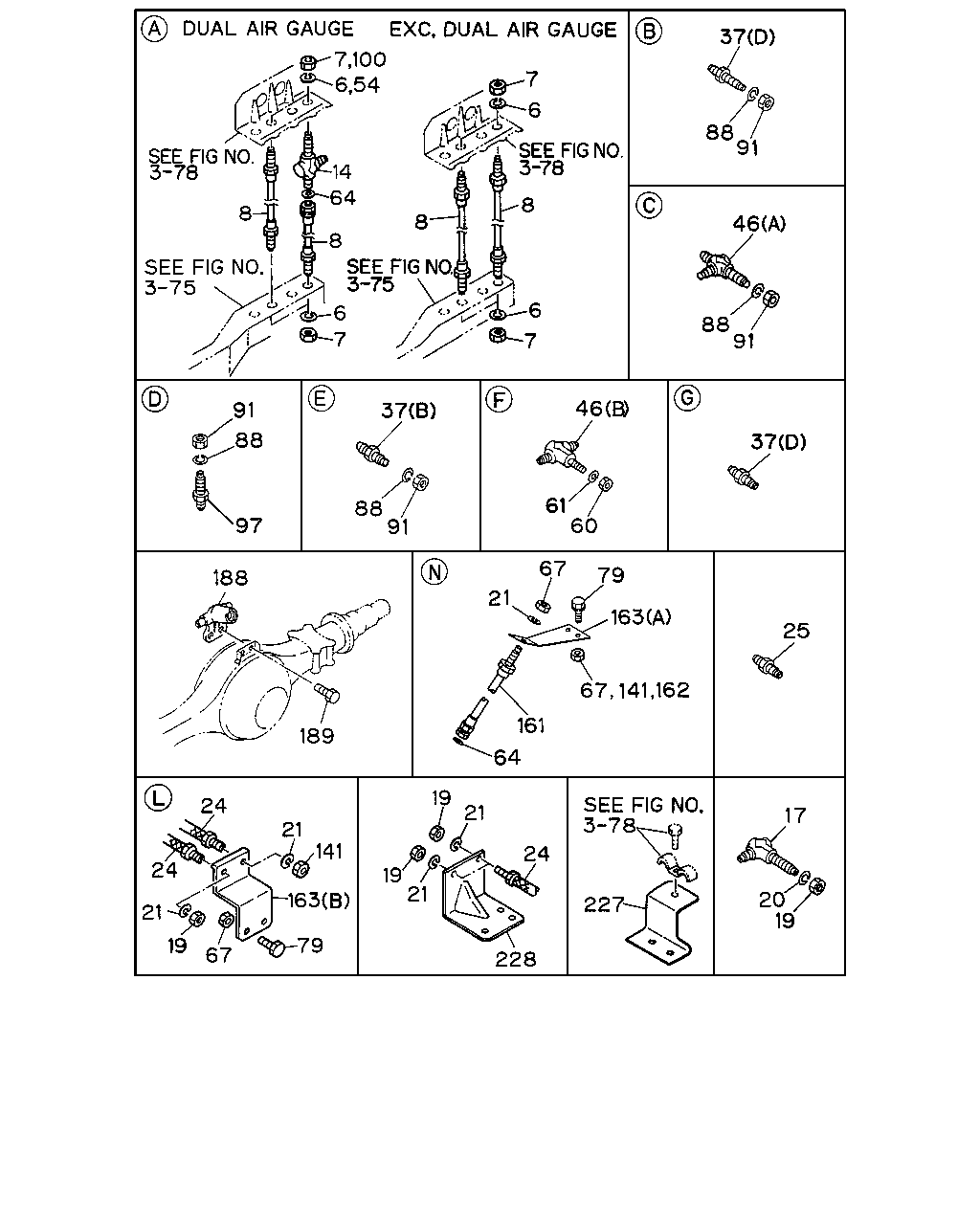

37 88 91 7 6 8 8 6 7 88 91 6 7 8 64 14 8 54 6 100 7 91 88 97 37 88 91 61 60 46 37 25 163 79 67 21 67 141 162 161 64 189 188 24 24 21 19 21 141 67 79 163 21 19 19 21 24 228 227 17 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9207-	●	●	●	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9207-		●	●	●	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9207-		●	●	●	●
17	UNION; AIR PIPE REAR WHEEL PARKING(B3A) M14	9-09225-208-1	02	1	9207-		●	●	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING(B3A) M12	9-99111-412-0	01	1	9207-		●
19	NUT; PIPE UNION REAR WHEEL PARKING(B3A) M14	9-99111-414-0	05	1	9207-		●	●	●	●
20	WASHER; LK,PIPE UNION REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	02	1	9207-		●	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	05	1	9207-9312		●	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	02	1	9401-		●	●	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING(B3A) L=380	0-07402-380-0	02	1	9207-		●	●	●	●
25	UNION; AIR PIPE REAR WHEEL PARKING(B3A) M14 STRAIGHT	9-09223-008-1	02	1	9207-9208		●	●	●	●
37	UNION; AIR PIPE (D) M16	9-09233-010-1	02	1	9207-	●	●	●	●	●
37	UNION; AIR PIPE (B) M16	9-09233-210-1	01	1	9207-	●	●	●	●	●
37	UNION; AIR PIPE (B) M16	9-09233-210-1	01	1	9207-	●	●
37	UNION; AIR PIPE (C) M16	1-09650-182-1	01	1	9207-			●	●	●
37	UNION; AIR PIPE (A) M16	9-09235-110-1	01	1	9207-9212			●	●	●
37	UNION; AIR PIPE (A) M16	9-09235-210-1	01	1	9301-			●	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING(B3A) (B) M14 2WAY	1-09654-176-2	01	1	9207-		●	●	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING(B3A) (A) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9207-		●	●	●	●
54	WASHER; LK,UNION DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9207-		●	●	●	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR WHEEL PARKING(B3A) M10	9-09110-410-0	02	1	9207-	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING(B3A) M12	9-99111-412-0	02	1	9207-		●	●	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING(B3A) ID=12.2	9-09150-512-0	01	1	9207-9312		●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING(B3A) ID=12.2	9-09150-512-0	02	1	9207-9312		●	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING(B3A) ID=11 OD=18	9-09572-510-0	01	1	9207-		●	●	●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9207-		●	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING(B3A) M8	9-09110-408-0	04	1	9207-		●	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING(B3A) M8X20 FLANGE	0-28080-820-0	04	1	9207-		●	●	●	●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	02	1	9207-9312	●	●	●	●	●
88	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9207-9312			●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9207-	●	●	●	●	●
91	NUT; PIPE UNION M12	9-99111-412-0	01	1	9207-			●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING(B3A) M14 2WAY	1-09654-176-2	01	1	9207-		●
100	NUT; UNION DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9207-		●	●	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING(B3A) M14	9-99111-414-0	01	1	9207-		●	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING(B3A) L=630	0-07462-630-1	01	1	9207-		●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING(B3A)	0-07462-700-1	01	1	9207-			●	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING(B3A) M14	9-99111-414-0	01	1	9207-		●	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING(B3A) (B)	1-47475-725-0	01	1	9207-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING(B3A) (A)	1-47475-464-0	01	1	9207-		●	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING(B3A) (B)	1-47475-708-0	01	1	9207-			●	●	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/7 14.5" HYPOID(WIH)	9-09903-667-2	01	1	9207-	●	●
189	BOLT; NIPPLE FINAL GEAR 39/7 14.5" HYPOID(WIH) M10X25 W/LK WASHER	0-50041-025-0	02	1	9207-9409	●	●
189	BOLT; NIPPLE FINAL GEAR 39/7 14.5" HYPOID(WIH) M10X20 FLANGE	0-28681-020-0	02	1	9410-9410	●	●
189	BOLT; NIPPLE FINAL GEAR 39/7 14.5" HYPOID(WIH) M10X25 W/LK WASHER	0-50041-025-0	02	1	9411-	●	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING(B3A)	1-71998-421-0	02	1	9207-		●	●	●	●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING(B3A)	1-79738-098-3	01	1	9207-		●	●	●	●

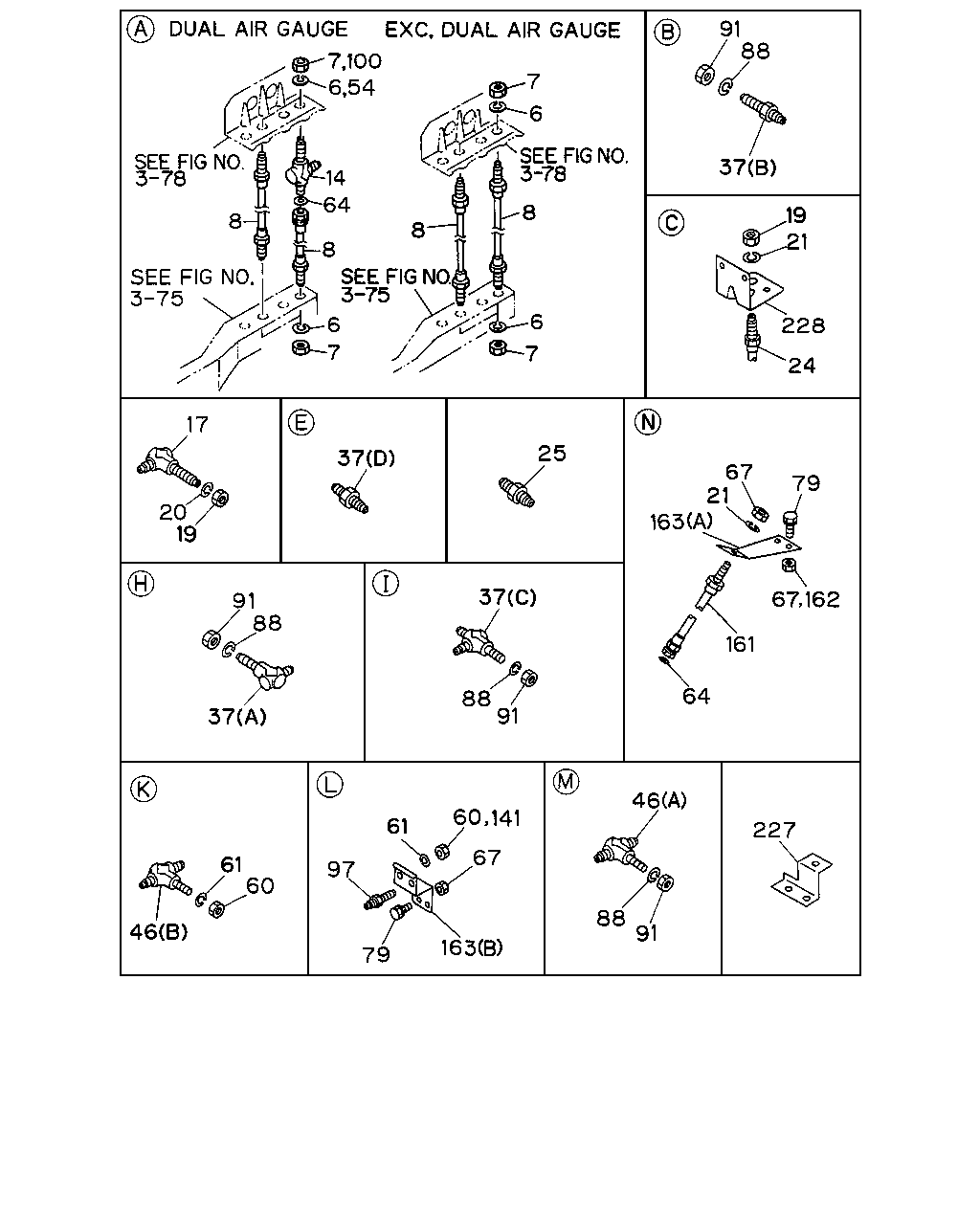

91 88 19 21 228 24 7 6 8 8 6 7 7 100 6 54 14 8 64 8 6 7 17 20 19 37 25 67 79 21 163 67 162 161 64 91 88 37 91 88 37 61 60 97 61 60 141 67 79 163 88 91 46 227 46 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9207-	●	●	●	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9207-		●	●	●	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9207-		●	●	●	●
17	UNION; AIR PIPE REAR WHEEL PARKING(B3A) M14	9-09225-208-1	02	1	9207-		●	●	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING(B3A) M12	9-99111-412-0	01	1	9207-		●
19	NUT; PIPE UNION REAR WHEEL PARKING(B3A) M14	9-99111-414-0	05	1	9207-		●	●	●	●
20	WASHER; LK,PIPE UNION REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	02	1	9207-		●	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	05	1	9207-9312		●	●	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING(B3A) ID=14.2	9-09150-514-0	02	1	9401-		●	●	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING(B3A) L=380	0-07402-380-0	02	1	9207-		●	●	●	●
25	UNION; AIR PIPE REAR WHEEL PARKING(B3A) M14 STRAIGHT	9-09223-008-1	02	1	9207-9208		●	●	●	●
37	UNION; AIR PIPE (D) M16	9-09233-010-1	02	1	9207-	●	●	●	●	●
37	UNION; AIR PIPE (B) M16	9-09233-210-1	01	1	9207-	●	●	●	●	●
37	UNION; AIR PIPE (B) M16	9-09233-210-1	01	1	9207-	●	●
37	UNION; AIR PIPE (C) M16	1-09650-182-1	01	1	9207-			●	●	●
37	UNION; AIR PIPE (A) M16	9-09235-110-1	01	1	9207-9212			●	●	●
37	UNION; AIR PIPE (A) M16	9-09235-210-1	01	1	9301-			●	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING(B3A) (B) M14 2WAY	1-09654-176-2	01	1	9207-		●	●	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING(B3A) (A) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9207-		●	●	●	●
54	WASHER; LK,UNION DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9207-		●	●	●	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR WHEEL PARKING(B3A) M10	9-09110-410-0	02	1	9207-	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING(B3A) M12	9-99111-412-0	02	1	9207-		●	●	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING(B3A) ID=12.2	9-09150-512-0	01	1	9207-9312		●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING(B3A) ID=12.2	9-09150-512-0	02	1	9207-9312		●	●	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING(B3A) ID=11 OD=18	9-09572-510-0	01	1	9207-		●	●	●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9207-		●	●	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING(B3A) M8	9-09110-408-0	04	1	9207-		●	●	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING(B3A) M8X20 FLANGE	0-28080-820-0	04	1	9207-		●	●	●	●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	02	1	9207-9312	●	●	●	●	●
88	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9207-9312			●	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9207-	●	●	●	●	●
91	NUT; PIPE UNION M12	9-99111-412-0	01	1	9207-			●	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING(B3A) M14 2WAY	1-09654-176-2	01	1	9207-		●
100	NUT; UNION DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9207-		●	●	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING(B3A) M14	9-99111-414-0	01	1	9207-		●	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING(B3A) L=630	0-07462-630-1	01	1	9207-		●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING(B3A)	0-07462-700-1	01	1	9207-			●	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING(B3A) M14	9-99111-414-0	01	1	9207-		●	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING(B3A) (B)	1-47475-725-0	01	1	9207-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING(B3A) (A)	1-47475-464-0	01	1	9207-		●	●	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING(B3A) (B)	1-47475-708-0	01	1	9207-			●	●	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING(B3A)	1-71998-421-0	02	1	9207-		●	●	●	●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING(B3A)	1-79738-098-3	01	1	9207-		●	●	●	●

1 206 8 8 59 101 59 101 8 8 1 206 5 5 18 26 24 28 27 26 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47482-335-0	01	1	9207-9212	●	●	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9301-	●	●	●	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING(B3A) (B) L=657	1-47482-412-0	01	1	9207-9212		●	●	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING(B3A) (A) L=524	1-47497-873-0	01	1	9301-		●	●	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING(B3A) (A) L=524	1-47482-413-0	01	1	9207-9212		●	●	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING(B3A) (B) L=657	1-47497-874-0	01	1	9301-		●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9207-		●	●	●	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) (A) L=704 SERVICED BY L=800	1-47434-406-0	01	1	9207-9208		●	●	●	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) (B) L=650 SERVICED BY L=660	1-47437-954-0	01	1	9207-9208		●	●	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING(B3A) L=380	0-07402-380-0	02	1	9207-		●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) (A) L=1505	1-47487-288-1	01	1	9207-9212		●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) (A) L=1506	1-47497-872-0	01	1	9301-		●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) (B) L=1551	1-47487-289-0	01	1	9207-9212		●	●	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) (B) L=1551	1-47497-875-0	01	1	9301-		●	●	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2655 SERVICED BY L=2700	1-47434-415-0	01	1	9207-		●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2455 SERVICED BY L=2700	1-47434-415-0	01	1	9207-9212			●	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2425 SERVICED BY L=2700	1-47426-396-0	01	1	9301-			●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2863 SERVICED BY L=3000	1-47437-960-0	01	1	9207-9212		●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2863 SERVICED BY L=3000	1-47426-397-0	01	1	9301-		●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2908 SERVICED BY L=3000	1-47437-960-0	01	1	9207-9212			●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2908 SERVICED BY L=3000	1-47426-397-0	01	1	9301-			●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2565 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2565 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2579 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2579 SERVICED BY L=2600	1-47426-424-0	01	1	9301-			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2700 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212					●
59	PIPE; AIR,UNION TO FLEX HOSE L=2648 SERVICED BY L=2900	1-47426-425-0	01	1	9301-					●
101	PIPE; AIR,FLEX HOSE TO UNION L=2550 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2518 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2485 SERVICED BY L=2600	1-47426-424-0	01	1	9301-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212					●
101	PIPE; AIR,FLEX HOSE TO UNION L=2473 SERVICED BY L=2600	1-47426-424-0	01	1	9301-					●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47482-333-0	01	1	9207-9212	●	●	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47497-062-0	01	1	9301-	●	●	●	●	●

59 101 118 87 30 93 103 159 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	PIPE; AIR,AIR TANK TO JOINT REAR WHEEL PARKING(B3A)	1-47487-229-0	01	1	9207-9212		●
30	PIPE; AIR,AIR TANK TO JOINT REAR WHEEL PARKING(B3A)	1-47497-094-0	01	1	9301-		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1088 SERVICED BY L=1250	1-47434-410-0	01	1	9207-9212		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1088 SERVICED BY L=1100	1-47426-387-0	01	1	9301-9303		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1091 SERVICED BY L=1100	1-47426-387-0	01	1	9304-		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1150 SERVICED BY L=1250	1-47434-410-0	01	1	9207-9212			●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1145 SERVICED BY L=1250	1-47426-388-0	01	1	9301-			●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1761 SERVICED BY L=1800	1-47434-413-0	01	1	9207-9212				●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1761 SERVICED BY L=1800	1-47426-392-0	01	1	9301-				●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2565 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2565 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2579 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2579 SERVICED BY L=2600	1-47426-424-0	01	1	9301-			●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2700 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212					●
59	PIPE; AIR,UNION TO FLEX HOSE L=2648 SERVICED BY L=2900	1-47426-425-0	01	1	9301-					●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47434-476-0	01	1	9207-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47437-965-0	01	1	9207-9212			●	●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47426-411-0	01	1	9301-			●	●	●
93	PIPE; AIR,UNION TO UNION L=2332 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
93	PIPE; AIR,UNION TO UNION L=2466 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION L=2650 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●	●
93	PIPE; AIR,UNION TO UNION L=2629 SERVICED BY L=2900	1-47426-425-0	01	1	9301-			●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2550 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2518 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2485 SERVICED BY L=2600	1-47426-424-0	01	1	9301-			●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212					●
101	PIPE; AIR,FLEX HOSE TO UNION L=2473 SERVICED BY L=2600	1-47426-424-0	01	1	9301-					●
103	PIPE; AIR,UNION TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
103	PIPE; AIR,UNION TO UNION L=2309 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION L=1503 SERVICED BY L=1550	1-47437-970-0	01	1	9207-9212			●	●	●
103	PIPE; AIR,UNION TO UNION L=1504 SERVICED BY L=1550	1-47426-419-0	01	1	9301-9309			●	●	●
103	PIPE; AIR,UNION TO UNION L=1506 SERVICED BY L=1550	1-47426-419-0	01	1	9310-9406			●	●	●
103	PIPE; AIR,UNION TO UNION L=1509 SERVICED BY L=1550	1-47426-419-0	01	1	9407-			●	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47434-475-0	01	1	9207-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47426-412-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=414 SERVICED BY L=450	1-47437-962-0	01	1	9207-9212			●	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=424 SERVICED BY L=450	1-47426-405-0	01	1	9301-			●	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=1887 SERVICED BY L=2150	1-47437-958-0	01	1	9207-9212		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=1886 SERVICED BY L=2150	1-47426-394-0	01	1	9301-		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2017 SERVICED BY L=2150	1-47437-958-0	01	1	9207-9212			●	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2017 SERVICED BY L=2150	1-47426-394-0	01	1	9301-			●	●	●

31 159 28 31 103 104 93 87 118 27 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING(B3A) L=380	0-07402-380-0	02	1	9207-		●	●	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2655 SERVICED BY L=2700	1-47434-415-0	01	1	9207-		●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2455 SERVICED BY L=2700	1-47434-415-0	01	1	9207-9212			●	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2425 SERVICED BY L=2700	1-47426-396-0	01	1	9301-			●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2863 SERVICED BY L=3000	1-47437-960-0	01	1	9207-9212		●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2863 SERVICED BY L=3000	1-47426-397-0	01	1	9301-		●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2908 SERVICED BY L=3000	1-47437-960-0	01	1	9207-9212			●	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING(B3A) L=2908 SERVICED BY L=3000	1-47426-397-0	01	1	9301-			●	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1088 SERVICED BY L=1250	1-47434-410-0	01	1	9207-9212		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1088 SERVICED BY L=1100	1-47426-387-0	01	1	9301-9303		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1091 SERVICED BY L=1100	1-47426-387-0	01	1	9304-		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1150 SERVICED BY L=1250	1-47434-410-0	01	1	9207-9212			●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1145 SERVICED BY L=1250	1-47426-388-0	01	1	9301-			●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1761 SERVICED BY L=1800	1-47434-413-0	01	1	9207-9212				●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING(B3A) L=1761 SERVICED BY L=1800	1-47426-392-0	01	1	9301-				●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47434-476-0	01	1	9207-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=909 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47437-965-0	01	1	9207-9212			●	●	●
87	PIPE; AIR,AIR TANK TO UNION L=673 SERVICED BY L=730	1-47426-411-0	01	1	9301-			●	●	●
93	PIPE; AIR,UNION TO UNION L=2332 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
93	PIPE; AIR,UNION TO UNION L=2466 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION L=2650 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●	●
93	PIPE; AIR,UNION TO UNION L=2629 SERVICED BY L=2900	1-47426-425-0	01	1	9301-			●	●	●
103	PIPE; AIR,UNION TO UNION L=2400 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
103	PIPE; AIR,UNION TO UNION L=2309 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION L=1503 SERVICED BY L=1550	1-47437-970-0	01	1	9207-9212			●	●	●
103	PIPE; AIR,UNION TO UNION L=1504 SERVICED BY L=1550	1-47426-419-0	01	1	9301-9309			●	●	●
103	PIPE; AIR,UNION TO UNION L=1506 SERVICED BY L=1550	1-47426-419-0	01	1	9310-9406			●	●	●
103	PIPE; AIR,UNION TO UNION L=1509 SERVICED BY L=1550	1-47426-419-0	01	1	9407-			●	●	●
104	PIPE; AIR,UNION TO UNION L=1741 SERVICED BY L=2100	1-47437-972-0	01	1	9207-9212			●	●	●
104	PIPE; AIR,UNION TO UNION L=1708 SERVICED BY L=1900	1-47426-421-0	01	1	9301-			●	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47434-475-0	01	1	9207-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47426-412-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=414 SERVICED BY L=450	1-47437-962-0	01	1	9207-9212			●	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=424 SERVICED BY L=450	1-47426-405-0	01	1	9301-			●	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=1887 SERVICED BY L=2150	1-47437-958-0	01	1	9207-9212		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=1886 SERVICED BY L=2150	1-47426-394-0	01	1	9301-		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2017 SERVICED BY L=2150	1-47437-958-0	01	1	9207-9212			●	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING(B3A) L=2017 SERVICED BY L=2150	1-47426-394-0	01	1	9301-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
