◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#161388) — 2140 parça

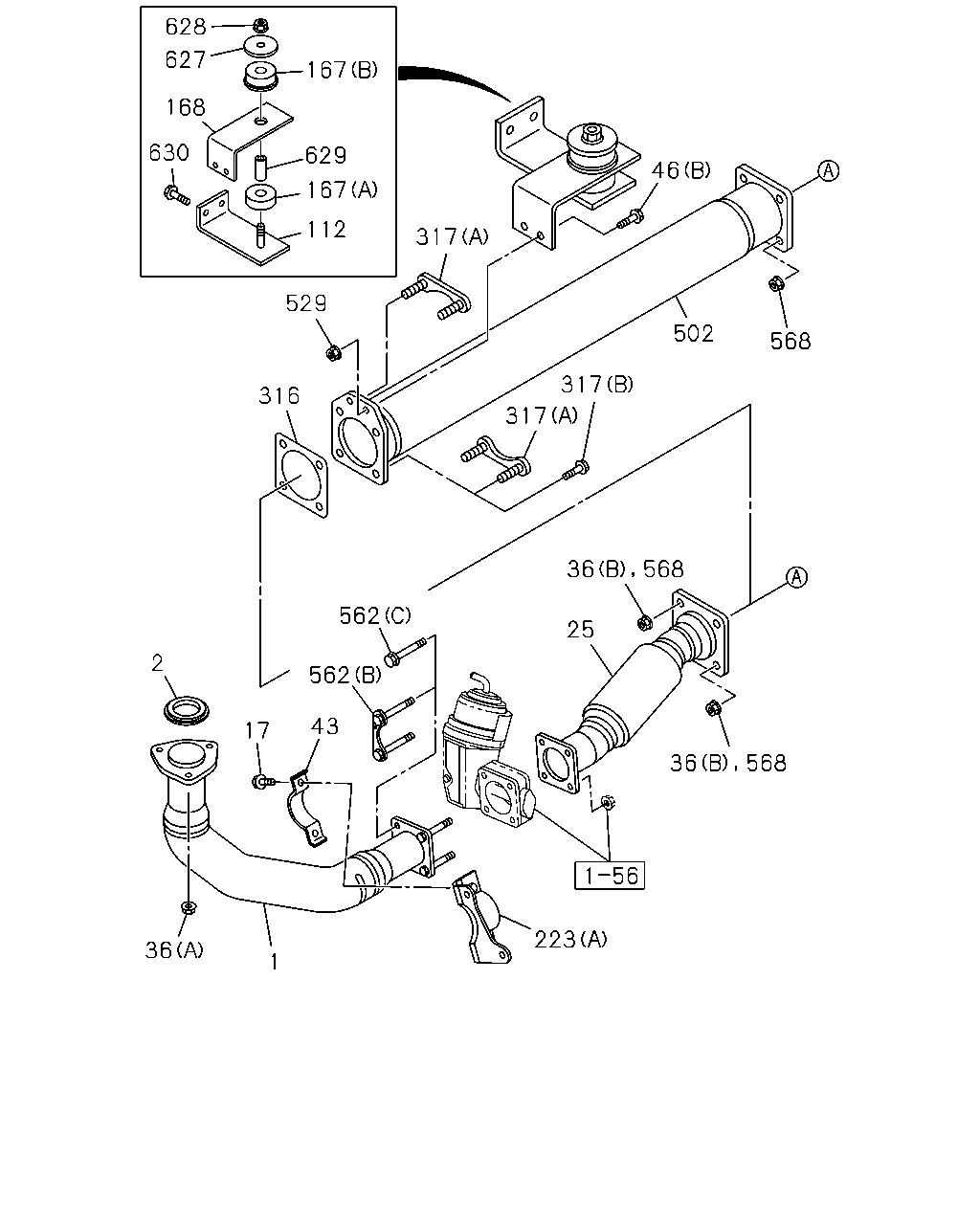

çizim 475379
568 502 46 317 167 629 167 112 628 627 168 630 529 316 2 36 17 562 562 43 317 317 36 568 25 36 568 223 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 		8-98026-060-0 01 1 1505- ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 		8-98228-986-1 01 1 1505- ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98235-053-0 01 1 1505- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98228-985-0 01 1 1505- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97381-455-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-97381-455-0 01 1 1505- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98173-615-0 01 1 1505- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-615-0 01 1 1505- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98207-607-0 01 1 1505- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98207-608-0 01 1 1505- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98207-609-0 01 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) M10 FLANGE 		8-97096-192-1 02 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EXC. EURO5B+ SPECIFICATION(NT5) (A) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1505- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1508- ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
112 03.706 BRACKET; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98144-954-0 01 1 1505-1507 ●
112 03.706 BRACKET; HANGER
4HK1-TCS ENG(RJS) 		8-98144-954-0 01 1 1508- ●
167 03.706 HANGER; EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 (C) 		8-97080-694-0 01 1 1505- ● ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-97625-670-0 01 1 1505-1507 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-97625-670-0 01 1 1508- ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98149-202-0 01 1 1505-1507 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98149-202-0 01 1 1508- ●
168 03.613 BRACKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98144-955-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
03.613 (B) 		8-98026-063-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (B) 		8-98026-063-0 01 1 1505- ● ●
223 03.706 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 03.613 (A) 		8-98020-555-0 01 1 1505- ● ●
316 03.613 GASKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.611 		1-22116-040-0 01 1 1505-1507 ●
316 03.613 GASKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 03.611 		1-22116-040-0 01 1 1505-1507 ●
316 03.613 GASKET; EXH PIPE,FRT
4HK1-TCS ENG(RJS) 03.611 		1-22116-040-0 01 1 1508- ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		1-22131-962-0 02 1 1505-1507 ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		1-22131-962-0 02 1 1508- ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (B) M12X35 FLANGE 		0-28051-235-0 04 1 1505-1507 ●
317 03.613 BOLT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (B) M12X35 FLANGE 		0-28051-235-0 04 1 1508- ●
502 03.609 PIPE; EXH,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98109-474-0 01 1 1505- ●
502 03.609 PIPE; EXH,FRT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98109-475-0 01 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) BOLT M8X70 FLANGE 		0-28050-870-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) BOLT M12X35 FLANGE 		0-28051-235-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1505- ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
627 03.706 WASHER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) ID=10.5 OD=70 		8-97625-671-0 01 1 1505-1507 ●
627 03.706 WASHER; HANGER
4HK1-TCS ENG(RJS) ID=10.5 OD=70 		8-97625-671-0 01 1 1508- ●
628 03.275 NUT; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
628 03.275 NUT; HANGER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB) L=39 		8-98060-852-0 02 1 1505-1507 ●
629 03.706 SPACER; HANGER
L=39 		8-98060-852-0 02 1 1505-1507 ● ●
629 03.706 SPACER; HANGER
EXC. EURO5B+ SPECIFICATION(NT5) L=39 		8-98060-852-0 02 1 1508- ● ●
629 03.706 SPACER; HANGER
L=39 		8-98060-852-0 02 1 1508- ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) L=39 		8-98060-852-0 01 1 1505-1507 ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 01 1 1508- ●
630 00.010 BOLT; BRKT,HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
630 00.010 BOLT; BRKT,HANGER
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●

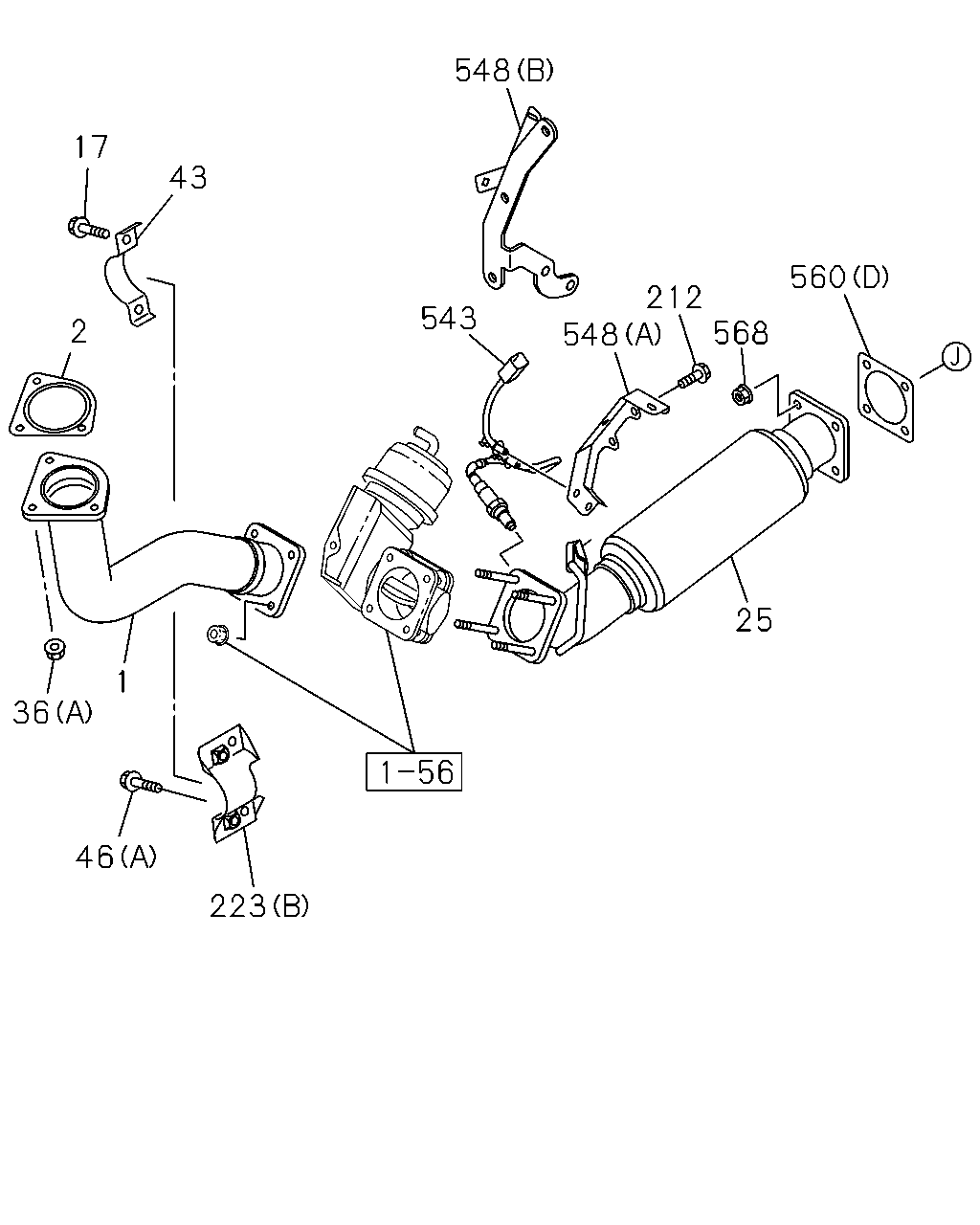

çizim 475385
548 543 548 212 560 568 25 223 46 36 1 2 43 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 		8-98026-060-0 01 1 1505- ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 		8-98228-986-1 01 1 1505- ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98235-053-0 01 1 1505- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98228-985-0 01 1 1505- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97381-455-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-97381-455-0 01 1 1505- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) 		8-98173-615-0 01 1 1505- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-615-0 01 1 1505- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98207-607-0 01 1 1505- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98207-608-0 01 1 1505- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98207-609-0 01 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) M10 FLANGE 		8-97096-192-1 02 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EXC. EURO5B+ SPECIFICATION(NT5) (A) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1505- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1508- ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1505- ● ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1505- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1505- ●
212 03.704 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.206 M8X70 FLANGE 		0-28050-870-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
03.613 (B) 		8-98026-063-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (B) 		8-98026-063-0 01 1 1505- ● ●
223 03.706 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 03.613 (A) 		8-98020-555-0 01 1 1505- ● ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-98088-472-1 01 1 1505-1507 ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98088-472-1 01 1 1505-1507 ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98088-472-1 01 1 1505-1507 ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98088-472-1 01 1 1508- ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98088-472-1 01 1 1508- ●
543 01.150 SENSOR; O2
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98088-472-1 01 1 1508- ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98224-055-1 01 1 1505- ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98224-055-1 01 1 1505- ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98224-055-1 01 1 1505- ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98224-056-1 01 1 1505- ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98224-056-1 01 1 1505- ●
548 03.706 BRACKET; O2 SENSOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98224-056-1 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●

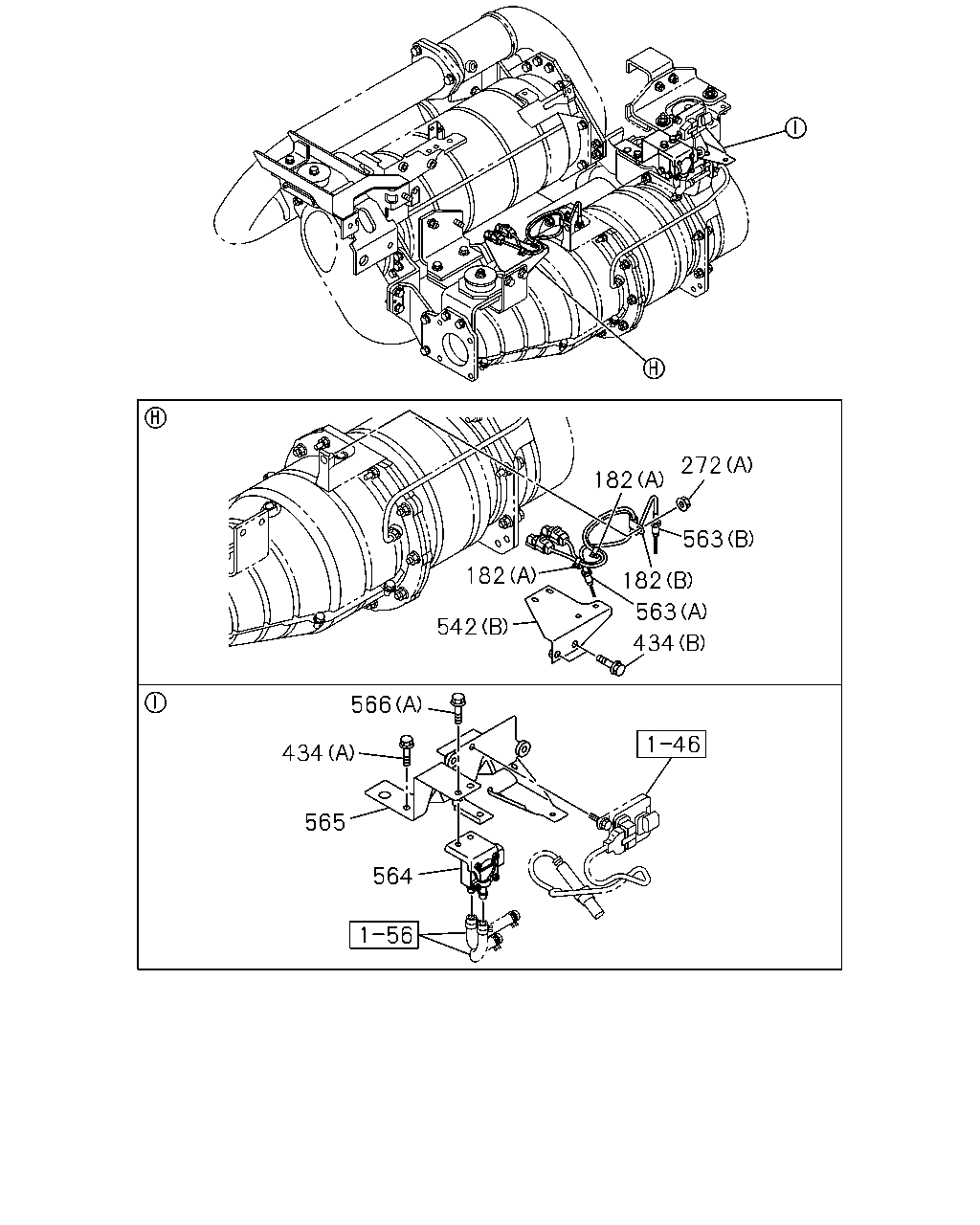

çizim 475403
182 272 563 182 563 434 542 182 566 434 565 564
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 03 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 03 1 1508- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) ID=7 		8-98002-767-0 01 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 		8-98002-767-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
434 03.613 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505-1507 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1507 ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1507 ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1508- ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET

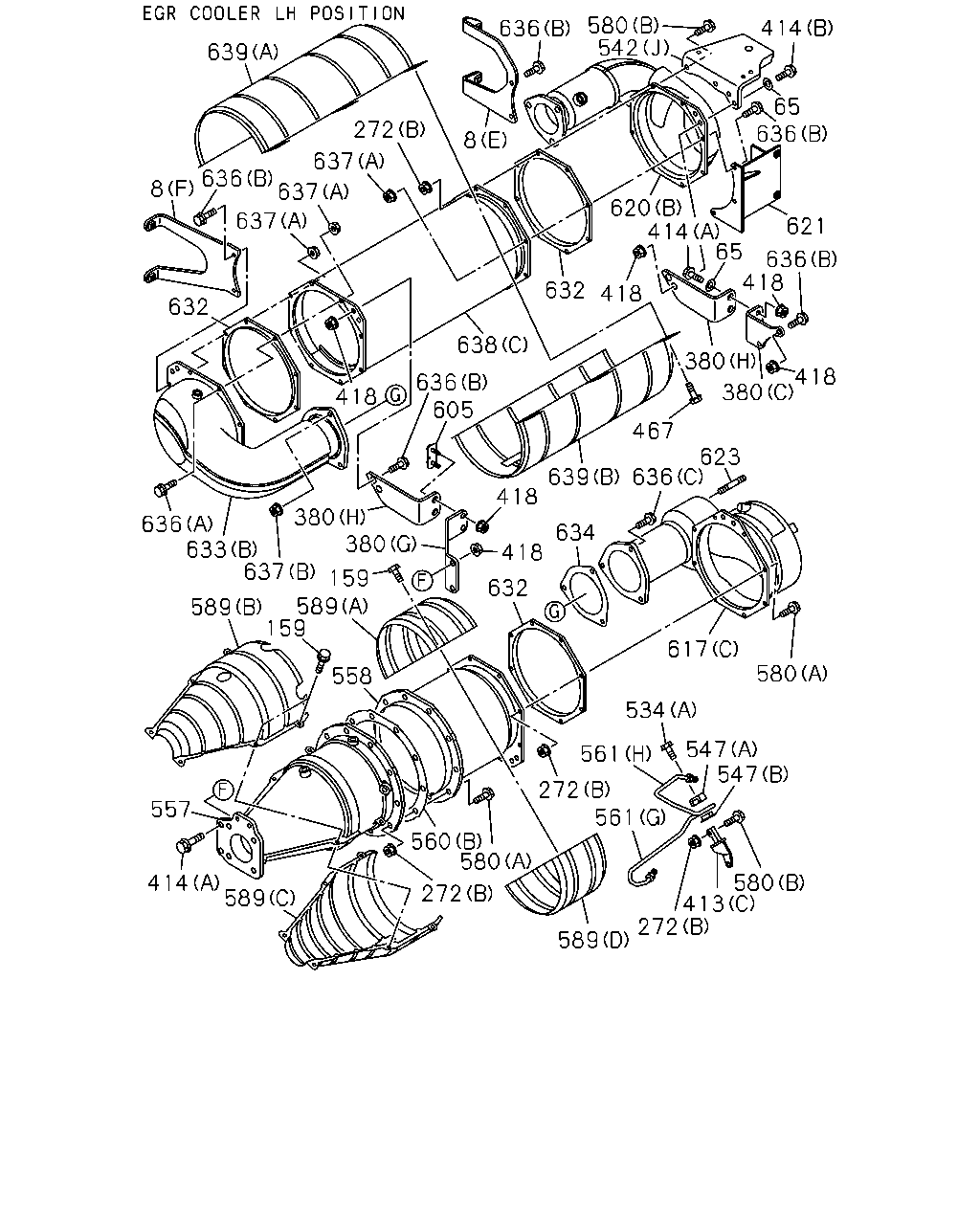

4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET

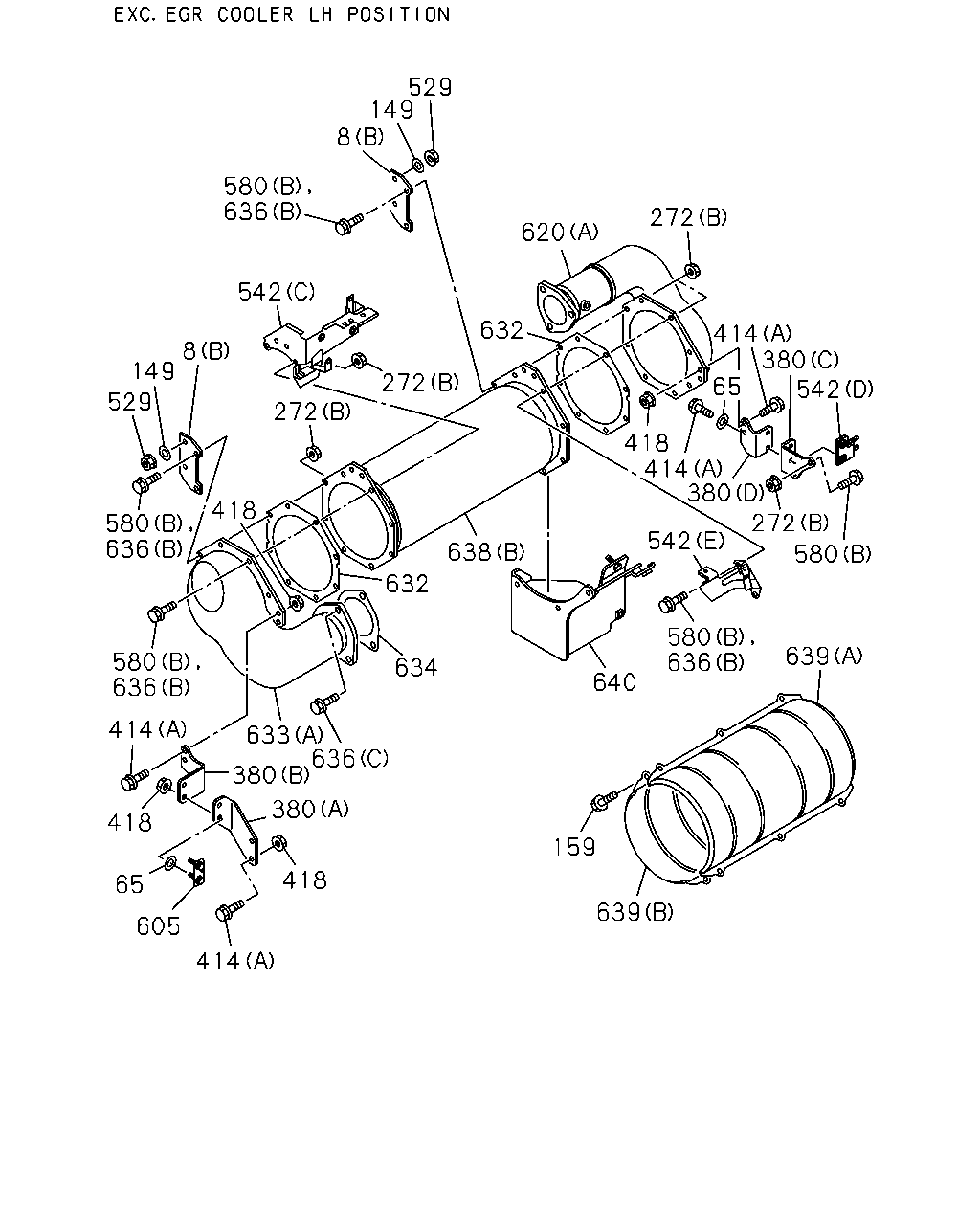

4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98299-541-0 01 1 1505-1507 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98299-541-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98299-541-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98299-542-0 01 1 1505-1507 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98299-542-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98299-542-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505-1507 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1508- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97359-985-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97359-985-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98206-911-1 01 1 1505- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) 		8-98206-911-1 01 1 1505- ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1505-1507 ● ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505-1507 ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1508- ●

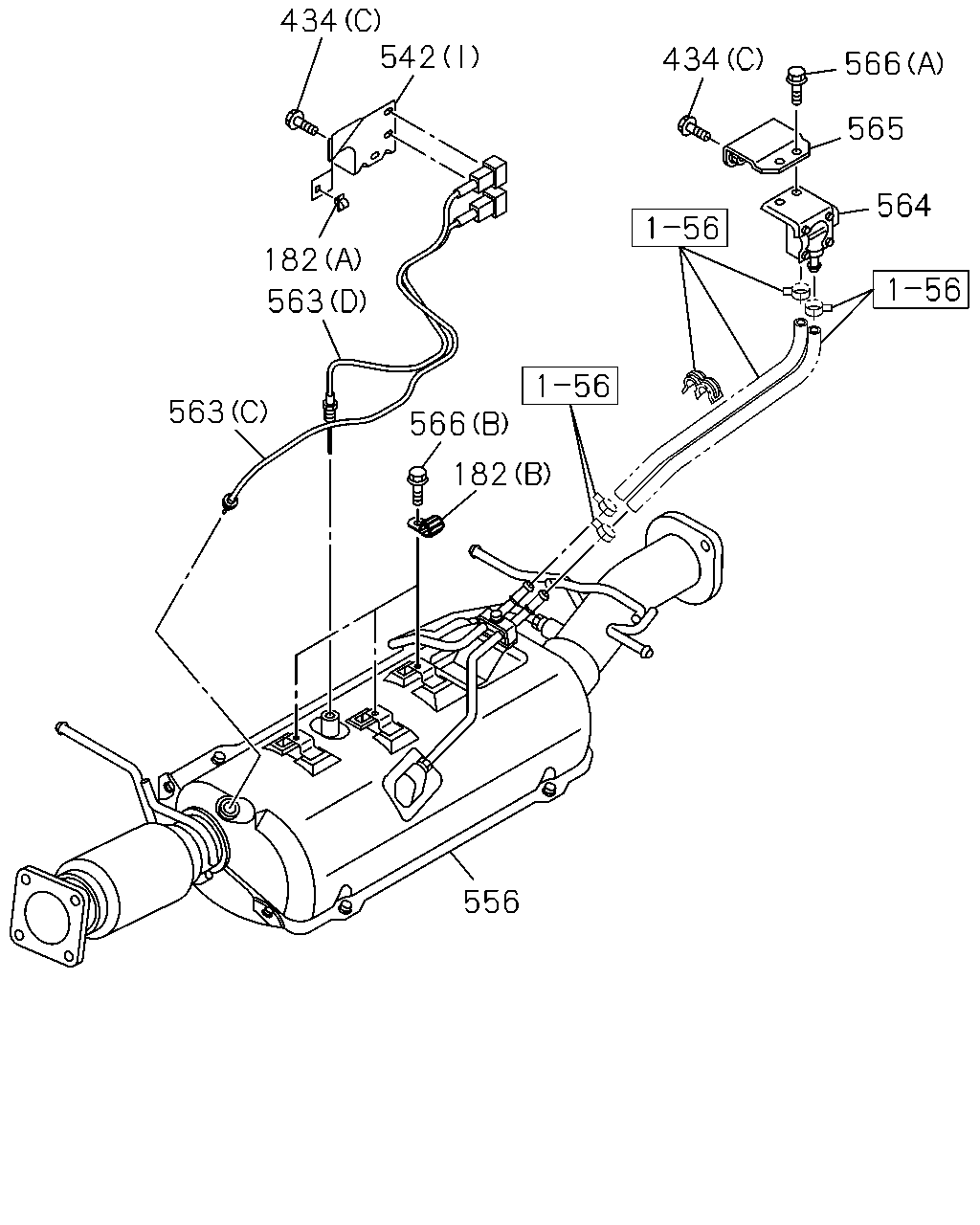

çizim 475418
434 566 565 564 542 434 182 563 563 566 182 556
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 03 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 03 1 1508- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) ID=7 		8-98002-767-0 01 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 		8-98002-767-0 01 1 1505- ●
434 03.613 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505-1507 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1507 ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1507 ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1508- ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98225-173-3 01 1 1505- ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98299-541-0 01 1 1505-1507 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98299-541-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98299-541-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98299-542-0 01 1 1505-1507 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98299-542-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98299-542-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505-1507 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1508- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97359-985-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97359-985-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98206-911-1 01 1 1505- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) 		8-98206-911-1 01 1 1505- ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1505-1507 ● ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505-1507 ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1508- ●

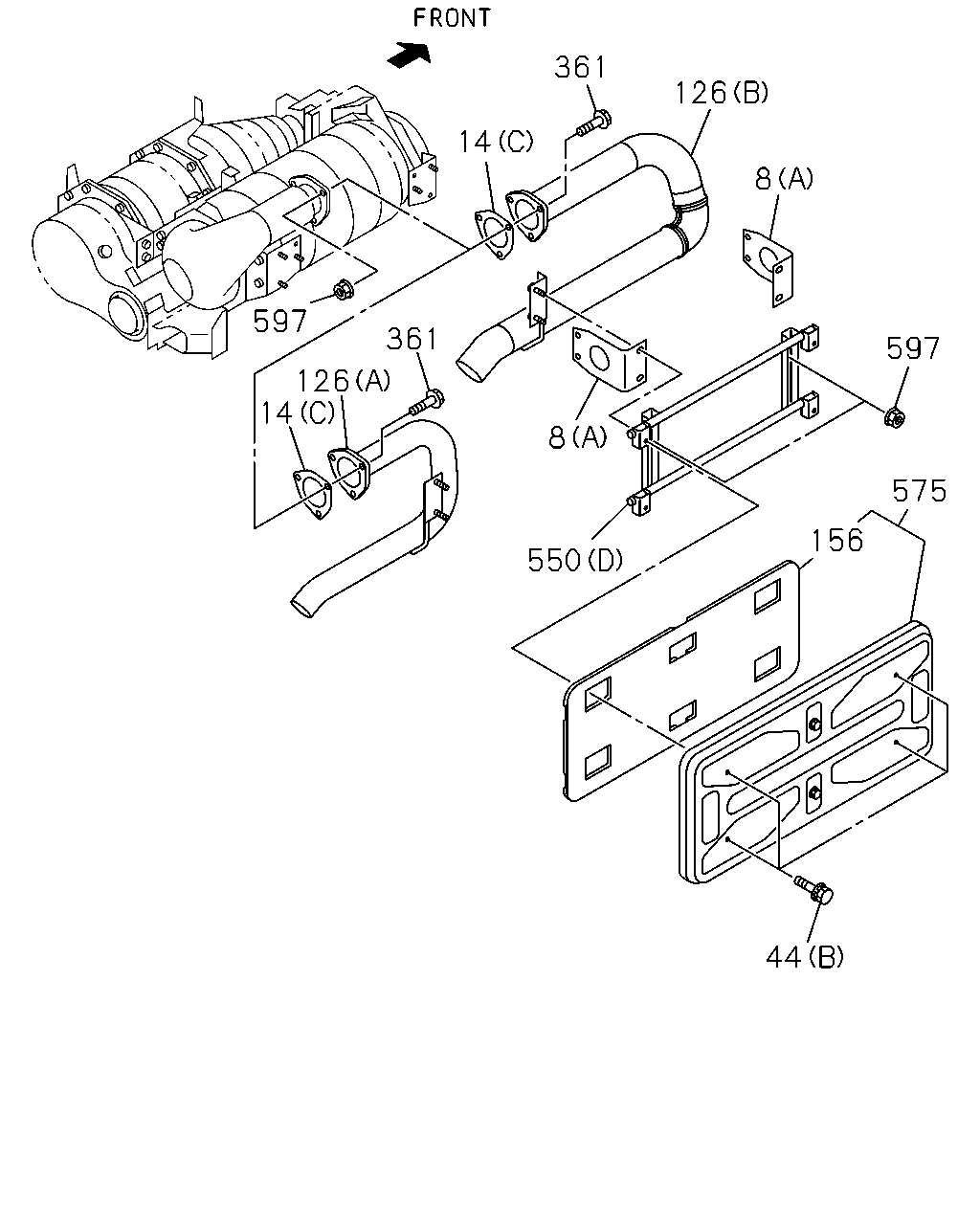

çizim 475419
8 126 361 14 597 361 126 14 550 8 575 597 156 44
BalonParca AdiParca NoAdetTipApplied Date A B C
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1505- ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
(B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1505- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 (A) ID=65 		8-97148-757-1 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) ID=85.8 		1-22116-043-0 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EXC. EURO5B+ SPECIFICATION(NT5) 03.611 (C) ID=81 		8-98043-481-0 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 (C) ID=81 		8-98043-481-0 01 1 1505- ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98228-992-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98228-993-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) (B) 		8-98207-612-1 01 1 1505- ● ●
156 03.706 INSULATOR; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) 		8-98148-541-1 01 1 1505- ●
156 03.706 INSULATOR; HEAT PROTECTOR 8-98148-541-1 01 1 1505- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
EXC. EURO5B+ SPECIFICATION(NT5) 09.003 M12X40 FLANGE 		0-28651-240-0 03 1 1505- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
09.003 M12X40 FLANGE 		0-28651-240-0 03 1 1505- ●

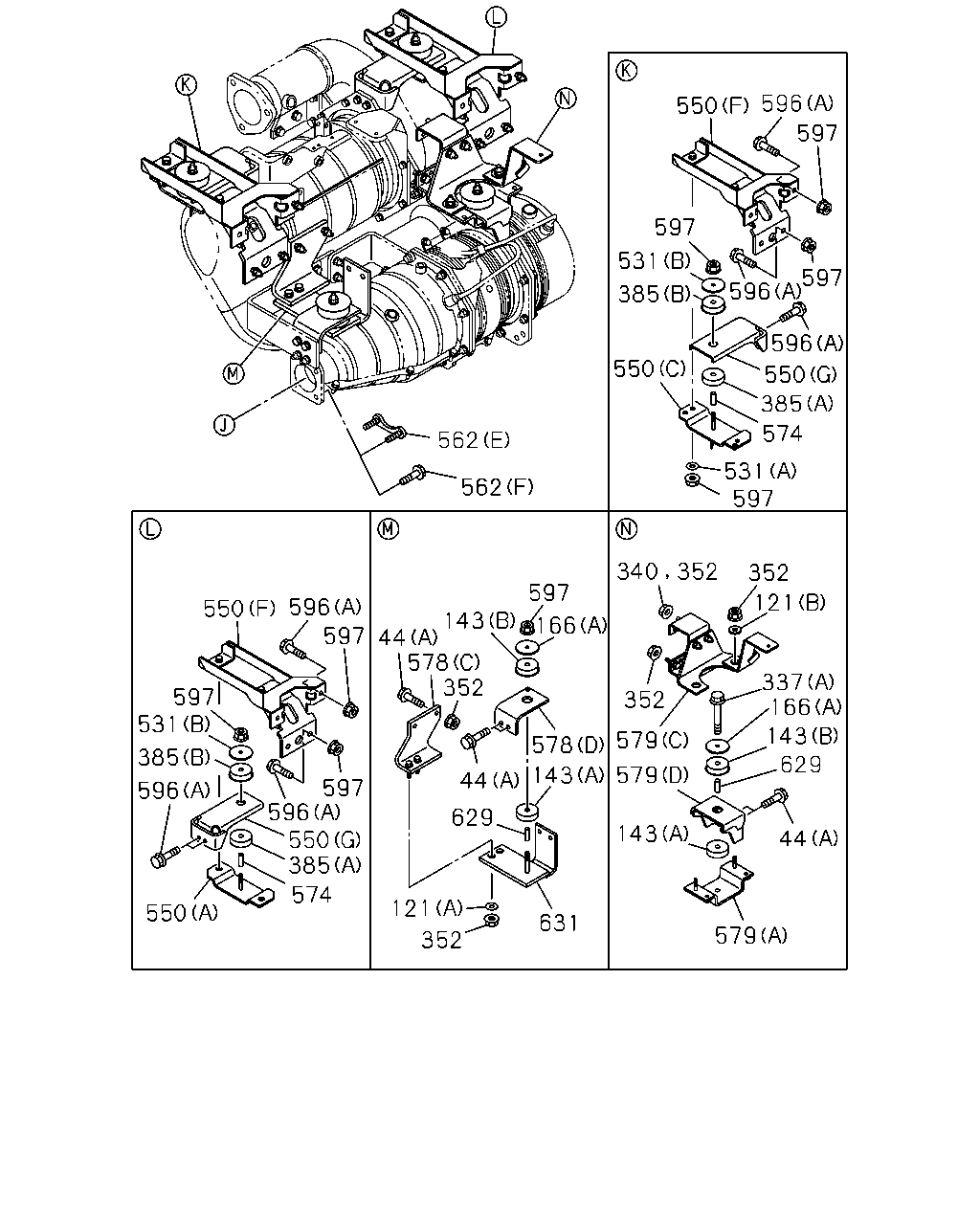

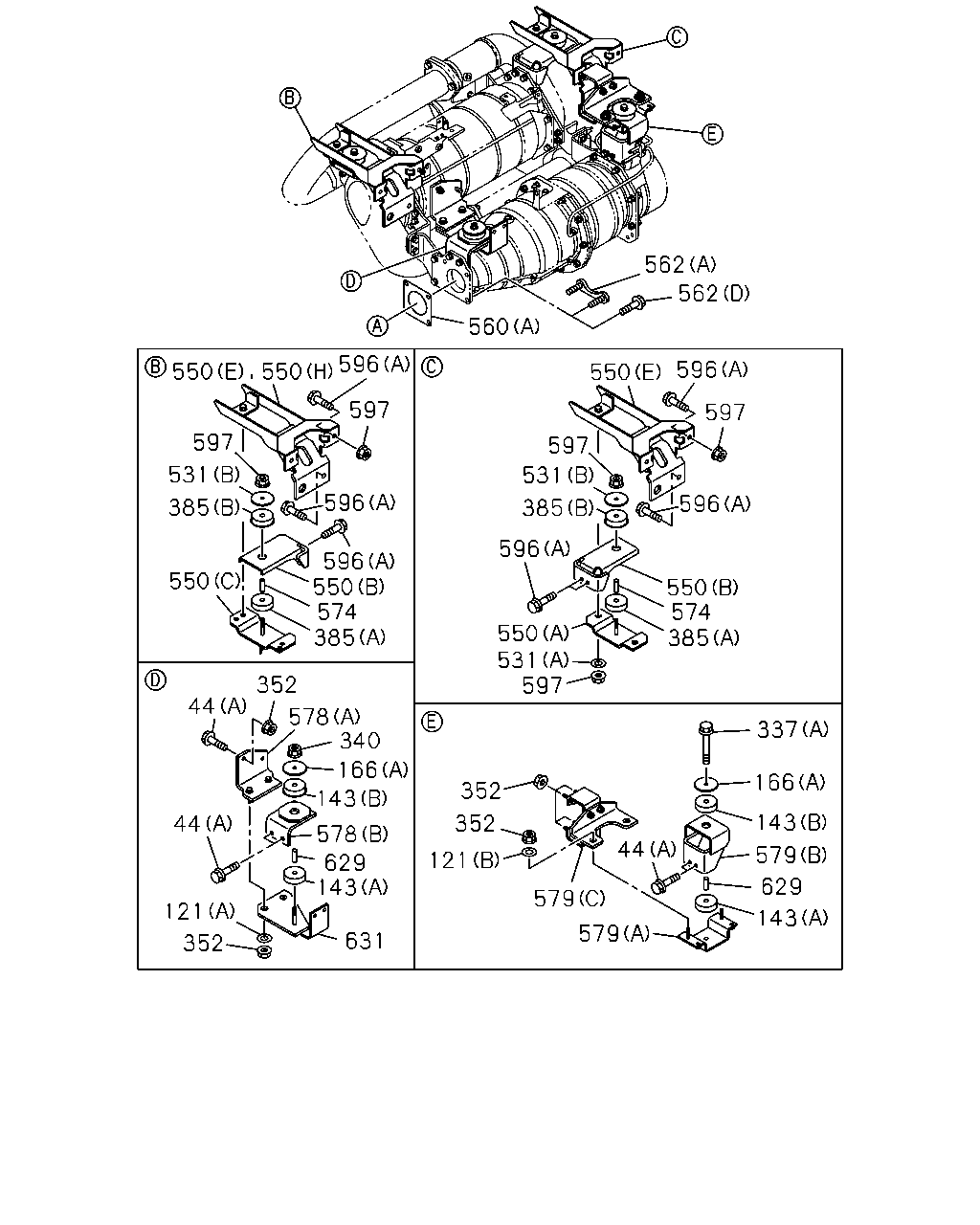

550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98144-205-0 01 1 1505- ●
550 03.704 BRACKET; DPD
(C) 		8-98144-205-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98144-192-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98144-207-0 01 1 1505- ●
550 03.704 BRACKET; DPD
(A) 		8-98144-207-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
EXC. EURO5B+ SPECIFICATION(NT5) (D) 		8-98113-038-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
(D) 		8-98113-038-0 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-929-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (H) 		8-98207-620-0 01 1 1505- ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98109-502-1 01 1 1505- ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98109-502-1 01 1 1505- ●
575 03.706 COVER; SIDE,DPD
4HK1-TCS ENG(RJS) 		8-98109-502-1 01 1 1505- ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> 		8-98317-077-0 01 1 1505- ●
575 03.706 COVER; SIDE,DPD
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> 		8-98317-076-0 01 1 1505- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 06 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 06 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 08 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●

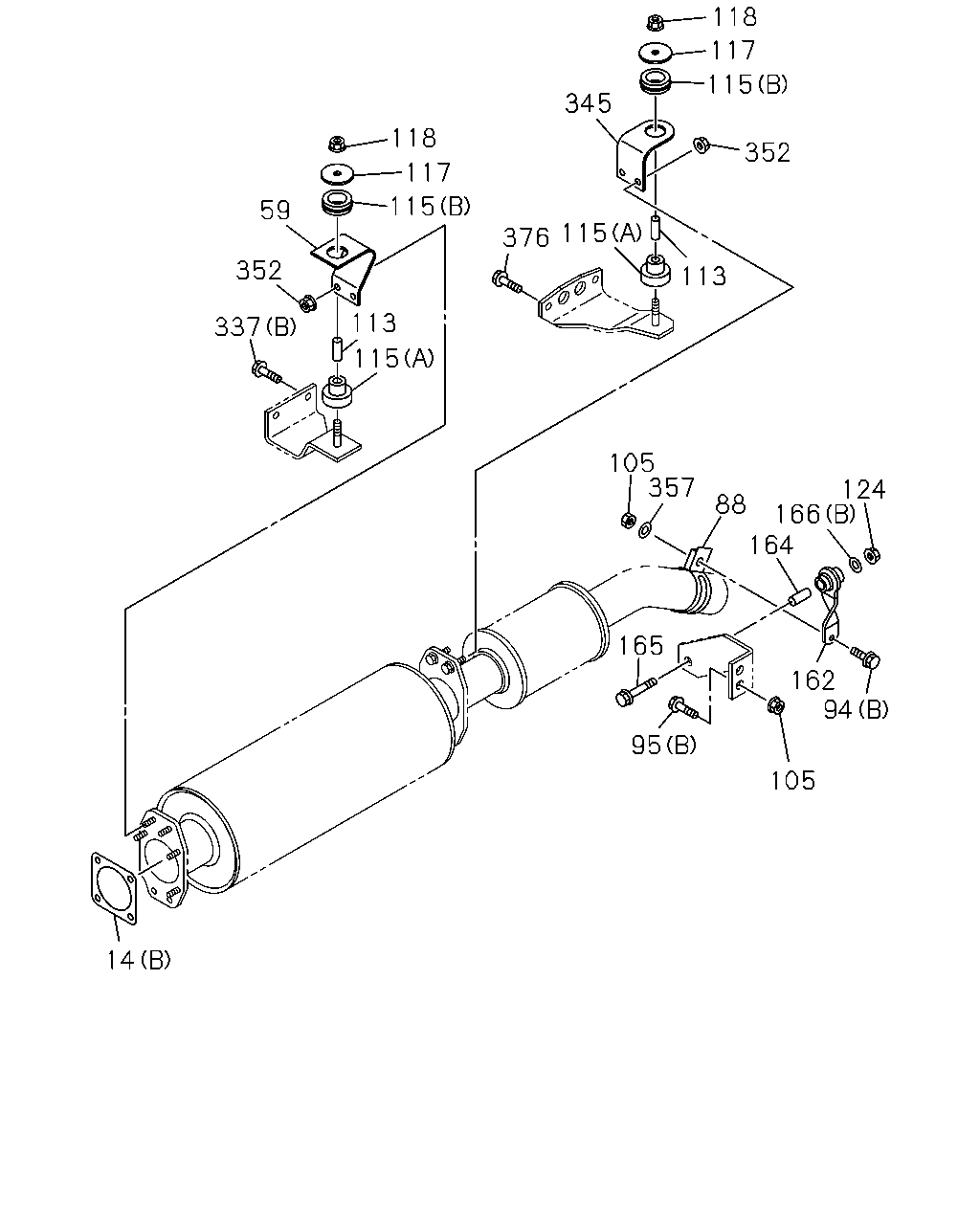

çizim 475449
118 117 115 59 352 337 113 115 376 115 345 352 115 117 118 113 105 357 124 166 88 164 162 94 105 95 165 14
BalonParca AdiParca NoAdetTipApplied Date A B C
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 (A) ID=65 		8-97148-757-1 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) ID=85.8 		1-22116-043-0 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EXC. EURO5B+ SPECIFICATION(NT5) 03.611 (C) ID=81 		8-98043-481-0 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 (C) ID=81 		8-98043-481-0 01 1 1505- ●
59 03.704 BRACKET; EXH SILENCER,FRT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98149-700-0 01 1 1505- ● ●
88 03.708 CLAMP; EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98034-766-0 01 1 1505- ● ●
94 03.704 BOLT; CLAMP
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1505- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1505- ●
95 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.895 (B) M10X40 FLANGE 		8-98124-451-2 01 1 1509-1509 ● ●
95 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.895 (B) M10X40 FLANGE 		8-98124-451-2 02 1 1509- ● ●
95 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1508 ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
105 03.704 NUT; CLAMP
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.833 M10 		0-91110-510-0 01 1 1505- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.706 L=37.5 		9-22151-217-0 02 1 1505- ● ●
115 03.704 RUBBER; MTG,SILENCER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-94457-277-1 02 1 1505- ● ●
115 03.704 RUBBER; MTG,SILENCER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-94457-278-1 02 1 1505- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) OD=55 		9-09852-169-0 02 1 1505- ● ●
118 03.704 NUT; SILENCER MTG BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE 		5-09440-006-0 02 1 1505- ● ●
124 03.704 NUT; SUPPORT RUBBER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) L=115 		8-98034-765-0 01 1 1505- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) L=37.5 		9-22151-217-0 01 1 1505- ● ●
165 03.706 BOLT; SUPPORT RUBBER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) M10X70 FLANGE 		0-28051-070-0 01 1 1505- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) (A) ID=10.5 OD=70 		8-97625-671-0 02 1 1505-1507 ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
(A) ID=10.5 OD=70 		8-97625-671-0 02 1 1505-1507 ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. EURO5B+ SPECIFICATION(NT5) (A) ID=10.5 OD=70 		8-97625-671-0 02 1 1508- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
(A) ID=10.5 OD=70 		8-97625-671-0 02 1 1508- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.002 (B) ID=10.5 OD=32 		0-91614-810-0 01 1 1505- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1505-1507 ●
337 03.706 BOLT; RUBBER,SUPPORT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1505-1507 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1508- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1508- ●
337 03.706 BOLT; RUBBER,SUPPORT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1508 ● ●
345 03.704 BRACKET; EXH SILENCER,RR
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-98149-709-0 01 1 1505- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
352 03.613 NUT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
357 03.708 WASHER; PL,CLAMP
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ● ●
376 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505-1508 ● ●
çizim 475467
566 434 564 565 182 563 182 542 563 434
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (A) ID=7 L=7.5 		8-97369-561-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.587 (C) L=112 		8-94232-618-0 01 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.587 (C) L=112 		8-94232-618-0 01 1 1508- ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 03 1 1505-1507 ●
182 03.682 CLIP; HARNESS
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 03 1 1508- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (A) ID=7 L=7.5 		8-97369-561-0 02 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) ID=7 		8-98002-767-0 01 1 1505- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 		8-98002-767-0 01 1 1505- ●
434 03.613 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505-1507 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1507 ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1507 ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1508- ●
434 03.613 BOLT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98299-541-0 01 1 1505-1507 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98299-541-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98299-541-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98299-542-0 01 1 1505-1507 ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98299-542-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98299-542-0 01 1 1508- ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) 03.337 (C) 		8-98031-605-1 01 1 1505- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1505-1507 ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98186-762-1 01 1 1508- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98002-572-4 01 1 1505- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-97360-368-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-97360-368-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1505-1507 ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97359-985-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97359-985-2 01 1 1508- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98209-756-1 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98209-756-1 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1505-1507 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98029-347-0 01 1 1508- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98206-911-1 01 1 1505- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) 		8-98206-911-1 01 1 1505- ●
566 03.706 BOLT; SENSOR
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1505-1507 ● ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1505-1507 ●
566 03.706 BOLT; SENSOR
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 1508- ●
çizim 475508
143 596 143 44 560 352 578 352 556 562 223 46 568 36 1 43 17 2 579 329 143 579 579 579 596 579 579
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 		8-98026-060-0 01 1 1505- ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) 		8-98228-986-1 01 1 1505- ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98235-053-0 01 1 1505- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) 		8-97384-590-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98228-985-0 01 1 1505- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97381-455-0 01 1 1505- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 		8-97381-455-0 01 1 1505- ● ●
17 03.613 BOLT; EXH PIPE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ● ●
36 03.613 NUT; EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) M10 FLANGE 		8-97096-192-1 02 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ●
36 03.613 NUT; EXH PIPE
EXC. EURO5B+ SPECIFICATION(NT5) (A) M10 FLANGE 		8-97096-192-1 03 1 1505- ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1505- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) 02.042 (B) M12 FLANGE 		0-91180-112-0 04 1 1508- ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 1505- ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505-1507 ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1505-1507 ● ●
143 03.704 RUBBER; SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1508- ● ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 03 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-767-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
03.613 (B) 		8-98026-063-0 01 1 1505- ●
223 03.706 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (B) 		8-98026-063-0 01 1 1505- ● ●
223 03.706 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 03.613 (A) 		8-98020-555-0 01 1 1505- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
352 03.613 NUT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98225-173-3 01 1 1505- ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) BOLT M8X70 FLANGE 		0-28050-870-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) BOLT M12X35 FLANGE 		0-28051-235-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1505- ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1505- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1505-1507 ● ●
568 03.704 NUT; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 1508- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1505-1507 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) 		8-98113-031-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) 		8-98113-031-0 01 1 1508- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1508- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98228-998-1 01 1 1505- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (B) 		8-98109-485-3 01 1 1505- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98109-484-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-98109-484-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98109-484-0 01 1 1508- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-98109-484-0 01 1 1508- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) 		8-98144-195-2 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) 		8-98144-198-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
(A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98144-196-0 01 1 1508- ● ●
579 03.704 BRACKET; DPD RR
(A) 		8-98144-196-0 01 1 1508- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> (G) 		8-98232-083-3 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 63 LITTER<6EF> (H) 		8-98232-081-3 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98232-085-1 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98232-385-1 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98232-385-1 01 1 1508- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> (I) 		8-98232-080-2 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98144-927-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98144-927-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98300-829-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (C) 		8-98300-829-0 01 1 1505- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1508- ● ●
çizim 475517
556 589 159 561 534 547 547 561 589 558
BalonParca AdiParca NoAdetTipApplied Date A B C
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98242-133-0 06 1 1505- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98242-134-0 01 1 1505- ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) M6X35 FLANGE 		0-28650-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 03 1 1505- ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98225-173-3 01 1 1505- ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1505- ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98233-619-1 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98233-520-1 01 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98233-521-1 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98084-603-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98084-604-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98233-517-1 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98233-518-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97605-172-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97611-087-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-97611-088-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-97611-089-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (O) 		8-97613-390-0 01 1 1505- ●
çizim 475531
143 143 529 46 416 416 12 14
BalonParca AdiParca NoAdetTipApplied Date A B C
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98228-995-1 01 1 1505- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 (A) ID=65 		8-97148-757-1 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) (B) ID=85.8 		1-22116-043-0 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EXC. EURO5B+ SPECIFICATION(NT5) 03.611 (C) ID=81 		8-98043-481-0 01 1 1505- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
03.611 (C) ID=81 		8-98043-481-0 01 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE 		0-28151-025-0 02 1 1505- ●
46 03.704 BOLT; BRKT,EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE 		0-28651-030-0 02 1 1505- ● ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
46 03.704 BOLT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505-1507 ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1505-1507 ● ●
143 03.704 RUBBER; SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1508- ● ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 03 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-767-0 01 1 1505- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98229-006-1 01 1 1505- ●
416 03.706 BRACKET; RR EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98229-007-1 01 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
çizim 475538
137 167 104 137 95 167 126 84 84 38 137 70 144 554 84 38 84 363 94 143 97 125 104 95 126 81
BalonParca AdiParca NoAdetTipApplied Date A B C
38 00.002 NUT; SILENCER
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ● ●
38 00.002 NUT; SILENCER
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1505- ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
84 03.611 GASKET; EXH PIPE
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 1506- ● ●
84 03.611 GASKET; EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1505- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=65 		8-97148-757-1 01 1 1505- ●
94 03.704 BOLT; CLAMP
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 1505- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 1505- ●
95 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.895 (B) M10X40 FLANGE 		8-98124-451-2 01 1 1509-1509 ● ●
95 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.895 (B) M10X40 FLANGE 		8-98124-451-2 02 1 1509- ● ●
95 03.708 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1508 ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1505-1508 ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1505- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1505- ●
104 03.704 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1505-1508 ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1509- ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505- ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.833 M10 		0-91110-510-0 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) (A) 		8-98207-611-0 01 1 1505- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98228-992-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98228-993-1 01 1 1505- ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) (B) 		8-98207-612-1 01 1 1505- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98229-011-1 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98019-904-2 01 1 1505- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98229-010-1 01 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505-1507 ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1505-1507 ● ●
143 03.704 RUBBER; SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1508- ● ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 03 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-767-0 01 1 1505- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1505- ●
167 03.706 HANGER; EXH PIPE
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 (C) 		8-97080-694-0 01 1 1505- ● ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-97625-670-0 01 1 1505-1507 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-97625-670-0 01 1 1508- ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98149-202-0 01 1 1505-1507 ●
167 03.706 HANGER; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-98149-202-0 01 1 1508- ●
363 03.704 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505- ●
554 03.705 PIPE; EXH,SILENCER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98228-988-0 01 1 1505- ●
çizim 476185
418 467 589 589 159 637 529 617 623 580 636 547 547 560 534 413 637 557 272 272 589 637 580 272 637 561 636 632 580 636 561 589 558
BalonParca AdiParca NoAdetTipApplied Date A B C
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98242-133-0 06 1 1505- ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1505- ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98138-485-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-407-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6X16 		8-98019-179-0 06 1 1505- ● ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6X16 		8-98019-179-0 06 1 1505- ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) M6X16 		8-98019-179-0 14 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98242-134-0 01 1 1505- ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) M6X35 FLANGE 		0-28650-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 03 1 1505- ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1505- ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-055-8 01 1 1505- ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98233-619-1 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98233-520-1 01 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98233-521-1 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98084-603-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98084-604-0 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.060 (C) M8X35 FLANGE 		0-28650-835-0 20 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98233-517-1 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98233-518-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97605-172-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97611-087-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-97611-088-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-97611-089-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (O) 		8-97613-390-0 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1505- ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98204-944-1 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98156-630-2 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-2 01 1 1505- ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6 		8-98141-351-0 03 1 1505- ● ● ●
623 03.704 STUD; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6 		8-98141-351-0 03 1 1505- ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97628-257-0 03 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97628-257-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1505- ●
çizim 476253
639 159 640 580 636 639 580 272 542 414 418 380 542 380 65 414 272 620 632 272 272 638 632 634 636 633 380 380 418 414 605 65 418 414 580 636 636 580 418 149 529 542 636 580 8 149 529 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1505- ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
(B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1505- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
65 03.613 WASHER; PL
00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 06 1 1505- ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ● ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ●
149 03.613 WASHER; LK,PIPE BRKT
04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98242-133-0 06 1 1505- ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C) 		8-98118-879-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98118-879-0 01 1 1505- ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (D) 		8-98118-880-0 02 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-457-1 02 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98205-012-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-877-1 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98118-878-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98118-880-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1505- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ●
414 03.613 BOLT; BRKT
04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 06 1 1505- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.060 (C) M8X35 FLANGE 		0-28650-835-0 20 1 1505- ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1505- ● ● ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98148-511-0 01 1 1505- ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) 		8-98148-511-0 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1505- ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
(A) 		8-98118-876-1 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (B) 		8-98205-011-0 01 1 1505- ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97628-257-0 03 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97628-257-0 03 1 1505- ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1505- ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1505- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
(A) 		8-98127-327-1 01 1 1505- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (B) 		8-98138-451-0 01 1 1505- ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98118-422-1 01 1 1505- ● ● ●
634 03.611 GASKET; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98118-422-1 01 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1505- ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1505- ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98205-010-0 01 1 1505- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98205-048-0 01 1 1505- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98136-188-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (A) 		8-98136-188-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98136-189-1 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (B) 		8-98136-189-1 01 1 1505- ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1505- ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 		8-98159-189-2 01 1 1505- ●
640 03.609 BRACKET; DEF DCM SPLY COVER 8-98159-189-2 01 1 1505- ●
çizim 476460
550 596 597 597 596 597 531 385 550 550 596 385 574 531 597 340 352 352 121 337 166 143 629 44 579 143 579 579 352 166 597 562 562 596 550 597 578 44 143 352 578 143 44 629 631 121 352 574 550 385 596 597 597 531 385 596 550
BalonParca AdiParca NoAdetTipApplied Date A B C
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505-1507 ● ●
121 03.704 WASHER; PL,BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1508- ● ●
121 03.704 WASHER; PL,BRKT
09.008 (A) ID=12.5 		1-09503-171-0 02 1 1508- ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB) (B) ID=10.5 		8-98073-091-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
(B) ID=10.5 		8-98073-091-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) ID=10.5 		8-98073-091-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
EXC. EURO5B+ SPECIFICATION(NT5) (B) ID=10.5 		8-98073-091-0 02 1 1508- ● ●
121 03.704 WASHER; PL,BRKT
(B) ID=10.5 		8-98073-091-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505-1507 ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1505-1507 ● ●
143 03.704 RUBBER; SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1508- ● ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 03 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-767-0 01 1 1505- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) (A) ID=10.5 OD=70 		8-97625-671-0 02 1 1505-1507 ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
(A) ID=10.5 OD=70 		8-97625-671-0 02 1 1505-1507 ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. EURO5B+ SPECIFICATION(NT5) (A) ID=10.5 OD=70 		8-97625-671-0 02 1 1508- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
(A) ID=10.5 OD=70 		8-97625-671-0 02 1 1508- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.002 (B) ID=10.5 OD=32 		0-91614-810-0 01 1 1505- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1505-1507 ●
337 03.706 BOLT; RUBBER,SUPPORT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1505-1507 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1508- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1508- ●
337 03.706 BOLT; RUBBER,SUPPORT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1508 ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
340 03.706 NUT; RUBBER,SUPPORT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
340 03.706 NUT; RUBBER,SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
340 03.706 NUT; RUBBER,SUPPORT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
352 03.613 NUT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
385 03.704 BRACKET; SILENCER MTG
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ●
385 03.704 BRACKET; SILENCER MTG
03.706 (A) 		8-97625-670-0 02 1 1505- ●
385 03.704 BRACKET; SILENCER MTG
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
385 03.704 BRACKET; SILENCER MTG
03.706 (B) 		8-98149-202-0 02 1 1505- ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1505- ●
531 03.704 WASHER; CLAMP
03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1505- ● ●
531 03.704 WASHER; CLAMP
EXC. EURO5B+ SPECIFICATION(NT5) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505- ● ●
531 03.704 WASHER; CLAMP
09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98144-205-0 01 1 1505- ●
550 03.704 BRACKET; DPD
(C) 		8-98144-205-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98144-192-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98144-207-0 01 1 1505- ●
550 03.704 BRACKET; DPD
(A) 		8-98144-207-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
EXC. EURO5B+ SPECIFICATION(NT5) (D) 		8-98113-038-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
(D) 		8-98113-038-0 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-929-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (H) 		8-98207-620-0 01 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) BOLT M8X70 FLANGE 		0-28050-870-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) BOLT M12X35 FLANGE 		0-28051-235-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1505- ● ●
574 03.706 SPACER; DPD
EXC. EURO5B+ SPECIFICATION(NT5) L=39 		8-98060-852-0 02 1 1505- ● ●
574 03.706 SPACER; DPD
L=39 		8-98060-852-0 02 1 1505- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1505-1507 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) 		8-98113-031-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) 		8-98113-031-0 01 1 1508- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1508- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98228-998-1 01 1 1505- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (B) 		8-98109-485-3 01 1 1505- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98109-484-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-98109-484-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98109-484-0 01 1 1508- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-98109-484-0 01 1 1508- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) 		8-98144-195-2 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) 		8-98144-198-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
(A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98144-196-0 01 1 1508- ● ●
579 03.704 BRACKET; DPD RR
(A) 		8-98144-196-0 01 1 1508- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> (G) 		8-98232-083-3 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 63 LITTER<6EF> (H) 		8-98232-081-3 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98232-085-1 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98232-385-1 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98232-385-1 01 1 1508- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> (I) 		8-98232-080-2 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98144-927-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98144-927-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98300-829-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (C) 		8-98300-829-0 01 1 1505- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 06 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 06 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 08 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB) L=39 		8-98060-852-0 02 1 1505-1507 ●
629 03.706 SPACER; HANGER
L=39 		8-98060-852-0 02 1 1505-1507 ● ●
629 03.706 SPACER; HANGER
EXC. EURO5B+ SPECIFICATION(NT5) L=39 		8-98060-852-0 02 1 1508- ● ●
629 03.706 SPACER; HANGER
L=39 		8-98060-852-0 02 1 1508- ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) L=39 		8-98060-852-0 01 1 1505-1507 ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 01 1 1508- ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) 		8-98144-193-0 01 1 1505- ● ● ●
631 03.706 BRACKET; DPD CENTER
4HK1-TCS ENG(RJS) 		8-98144-920-0 01 1 1505- ● ●
çizim 476468
580 413 272 589 561 272 580 560 272 561 534 547 547 580 617 589 414 557 558 159 159 637 589 633 636 380 380 605 418 418 632 634 639 636 467 623 418 380 380 636 418 621 65 414 620 636 65 414 542 580 636 8 418 632 638 636 418 637 637 632 636 8 272 637 639 589
BalonParca AdiParca NoAdetTipApplied Date A B C
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1505- ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
(B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1505- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
65 03.613 WASHER; PL
00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 06 1 1505- ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98242-133-0 06 1 1505- ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C) 		8-98118-879-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98118-879-0 01 1 1505- ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (D) 		8-98118-880-0 02 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-457-1 02 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98205-012-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-877-1 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98118-878-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98118-880-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1505- ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98138-485-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-407-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1505- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ●
414 03.613 BOLT; BRKT
04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 06 1 1505- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6X16 		8-98019-179-0 06 1 1505- ● ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6X16 		8-98019-179-0 06 1 1505- ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) M6X16 		8-98019-179-0 14 1 1505- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98242-134-0 01 1 1505- ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) M6X35 FLANGE 		0-28650-635-0 03 1 1505- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 03 1 1505- ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1505- ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-055-8 01 1 1505- ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98233-619-1 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98233-520-1 01 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98233-521-1 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98084-603-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98084-604-0 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.060 (C) M8X35 FLANGE 		0-28650-835-0 20 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98233-517-1 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98233-518-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97605-172-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97611-087-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-97611-088-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-97611-089-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (O) 		8-97613-390-0 01 1 1505- ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1505- ● ● ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98148-511-0 01 1 1505- ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) 		8-98148-511-0 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1505- ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98204-944-1 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98156-630-2 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-2 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1505- ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
(A) 		8-98118-876-1 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (B) 		8-98205-011-0 01 1 1505- ●
621 03.704 BRACKET; PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 		8-98159-190-1 01 1 1505- ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6 		8-98141-351-0 03 1 1505- ● ● ●
623 03.704 STUD; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6 		8-98141-351-0 03 1 1505- ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97628-257-0 03 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97628-257-0 03 1 1505- ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1505- ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1505- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
(A) 		8-98127-327-1 01 1 1505- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (B) 		8-98138-451-0 01 1 1505- ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98118-422-1 01 1 1505- ● ● ●
634 03.611 GASKET; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98118-422-1 01 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1505- ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1505- ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98205-010-0 01 1 1505- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98205-048-0 01 1 1505- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98136-188-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (A) 		8-98136-188-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98136-189-1 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (B) 		8-98136-189-1 01 1 1505- ●
çizim 476484
561 561 589 582 547 589 589 272 560 557 560 580 580 547 534 582 547 547 534 272 534 547 547 582 559 560 580 558 467 589 467 589 589 556
BalonParca AdiParca NoAdetTipApplied Date A B C
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6X16 		8-98019-179-0 06 1 1505- ● ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6X16 		8-98019-179-0 06 1 1505- ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) M6X16 		8-98019-179-0 14 1 1505- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98242-134-0 01 1 1505- ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) M6X35 FLANGE 		0-28650-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 03 1 1505- ●
556 03.701 DPD ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98225-173-3 01 1 1505- ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1505- ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1505- ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-055-8 01 1 1505- ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98233-619-1 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 1505- ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97622-887-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98233-520-1 01 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98233-521-1 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98084-603-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98084-604-0 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.060 (C) M8X35 FLANGE 		0-28650-835-0 20 1 1505- ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97611-083-0 01 1 1505- ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-084-0 01 1 1505- ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-085-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98233-517-1 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98233-518-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97605-172-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97611-087-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-97611-088-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-97611-089-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (O) 		8-97613-390-0 01 1 1505- ●
çizim 476684
414 414 380 65 542 605 580 636 272 380 272 620 636 580 529 272 637 418 149 8 8 542 272 580 636 272 418 529 637 8 149 8 580 580 636 633 637 418 529 636 634 632 638 580 636 542 632 418 637 529 636 380 65 605 272 605 580 380 640 636 159 639 639 414 637 529 418 380 414 272 272 637
BalonParca AdiParca NoAdetTipApplied Date A B C
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-98162-855-0 02 1 1505- ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
(B) 		8-98162-855-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (C) 		8-98225-555-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98225-556-0 01 1 1505- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (E) 		8-98144-459-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (F) 		8-98203-726-0 01 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98225-557-0 02 1 1505- ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98225-557-0 02 1 1505- ●
65 03.613 WASHER; PL
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ● ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
65 03.613 WASHER; PL
00.002 ID=10.5 OD=22 		0-91614-610-0 04 1 1505- ●
65 03.613 WASHER; PL
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.002 ID=10.5 OD=22 		0-91614-610-0 06 1 1505- ●
149 03.613 WASHER; LK,PIPE BRKT
4JJ1-TCS ENG(LFB) 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ● ●
149 03.613 WASHER; LK,PIPE BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ●
149 03.613 WASHER; LK,PIPE BRKT
04.085 ID=10.5 OD=26 		0-91614-710-0 04 1 1505- ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98242-133-0 06 1 1505- ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C) 		8-98118-879-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98118-879-0 01 1 1505- ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (D) 		8-98118-880-0 02 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (E) 		8-98127-331-1 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4JJ1-TCS ENG(LFB) (F) 		8-98127-332-0 01 1 1505- ● ● ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-457-1 02 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98205-012-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-877-1 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (A) 		8-98118-877-1 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98118-878-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (B) 		8-98118-878-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98118-880-0 01 1 1505- ●
380 03.706 BRACKET; STAY
4HK1-TCS ENG(RJS) (D) 		8-98118-880-0 01 1 1505- ●
414 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ● ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ●
414 03.613 BOLT; BRKT
04.510 (A) M10X35 FLANGE 		0-28051-035-0 08 1 1505- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 04.510 (A) M10X35 FLANGE 		0-28051-035-0 06 1 1505- ●
414 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 02 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ● ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 10 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
418 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ● ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 1505- ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
529 03.704 NUT; BRKT,EXH PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
529 03.704 NUT; BRKT,EXH PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.060 (C) M8X35 FLANGE 		0-28650-835-0 20 1 1505- ●
605 03.690 PLATE; NUT
4JJ1-TCS ENG(LFB) 		8-98148-511-0 02 1 1505- ● ● ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98148-511-0 01 1 1505- ●
605 03.690 PLATE; NUT
4HK1-TCS ENG(RJS) 		8-98148-511-0 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
4JJ1-TCS ENG(LFB) (A) 		8-98118-876-1 01 1 1505- ● ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98118-876-1 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
(A) 		8-98118-876-1 01 1 1505- ●
620 03.440 CHAMBER ASM; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (B) 		8-98205-011-0 01 1 1505- ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97628-257-0 03 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97628-257-0 03 1 1505- ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4JJ1-TCS ENG(LFB) (A) 		8-98127-327-1 01 1 1505- ● ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-327-1 01 1 1505- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
(A) 		8-98127-327-1 01 1 1505- ●
633 03.440 CHAMBER SUB ASM; DEF,FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (B) 		8-98138-451-0 01 1 1505- ●
634 03.611 GASKET; MIXER
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-98118-422-1 01 1 1505- ● ● ●
634 03.611 GASKET; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98118-422-1 01 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1505- ●
638 03.701 CATALYST ASM; DEF
4JJ1-TCS ENG(LFB) (A) 		8-98205-063-0 01 1 1505- ● ● ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98205-010-0 01 1 1505- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98205-048-0 01 1 1505- ●
638 03.701 CATALYST ASM; DEF
4HK1-TCS ENG(RJS) (B) 		8-98205-048-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (C) 		8-98147-069-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4JJ1-TCS ENG(LFB) (D) 		8-98147-070-0 01 1 1505- ● ● ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-98136-188-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (A) 		8-98136-188-0 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98136-189-1 01 1 1505- ●
639 03.609 PROTECTOR; HEAT,CATALYST ASM DEF
4HK1-TCS ENG(RJS) (B) 		8-98136-189-1 01 1 1505- ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4JJ1-TCS ENG(LFB) 		8-98159-189-2 01 1 1505- ● ●
640 03.609 BRACKET; DEF DCM SPLY COVER
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 		8-98159-189-2 01 1 1505- ●
640 03.609 BRACKET; DEF DCM SPLY COVER 8-98159-189-2 01 1 1505- ●
çizim 476743
562 562 560 550 550 596 597 597 531 385 550 596 596 550 574 385 352 44 578 340 166 143 578 629 143 631 44 121 352 550 596 597 596 597 531 385 596 550 531 597 550 574 385 337 166 143 579 629 143 352 352 121 44 579 579
BalonParca AdiParca NoAdetTipApplied Date A B C
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
44 03.613 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 01 1 1505- ● ●
44 03.613 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 09.005 (B) M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1505- ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) (B) M8X25 W/LK&PL WASHER 		8-98288-750-0 04 1 1505- ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505-1507 ● ●
121 03.704 WASHER; PL,BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1508- ● ●
121 03.704 WASHER; PL,BRKT
09.008 (A) ID=12.5 		1-09503-171-0 02 1 1508- ●
121 03.704 WASHER; PL,BRKT
4JJ1-TCS ENG(LFB) (B) ID=10.5 		8-98073-091-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
(B) ID=10.5 		8-98073-091-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) ID=10.5 		8-98073-091-0 02 1 1505-1507 ●
121 03.704 WASHER; PL,BRKT
EXC. EURO5B+ SPECIFICATION(NT5) (B) ID=10.5 		8-98073-091-0 02 1 1508- ● ●
121 03.704 WASHER; PL,BRKT
(B) ID=10.5 		8-98073-091-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (A) 		8-97625-670-0 02 1 1505-1507 ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1505-1507 ● ●
143 03.704 RUBBER; SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1508- ● ●
143 03.704 RUBBER; SUPPORT
03.706 (A) 		8-97625-670-0 02 1 1508- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) 03.706 (B) 		8-98149-202-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 03 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97080-694-0 02 1 1505- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98034-767-0 01 1 1505- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) (A) ID=10.5 OD=70 		8-97625-671-0 02 1 1505-1507 ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
(A) ID=10.5 OD=70 		8-97625-671-0 02 1 1505-1507 ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. EURO5B+ SPECIFICATION(NT5) (A) ID=10.5 OD=70 		8-97625-671-0 02 1 1508- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
(A) ID=10.5 OD=70 		8-97625-671-0 02 1 1508- ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 00.002 (B) ID=10.5 OD=32 		0-91614-810-0 01 1 1505- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1505-1507 ●
337 03.706 BOLT; RUBBER,SUPPORT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1505-1507 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1508- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1508- ●
337 03.706 BOLT; RUBBER,SUPPORT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1508 ● ●
340 03.706 NUT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
340 03.706 NUT; RUBBER,SUPPORT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ● ●
340 03.706 NUT; RUBBER,SUPPORT
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ● ●
340 03.706 NUT; RUBBER,SUPPORT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
352 03.613 NUT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
385 03.704 BRACKET; SILENCER MTG
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (A) 		8-97625-670-0 02 1 1505- ● ●
385 03.704 BRACKET; SILENCER MTG
03.706 (A) 		8-97625-670-0 02 1 1505- ●
385 03.704 BRACKET; SILENCER MTG
EXC. EURO5B+ SPECIFICATION(NT5) 03.706 (B) 		8-98149-202-0 02 1 1505- ● ●
385 03.704 BRACKET; SILENCER MTG
03.706 (B) 		8-98149-202-0 02 1 1505- ●
531 03.704 WASHER; CLAMP
4JJ1-TCS ENG(LFB) 03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1505- ●
531 03.704 WASHER; CLAMP
03.706 (B) ID=10.5 OD=70 		8-97625-671-0 02 1 1505- ● ●
531 03.704 WASHER; CLAMP
EXC. EURO5B+ SPECIFICATION(NT5) 09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505- ● ●
531 03.704 WASHER; CLAMP
09.008 (A) ID=12.5 		1-09503-171-0 02 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (G) 		8-98292-852-0 01 1 1505- ● ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98144-205-0 01 1 1505- ●
550 03.704 BRACKET; DPD
(C) 		8-98144-205-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (F) 		8-98144-192-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98144-192-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98144-192-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4JJ1-TCS ENG(LFB) (A) 		8-98144-207-0 01 1 1505- ●
550 03.704 BRACKET; DPD
(A) 		8-98144-207-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
EXC. EURO5B+ SPECIFICATION(NT5) (D) 		8-98113-038-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
(D) 		8-98113-038-0 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-98292-841-0 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-929-1 01 1 1505- ● ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (E) 		8-98144-929-1 01 1 1505- ●
550 03.704 BRACKET; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (H) 		8-98207-620-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (F) BOLT M8X35 FLANGE 		0-28050-835-0 04 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97373-966-0 02 1 1505- ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (C) BOLT M8X70 FLANGE 		0-28050-870-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) BOLT M12X35 FLANGE 		0-28051-235-0 04 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1505- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1505- ● ●
574 03.706 SPACER; DPD
EXC. EURO5B+ SPECIFICATION(NT5) L=39 		8-98060-852-0 02 1 1505- ● ●
574 03.706 SPACER; DPD
L=39 		8-98060-852-0 02 1 1505- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-98113-032-1 01 1 1505- ● ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1505-1507 ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) 		8-98113-031-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) 		8-98113-031-0 01 1 1508- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (D) 		8-98113-031-0 01 1 1508- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98228-998-1 01 1 1505- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (B) 		8-98109-485-3 01 1 1505- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98109-484-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-98109-484-0 01 1 1505-1507 ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98109-484-0 01 1 1508- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) 		8-98109-484-0 01 1 1508- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (C) 		8-98144-195-2 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) 		8-98144-195-2 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-98144-198-0 01 1 1505- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) 		8-98144-198-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
(A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98144-196-0 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
EXC. EURO5B+ SPECIFICATION(NT5) (A) 		8-98144-196-0 01 1 1508- ● ●
579 03.704 BRACKET; DPD RR
(A) 		8-98144-196-0 01 1 1508- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> (G) 		8-98232-083-3 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 63 LITTER<6EF> (H) 		8-98232-081-3 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98232-085-1 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98232-385-1 01 1 1505-1507 ●
579 03.704 BRACKET; DPD RR
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98232-385-1 01 1 1508- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> (I) 		8-98232-080-2 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98144-927-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) 		8-98144-927-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (C) 		8-98300-829-0 01 1 1505- ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (C) 		8-98300-829-0 01 1 1505- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ● ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 05 1 1508- ●
596 03.704 BOLT; BRKT,DPD
4JJ1-TCS ENG(LFB) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ● ●
596 03.704 BOLT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ● ●
596 03.704 BOLT; BRKT,DPD
02.277 (A) M10X35 FLANGE 		0-28651-035-0 02 1 1505-1507 ●
596 03.704 BOLT; BRKT,DPD
4HK1-TCS ENG(RJS) 02.277 (A) M10X35 FLANGE 		0-28651-035-0 03 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ● ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 03 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 06 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 06 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1508- ● ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 08 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ● ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1505-1507 ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
597 03.704 NUT; BRKT,DPD
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ●
629 03.706 SPACER; HANGER
4JJ1-TCS ENG(LFB) L=39 		8-98060-852-0 02 1 1505-1507 ●
629 03.706 SPACER; HANGER
L=39 		8-98060-852-0 02 1 1505-1507 ● ●
629 03.706 SPACER; HANGER
EXC. EURO5B+ SPECIFICATION(NT5) L=39 		8-98060-852-0 02 1 1508- ● ●
629 03.706 SPACER; HANGER
L=39 		8-98060-852-0 02 1 1508- ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) L=39 		8-98060-852-0 01 1 1505-1507 ●
629 03.706 SPACER; HANGER
4HK1-TCS ENG(RJS) L=39 		8-98060-852-0 01 1 1508- ●
631 03.706 BRACKET; DPD CENTER
4JJ1-TCS ENG(LFB) 		8-98144-193-0 01 1 1505- ● ● ●
631 03.706 BRACKET; DPD CENTER
4HK1-TCS ENG(RJS) 		8-98144-920-0 01 1 1505- ● ●
çizim 476798
589 561 561 272 534 547 547 413 272 637 636 272 589 580 632 636 580 636 580 617 623 580 542 636 637 558 560 557 159 589 467 589
BalonParca AdiParca NoAdetTipApplied Date A B C
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ● ●
159 03.690 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.685 M6X16 		8-98019-179-0 10 1 1505- ● ●
159 03.690 BOLT; HEAT PROTECTOR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98242-133-0 06 1 1505- ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 1505- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 18 1 1505- ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4JJ1-TCS ENG(LFB) (A) 		8-98127-336-0 01 1 1505- ● ● ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98138-485-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-407-0 01 1 1505- ●
413 03.613 BRACKET; EXH PIPE,CONN
4HK1-TCS ENG(RJS) (B) 		8-98141-407-0 01 1 1505- ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6X16 		8-98019-179-0 06 1 1505- ● ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6X16 		8-98019-179-0 06 1 1505- ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) M6X16 		8-98019-179-0 14 1 1505- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 01.531 (A) M6X30 FLANGE 		0-28050-630-0 01 1 1505- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98242-134-0 01 1 1505- ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) M6X35 FLANGE 		0-28650-635-0 03 1 1505- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (F) 		8-98150-368-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (G) 		8-98165-442-2 01 1 1505- ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (K) 		8-98302-358-0 01 1 1505-1505 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY5T(RSM) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) (H) 		8-98242-537-0 01 1 1508- ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1505-1507 ●
542 03.704 BRACKET
4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98236-438-1 01 1 1508- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98123-972-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (J) 		8-98232-788-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98127-351-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (D) 		8-98150-369-1 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98205-049-0 01 1 1505-1505 ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (C) 		8-98205-049-1 01 1 1506- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> (C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
(C) 		8-98205-049-1 01 1 1506- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (E) 		8-98208-196-0 01 1 1505- ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98208-196-0 01 1 1505- ●
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1505- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97381-635-0 03 1 1505- ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97381-636-0 03 1 1505- ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98205-059-1 01 1 1505- ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-98204-940-1 01 1 1505- ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-055-8 01 1 1505- ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98205-061-0 01 1 1505- ● ● ●
558 03.634 FILTER ASM
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98233-619-1 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-98204-942-0 01 1 1505- ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D) ID=64 		8-97373-108-0 01 1 1505- ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 1505- ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 01 1 1505- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-080-0 01 1 1505- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1505-1507 ● ●
560 03.611 GASKET; DPD
4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		1-22116-040-0 01 1 1508- ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-080-0 02 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98127-334-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98127-335-0 01 1 1505- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98233-520-1 01 1 1505- ●
561 03.609 PIPE; DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-98233-521-1 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (G) 		8-98138-575-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (H) 		8-98138-576-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98141-409-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98150-253-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98084-603-0 01 1 1505- ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98084-604-0 01 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
02.277 (B) M8X40 FLANGE 		0-28050-840-0 06 1 1505- ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 10 1 1505- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 14 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 04 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 12 1 1505- ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.060 (C) M8X35 FLANGE 		0-28650-835-0 20 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (E) 		8-97383-660-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (F) 		8-98032-921-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-923-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-924-0 01 1 1505- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-98233-517-1 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-98233-518-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97628-261-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97628-262-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-98140-713-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97605-172-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97611-087-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-97611-088-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (N) 		8-97611-089-0 01 1 1505- ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (O) 		8-97613-390-0 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4JJ1-TCS ENG(LFB) (A) 		8-98204-729-0 01 1 1505- ● ● ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> (C) 		8-98204-944-1 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98156-630-2 01 1 1505- ●
617 03.440 CHAMBER SUB ASM; MIXER
4HK1-TCS ENG(RJS) (B) 		8-98156-630-2 01 1 1505- ●
623 03.704 STUD; FLANGE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) M6 		8-98141-351-0 03 1 1505- ● ● ●
623 03.704 STUD; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) M6 		8-98141-351-0 03 1 1505- ● ●
632 03.611 GASKET; FILTER,DEF
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 		8-97628-257-0 03 1 1505- ● ● ●
632 03.611 GASKET; FILTER,DEF
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 		8-97628-257-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 00.685 (C) M10X40 FLANGE 		0-28051-040-0 03 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
00.206 (A) M8X30 FLANGE 		0-28050-830-0 05 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ● ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
02.277 (B) M8X40 FLANGE 		0-28050-840-0 11 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 00.206 (A) M8X30 FLANGE 		0-28050-830-0 07 1 1505- ●
636 00.010 BOLT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 02.277 (B) M8X40 FLANGE 		0-28050-840-0 09 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 03 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ● ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
01.062 (A) M8 FLANGE 		0-91180-108-0 13 1 1505- ●
637 00.010 NUT; FLANGE,DEF FRONT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE 		0-91180-108-0 15 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
