Isuzu WW
▶
TRUCKS
▶
NNR
▶
51616 - NNR/NPR RHD EUROPE EURO5B+,6
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

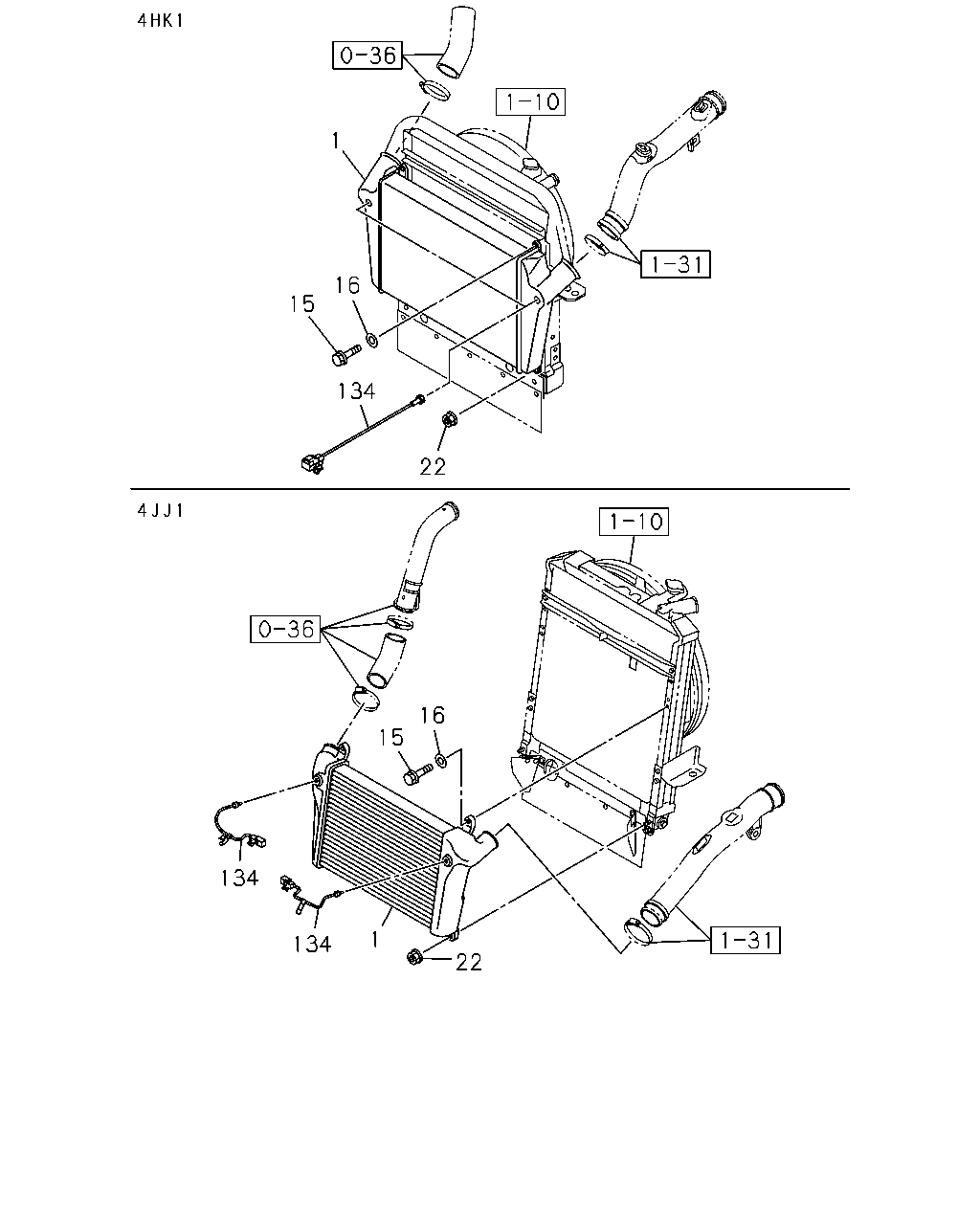

1-35 — CHARGE AIR COOLER
(#161384) — 13 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5WN
134
22
15
16
1
22
1
134
134
15
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.374 COOLER; CHARGE AIR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)
8-98206-712-1
01
1
1505-
●
●
●
1
03.374 COOLER; CHARGE AIR
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5)
8-98094-527-1
01
1
1505-
●
●
1
03.374 COOLER; CHARGE AIR
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5)
8-98149-840-1
01
1
1505-
●
1
03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6)
8-98197-277-1
01
1
1505-
●
●
1
03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)
8-98006-479-1
01
1
1505-
●
15
03.374 BOLT; CHARGE AIR COOLER
03.275 M8X25 FLANGE
0-28050-825-0
02
1
1505-
●
●
●
16
03.374 WASHER; PL,CHARGE AIR COOLER
03.417 ID=8.4 OD=16
0-91610-508-0
02
1
1505-
●
●
●
22
03.374 NUT
01.062 M8 FLANGE
0-91180-108-0
02
1
1505-
●
●
●
134
03.682 SENSOR; INTAKE,AIR TEMPERATURE
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)
8-98244-851-0
02
1
1505-
●
●
134
03.682 SENSOR; INTAKE,AIR TEMPERATURE
4JJ1-TCS ENG(LFB)
8-98244-851-0
02
1
1505-
●
134
03.682 SENSOR; INTAKE,AIR TEMPERATURE
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5)
8-98244-851-0
01
1
1505-
●
134
03.682 SENSOR; INTAKE,AIR TEMPERATURE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6)
8-98217-279-0
02
1
1505-
●
134
03.682 SENSOR; INTAKE,AIR TEMPERATURE
4HK1-TCS ENG(RJS)
8-98217-279-0
02
1
1505-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
