Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#161383) — 567 parça

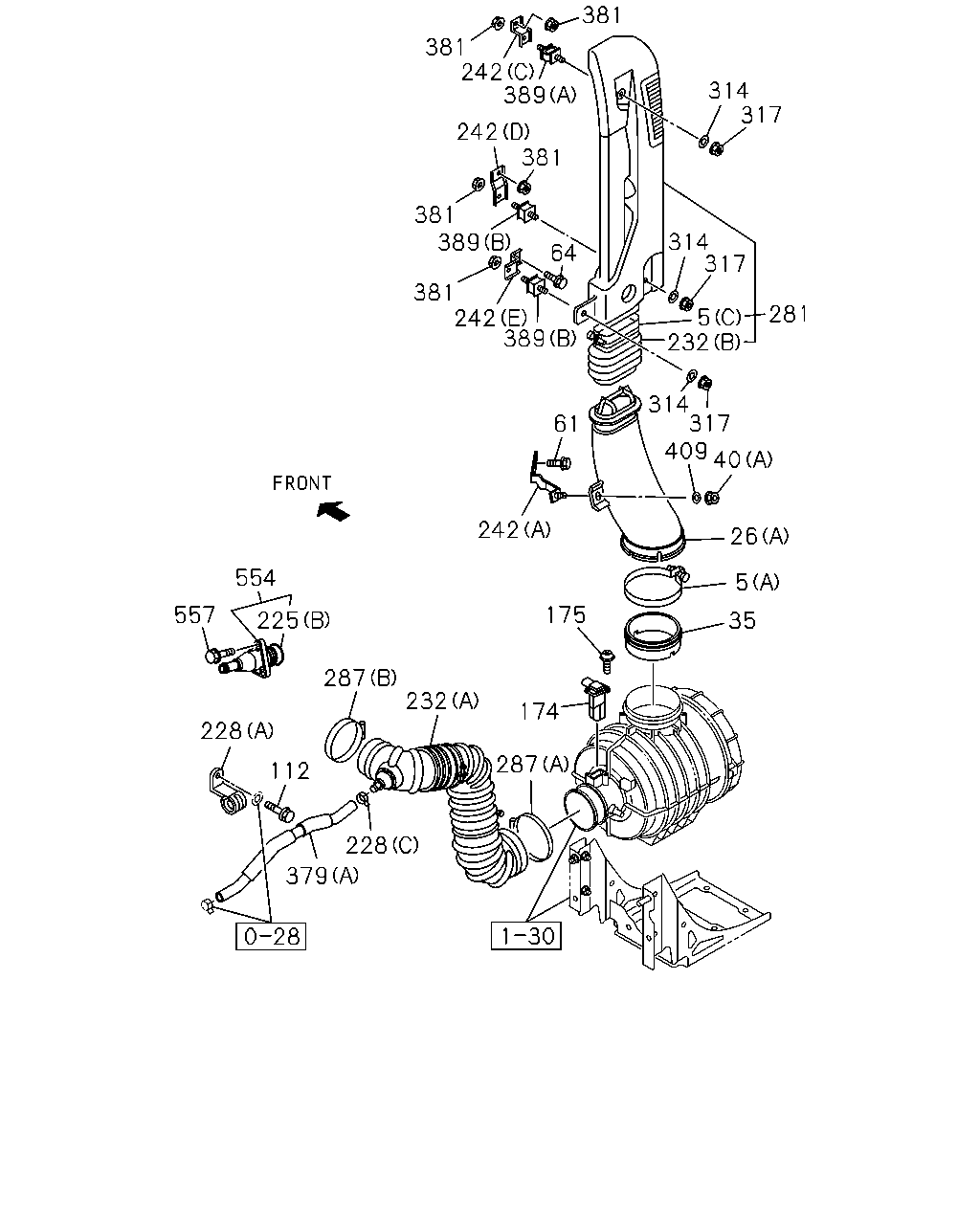

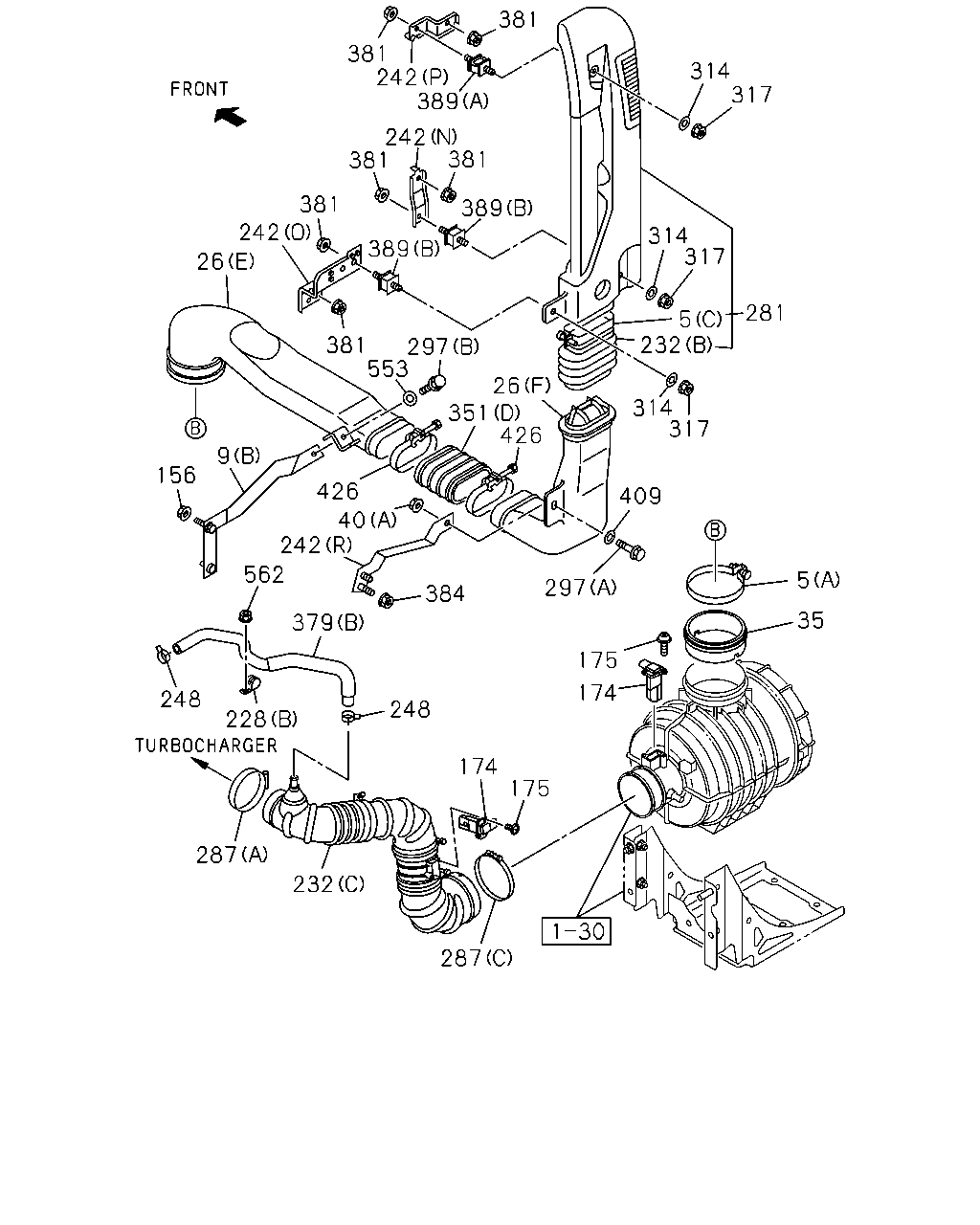

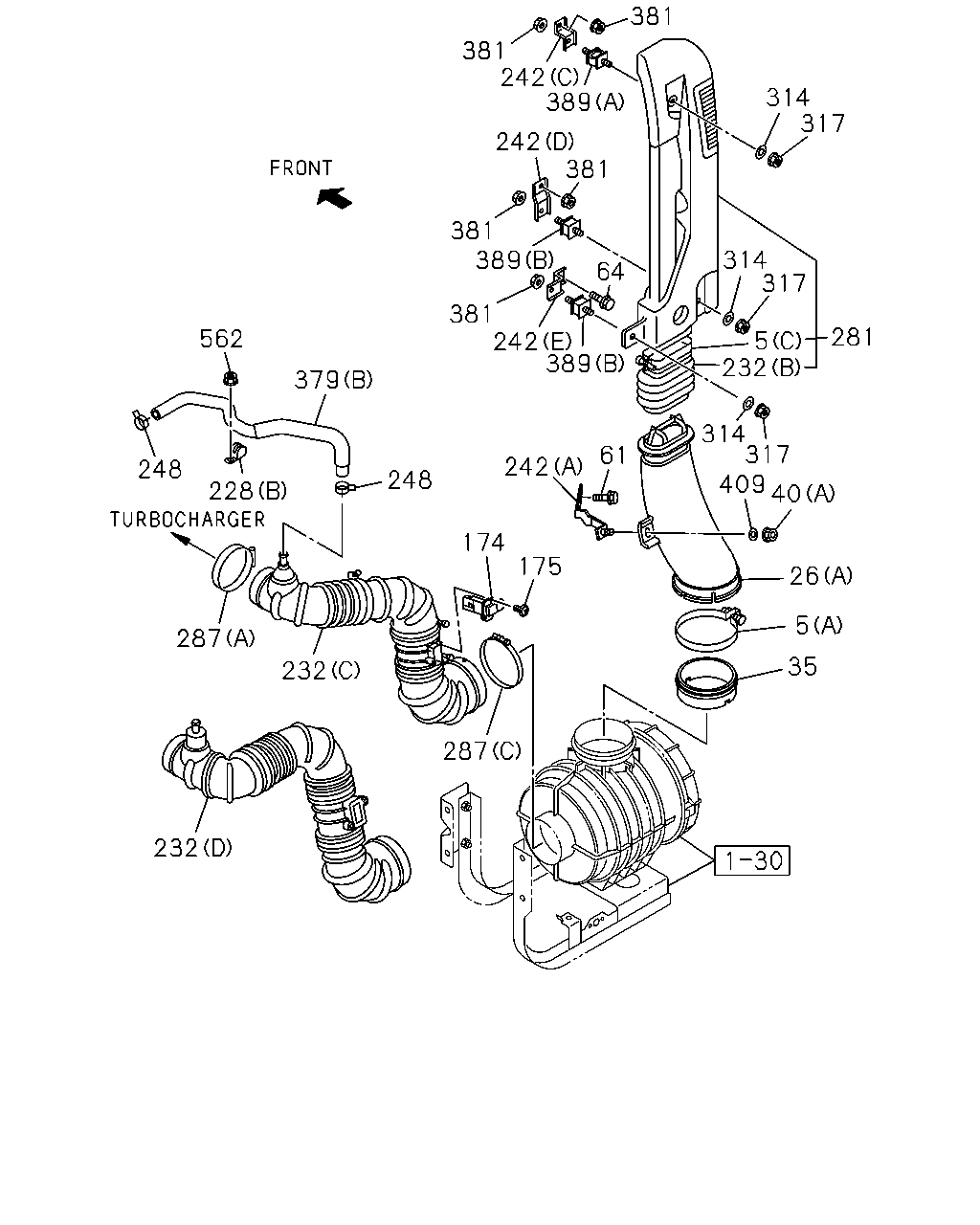

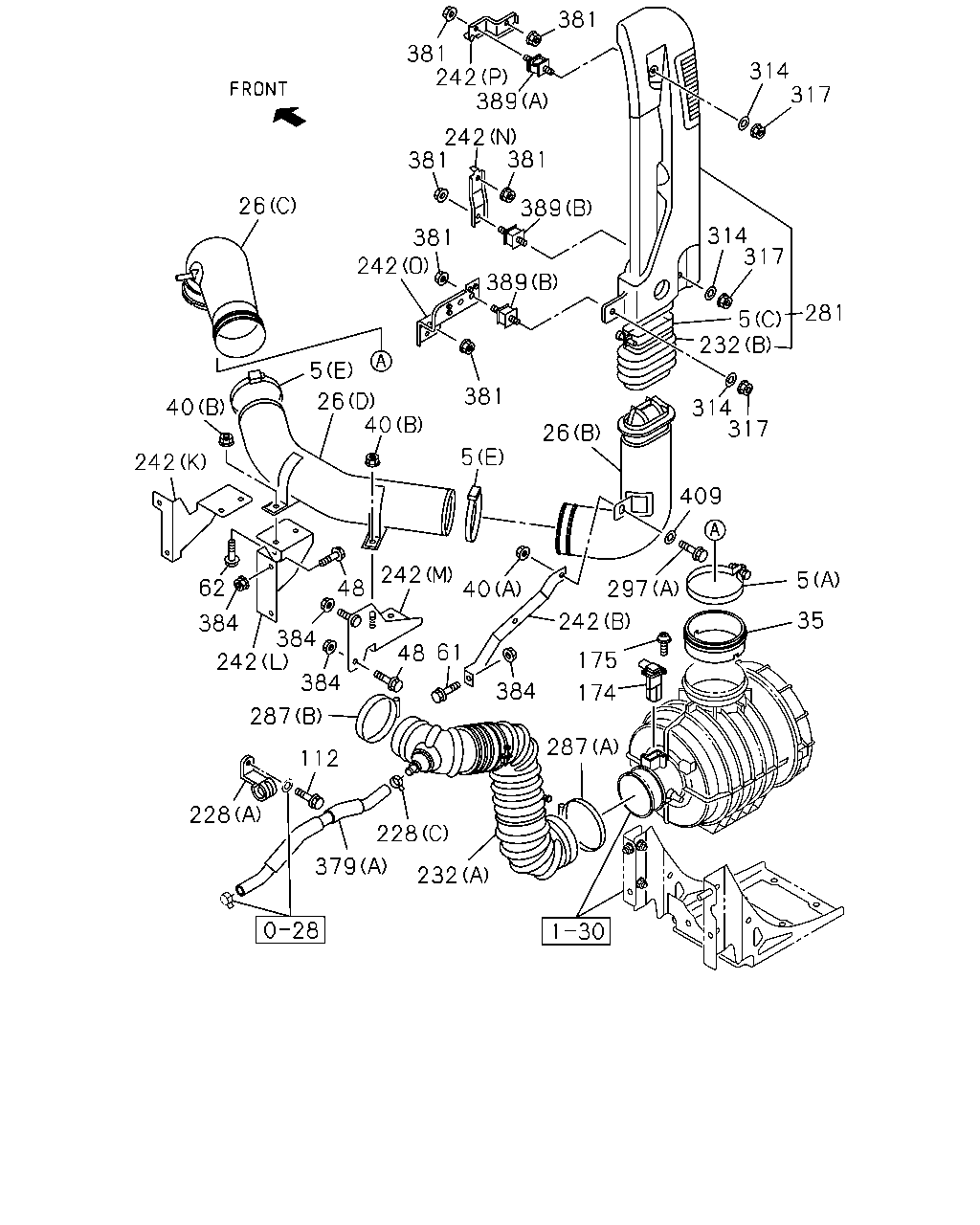

317 314 381 389 242 381 242 381 381 242 26 381 297 351 26 426 297 384 40 426 9 156 242 562 379 248 228 248 174 175 287 232 287 175 174 35 5 317 314 409 281 232 5 317 314 389 381 389 553

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98009-086-0	01	1	1505-	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (A)	8-98009-086-0	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98286-128-0	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98278-820-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1505-			●
156	03.417 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1505-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-		●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-			●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (A)	8-98205-139-0	01	1	1505-		●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1505-1507	●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98245-899-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1508-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (R)	8-98286-129-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (R)	8-98278-821-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1505-		●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT>, MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1505-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1505-		●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98051-032-1	01	1	1505-	●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98205-145-0	01	1	1505-		●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (D)	8-98278-809-1	01	1	1505-			●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1505-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1505-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
426	03.417 CLIP; DUCT 4JJ1-TCS ENG(LFB) 03.407 ID=127	1-14239-263-0	02	1	1505-			●
553	03.417 WASHER; AIR DUCT 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-			●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-		●	●

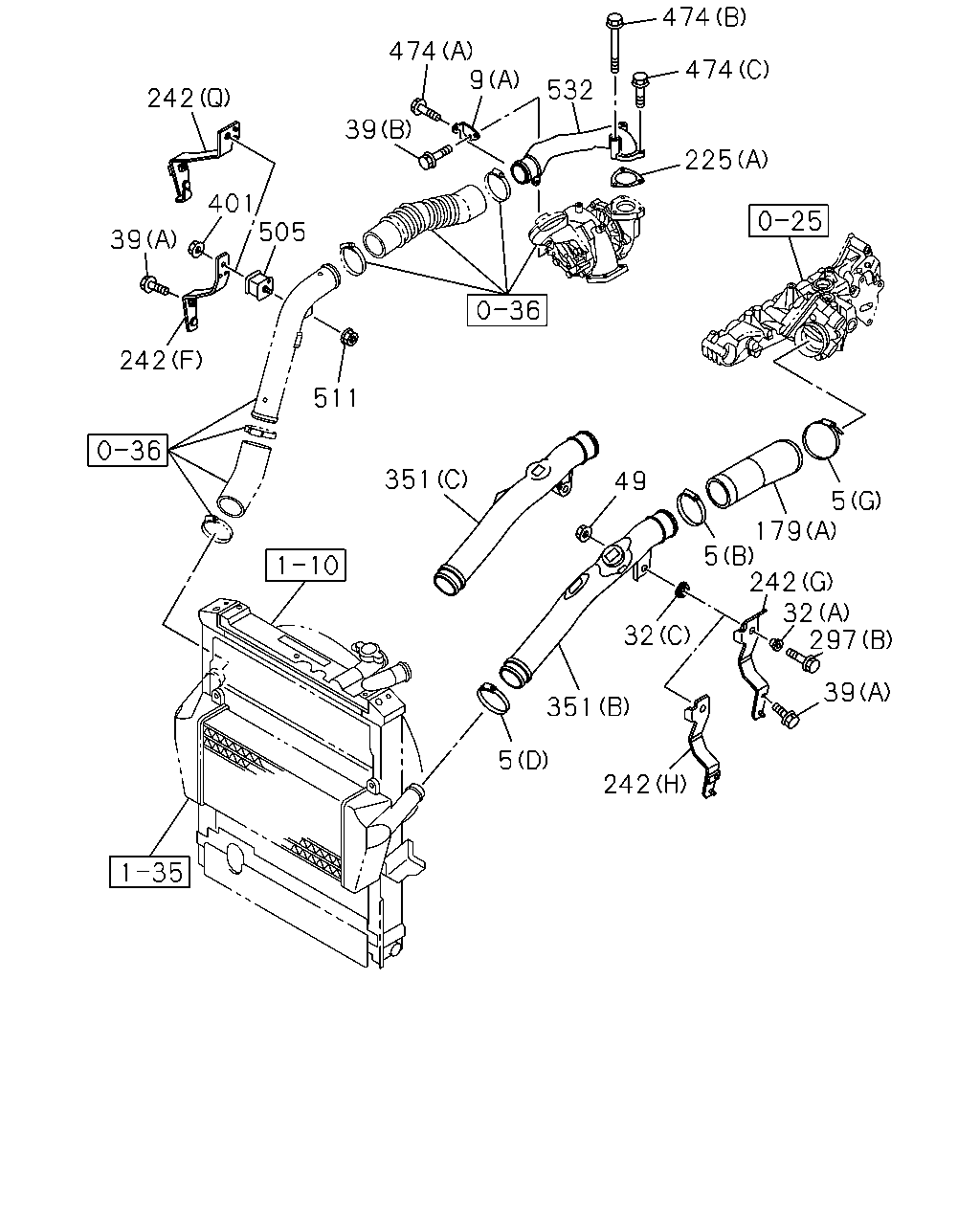

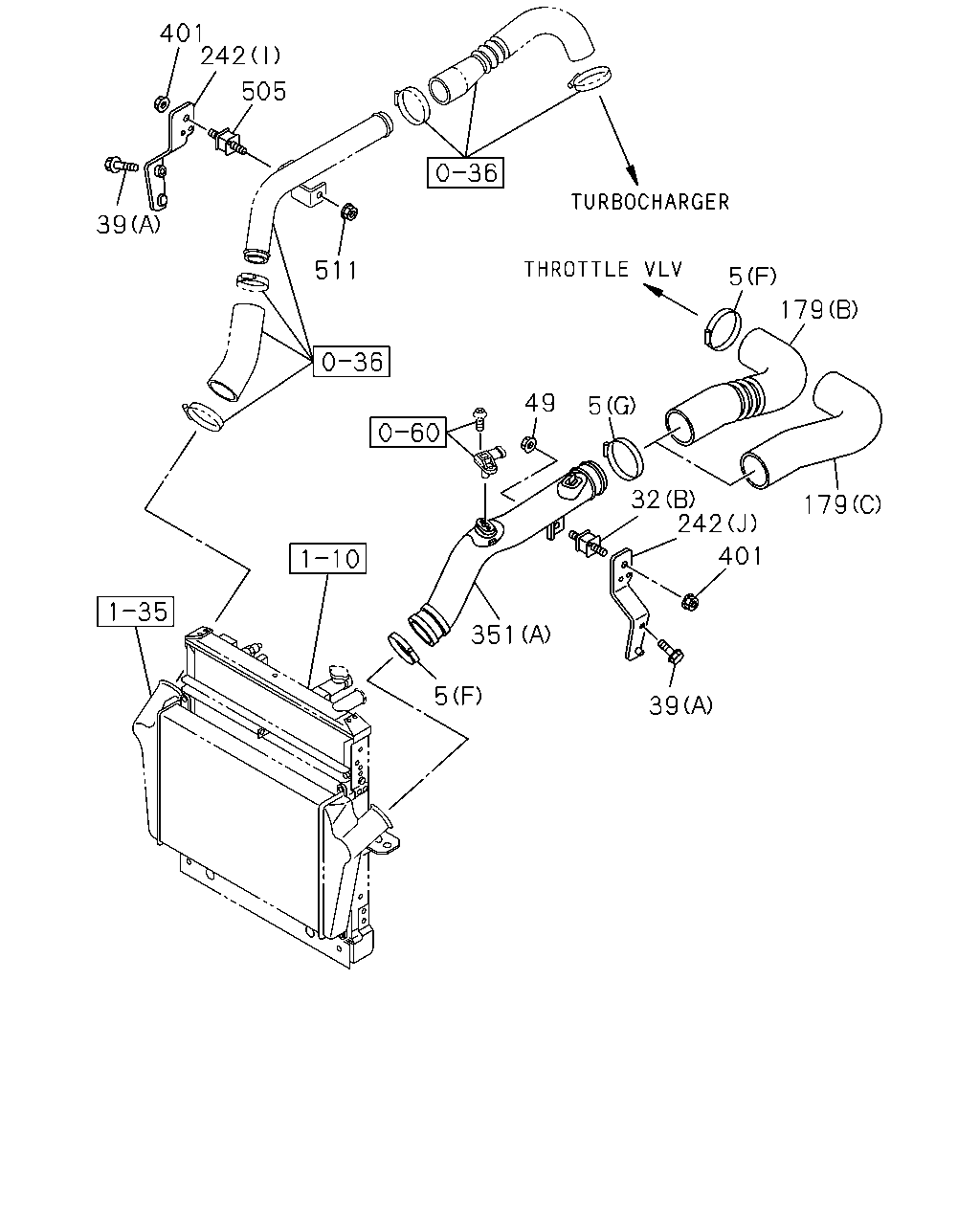

225 474 474 532 9 474 39 242 401 39 505 511 242 351 49 32 351 5 242 39 297 32 242 5 179 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A)	8-98009-086-0	01	1	1505-	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) (A)	8-98009-086-0	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98286-128-0	01	1	1505-			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98278-820-1	01	1	1505-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32	8-94395-766-0	01	1	1505-	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1505-	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCS ENG(RJS) (B)	8-97081-886-0	01	1	1505-		●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-			●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98111-374-1	01	1	1505-1507	●	●	●
179	03.417 HOSE; AIR INT EURO5B+ SPECIFICATION(NT5) (A)	8-98111-374-1	01	1	1508-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98111-374-1	01	1	1508-	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98111-374-1	01	1	1508-		●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (A)	8-98111-374-1	01	1	1508-			●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98117-928-2	01	1	1505-		●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98245-722-0	01	1	1505-			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.270 (A) ID=47	8-97202-328-1	01	1	1505-	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1505-			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1505-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1505-1507	●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98245-899-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1508-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (R)	8-98286-129-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (R)	8-98278-821-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1505-			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98051-032-1	01	1	1505-	●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98205-145-0	01	1	1505-		●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (D)	8-98278-809-1	01	1	1505-			●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) M6X70 FLANGE	0-28050-670-0	02	1	1505-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	1505-			●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-			●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1505-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1505-			●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1505-	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6)	8-98237-771-1	01	1	1505-	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB)	8-98237-771-1	01	1	1505-			●

317 314 381 242 381 389 381 242 389 381 381 389 64 242 314 232 5 317 314 281 317 409 26 5 35 175 174 242 61 232 287 225 554 557 228 112 228 379 287 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1505-			●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1505-	●	●
112	03.417 BOLT; CLIP 4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33	1-09300-058-1	01	1	1505-		●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.270 (A) ID=47	8-97202-328-1	01	1	1505-	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1505-			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1505-		●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1505-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-		●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-			●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (A)	8-98205-139-0	01	1	1505-		●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1505-1507	●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98245-899-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1508-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (R)	8-98286-129-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (R)	8-98278-821-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1505-			●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT>, MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1505-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1505-		●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1505-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1505-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1505-		●
557	03.403 BOLT; HOSE CLIP 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1505-		●

281 317 314 314 317 5 232 314 40 409 26 5 35 287 175 174 248 232 287 232 248 562 379 242 61 389 242 381 389 381 381 242 389 242 381 381 64 228 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1505-			●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1505-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1505-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-		●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-			●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (A)	8-98205-139-0	01	1	1505-		●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1505-1507	●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98245-899-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1508-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (R)	8-98286-129-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (R)	8-98278-821-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1505-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1505-	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1505-		●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT>, MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1505-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1505-		●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1505-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1505-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●
562	03.403 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	01	1	1505-		●	●

317 314 381 242 381 389 381 242 381 26 242 381 389 389 381 40 26 5 40 242 62 384 242 384 287 112 228 379 228 232 287 174 175 297 242 40 242 48 48 61 26 5 317 314 281 317 314 5 232 409 35 5 384 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-	●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98025-626-0	01	1	1505-		●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (E)	8-98278-807-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4JJ1-TCS ENG(LFB) (F)	8-98278-810-0	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98092-890-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98109-389-1	01	1	1505-			●
26	03.417 DUCT; AIR INT 4HK1-TCS ENG(RJS) (D)	8-98177-457-0	01	1	1505-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1505-			●
48	03.417 BOLT; AIR DUCT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1505-			●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-1507		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
62	03.417 BOLT; AIR INT DUCT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
112	03.417 BOLT; CLIP 4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33	1-09300-058-1	01	1	1505-		●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1505-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1505-	●	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1505-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) (B) ID=22 L=22	8-98120-916-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1505-		●	●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-		●
228	03.278 CLIP; PCV HOSE 4HK1-TCS ENG(RJS) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1505-			●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (D)	8-98242-344-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C)	8-98242-345-0	01	1	1505-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (C)	8-98242-345-0	01	1	1505-			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1505-	●	●	●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (A)	8-98205-139-0	01	1	1505-		●
232	03.417 HOSE; CONN 4HK1-TCS ENG(RJS) (A)	8-98205-139-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1505-1507	●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98245-899-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1508-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (R)	8-98286-129-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (R)	8-98278-821-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1505-			●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1505-	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112	9-09915-074-1	01	1	1512-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=55-75	8-98133-349-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT>, MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=58-79	1-09707-136-0	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117	9-09915-075-1	01	1	1505-		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.407 (A) ID=117	9-09915-075-1	01	1	1505-			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1505-		●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1505-		●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1505-	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1505-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1505-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98205-932-2	01	1	1505-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB) (B)	8-98249-521-0	01	1	1505-	●	●	●
379	03.675 HOSE; RUBBER 4HK1-TCS ENG(RJS) (A)	8-98210-820-1	01	1	1505-		●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1505-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1505-			●
384	03.417 NUT; AIR INT DUCT BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1505-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1505-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1505-	●	●	●

49 39 401 505 242 5 5 32 351 5 39 401 179 242 179 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (G) ID=65-85	8-98133-350-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=70-90	8-98122-372-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1505-	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95	8-98133-357-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99	1-09707-141-0	02	1	1505-		●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCS ENG(RJS) (E) ID=100-120	8-98133-366-0	02	1	1505-			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.277 (C) OD=32	8-94395-766-0	01	1	1505-	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1505-	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCS ENG(RJS) (B)	8-97081-886-0	01	1	1505-		●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1505-			●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98111-374-1	01	1	1505-1507	●	●	●
179	03.417 HOSE; AIR INT EURO5B+ SPECIFICATION(NT5) (A)	8-98111-374-1	01	1	1508-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98111-374-1	01	1	1508-	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98111-374-1	01	1	1508-		●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB) (A)	8-98111-374-1	01	1	1508-			●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS) (B)	8-98117-928-2	01	1	1505-		●
179	03.417 HOSE; AIR INT 4HK1-TCS ENG(RJS) (C)	8-98245-722-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1505-1507	●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98245-899-0	01	1	1508-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98245-899-0	01	1	1508-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-310-1	01	1	1505-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (Q)	8-98245-307-1	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98145-112-1	01	1	1505-1507		●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1508-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1505-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F)	8-98245-311-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H)	8-98245-900-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (I)	8-98244-940-1	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (J)	8-98205-147-0	01	1	1505-		●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (R)	8-98286-129-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (R)	8-98278-821-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) (M)	8-98109-391-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98049-012-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (K)	8-98205-667-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L)	8-98205-666-0	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (N)	8-98055-243-1	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (O)	8-98055-246-2	01	1	1505-			●
242	03.417 BRACKET; AIR DUCT (P)	8-98055-247-1	01	1	1505-			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (B)	8-98205-465-0	01	1	1505-	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (C)	8-98051-032-1	01	1	1505-	●	●
351	03.407 DUCT; AIR 4HK1-TCS ENG(RJS) (A)	8-98205-145-0	01	1	1505-		●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) (D)	8-98278-809-1	01	1	1505-			●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-			●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1505-	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
