Sayfa 1-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51616 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

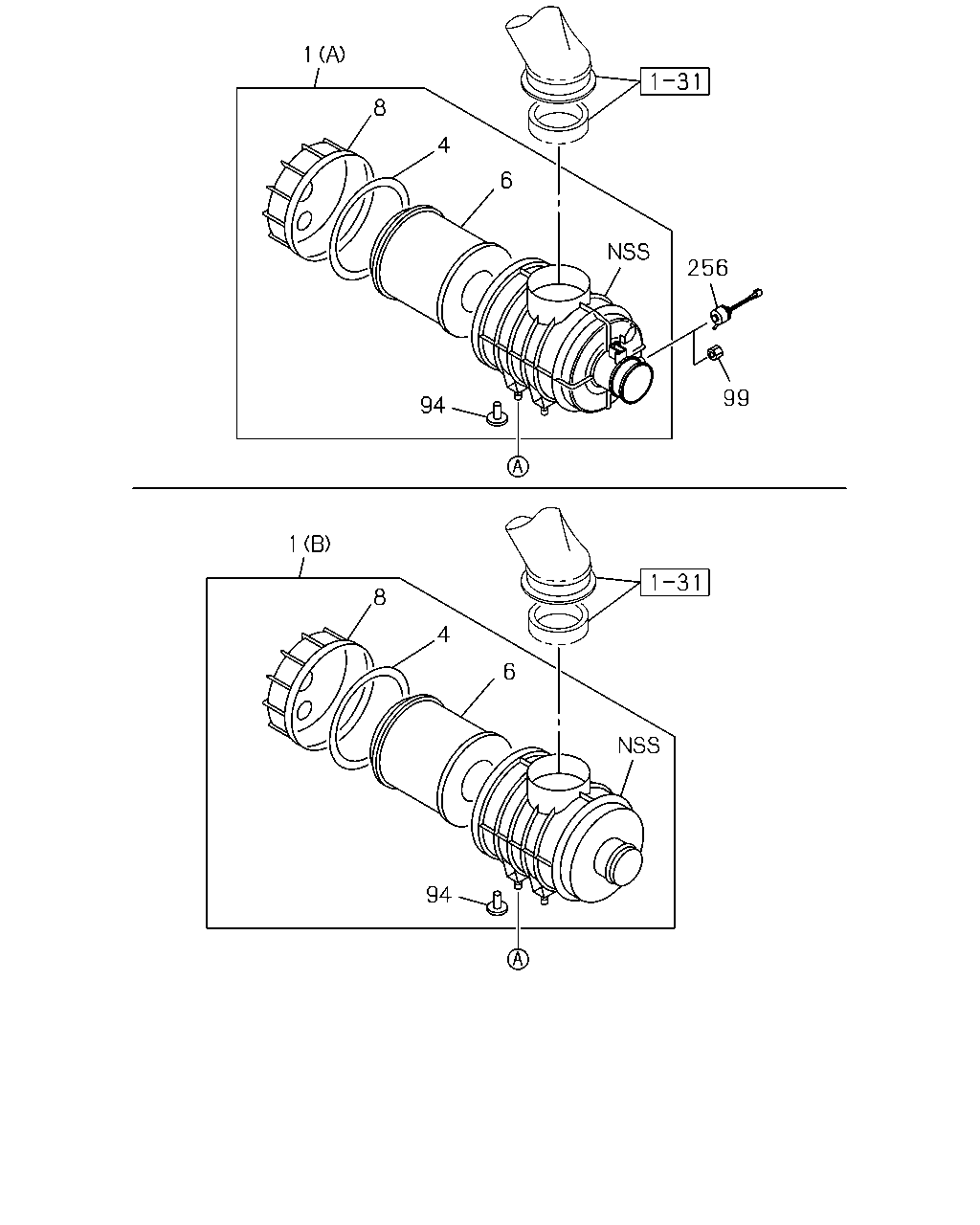

1-30 — AIR CLEANER (#161382) — 77 parça

6 4 8 1 94 94 6 4 8 1 256 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR (B)	8-98050-415-2	01	1	1505-	●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB) (B)	8-98050-415-2	01	1	1505-		●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-98050-415-2	01	1	1505-		●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98123-532-2	01	1	1505-		●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB) (B)	8-98116-638-0	01	1	1505-			●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS) (A)	8-98215-723-0	01	1	1505-			●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1505-	●	●	●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	1505-	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB)	8-97062-294-0	01	1	1505-		●	●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-97062-294-0	01	1	1505-		●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6)	8-98177-271-0	01	1	1505-		●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS)	8-98177-271-0	01	1	1505-			●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	1505-	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) BEST VALUE PARTS	5-87610-020-0	01	1	1505-		●	●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) BEST VALUE PARTS	5-87610-020-0	01	1	1505-		●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1505-	●	●
8	03.410 COVER ASM; ACL	8-98116-639-0	01	1	1505-			●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1505-	●	●
94	03.415 VALVE; VACUATOR 4HK1-TCS ENG(RJS)	8-97093-694-0	01	1	1505-			●
94	03.415 VALVE; VACUATOR 4JJ1-TCS ENG(LFB)	8-97352-112-0	01	1	1505-			●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. MULTI INFORMATION DISPLAY<7NY>	8-94436-076-0	01	1	1505-		●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94436-076-0	01	1	1505-		●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94436-076-0	01	1	1505-			●
256	03.405 SENSOR; AIRFLOW 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98156-478-1	01	1	1506-		●
256	03.405 SENSOR; AIRFLOW 4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98152-742-1	01	1	1505-1505		●
256	03.405 SENSOR; AIRFLOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98152-742-1	01	1	1505-1505			●
256	03.405 SENSOR; AIRFLOW 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98152-742-1	01	1	1506-		●
256	03.405 SENSOR; AIRFLOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98152-742-1	01	1	1506-			●

224 196 54 53 54 196 224 224 54 82 196 224 224 196 53 54 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-1507	●
53	03.403 NUT; ACL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-1507		●	●
53	03.403 NUT; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-1507		●	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1508-	●		●
53	03.403 NUT; ACL EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	04	1	1508-		●
53	03.403 NUT; ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	04	1	1508-		●
54	03.405 BRACKET; ACL (C)	8-98026-092-3	01	1	1505-1507	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1505-1507		●	●
54	03.405 BRACKET; ACL (C)	8-98026-092-3	01	1	1508-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1508-		●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1508-		●
54	03.405 BRACKET; ACL (D)	8-98070-835-3	01	1	1505-1507	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1505-1507		●	●
54	03.405 BRACKET; ACL (D)	8-98070-835-3	01	1	1508-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1508-		●	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1508-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1505-1507		●	●
54	03.405 BRACKET; ACL EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1508-		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1508-		●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1508-			●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1508-			●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1505-1507		●	●
54	03.405 BRACKET; ACL EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1508-		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1508-		●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1508-			●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1508-			●
82	03.403 PROTECTOR 03.671	8-97327-172-0	01	1	1505-1507	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1505-1507		●	●
82	03.403 PROTECTOR 03.671	8-97327-172-0	01	1	1508-	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1508-		●	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1508-		●
196	03.417 BOLT; BRKT,ACL 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507	●
196	03.417 BOLT; BRKT,ACL FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507		●	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1505-1507		●	●
196	03.417 BOLT; BRKT,ACL 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1508-	●		●
196	03.417 BOLT; BRKT,ACL EURO6 SPECIFICATION(NT6) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1508-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1508-		●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1505-1507	●
196	03.417 BOLT; BRKT,ACL FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1505-1507		●	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1505-1507		●	●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1508-	●		●
196	03.417 BOLT; BRKT,ACL EURO6 SPECIFICATION(NT6) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1508-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1508-		●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	1505-1507	●
224	03.407 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1505-1507		●	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	06	1	1505-1507		●	●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	1508-	●		●
224	03.407 NUT; BRKT EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	06	1	1508-		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	06	1	1508-		●
