Isuzu WW
▶
TRUCKS
▶
NNR
▶
51616 - NNR/NPR RHD EUROPE EURO5B+,6
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

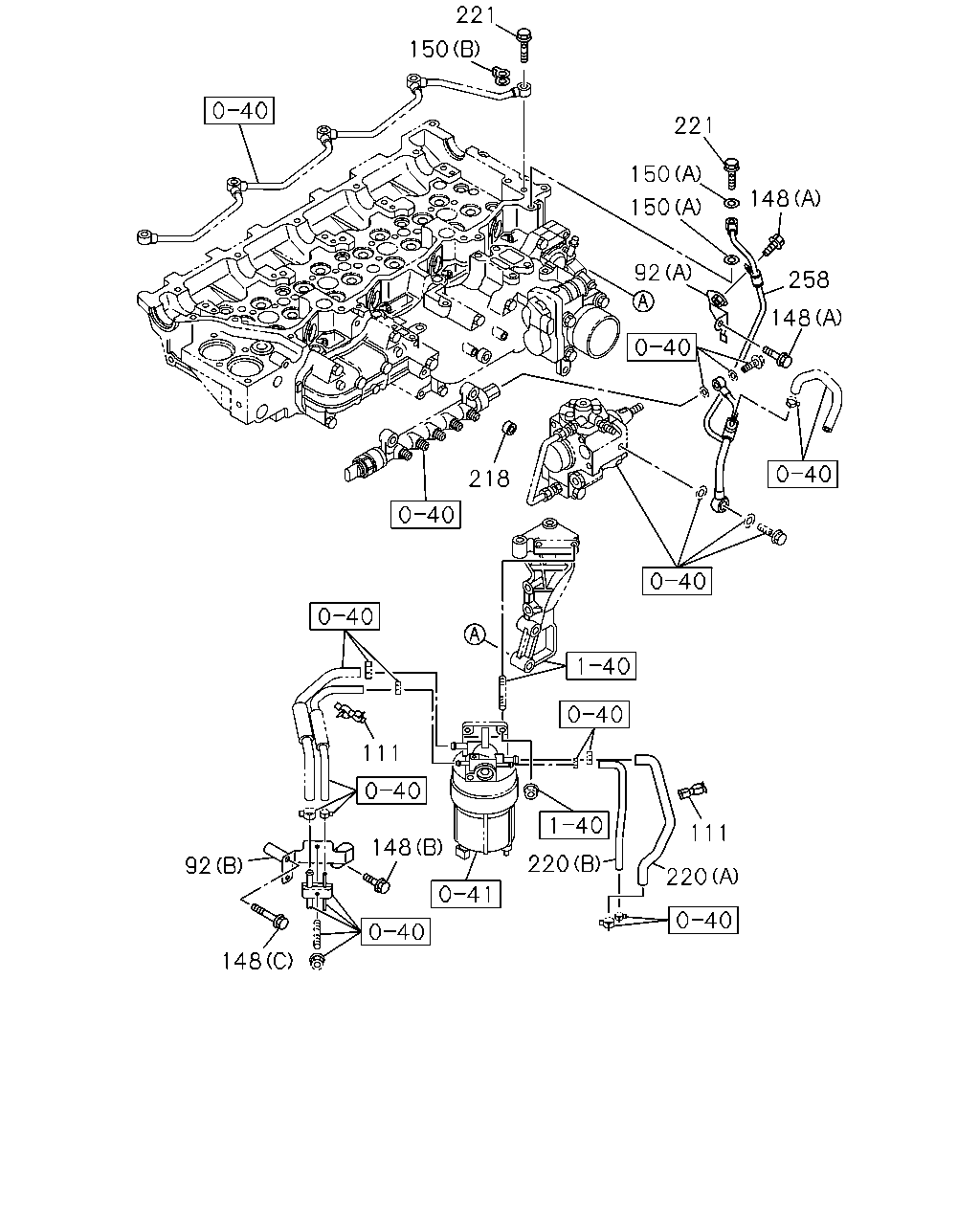

0-42 — FUEL PUMP AND PIPE
(#161368) — 17 parça
Tümü
A - 4HK1-TCS ENG
B - 4JJ1-TCC ENG
C - 4JJ1-TCS ENG
◀
[042A] 4HK1 (13 parça)
[042A] 4JJ1 (4 parça)
▶
221
150
221
150
148
150
92
258
148
218
111
92
148
148
220
111
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
92
03.162 BRACKET; FUEL PIPE
(A)
8-98045-008-1
01
1
1505-
●
92
03.162 BRACKET; FUEL PIPE
(B)
8-98200-798-1
01
1
1505-
●
111
03.162 CLIP; FUEL PIPE
02.589 ID=13 & 16.5
8-94169-028-0
03
1
1505-
●
148
03.162 BOLT; BRKT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1505-
●
148
03.162 BOLT; BRKT
00.724 (B) M8X16 FLANGE
0-28060-816-0
01
1
1505-
●
148
03.162 BOLT; BRKT
(C) M8X60 FLANGE
0-28060-860-0
01
1
1505-
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1505-
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1505-
●
218
03.162 PIECE; DISTANCE
00.033 ID=8.5 L=10
5-13642-077-0
01
1
1505-
●
220
03.163 HOSE; FUEL
(A)
8-98036-180-3
01
1
1505-
●
220
03.163 HOSE; FUEL
(B)
8-98036-181-2
01
1
1505-
●
221
03.163 BOLT; FUEL PIPE
01.531 M10X21 FLANGE
8-94396-711-0
02
1
1505-
●
258
03.163 PIPE ASM; FUEL,LEAK OFF
8-98200-788-1
01
1
1505-
●
325
144
78
237
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
78
03.675 CLIP; RUBBER HOSE
01.240 ID=16
8-94392-924-0
02
1
1505-
●
144
03.162 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
01
1
1505-
●
237
03.163 HOSE; RUBBER,FUEL FILTER TO PUMP
8-98175-917-2
01
1
1505-
●
325
03.278 STUD; CLIP
00.413 M6X30 L=38
0-41010-630-0
01
1
1505-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
