Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#161365) — 444 parça

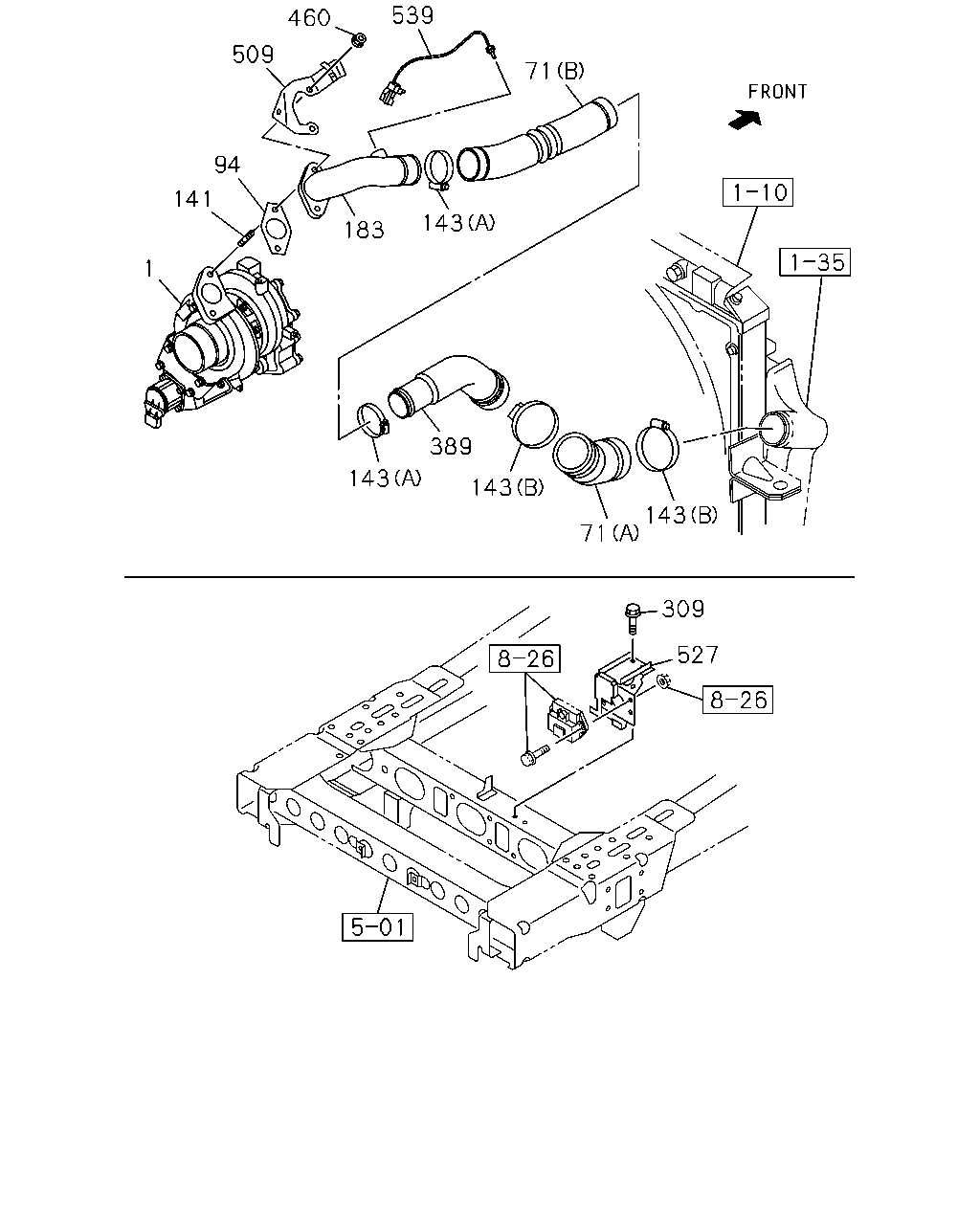

141 1 94 509 460 183 143 71 539 143 143 389 143 71 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1505-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1505-		●
1	03.342 TURBOCHARGER ASM	8-98203-610-0	01	1	1505-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1505-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1505-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1505-1507			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98205-323-2	01	1	1508-	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1505-			●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1505-		●
94	01.531 GASKET; INL PIPE ID=56	8-98107-962-0	01	1	1505-			●
141	03.417 STUD; INL PIPE TO BRKT M10X28 L=43	0-44011-028-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=60-65	8-98096-418-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	02	1	1505-			●
183	03.358 PIPE; INL,TURBOCHARGER	8-98239-381-0	01	1	1505-			●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1505-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1505-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1505-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1505-			●
460	03.374 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	1505-			●
509	03.602 BRACKET; SENSOR EGR COOLER LH POSITION<KCC>	8-98259-171-2	01	1	1505-			●
509	03.602 BRACKET; SENSOR EXC. EGR COOLER LH POSITION<KCC>	8-98224-295-2	01	1	1505-			●
527	03.373 BRACKET; TURBOCHARGER	8-98060-887-2	01	1	1505-			●
539	03.337 SENSOR; TURBOCHARGER	8-98232-016-0	01	1	1505-			●

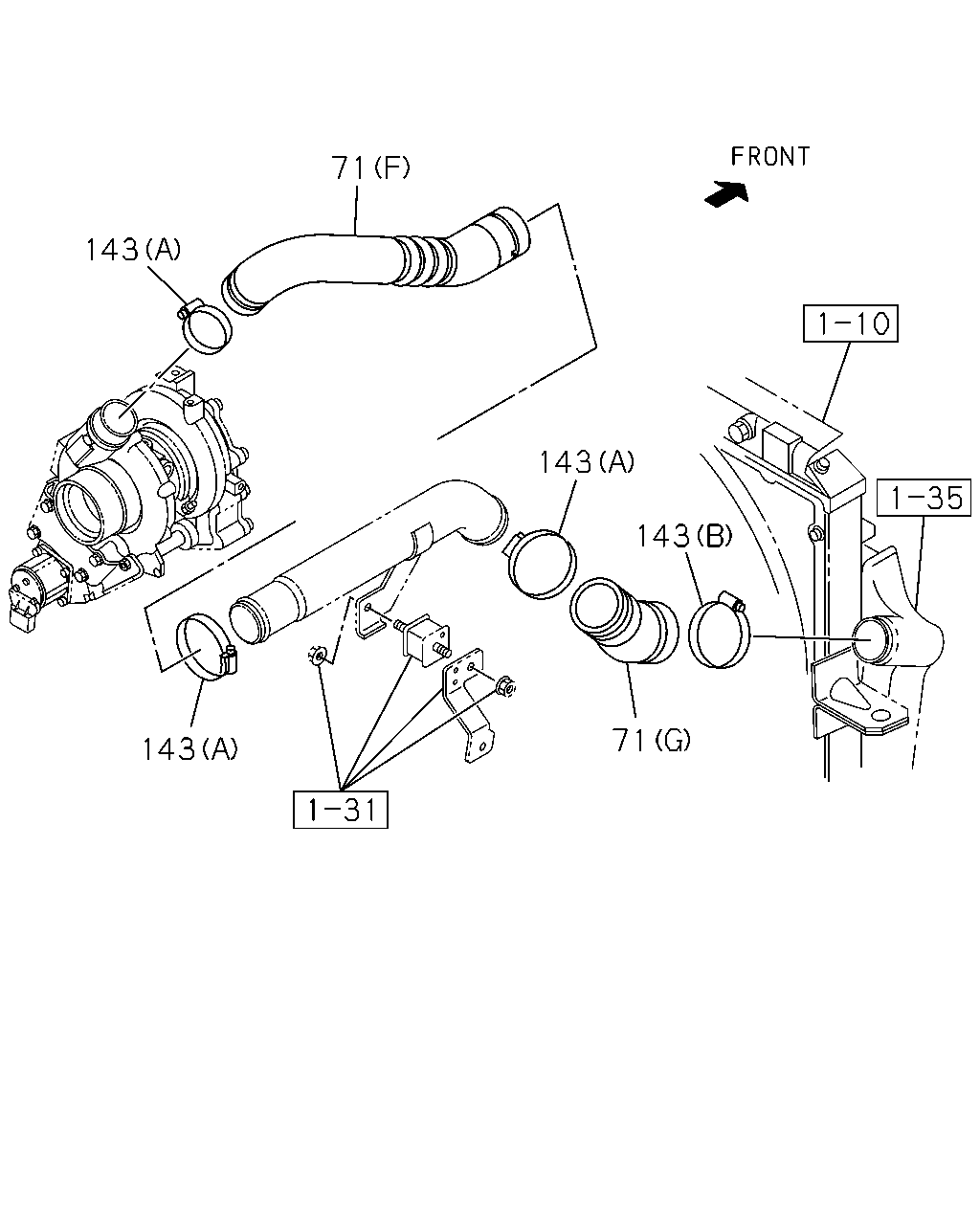

71 143 143 71 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1505-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1505-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1505-1507			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98205-323-2	01	1	1508-	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=60-65	8-98096-418-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	02	1	1505-			●

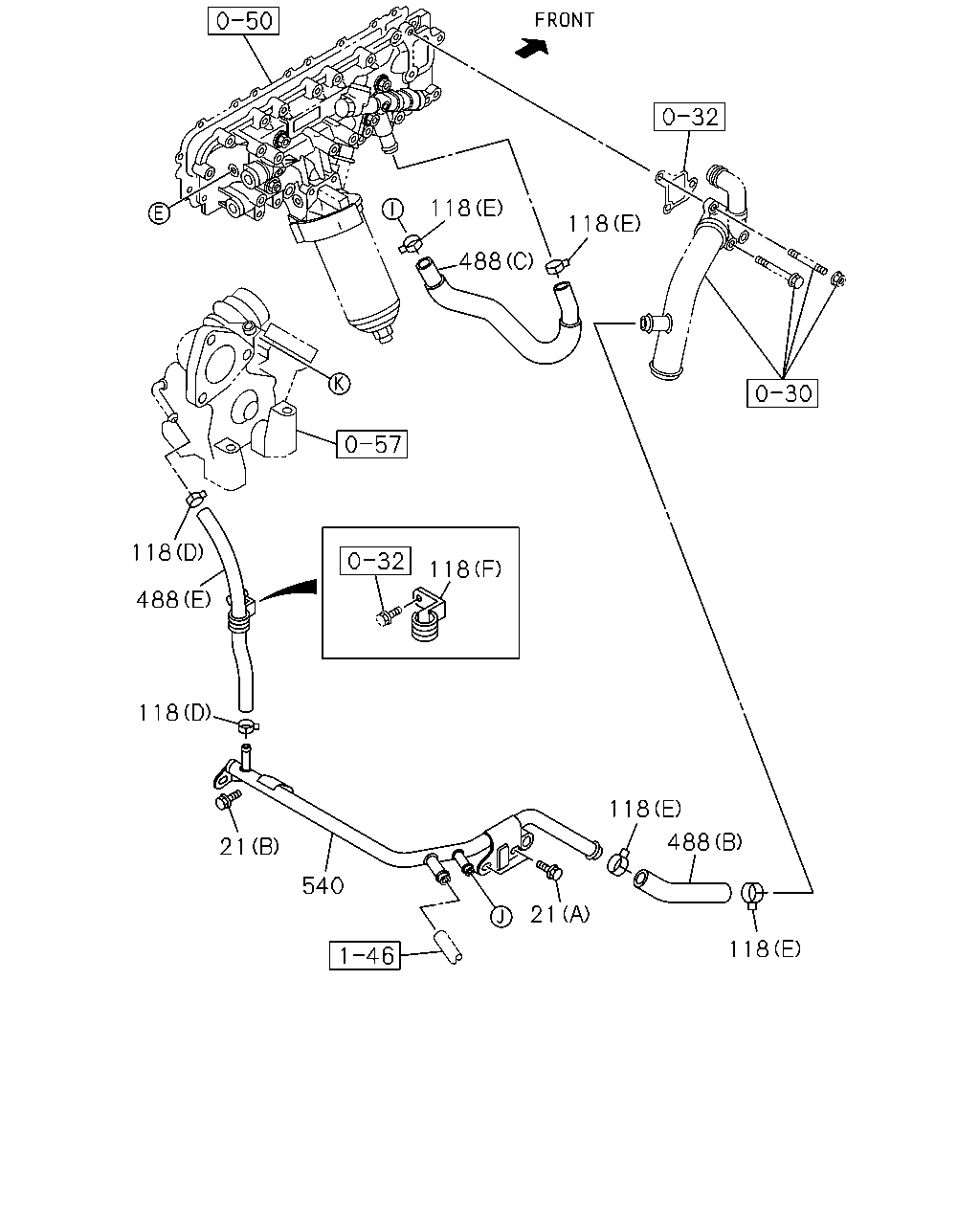

118 488 118 21 540 21 118 488 118 118 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1505-			●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
540	03.342 PIPE; WATER	8-98221-556-0	01	1	1505-	●

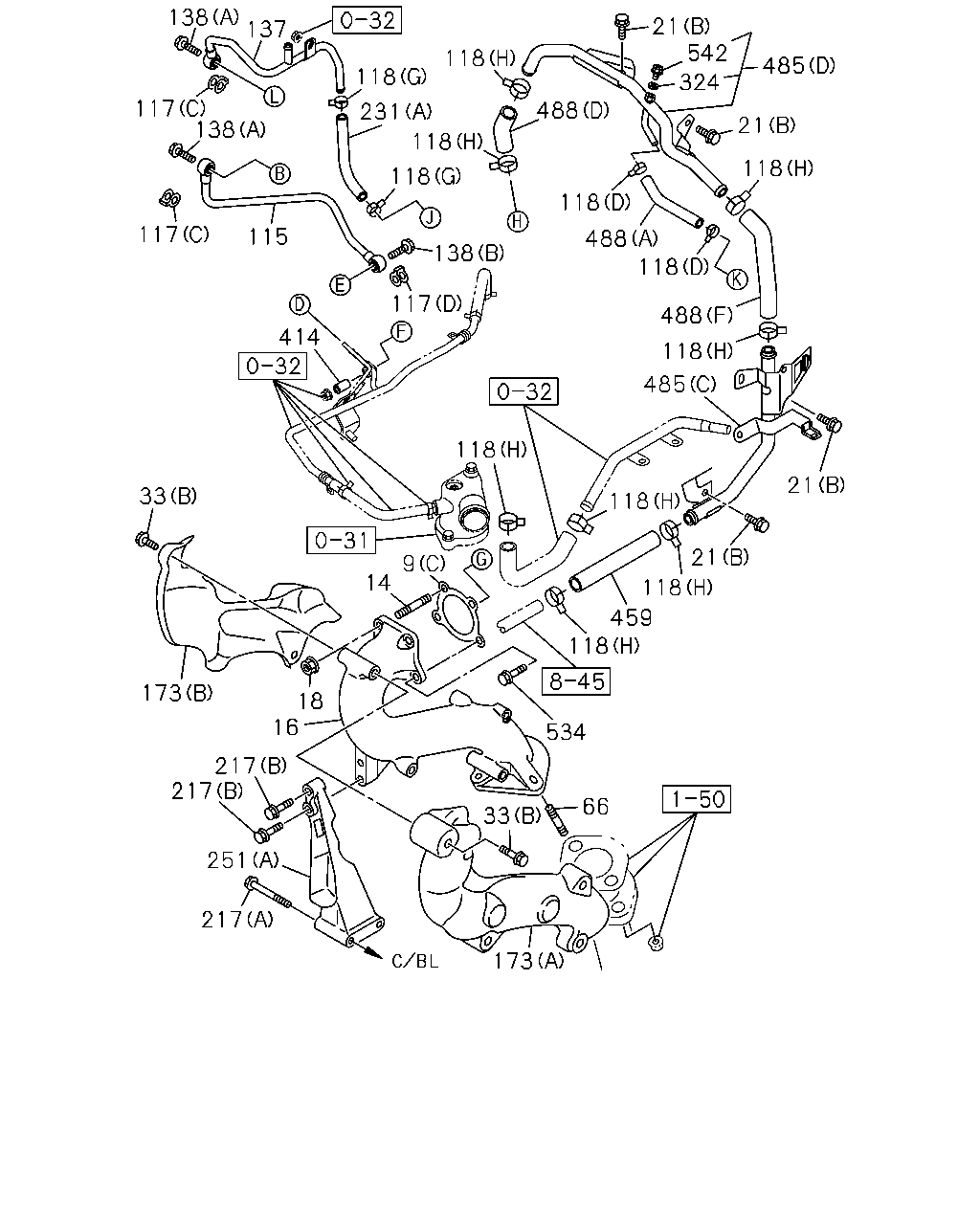

173 217 251 33 66 534 217 16 217 18 173 118 118 459 21 21 118 9 14 118 485 118 488 118 118 21 485 324 542 21 118 488 118 33 117 414 138 118 118 231 118 137 138 117 117 115 138 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (C)	8-98011-532-0	01	1	1505-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)	8-98241-385-0	01	1	1505-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	1505-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	1505-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1505-			●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1505-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1505-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1505-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1505-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1505-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1505-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1505-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1505-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1505-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1505-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1505-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1505-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1505-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1505-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1505-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1505-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1505-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1505-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1505-			●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1505-	●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1505-		●
324	00.386 GASKET; PLUG	5-09503-132-1	01	1	1505-	●
414	03.602 SPACER	8-98143-884-0	01	1	1505-	●	●
459	03.341 HOSE; WATER 01.540 L=140 SERVICED BY L=3000	0-03566-300-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (D)	8-98245-594-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (C)	8-98295-887-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1505-		●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1505-			●
485	01.097 PIPE; WATER EGR (B)	8-98207-976-1	01	1	1505-			●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1505-	●	●
542	01.252 PLUG; AIR BLEED 10.701 M6X8	8-94155-893-0	01	1	1505-	●

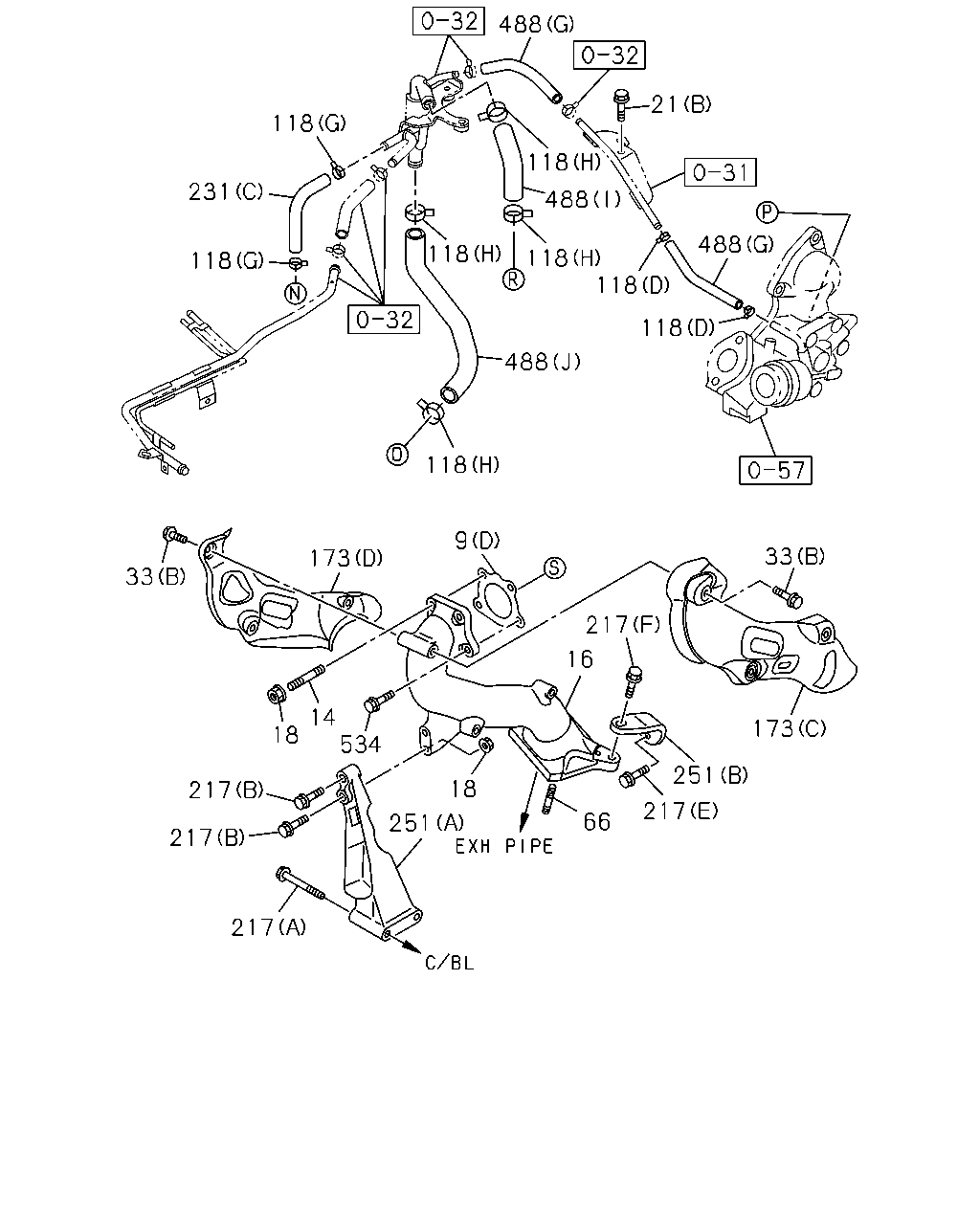

173 251 217 66 251 217 217 217 18 534 14 18 217 16 33 9 173 33 118 488 118 118 488 21 488 118 118 488 118 118 231 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (C)	8-98011-532-0	01	1	1505-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)	8-98241-385-0	01	1	1505-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	1505-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	1505-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1505-			●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1505-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1505-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1505-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1505-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1505-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1505-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1505-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1505-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1505-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1505-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1505-			●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1505-	●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1505-	●	●

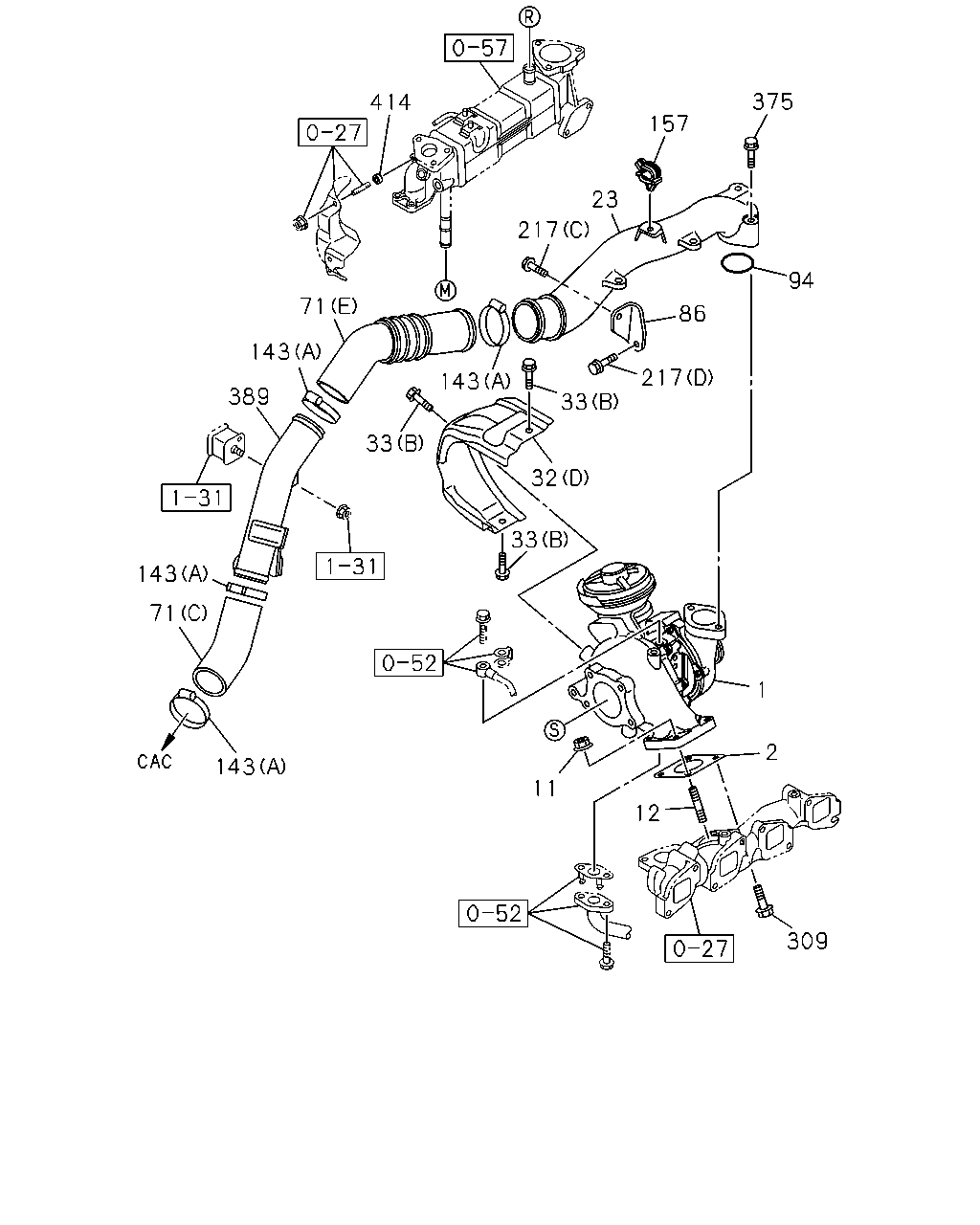

309 2 1 12 11 143 71 143 389 143 71 33 143 33 32 33 217 86 94 375 157 23 217 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1505-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1505-		●
1	03.342 TURBOCHARGER ASM	8-98203-610-0	01	1	1505-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1505-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1505-			●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98237-774-1	01	1	1505-1506		●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98308-040-0	01	1	1507-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1505-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1505-			●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1505-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1505-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1505-1507			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98205-323-2	01	1	1508-	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1505-			●
86	03.417 BRACKET; INL PIPE	8-98173-247-0	01	1	1505-		●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1505-		●
94	01.531 GASKET; INL PIPE ID=56	8-98107-962-0	01	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=60-65	8-98096-418-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	02	1	1505-			●
157	03.417 CLIP; HOSE,INL ID=8	8-98136-175-0	01	1	1505-1506		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1505-	●	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1505-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1505-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1505-		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1505-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-			●
375	03.342 BOLT; FLANGE 00.386 M8X50 FLANGE	0-28050-850-0	02	1	1505-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1505-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1505-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1505-			●
414	03.602 SPACER	8-98143-884-0	01	1	1505-	●	●

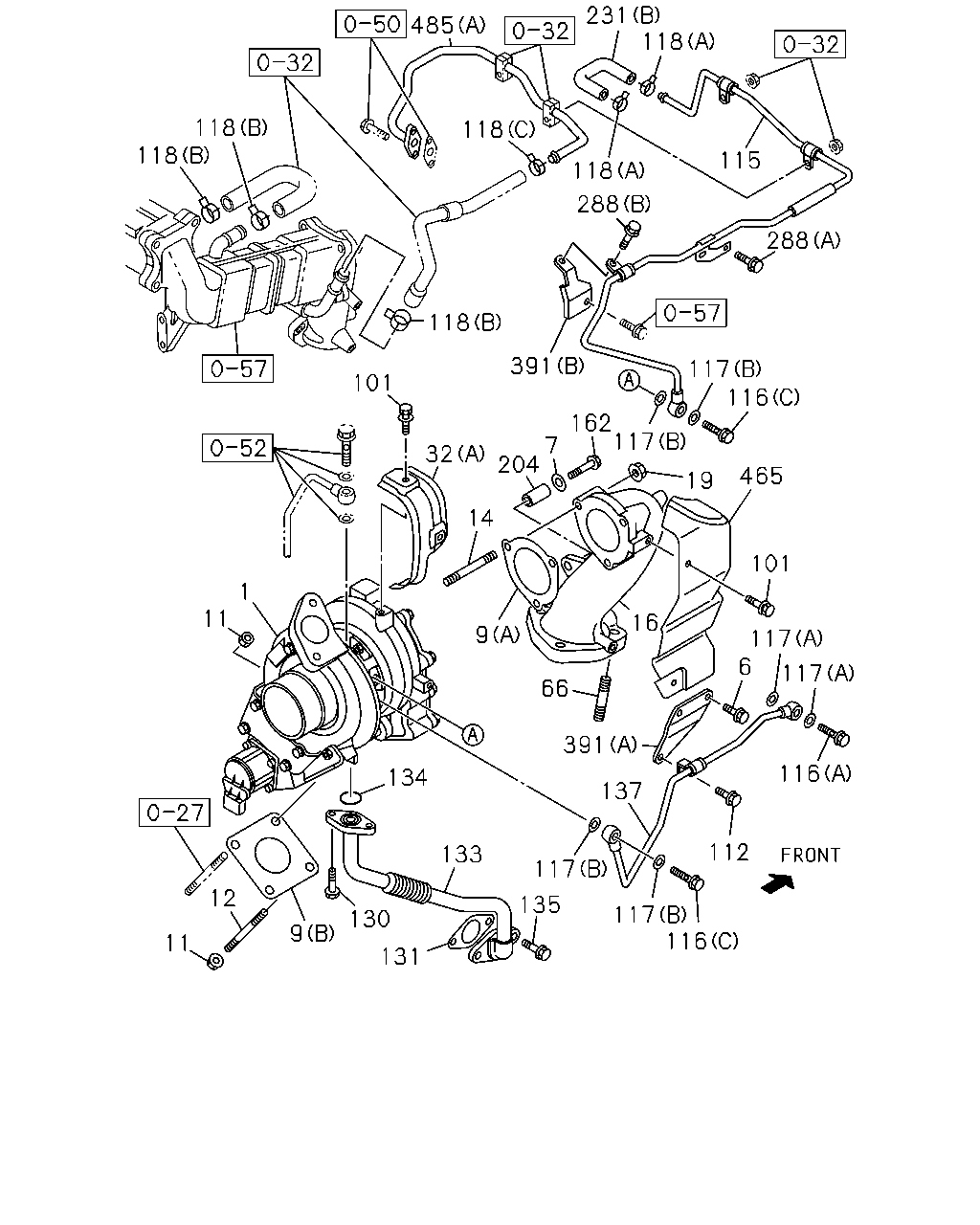

118 115 288 118 288 117 116 465 19 117 162 391 118 118 485 118 118 101 32 204 7 14 9 66 16 6 117 117 101 116 112 117 116 117 137 391 134 133 135 131 130 9 12 11 11 1 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1505-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1505-		●
1	03.342 TURBOCHARGER ASM	8-98203-610-0	01	1	1505-			●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1505-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1505-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (C)	8-98011-532-0	01	1	1505-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D)	8-98241-385-0	01	1	1505-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	1505-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	1505-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1505-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1505-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1505-			●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1505-		●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1505-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1505-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	1505-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1505-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1505-			●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1505-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1505-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1505-			●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1505-			●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1505-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1505-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1505-			●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1505-		●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1505-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1505-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1505-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1505-			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1505-			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1505-			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1505-			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1505-			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1505-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1505-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1505-			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1505-			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1505-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1505-			●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1505-			●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1505-			●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1505-			●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	1505-			●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	1505-			●
485	01.097 PIPE; WATER EGR (D)	8-98245-594-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (C)	8-98295-887-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1505-		●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1505-			●
485	01.097 PIPE; WATER EGR (B)	8-98207-976-1	01	1	1505-			●

143 71 143 12 2 1 11 309 143 414 33 33 32 32 33 71 143 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-98165-448-1	01	1	1505-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1505-		●
1	03.342 TURBOCHARGER ASM	8-98203-610-0	01	1	1505-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1505-	●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1505-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1505-	●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1505-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1505-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1505-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1505-			●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1505-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1508-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1505-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1505-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1505-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1505-1507			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98205-323-2	01	1	1508-	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=60-65	8-98096-418-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1508-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	04	1	1505-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1505-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	02	1	1505-			●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1505-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1505-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1505-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1505-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1505-			●
414	03.602 SPACER	8-98143-884-0	01	1	1505-	●	●

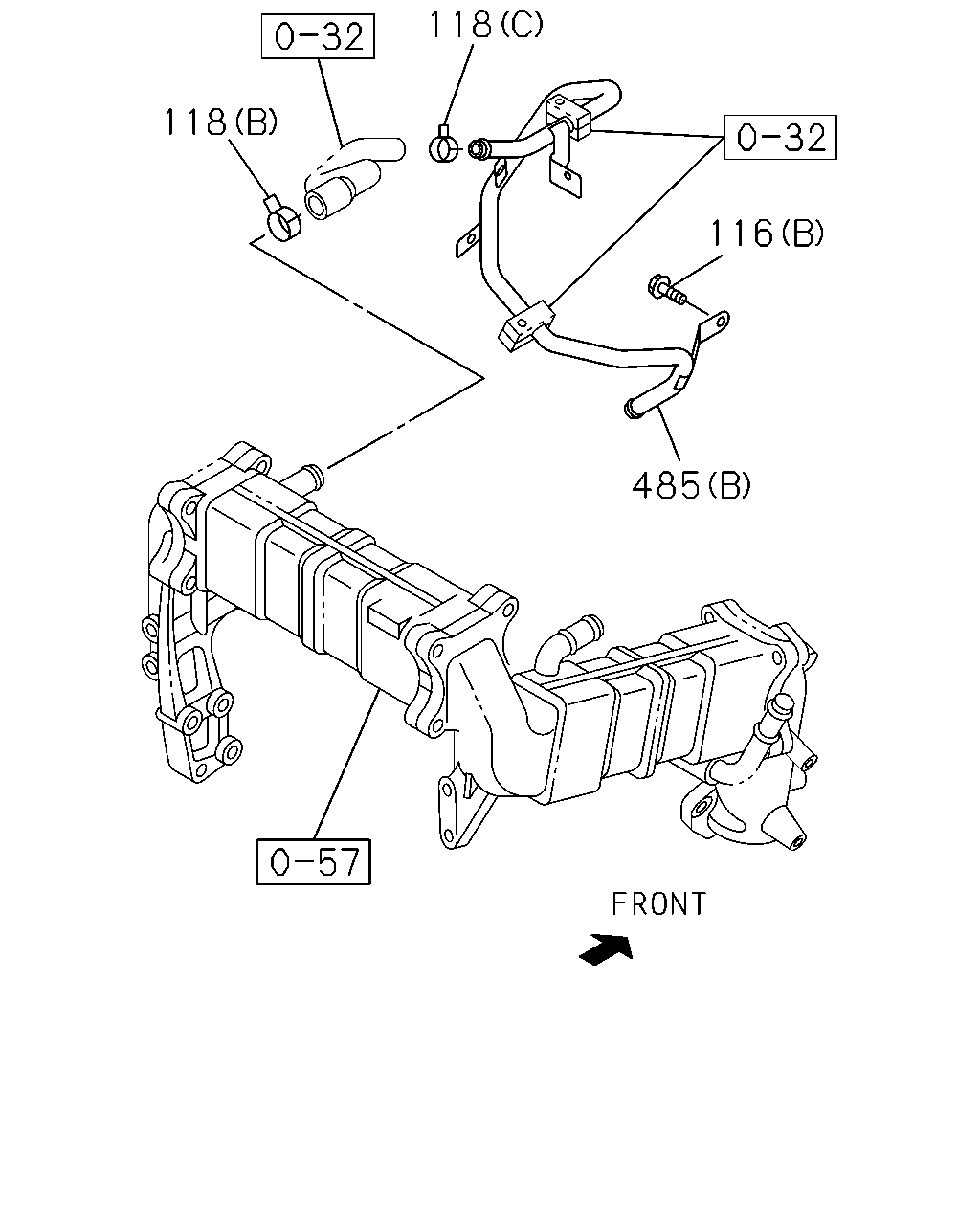

118 118 116 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1505-		●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1505-			●
485	01.097 PIPE; WATER EGR (D)	8-98245-594-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (C)	8-98295-887-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1505-		●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1505-			●
485	01.097 PIPE; WATER EGR (B)	8-98207-976-1	01	1	1505-			●

118 118 231 526 116 137 488 118 118 488 118 21 21 488 118 118 21 118 115 117 138 21 118 485 118 118 488 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1505-	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1505-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1505-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1505-			●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1505-		●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1505-			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1505-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1505-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1505-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1505-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (H) ID=22	8-97359-141-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1505-	●	●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1505-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	02	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	04	1	1505-	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1505-		●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1505-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1505-			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1505-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98116-985-0	01	1	1505-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1505-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1505-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1505-	●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.240 (A)	8-98117-662-1	01	1	1505-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1505-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1505-			●
485	01.097 PIPE; WATER EGR (D)	8-98245-594-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (C)	8-98295-887-0	01	1	1505-	●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1505-		●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1505-			●
485	01.097 PIPE; WATER EGR (B)	8-98207-976-1	01	1	1505-			●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1505-	●	●
488	03.163 HOSE; RUBBER (A)	0-03607-120-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (D)	8-98089-229-0	01	1	1505-	●
488	03.163 HOSE; RUBBER (F)	8-98147-943-1	01	1	1505-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1505-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1505-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1505-		●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
