0-25 — INLET MANIFOLD (#161357) — 42 parça

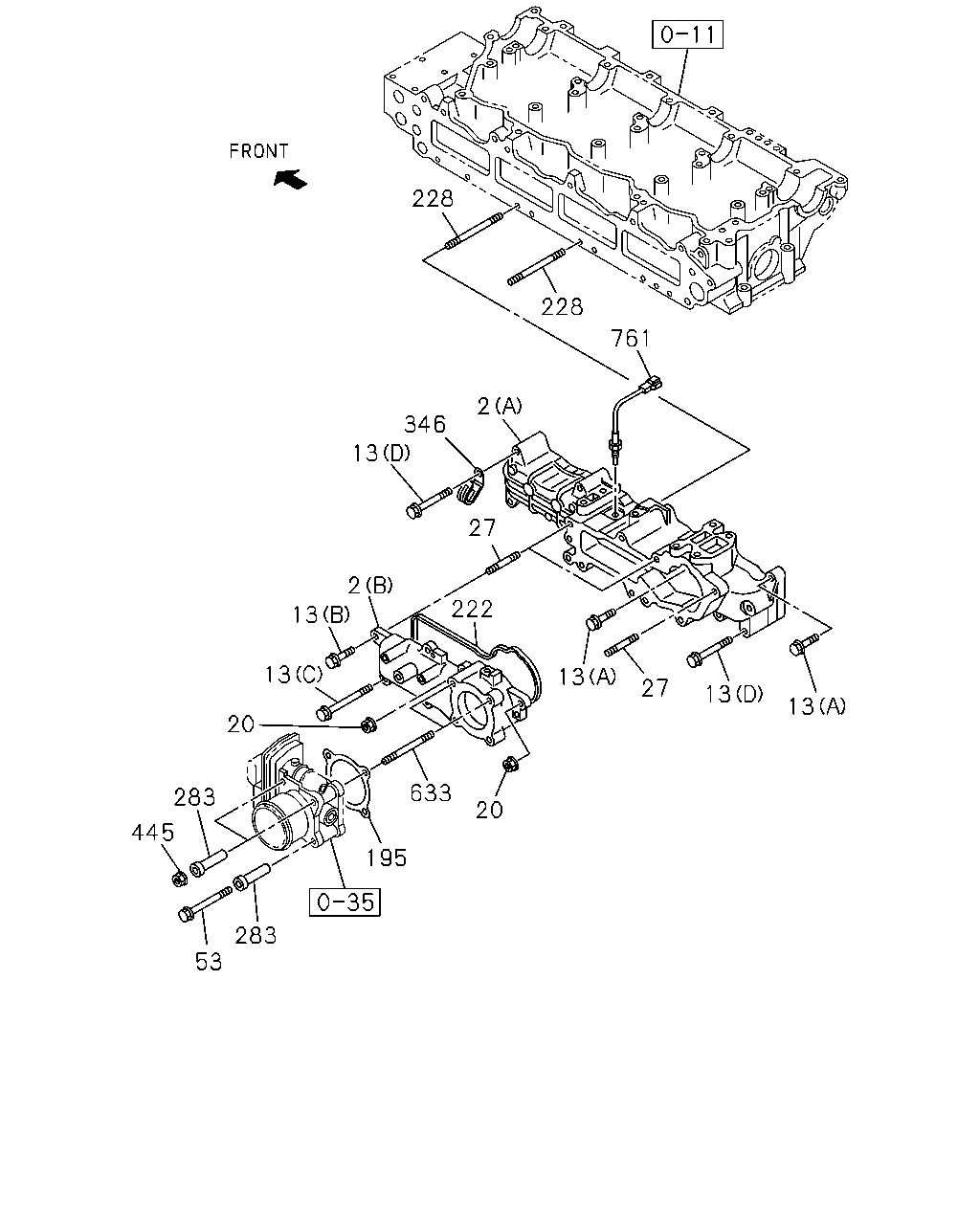

228 228 761 13 13 27 13 222 27 2 346 13 2 13 13 20 283 445 53 283 195 633 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL (A)	8-98028-421-2	01	1	1505-	●
2	03.407 COVER; INL (B)	8-98085-730-1	01	1	1505-	●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1505-		●	●
13	03.275 BOLT; INL MANIF 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1505-		●	●
13	03.275 BOLT; INL MANIF 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1505-		●	●
13	03.275 BOLT; INL MANIF (B) M8X25 FLANGE	0-28050-825-0	02	1	1505-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1505-	●
13	03.275 BOLT; INL MANIF 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1505-	●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1505-	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1505-		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1505-		●	●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	1505-	●
53	03.602 BOLT; INL PIPE 00.206 M8X70 FLANGE	0-28050-870-0	02	1	1505-	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE).	8-98032-612-0	01	1	1505-	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.275	8-98032-611-0	01	1	1505-	●
228	03.407 STUD; INL COVER 03.342 M8X126 L=137	8-97378-069-0	02	1	1505-	●
283	03.265 RUBBER L=58	8-97387-995-1	04	1	1505-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1505-	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	02	1	1505-	●
761	03.682 SENSOR; MANIF	8-97381-182-0	01	1	1505-	●

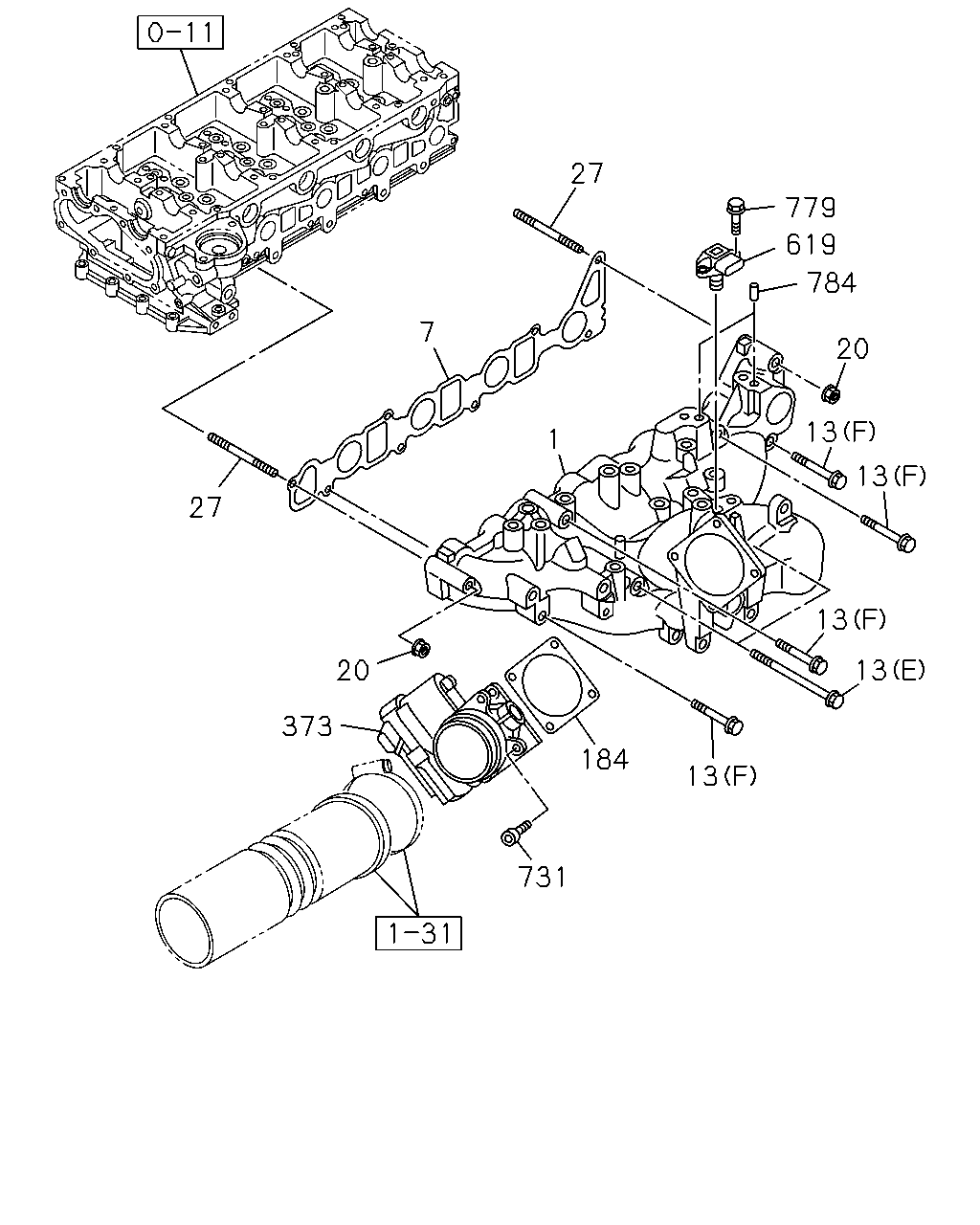

27 7 1 27 779 619 784 20 13 13 13 13 13 184 731 373 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-98233-063-3	01	1	1505-		●
1	03.265 MANIFOLD; INL	8-98233-553-3	01	1	1505-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98284-081-0	01	1	1505-		●	●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1505-		●	●
13	03.275 BOLT; INL MANIF 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1505-		●	●
13	03.275 BOLT; INL MANIF 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1505-		●	●
13	03.275 BOLT; INL MANIF (B) M8X25 FLANGE	0-28050-825-0	02	1	1505-	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1505-	●
13	03.275 BOLT; INL MANIF 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1505-	●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1505-	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1505-		●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1505-	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1505-		●	●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	1505-	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	1505-		●	●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1505-		●	●
619	01.150 SENSOR; MAP	8-98121-697-1	01	1	1505-		●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1505-		●	●
779	03.682 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1505-		●
784	03.265 PIN; KNOCK 04.399 OD=4 L=12	1-09740-032-0	02	1	1505-		●	●
