0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#161355) — 126 parça

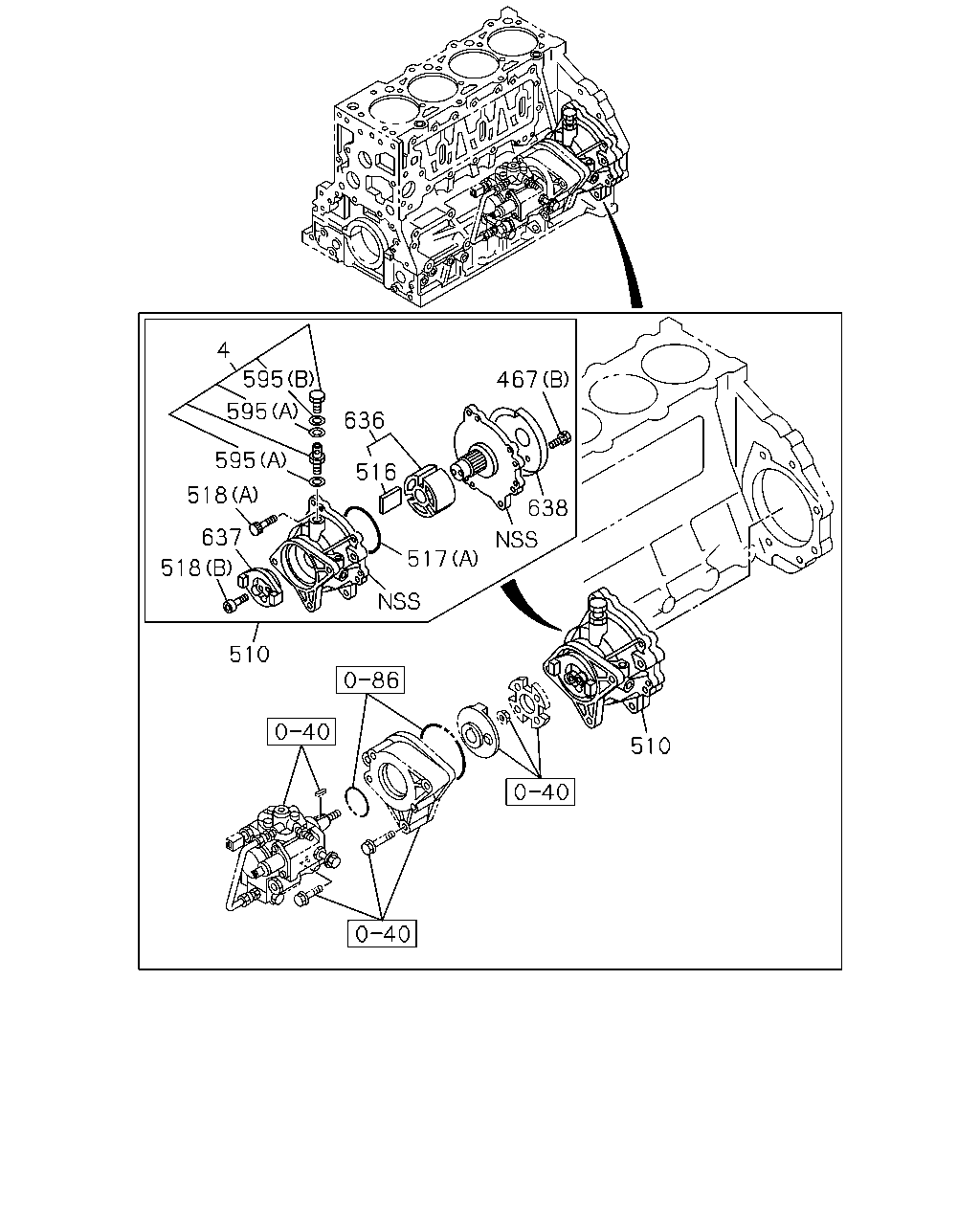

467 638 517 516 636 595 4 595 595 518 518 510 637 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	1505-	●	●	●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	1505-			●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	1505-			●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1505-	●	●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	1505-			●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	1505-	●	●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	1505-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98251-769-0	01	1	1505-	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (C)	9-09566-271-0	01	1	1505-	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98051-280-0	01	1	1505-			●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	1505-	●	●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	1505-			●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	1505-			●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1505-	●	●	●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1505-	●	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	1505-	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	1505-			●
637	00.206 COUPLING; VAC PUMP	8-98051-278-0	01	1	1505-			●
638	00.206 PLATE KIT; VAC PUMP	8-98051-276-0	01	1	1505-			●

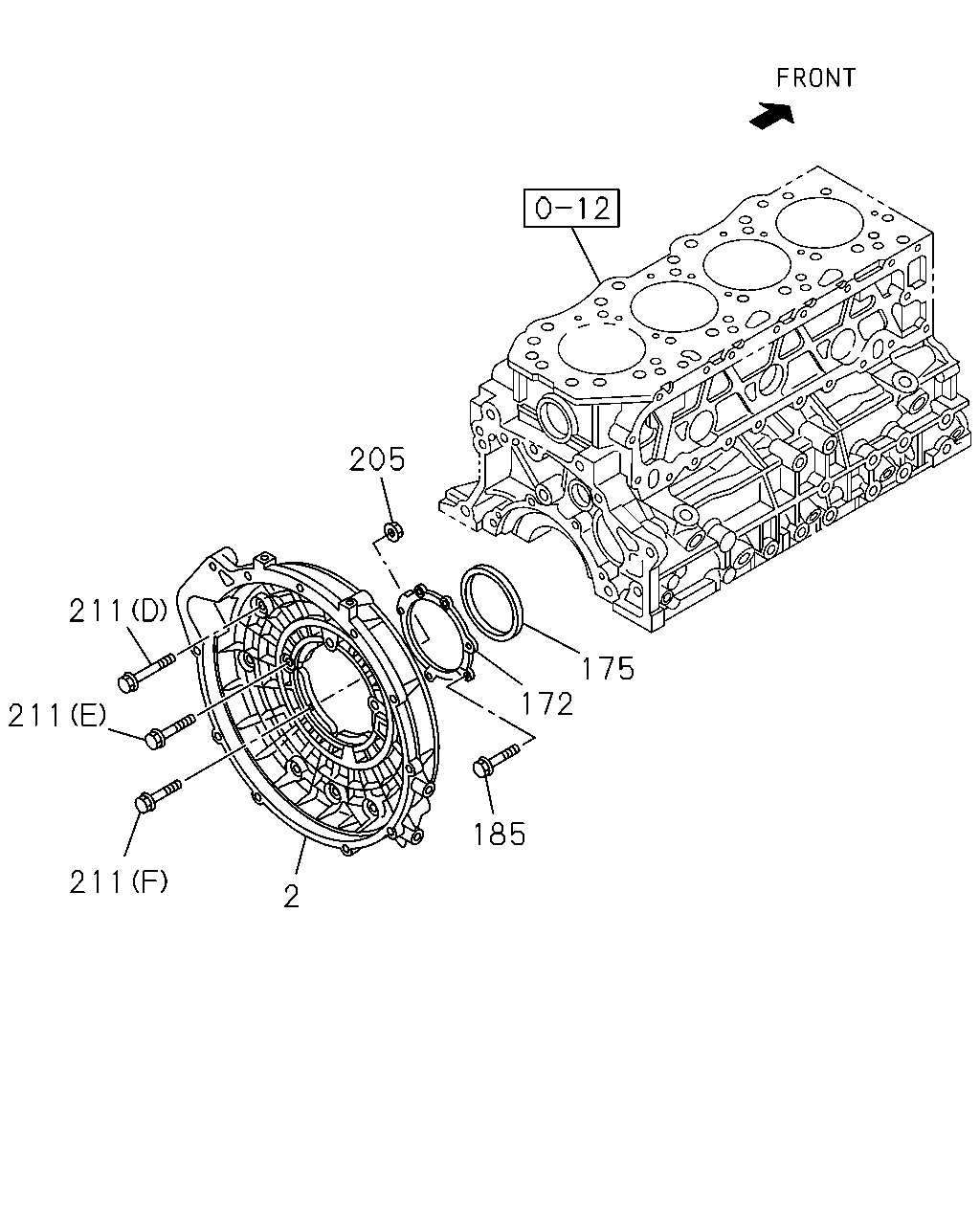

211 211 211 2 185 172 175 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-98240-829-0	01	1	1505-	●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	1505-			●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1505-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1505-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1505-			●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1505-	●	●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	1505-	●	●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	05	1	1505-	●	●
211	00.669 BOLT; HSG 00.683 (E) M12X25	5-09000-227-0	03	1	1505-	●	●
211	00.669 BOLT; HSG 00.862 (F) M10X43	9-09606-535-0	01	1	1505-	●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	1505-			●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	02	1	1505-			●
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1505-			●

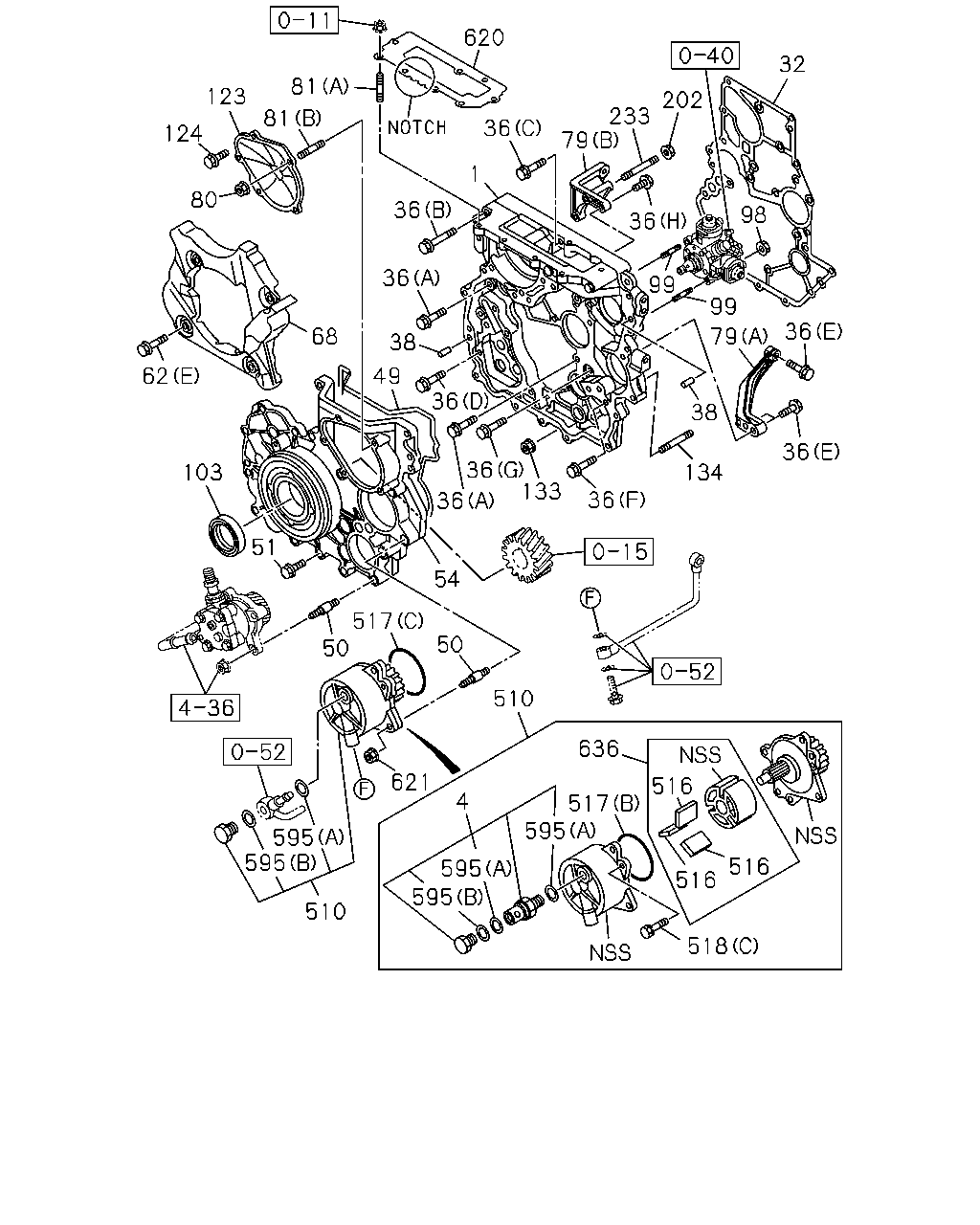

123 124 80 62 103 51 50 621 50 510 517 36 54 36 36 49 38 36 36 1 68 620 36 81 81 79 233 202 36 99 98 32 36 36 79 99 38 134 36 133 636 516 517 595 4 595 595 518 516 516 510 595 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-98211-898-0	01	1	1505-	●
1	00.206 CASE; TIMING GEAR	8-98217-735-0	01	1	1505-		●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	1505-	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98181-198-1	01	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1505-	●	●
36	00.206 BOLT; GEAR CASE 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	1505-	●
36	00.206 BOLT; GEAR CASE 03.403 (H) M8X30 FLANGE	0-28650-830-0	03	1	1505-		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1505-	●	●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1505-	●	●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	1505-	●	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1505-	●	●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1505-	●	●
62	00.206 BOLT; COVER 03.162 (E) M6X20 FLANGE	0-28650-620-0	04	1	1505-	●	●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	1505-			●
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1505-			●
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	1505-			●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	1505-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-98245-226-0	01	1	1505-	●	●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-98088-943-1	01	1	1505-	●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1505-		●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1505-	●	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1505-	●	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1505-	●	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1505-	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1505-		●
99	00.206 STUD; INJ PUMP M8X30 L=41	8-97369-449-0	03	1	1505-	●
99	00.206 STUD; INJ PUMP M8X30 L=41	8-97369-449-0	02	1	1505-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1505-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1505-			●
123	00.206 COVER; TIMING,LWR	8-98158-145-0	01	1	1505-	●	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1505-	●	●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	1505-	●	●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	1505-	●	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1505-		●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1505-		●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1505-	●	●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	1505-			●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	1505-	●	●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	1505-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98251-769-0	01	1	1505-	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (C)	9-09566-271-0	01	1	1505-	●	●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98051-280-0	01	1	1505-			●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	1505-	●	●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	1505-			●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	1505-			●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1505-	●	●	●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1505-	●	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	1505-	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	1505-	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	1505-	●	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1505-	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	1505-	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	1505-			●

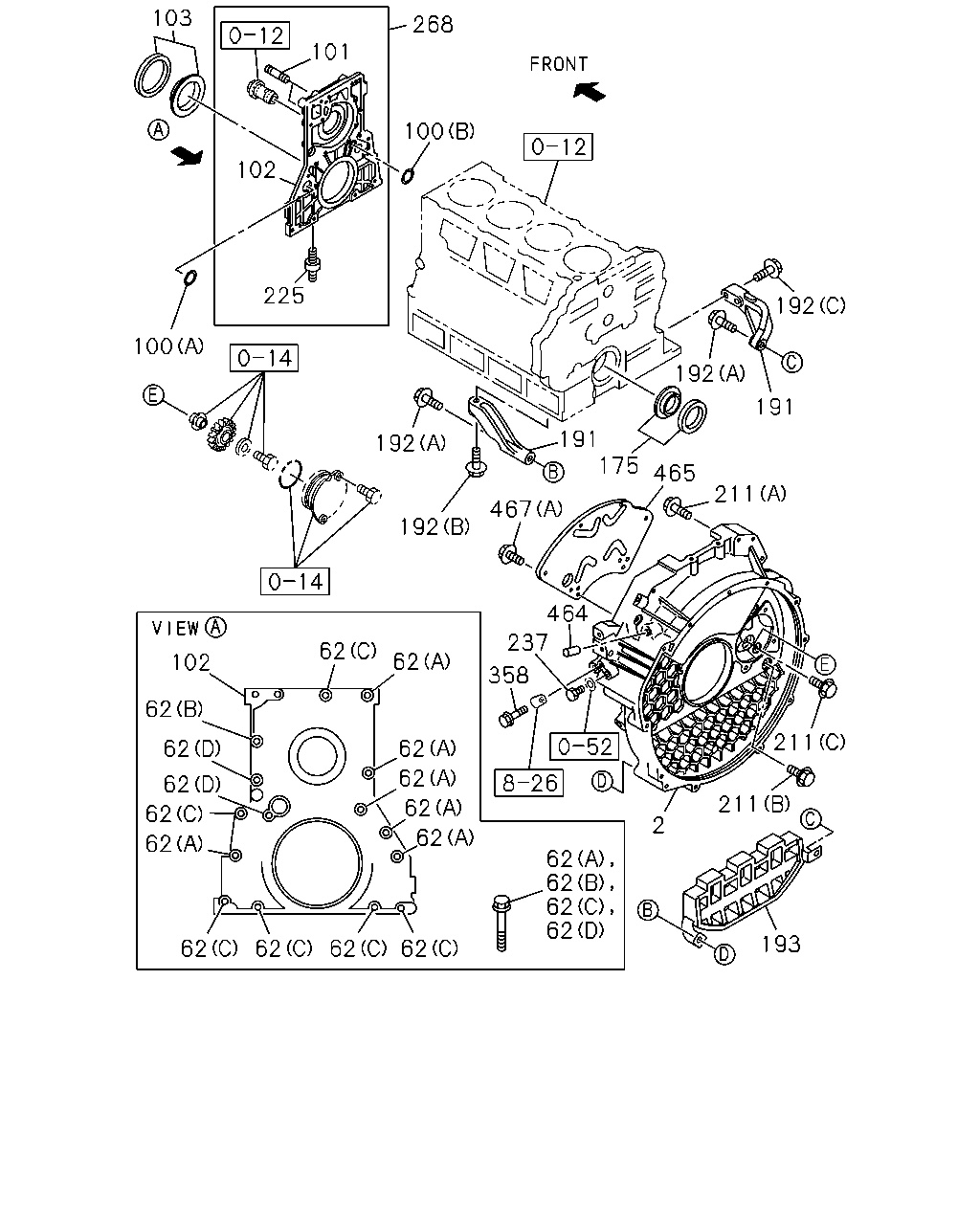

268 100 101 102 103 225 100 192 192 191 191 175 467 192 192 465 211 464 237 358 211 211 2 193 62 62 62 62 62 62 62 62 62 62 102 62 62 62 62 62 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-98240-829-0	01	1	1505-	●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	1505-			●
62	00.206 BOLT; COVER 03.162 (E) M6X20 FLANGE	0-28650-620-0	04	1	1505-	●	●
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	1505-			●
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1505-			●
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	1505-			●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	1505-			●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	1505-			●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	1505-			●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	1505-			●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	1505-			●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	1505-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1505-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1505-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1505-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1505-			●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	1505-			●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	1505-			●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	1505-			●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	1505-			●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1505-			●
193	01.428 SPACER; STAY TO OIL,PAN	8-97259-536-0	01	1	1505-			●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	05	1	1505-	●	●
211	00.669 BOLT; HSG 00.683 (E) M12X25	5-09000-227-0	03	1	1505-	●	●
211	00.669 BOLT; HSG 00.862 (F) M10X43	9-09606-535-0	01	1	1505-	●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	1505-			●
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	02	1	1505-			●
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1505-			●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	1505-			●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	1505-			●
268	00.206 COVER; FRT	8-98039-931-2	01	1	1505-			●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1505-			●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	1505-			●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	1505-			●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	1505-			●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	1505-			●
