0-11 — CYLINDER HEAD (#161350) — 107 parça

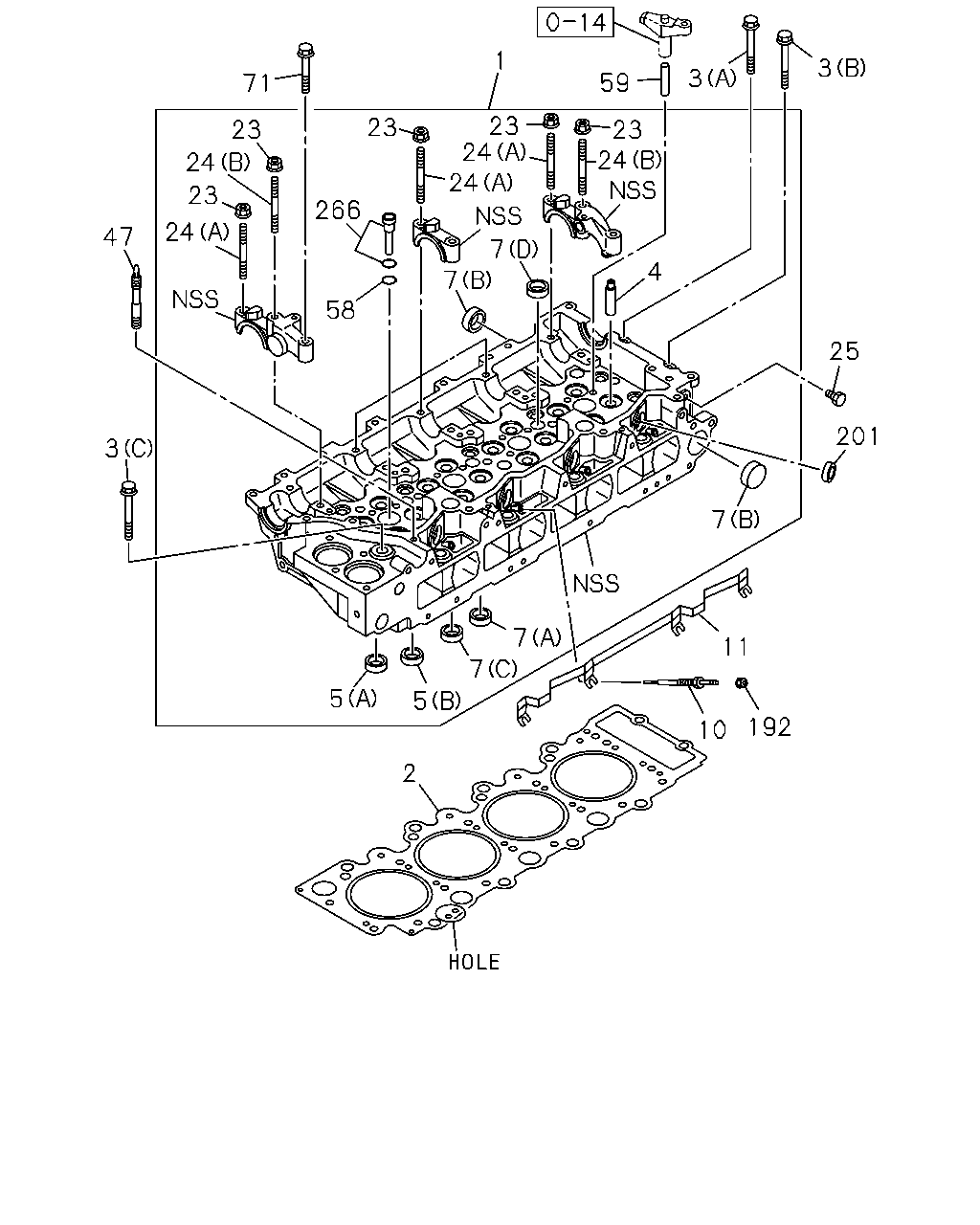

çizim 475018
201 25 7 11 192 10 2 5 5 7 7 4 3 3 59 23 24 23 1 24 24 7 7 23 266 58 47 24 23 24 23 71 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1505- ● ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.14 1-HOLE 		8-98261-311-0 01 1 1505- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.19 2-HOLE 		8-98261-312-0 01 1 1505- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.24 3-HOLE 		8-98261-313-0 01 1 1505- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1505-1505 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1505-1505 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1505-1505 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X114 W/WASHER 		8-98201-019-0 18 1 1505- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1505- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1505- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1505- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1505- ● ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1505- ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1505- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1505- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1505- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=18 		5-11219-008-0 07 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 02 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=24 		8-97333-120-0 05 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (D) OD=25 		1-09600-016-0 04 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 05 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=32 		8-97096-821-0 05 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 1505- ●
10 02.270 PLUG; GLOW
BOSCH 		8-98238-424-0 04 1 1505- ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1505- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1505- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1505- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 1505- ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1505- ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1505- ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 1505- ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 1505- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 1505- ●
59 00.283 GUIDE; BRIDGE 8-97381-603-1 08 1 1505- ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 1505- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1505- ● ● ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1505- ●
266 00.293 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1505- ●

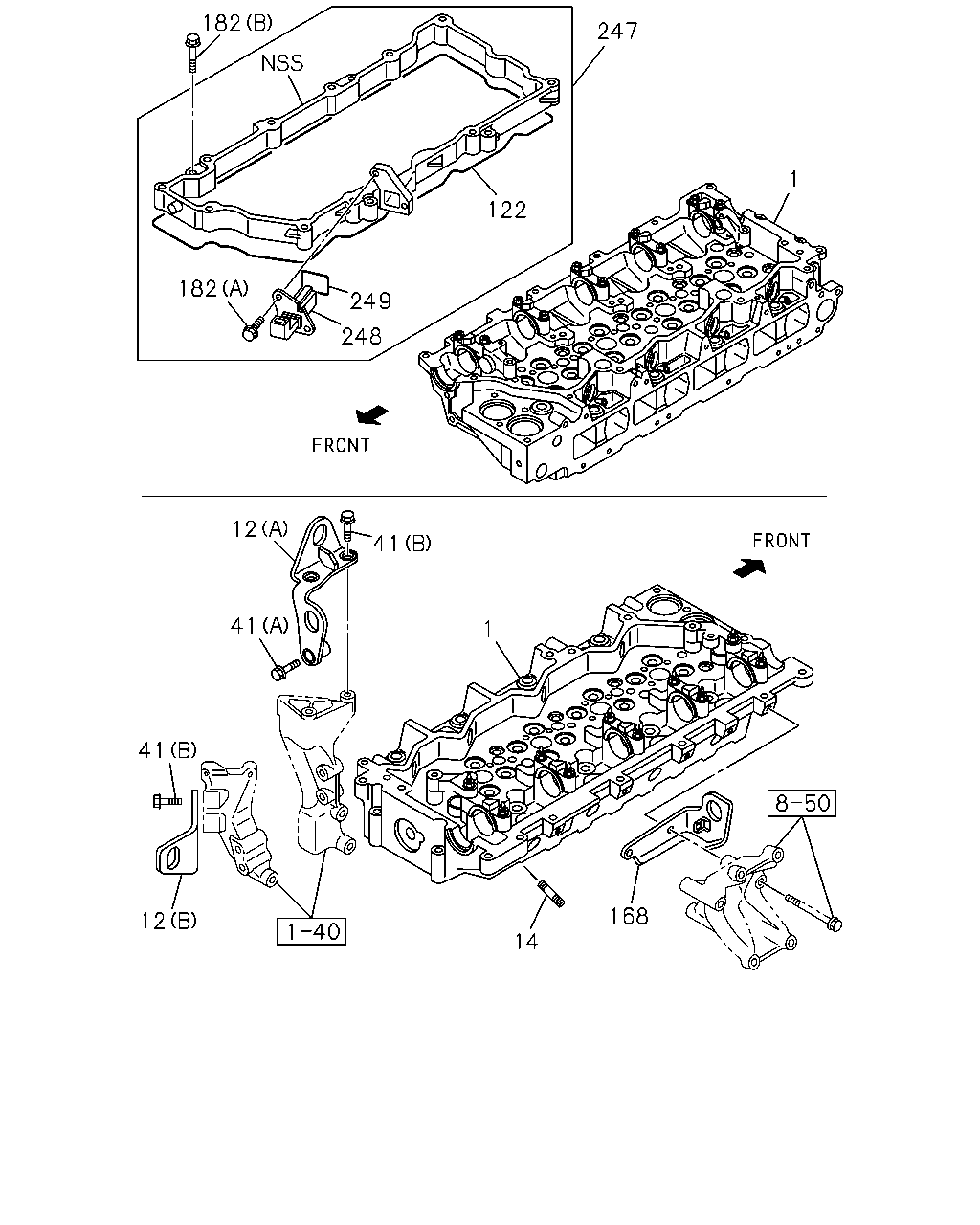

çizim 475020
1 247 122 182 182 249 248 41 12 41 41 12 14 1 168
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1505- ● ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1505- ●
12 00.004 HANGER; ENG,RR
EGR COOLER LH POSITION<KCC> (A) 		8-98186-568-0 01 1 1505- ●
12 00.004 HANGER; ENG,RR
EXC. EGR COOLER LH POSITION<KCC> (B) 		8-98074-691-1 01 1 1505- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1505- ●
41 09.181 BOLT; ENG HANGER
03.162 (B) M12X20 FLANGE 		0-28151-220-0 02 1 1505- ●
41 09.181 BOLT; ENG HANGER
EXC. EGR COOLER LH POSITION<KCC> (A) M12X80 		0-28151-280-0 01 1 1505- ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 1505- ●
168 00.004 HANGER; ENG,FRT 8-98032-250-1 01 1 1505- ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1505- ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 1505- ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 1505- ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 1505- ●
249 03.300 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 01.152 		8-94391-310-0 01 1 1505- ●

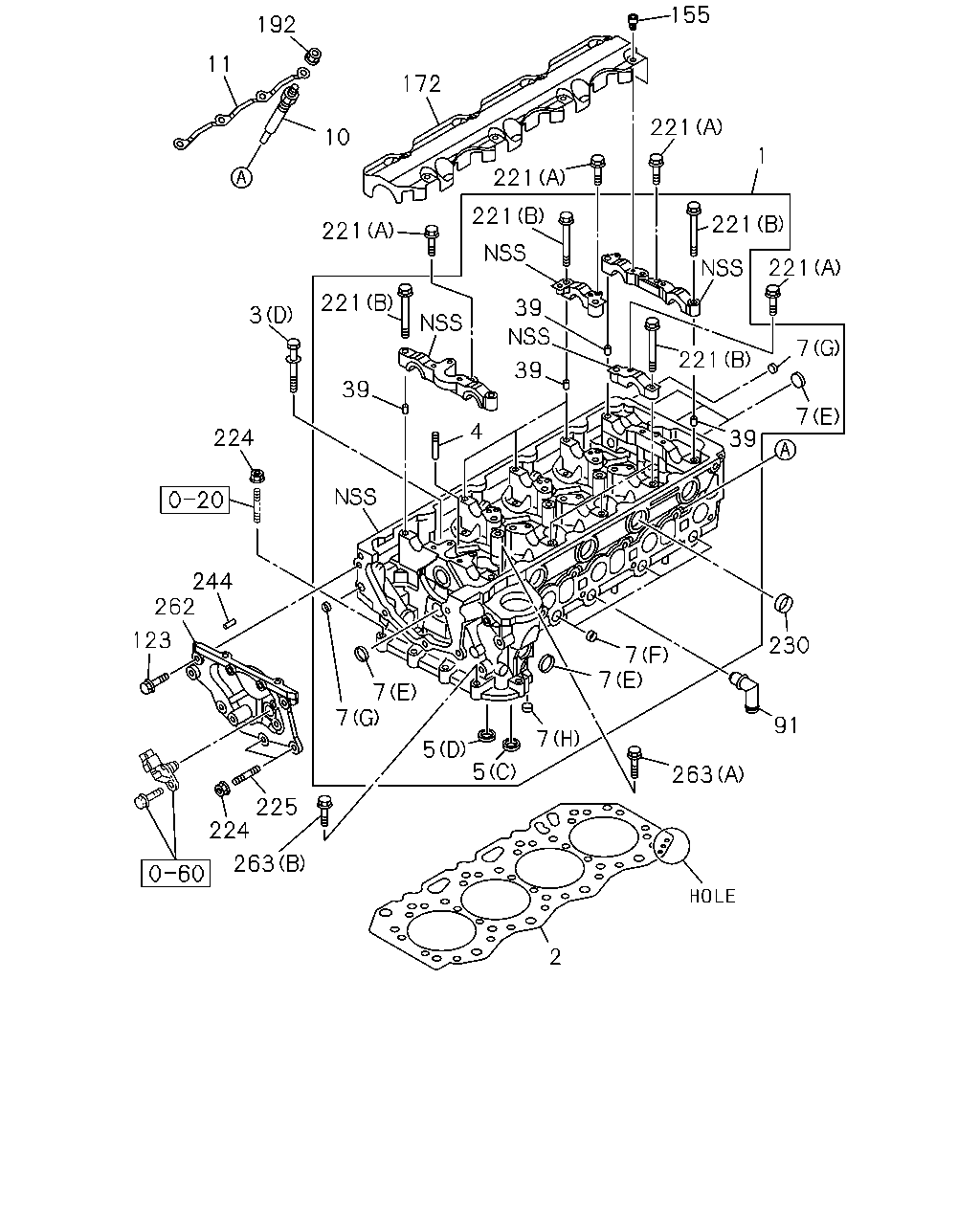

çizim 476169
2 263 91 230 7 7 7 5 5 7 7 225 224 263 123 262 244 224 3 11 192 10 221 221 39 4 39 39 221 221 172 155 221 1 221 221 221 39 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-98270-378-1 01 1 1505- ● ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1505- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.14 1-HOLE 		8-98261-311-0 01 1 1505- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.19 2-HOLE 		8-98261-312-0 01 1 1505- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.24 3-HOLE 		8-98261-313-0 01 1 1505- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1505-1505 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1505-1505 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1505-1505 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X114 W/WASHER 		8-98201-019-0 18 1 1505- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1505- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1505- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1505- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1505- ● ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1505- ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1505- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1505- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1505- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=18 		5-11219-008-0 07 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 02 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=8 		8-97233-429-0 01 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=24 		8-97333-120-0 05 1 1505- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (D) OD=25 		1-09600-016-0 04 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 05 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=32 		8-97096-821-0 05 1 1505- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 1505- ●
10 02.270 PLUG; GLOW
BOSCH 		8-98238-424-0 04 1 1505- ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1505- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1505- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1505- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 26 1 1505- ● ●
91 08.846 PIPE; HTR 8-98209-467-2 01 1 1505- ● ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 03 1 1505- ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1505- ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98212-020-0 01 1 1505- ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1505- ● ● ●
221 00.413 BOLT; BRKT
01.531 (A) M6X30 FLANGE 		0-28050-630-0 08 1 1505- ● ●
221 00.413 BOLT; BRKT
01.531 (B) M8X85 		1-09044-074-0 21 1 1505- ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1505- ● ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1505- ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.306 OD=30 		1-09639-034-0 04 1 1505- ● ●
244 00.206 PIN; HEAD GASKET
08.939 OD=5 L=10 		9-08150-510-0 01 1 1505- ● ●
262 00.206 COVER; CYL HEAD 8-98201-552-0 01 1 1505-1510 ● ●
262 00.206 COVER; CYL HEAD 8-98243-226-0 01 1 1511- ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1505- ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1505- ● ●
