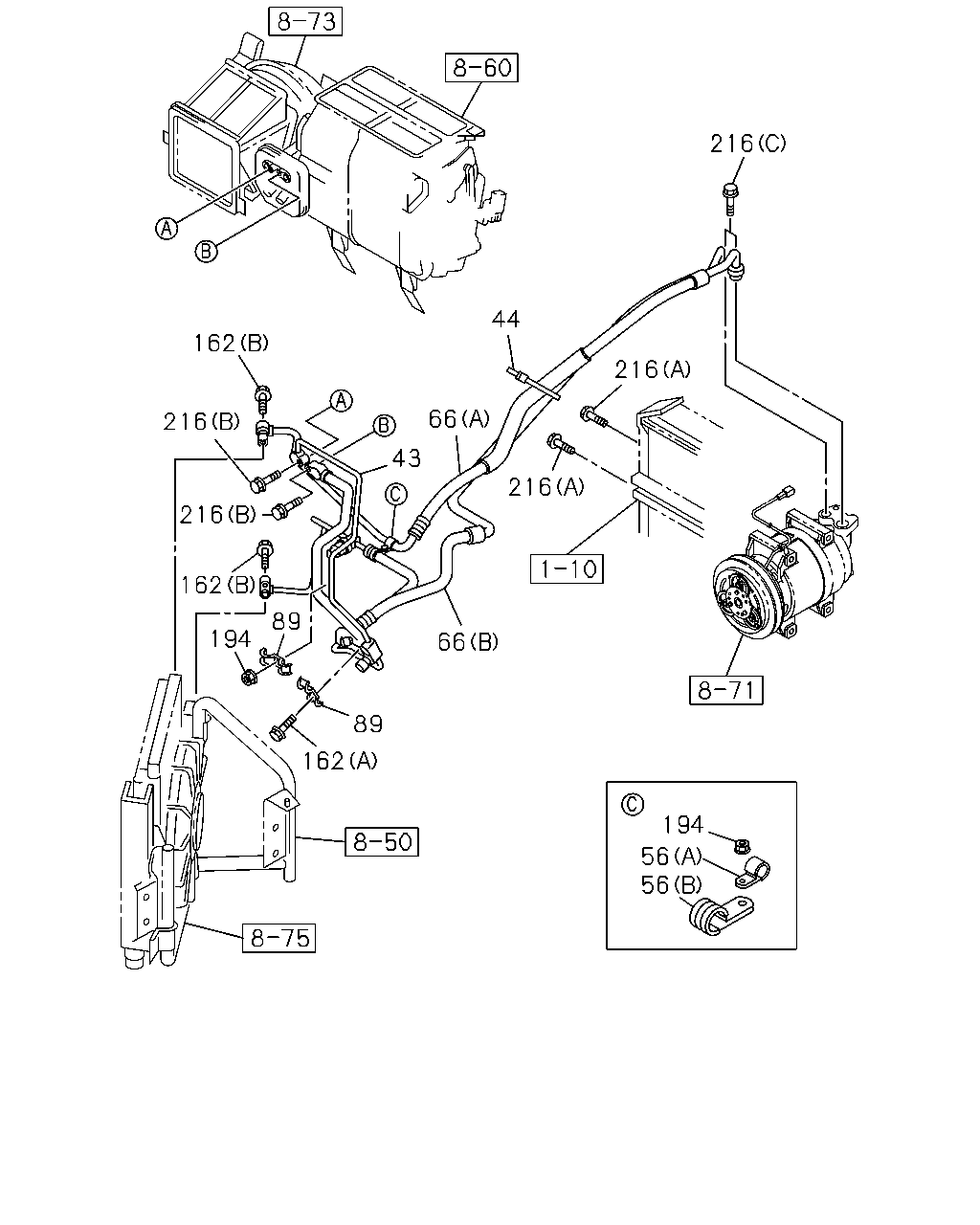

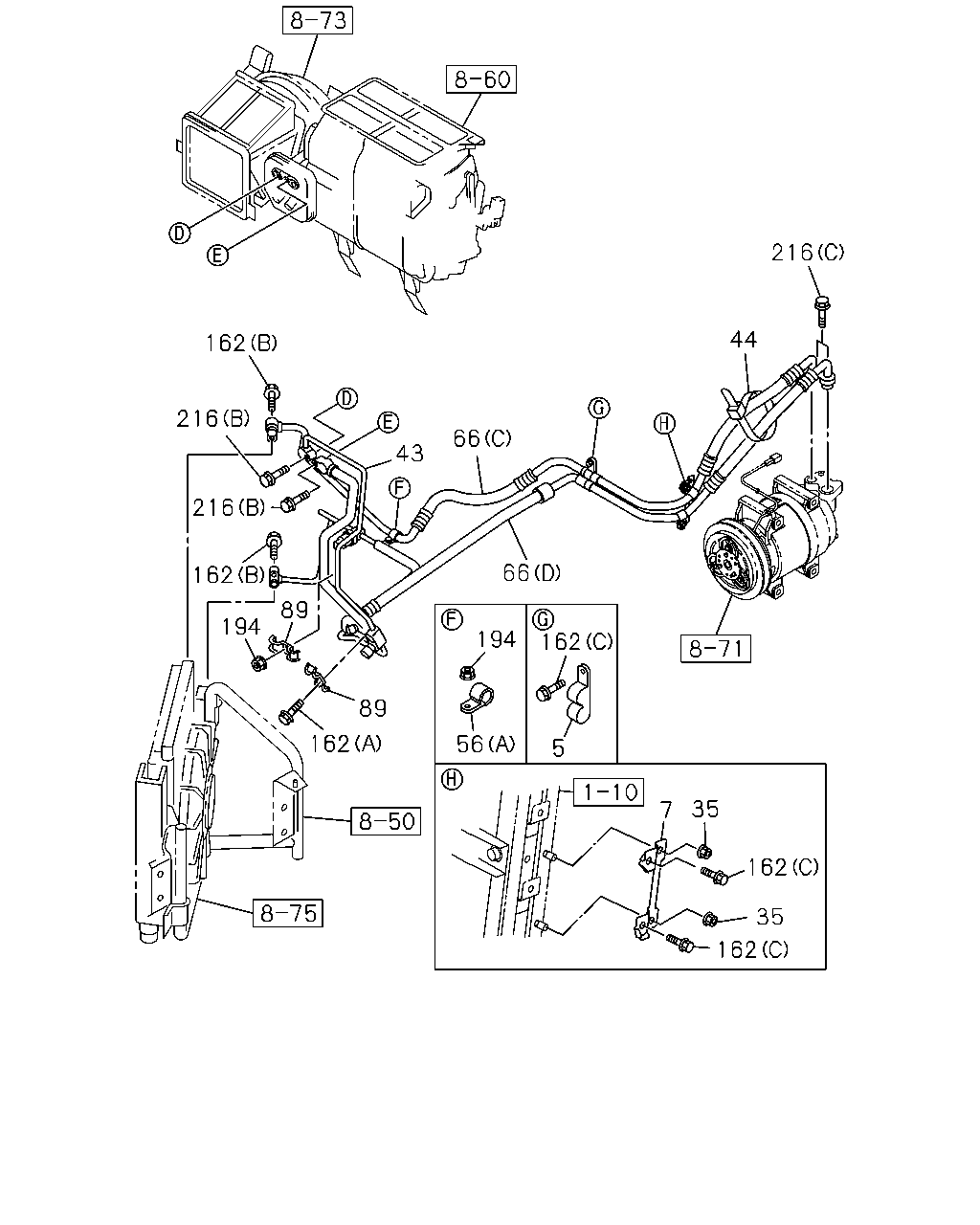

8-52 — PIPING; AIR CONDITIONING (#161338) — 101 parça

216 44 66 43 162 216 216 162 194 162 89 89 56 194 162 35 162 35 162 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-			●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-			●	●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1505-			●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	1505-			●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1505-	●	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1505-	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1505-	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1505-			●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1505-	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1505-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1505-	●	●	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1505-	●	●	●	●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1505-			●	●

50 202 50 147 148 43 67 66 49 67 67 66 148 147 67 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-			●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1505-			●	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-461-0	01	1	1505-	●	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-461-0	01	1	1505-			●	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1505-	●	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1505-			●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1505-	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1505-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1505-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1505-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1505-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1505-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1505-	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1505-	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1505-	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1505-	●	●	●	●

216 162 44 216 216 66 43 66 89 162 216 216 162 194 89 194 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-			●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1505-			●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	1505-			●	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1505-	●	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1505-	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1505-	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1505-			●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1505-	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1505-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1505-	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1505-	●	●	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1505-	●	●	●	●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1505-			●	●

50 202 50 147 43 66 67 67 148 67 66 67 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-	●	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1505-			●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-	●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1505-			●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1505-			●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1505-	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1505-			●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1505-			●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1505-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1505-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1505-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1505-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1505-	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1505-	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1505-	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1505-	●	●	●	●
