8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#161331) — 91 parça

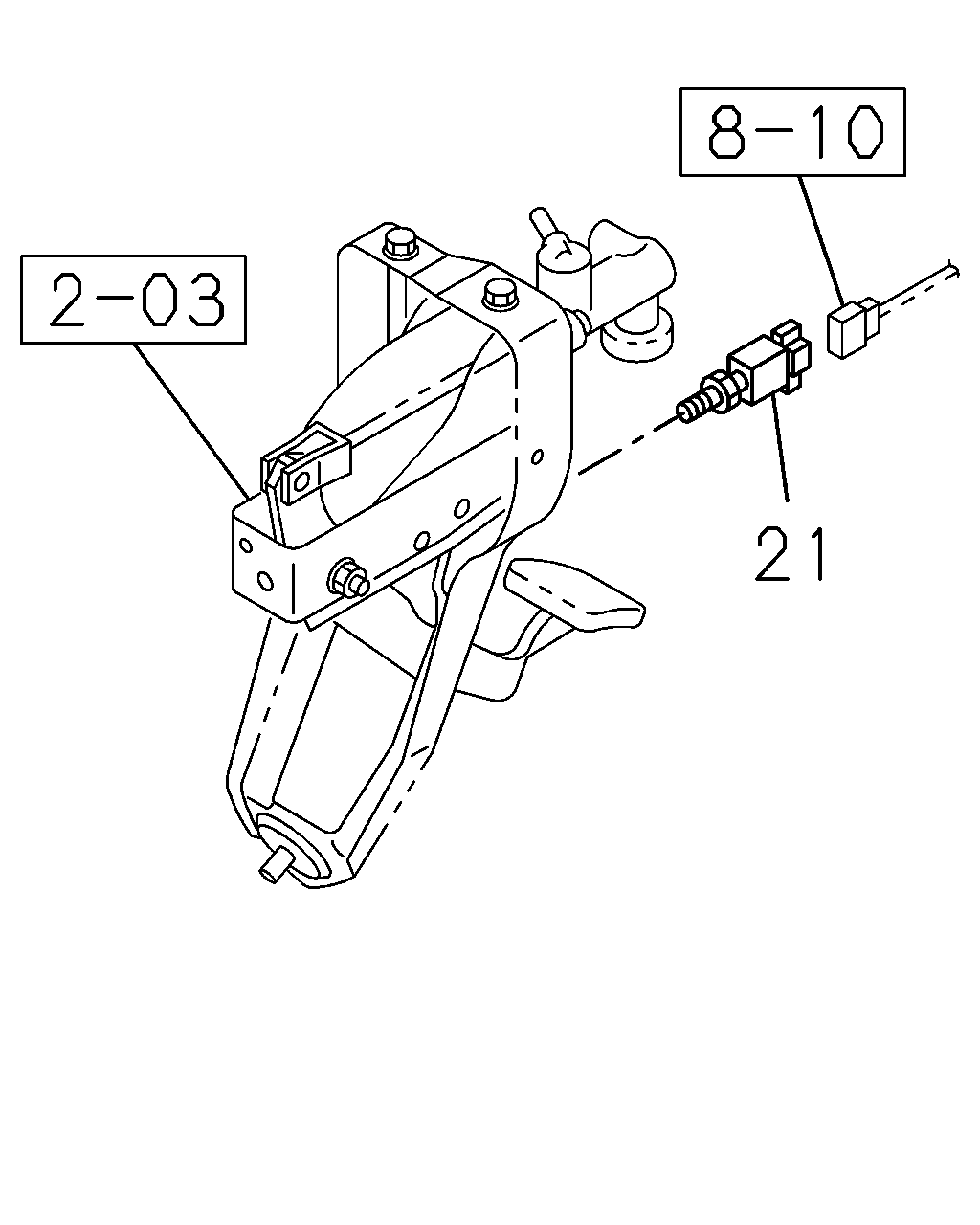

çizim 476225
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1505- ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●

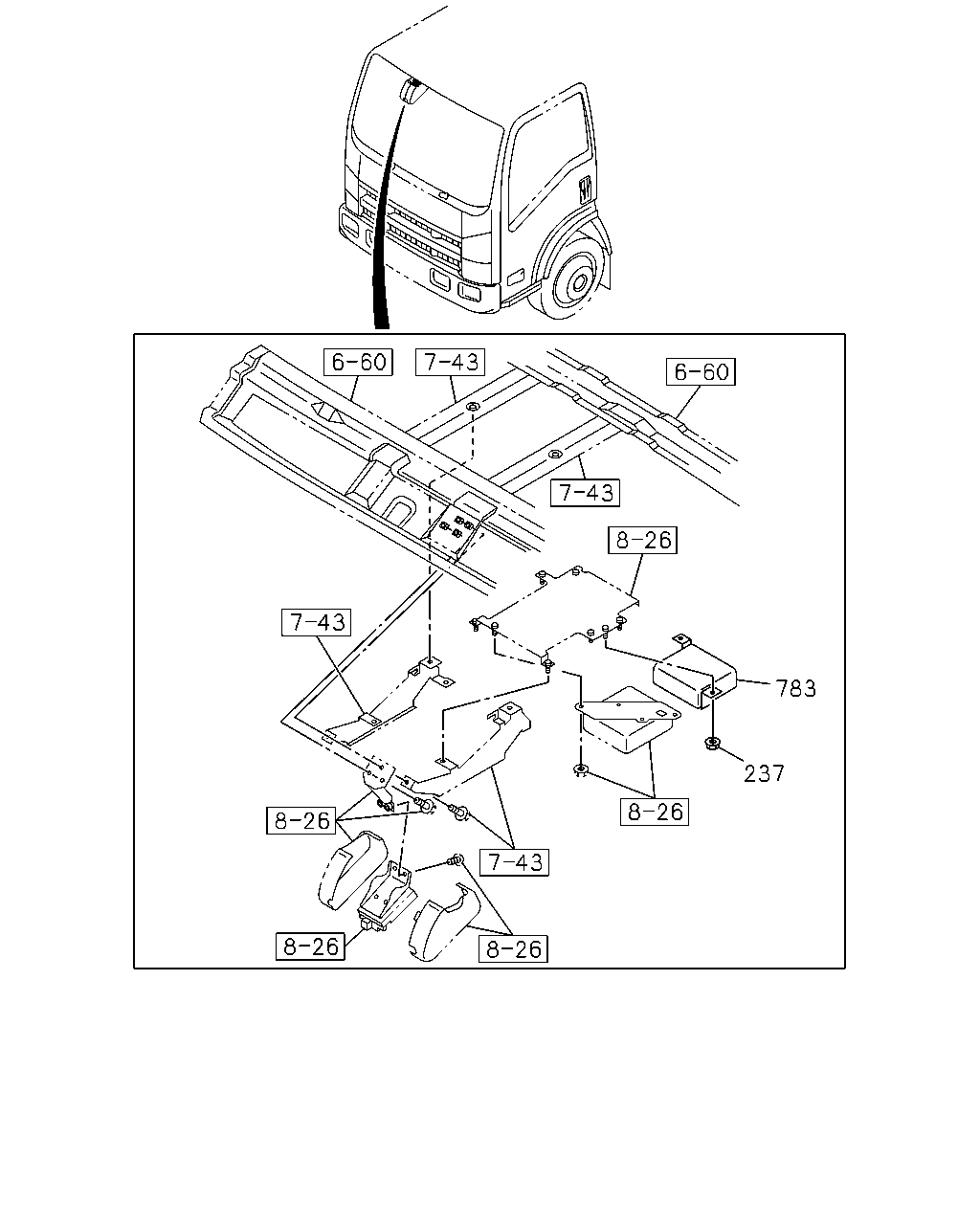

çizim 476376
783 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
237 02.485 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1505- ● ●
783 03.883 MODULE ASM; VAT 8-98302-368-0 01 1 1505- ● ●

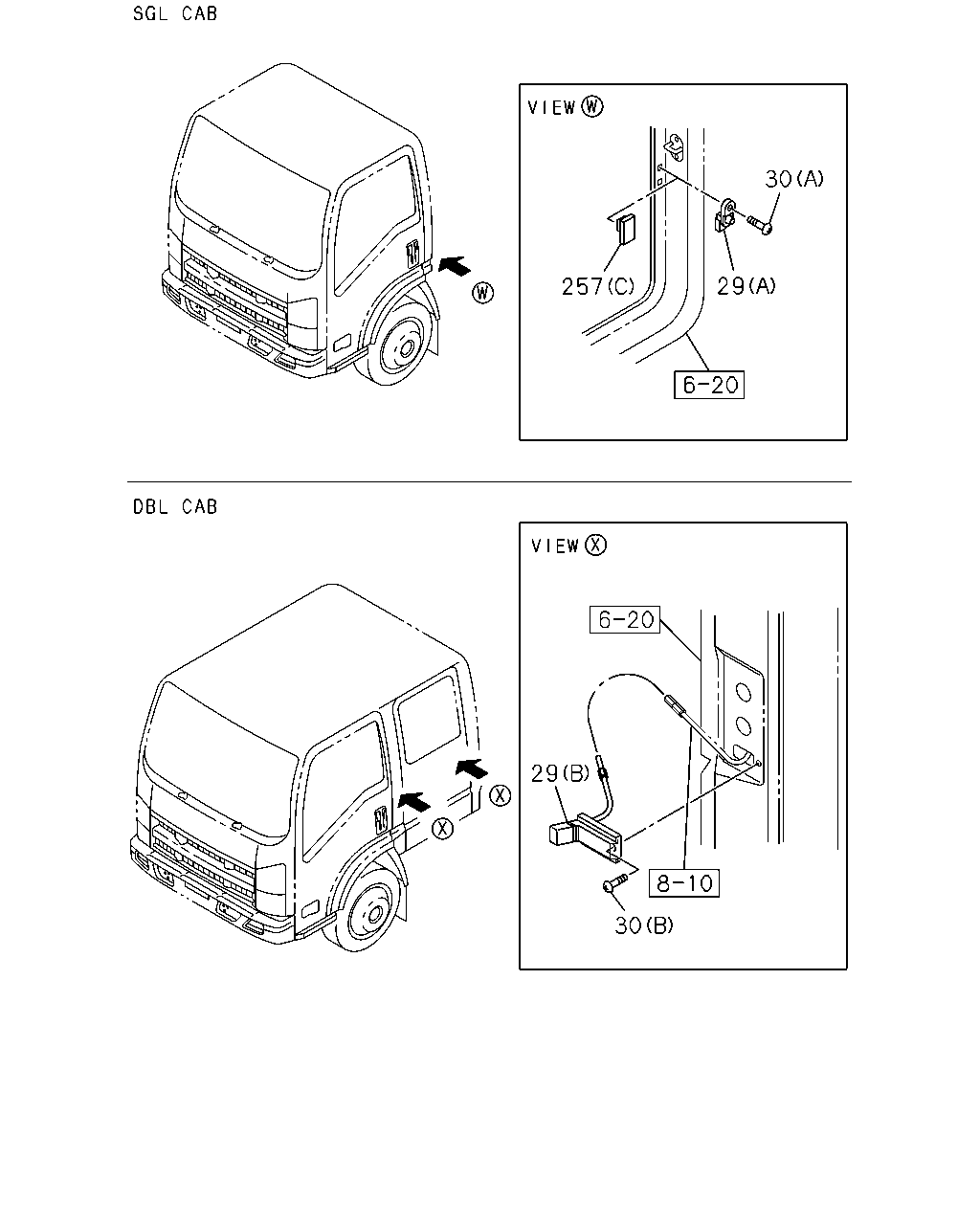

çizim 476475
257 29 30 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1505- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) (A) BLACK 		8-98022-211-0 01 1 1505- ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1505- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1505- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1505- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1505- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1505- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18 		8-98047-201-0 02 1 1505- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1505- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18 		8-98047-201-0 01 1 1505- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1505- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1505- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1505- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1505- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1505- ● ●

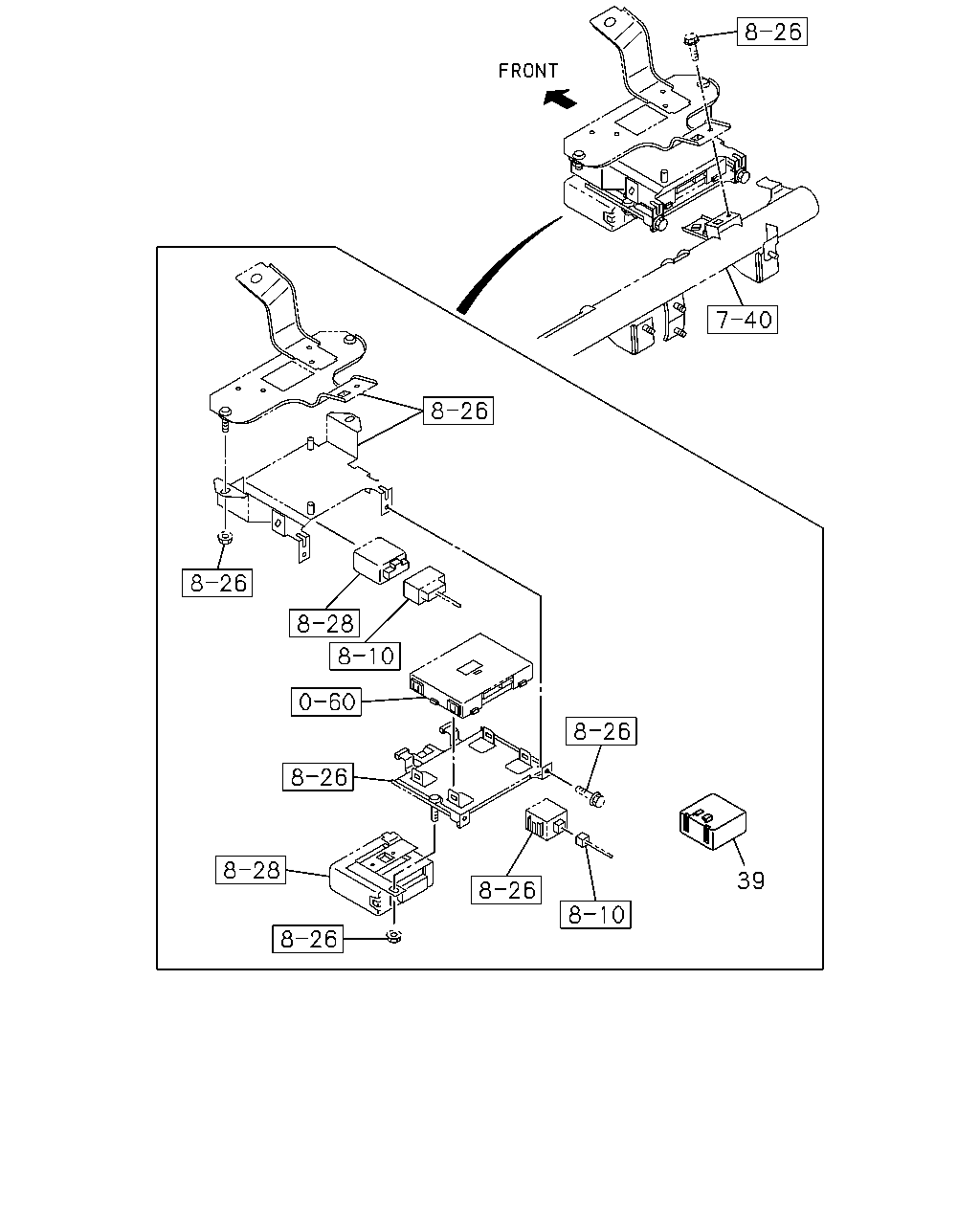

çizim 476504
39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1505- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
çizim 476851
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ● ● ●
608 02.485 RELAY; SHIFT
SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA 		8-98259-779-0 01 1 1505- ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA 		8-98259-779-0 01 1 1505- ● ●

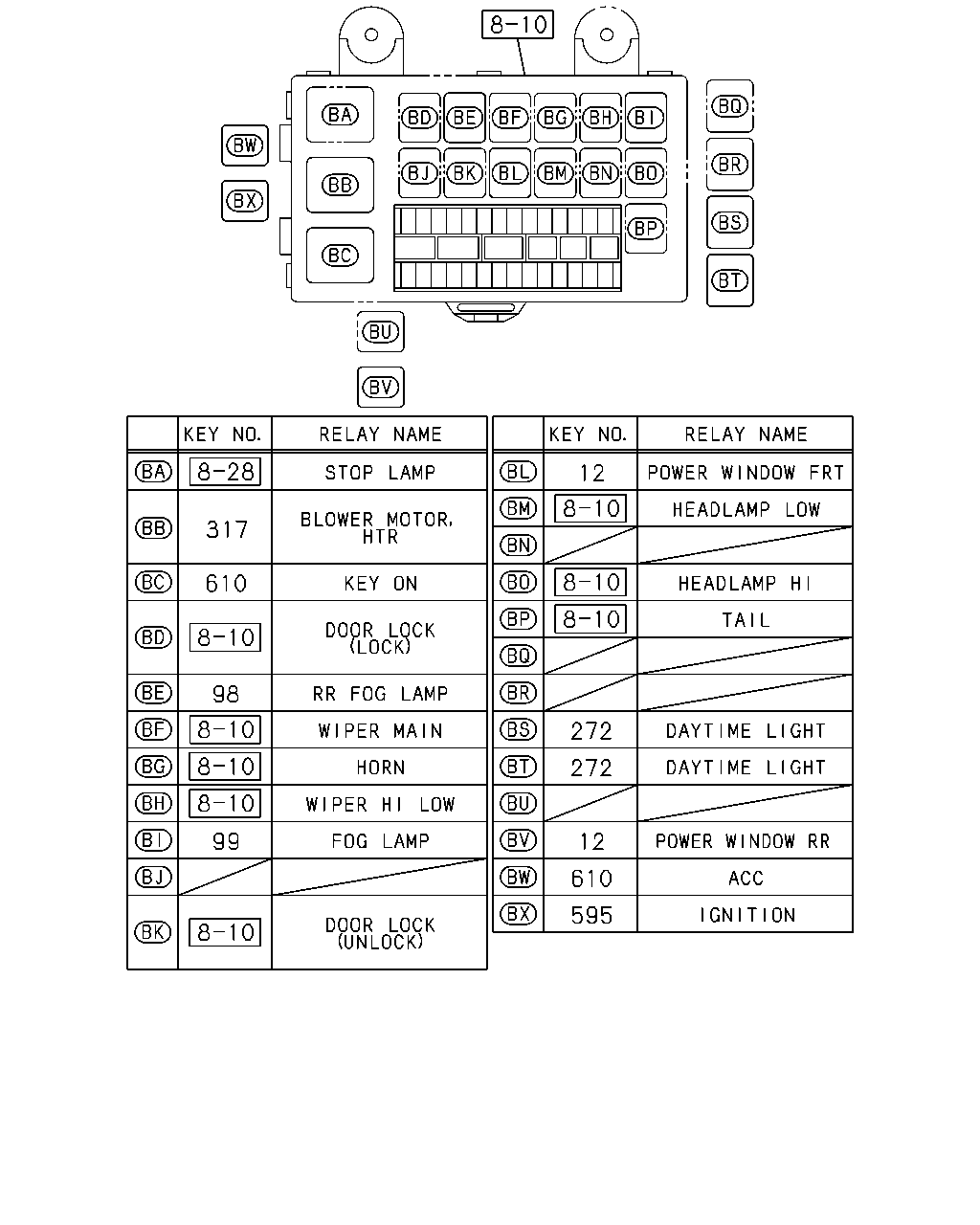

çizim 477045
317 610 98 99 12 610 595 272 272 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1505- ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
272 02.510 RELAY; DAYTIME LIGHT
08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1505- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505- ● ● ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1505- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1505- ● ● ● ●

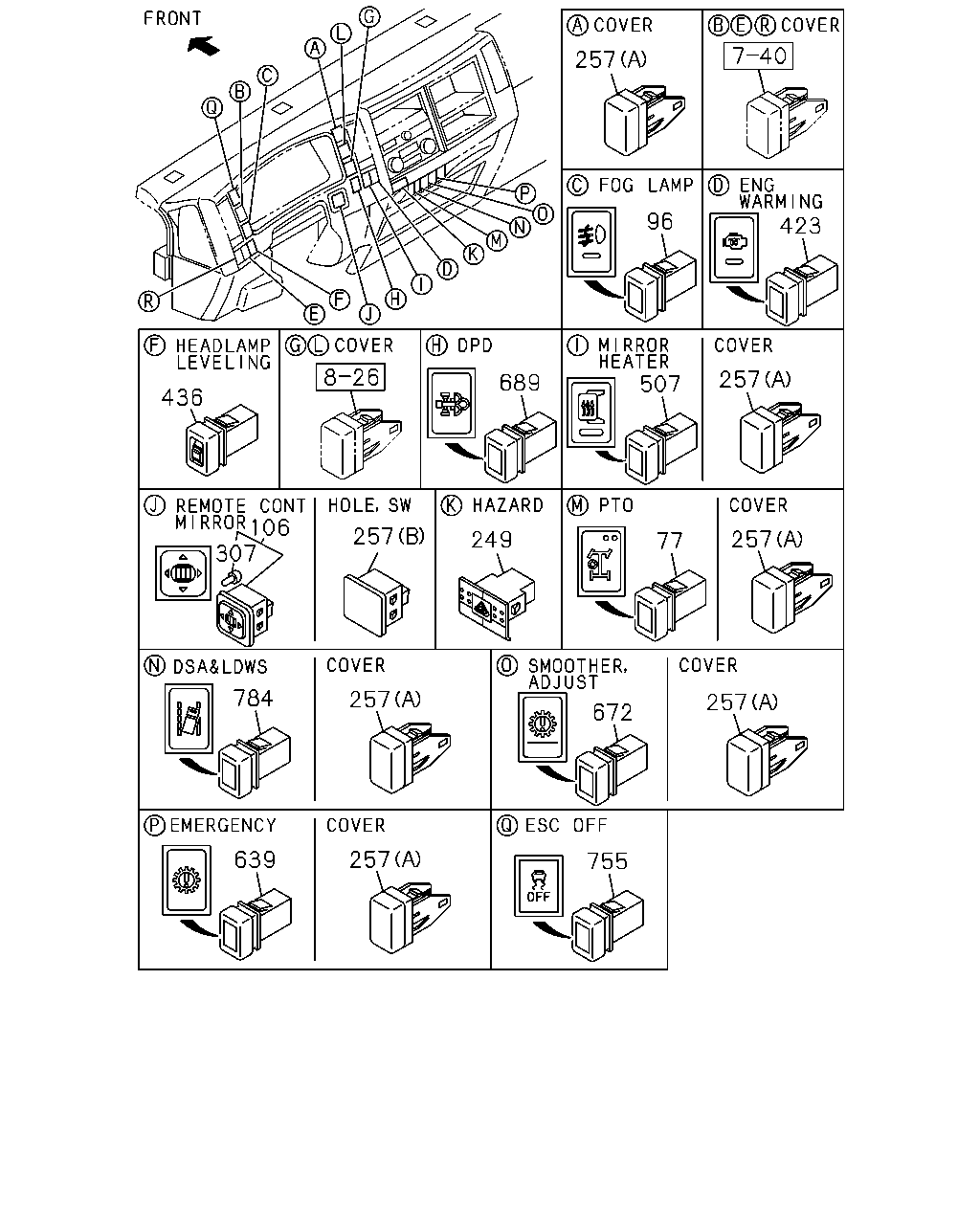

çizim 477075
257 423 96 507 257 689 436 307 257 249 784 257 672 257 639 257 755 77 257
BalonParca AdiParca NoAdetTipApplied Date A B C D
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-97386-964-2 01 1 1505- ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97386-964-2 01 1 1505- ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1505- ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1505- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1505- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1505- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1505- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ), SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1505- ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1505- ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 1505- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1505- ● ● ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1505- ● ● ● ●
639 16.263 SWITCH; EMERGENCY
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1505- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-948-0 01 1 1505- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1505- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98119-949-1 01 1 1505- ● ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 1505- ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1505- ● ●
755 03.883 SWITCH; ESC OFF 8-98190-384-1 01 1 1505- ● ● ● ●
784 03.883 SWITCH; DSA & LDWS 8-98208-989-1 01 1 1505- ● ●

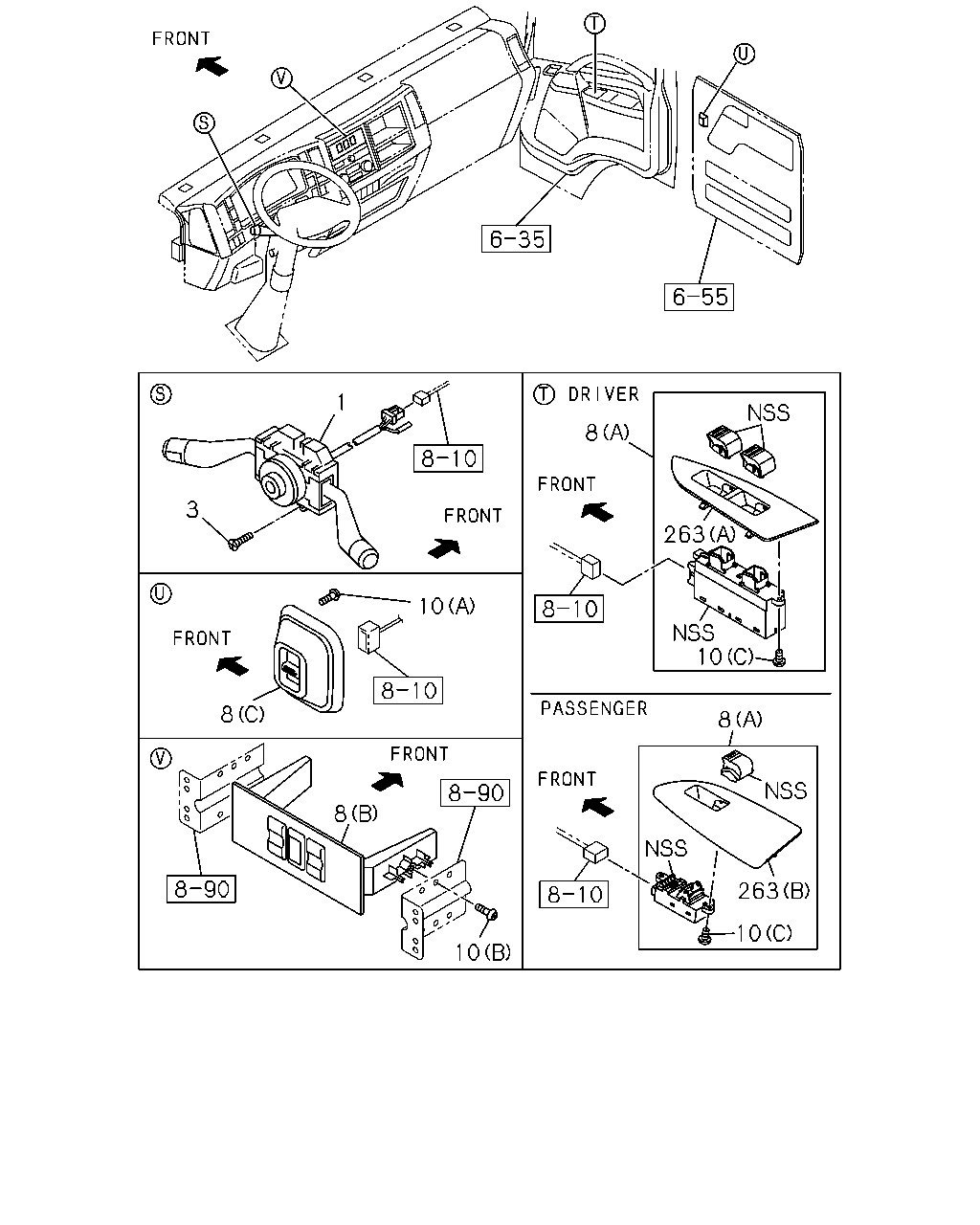

çizim 477081
8 1 3 10 8 263 10 8 263 10 8 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-740-0 01 1 1505- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1505- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-740-0 01 1 1505- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-742-0 01 1 1505- ● ●
1 02.895 SWITCH; COMB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-741-0 01 1 1505- ● ●
3 02.897 SCREW; COMB SW
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1505-1507 ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1508- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1505-1509 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1505-1509 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1505- ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 1505- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1505- ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 1505- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1505- ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1505- ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1505- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1505- ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1505- ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1505- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1505- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1505- ● ● ● ●
