Sayfa 8-15 - Isuzu EPC

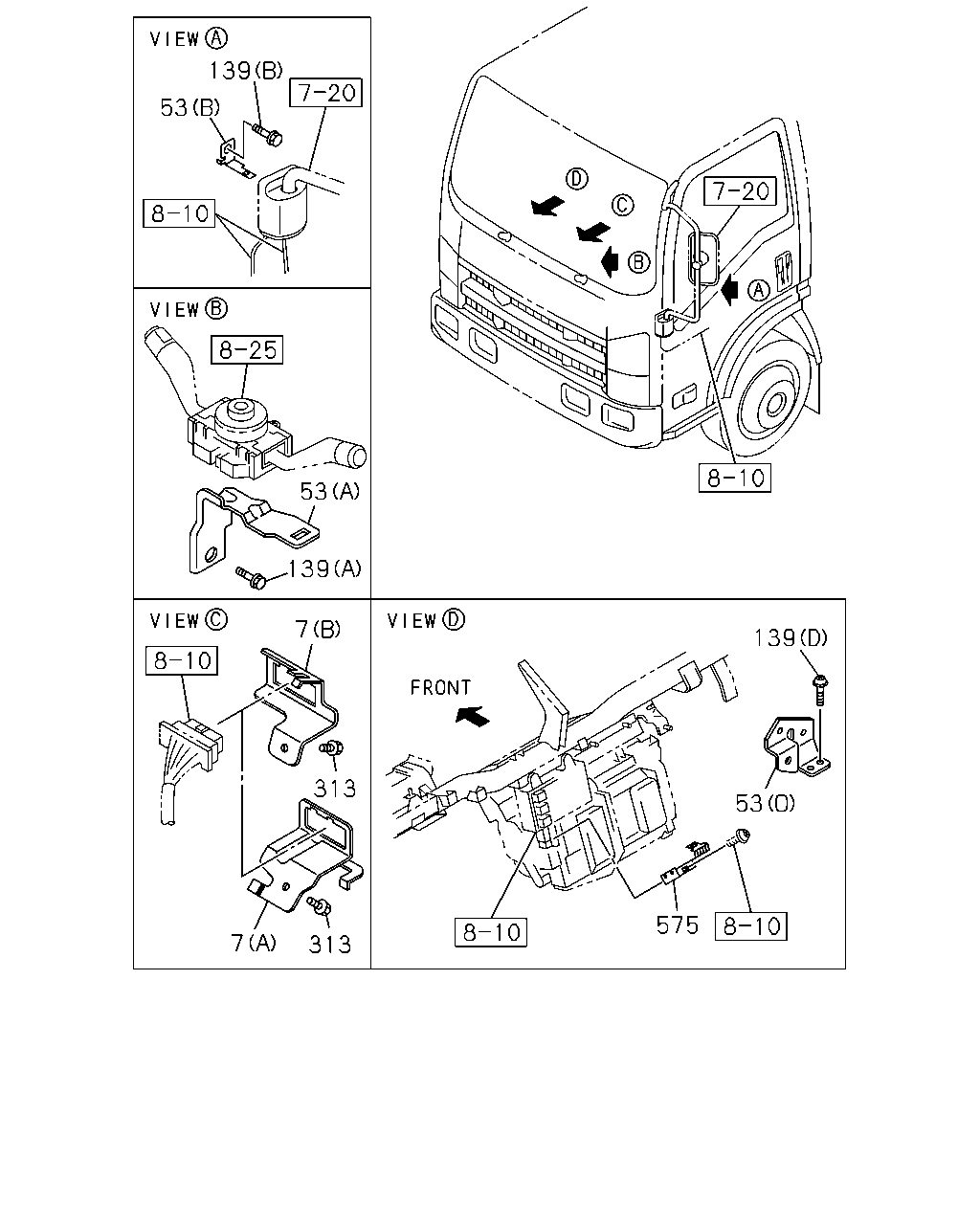

8-15 — FIXING PARTS; WIRING HARNESS (#161329) — 454 parça

38 139 480 377 24 294 515 577 139 294 515 524 552 24 515 552 377 386 386 480 242 38 529 313 481 139 516 150 38 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1505-1507	●	●
24	02.559 NUT; HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1505-1507			●	●
24	02.559 NUT; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1505-1507			●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-	●	●
24	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-			●	●
24	02.559 NUT; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-			●	●
24	02.559 NUT; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1505-			●	●
38	02.559 BOLT; CLIP,HARNESS 00.206 (B) M8X30 FLANGE	0-28050-830-0	01	1	1505-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 00.206 (B) M8X30 FLANGE	0-28050-830-0	01	1	1505-			●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1505-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	04	1	1505-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1505-	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28050-812-0	01	1	1505-			●	●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507	●	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507			●	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507			●	●
242	02.483 BOLT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-			●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-			●	●
242	02.483 BOLT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-		●
242	02.483 BOLT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-		●
294	02.559 NUT EXC. EGR COOLER LH POSITION<KCC> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-	●	●	●	●
294	02.559 NUT 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	1505-			●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1505-	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1505-	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1505-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1505-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1505-	●	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●	●
480	02.483 BOLT; BRKT EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●	●
480	02.483 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●
480	02.483 BOLT; BRKT WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●	●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507		●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507				●
480	02.483 BOLT; BRKT EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●	●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-				●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1505-	●	●
481	13.090 BOLT; CABLE HARNESS REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1505-			●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1505-	●	●	●	●
515	02.559 NUT; BRKT EURO5B+ SPECIFICATION(NT5) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-	●
515	02.559 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
515	02.559 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
515	02.559 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●
515	02.559 NUT; BRKT EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-				●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-			●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-	●	●
524	02.559 NUT; HARNESS REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1505-			●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1505-	●	●	●	●

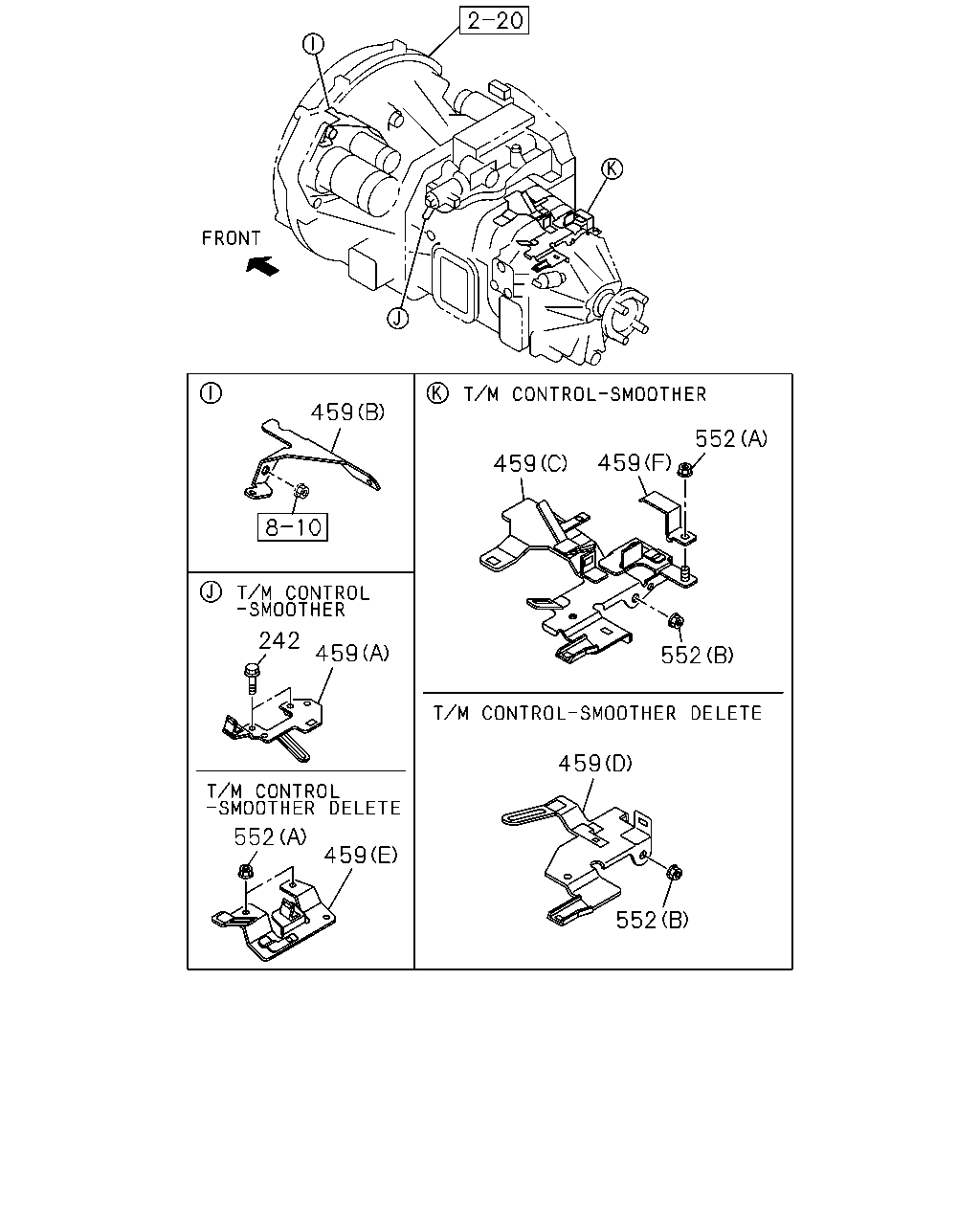

552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-		●
552	02.483 NUT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-		●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-			●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1505-	●	●	●	●

53 53 53 53 402 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

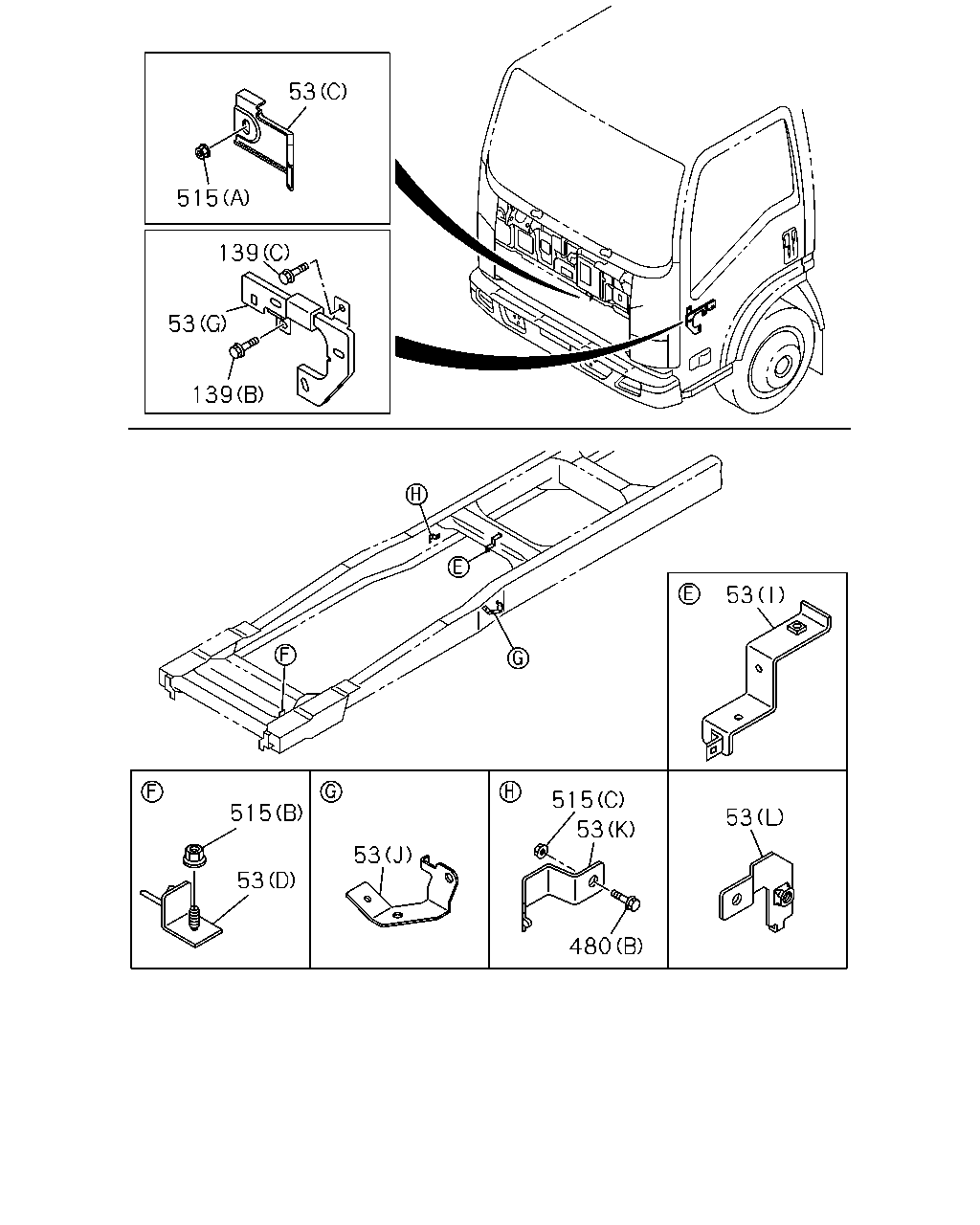

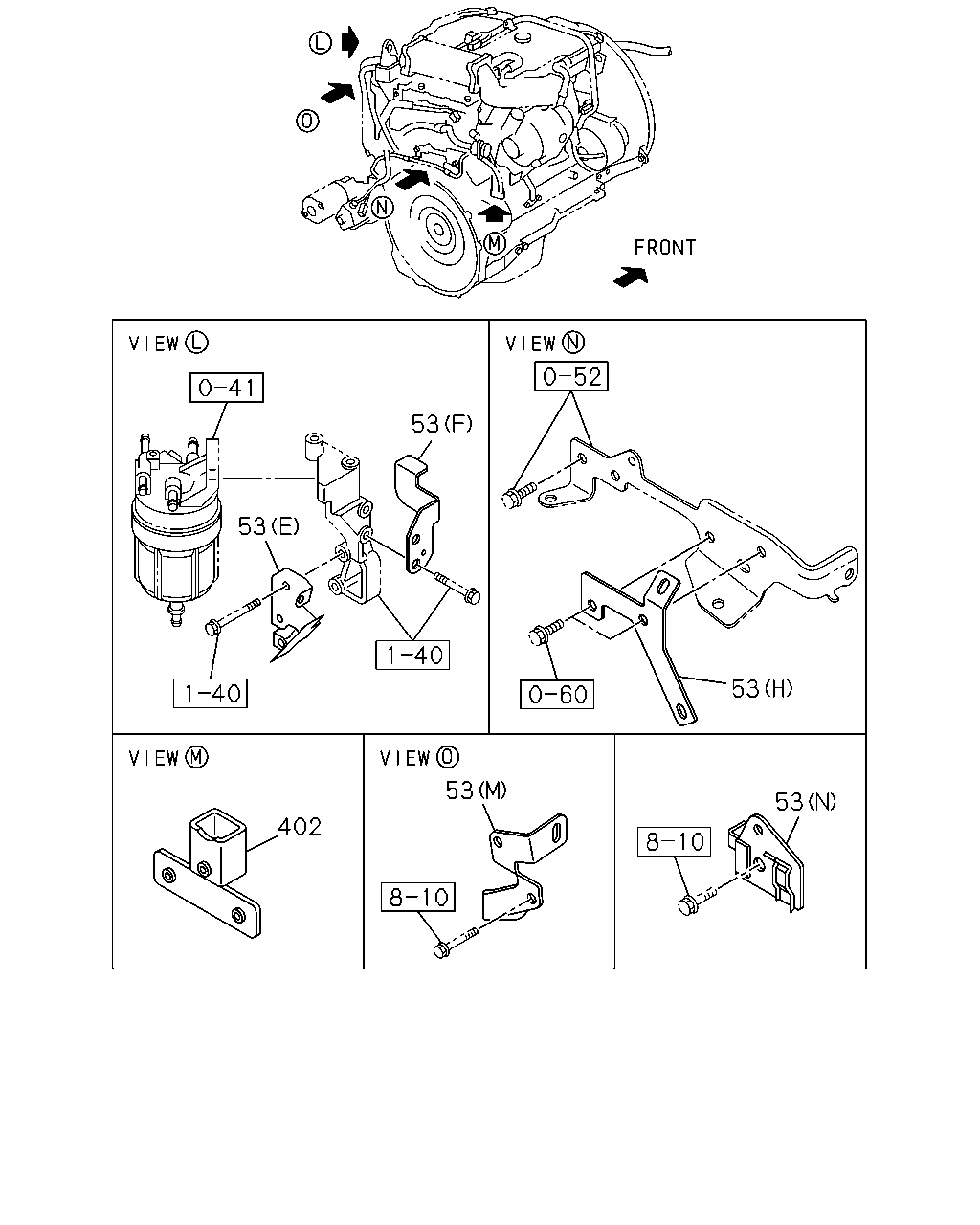

53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (L)	8-98228-926-0	01	1	1505-1507	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98228-926-0	01	1	1505-1507			●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (L)	8-98228-926-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98228-926-0	01	1	1508-			●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> (K)	8-98228-930-1	01	1	1505-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (K)	8-98228-930-1	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (K)	8-98228-930-1	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (O)	8-98084-699-0	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (M)	8-98186-566-0	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (N)	8-98260-637-1	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) (H)	8-98237-539-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (F)	8-98052-804-0	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (E)	8-98055-636-0	01	1	1505-			●
402	02.559 COVER; CONN 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC>	8-98236-392-0	01	1	1505-			●

14 48 22 102 16 16 22 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

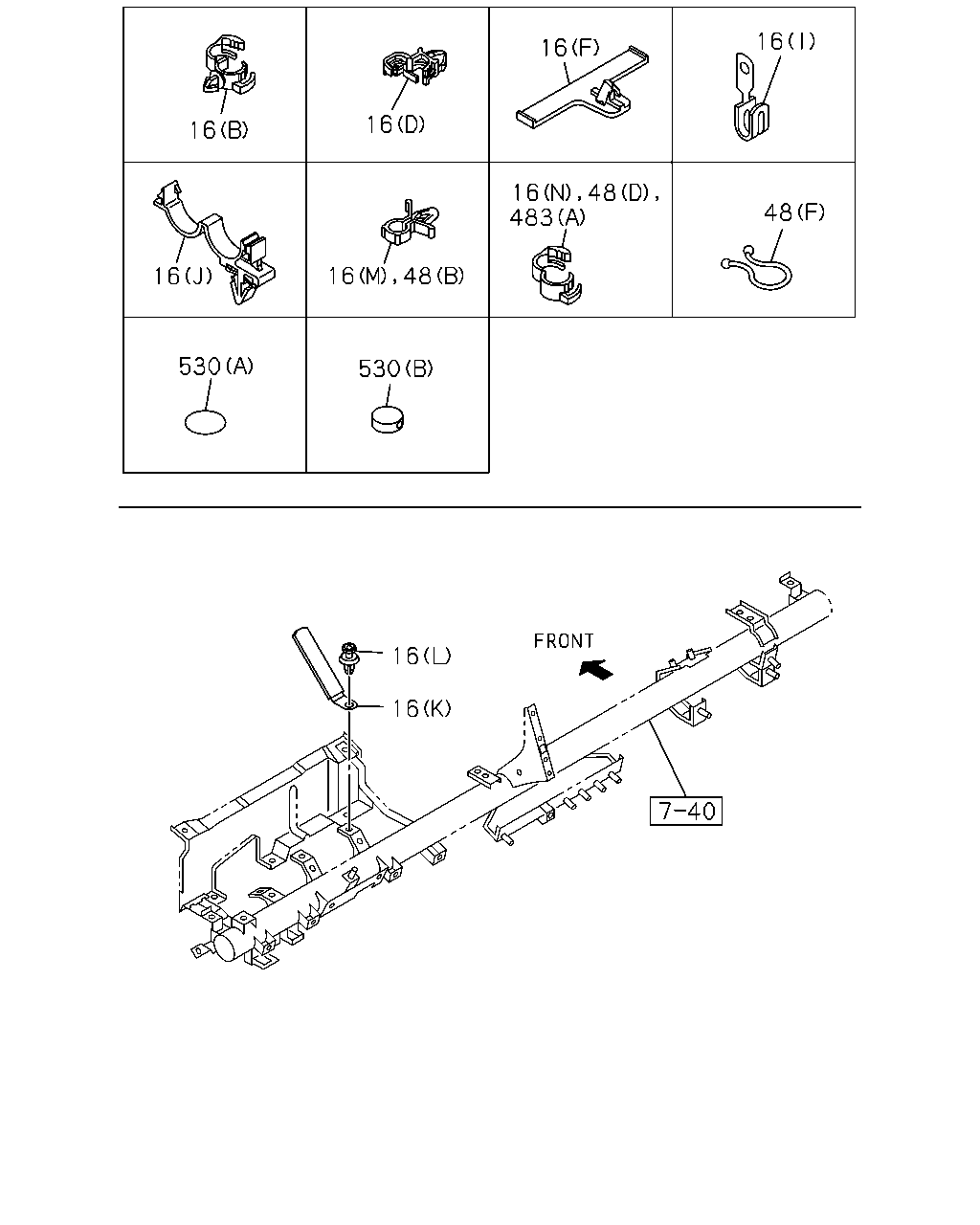

14	02.559 CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> L=202	8-98143-872-0	01	1	1505-			●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (N) ID=20	8-94241-972-0	01	1	1505-1507	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (N) ID=20	8-94241-972-0	01	1	1505-1507			●	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (N) ID=20	8-94241-972-0	01	1	1508-	●	●	●	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (E) L=250	5-09707-030-1	14	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28	8-94362-106-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28	8-94362-106-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	04	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (K) L=91 ID=8.5	8-94329-956-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 16.578 (L) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) L=250	5-09707-030-1	01	1	1505-1505			●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) L=250	5-09707-030-1	01	1	1505-1505				●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) 16.341 (M) ID=3.8 WHITE	8-94217-699-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (I)	8-97101-436-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.682 (O) L=218	8-98000-505-1	02	1	1505-				●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (P) L=206.3	8-98002-170-1	01	1	1505-				●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41) (B) ID=6.8	8-97134-154-0	01	1	1505-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) L=119.5	1-09707-197-0	01	1	1505-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1505-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1505-			●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (D) L=140	5-09707-031-1	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) 04.661 (E) ID=14.5 & 6	8-94312-791-0	02	1	1505-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=20	8-94241-972-0	01	1	1505-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) 04.661 (E) ID=14.5 & 6	8-94312-791-0	01	1	1505-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1505-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1505-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1505-1507		●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1508-		●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 09.663 (F) ID=15	1-09709-003-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 09.663 (F) ID=15	1-09709-003-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.890 (B) ID=4.8	1-09701-218-0	02	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) 08.852 (G) L=350	8-94152-256-1	01	1	1505-		●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (H) T=5.5	8-97371-951-0	01	1	1505-1507		●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) (H) T=5.5	8-97371-951-0	01	1	1508-		●
102	02.559 CLIP; BAND 4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	02	1	1505-			●	●

459 242 459 552 459 552 459 552 459 552 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507	●	●
242	02.483 BOLT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507			●	●
242	02.483 BOLT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1505-1507			●	●
242	02.483 BOLT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-			●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-			●	●
242	02.483 BOLT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-		●
242	02.483 BOLT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98020-227-3	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98196-974-0	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98196-974-0	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (F)	8-98044-758-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (F)	8-98044-758-2	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98044-758-2	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (F)	8-98044-758-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (F)	8-98044-758-2	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98044-758-2	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (F)	8-98044-758-2	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) (F)	8-98044-758-2	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (A)	8-98018-899-1	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98018-899-1	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98018-899-1	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (A)	8-98018-899-1	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98018-899-1	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98018-899-1	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (A)	8-98018-899-1	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) (A)	8-98018-899-1	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (B)	8-98030-988-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98030-988-2	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B)	8-98030-988-2	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (B)	8-98030-988-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B)	8-98030-988-2	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98030-988-2	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (B)	8-98030-988-2	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) (B)	8-98030-988-2	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1505-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98030-991-2	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1505-1507			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98030-991-2	01	1	1508-			●	●
459	02.483 BRACKET; SUPPORT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1508-		●
459	02.483 BRACKET; SUPPORT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) (C)	8-98030-991-2	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-		●
552	02.483 NUT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-		●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1505-			●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●	●
552	02.483 NUT; BRKT,HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507	●
552	02.483 NUT; BRKT,HARNESS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1505-1507			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-			●	●
552	02.483 NUT; BRKT,HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●
552	02.483 NUT; BRKT,HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-		●

139 53 53 139 7 313 7 313 575 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	1505-	●	●	●	●
7	02.559 BRACKET; CONNECTOR SMOOTHER-EX(TYPE2)(8NS) (A)	8-98114-514-0	01	1	1505-	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A)	8-98114-514-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (L)	8-98228-926-0	01	1	1505-1507	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98228-926-0	01	1	1505-1507			●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (L)	8-98228-926-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98228-926-0	01	1	1508-			●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> (K)	8-98228-930-1	01	1	1505-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (K)	8-98228-930-1	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (K)	8-98228-930-1	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (O)	8-98084-699-0	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (M)	8-98186-566-0	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (N)	8-98260-637-1	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) (H)	8-98237-539-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (F)	8-98052-804-0	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (E)	8-98055-636-0	01	1	1505-			●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1505-	●	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1505-	●	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-2	01	1	1505-	●	●	●	●

48 22 48 483 48 16 16 16 483 16 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (N) ID=20	8-94241-972-0	01	1	1505-1507	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (N) ID=20	8-94241-972-0	01	1	1505-1507			●	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (N) ID=20	8-94241-972-0	01	1	1508-	●	●	●	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (E) L=250	5-09707-030-1	14	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28	8-94362-106-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28	8-94362-106-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	04	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (K) L=91 ID=8.5	8-94329-956-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 16.578 (L) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) L=250	5-09707-030-1	01	1	1505-1505			●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) L=250	5-09707-030-1	01	1	1505-1505				●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) 16.341 (M) ID=3.8 WHITE	8-94217-699-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (I)	8-97101-436-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.682 (O) L=218	8-98000-505-1	02	1	1505-				●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (P) L=206.3	8-98002-170-1	01	1	1505-				●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41) (B) ID=6.8	8-97134-154-0	01	1	1505-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) L=119.5	1-09707-197-0	01	1	1505-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1505-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	1505-			●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (D) L=140	5-09707-031-1	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) 04.661 (E) ID=14.5 & 6	8-94312-791-0	02	1	1505-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=20	8-94241-972-0	01	1	1505-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) 04.661 (E) ID=14.5 & 6	8-94312-791-0	01	1	1505-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1505-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1505-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1505-1507		●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1508-		●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 09.663 (F) ID=15	1-09709-003-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 09.663 (F) ID=15	1-09709-003-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.890 (B) ID=4.8	1-09701-218-0	02	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) 08.852 (G) L=350	8-94152-256-1	01	1	1505-		●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (H) T=5.5	8-97371-951-0	01	1	1505-1507		●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) (H) T=5.5	8-97371-951-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	02	1	1505-			●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=20	8-94241-972-0	01	1	1505-			●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1505-			●	●

16 16 16 16 16 16 48 16 483 48 48 530 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS (N) ID=20	8-94241-972-0	01	1	1505-1507	●	●
16	02.559 CLIP; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (N) ID=20	8-94241-972-0	01	1	1505-1507			●	●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (N) ID=20	8-94241-972-0	01	1	1508-	●	●	●	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (E) L=250	5-09707-030-1	14	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28	8-94362-106-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.483 (J) ID=28	8-94362-106-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS SMOOTHER-EX(TYPE2)(8NS) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	04	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (K) L=91 ID=8.5	8-94329-956-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 16.578 (L) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1505-	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) L=250	5-09707-030-1	01	1	1505-1505			●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) L=250	5-09707-030-1	01	1	1505-1505				●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) 16.341 (M) ID=3.8 WHITE	8-94217-699-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (I)	8-97101-436-0	01	1	1505-			●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1505-		●		●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.682 (O) L=218	8-98000-505-1	02	1	1505-				●
16	02.559 CLIP; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (P) L=206.3	8-98002-170-1	01	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) 04.661 (E) ID=14.5 & 6	8-94312-791-0	02	1	1505-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=20	8-94241-972-0	01	1	1505-	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) 04.661 (E) ID=14.5 & 6	8-94312-791-0	01	1	1505-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (A) ID=14 L=47	5-09700-319-0	09	1	1505-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1505-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1505-1507		●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1508-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1508-		●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1505-			●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1505-				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 09.663 (F) ID=15	1-09709-003-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 09.663 (F) ID=15	1-09709-003-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.890 (B) ID=4.8	1-09701-218-0	02	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	1505-			●	●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) 08.852 (G) L=350	8-94152-256-1	01	1	1505-		●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (H) T=5.5	8-97371-951-0	01	1	1505-1507		●
48	02.559 CLIP; FRAME HARNESS EURO5B+ SPECIFICATION(NT5) (H) T=5.5	8-97371-951-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	02	1	1505-			●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=20	8-94241-972-0	01	1	1505-			●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1505-			●	●
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1505-	●	●	●	●
530	02.559 SEAL; HARNESS 09.772 (B)	1-15739-008-0	01	1	1505-			●	●

53 515 139 53 139 515 53 53 515 53 480 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (L)	8-98228-926-0	01	1	1505-1507	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98228-926-0	01	1	1505-1507			●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) (L)	8-98228-926-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98228-926-0	01	1	1508-			●
53	02.483 BRACKET; HARNESS EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> (K)	8-98228-930-1	01	1	1505-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (K)	8-98228-930-1	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> (K)	8-98228-930-1	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (O)	8-98084-699-0	01	1	1505-	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (M)	8-98186-566-0	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> (N)	8-98260-637-1	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) (H)	8-98237-539-0	01	1	1505-			●	●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (F)	8-98052-804-0	01	1	1505-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) EXC. EGR COOLER LH POSITION<KCC> 02.559 (E)	8-98055-636-0	01	1	1505-			●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1505-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1505-	●	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1505-			●	●
480	02.483 BOLT; BRKT EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●	●
480	02.483 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●
480	02.483 BOLT; BRKT WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) FUEL TANK 63 LITTER<6EF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507	●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●	●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507			●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507		●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1505-1507				●
480	02.483 BOLT; BRKT EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●	●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●	●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
480	02.483 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-			●
480	02.483 BOLT; BRKT EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
480	02.483 BOLT; BRKT WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-				●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1505-	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1505-	●	●	●	●
515	02.559 NUT; BRKT EURO5B+ SPECIFICATION(NT5) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-	●
515	02.559 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
515	02.559 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),S MOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
515	02.559 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-			●
515	02.559 NUT; BRKT EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1505-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
