◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#161328) — 271 parça

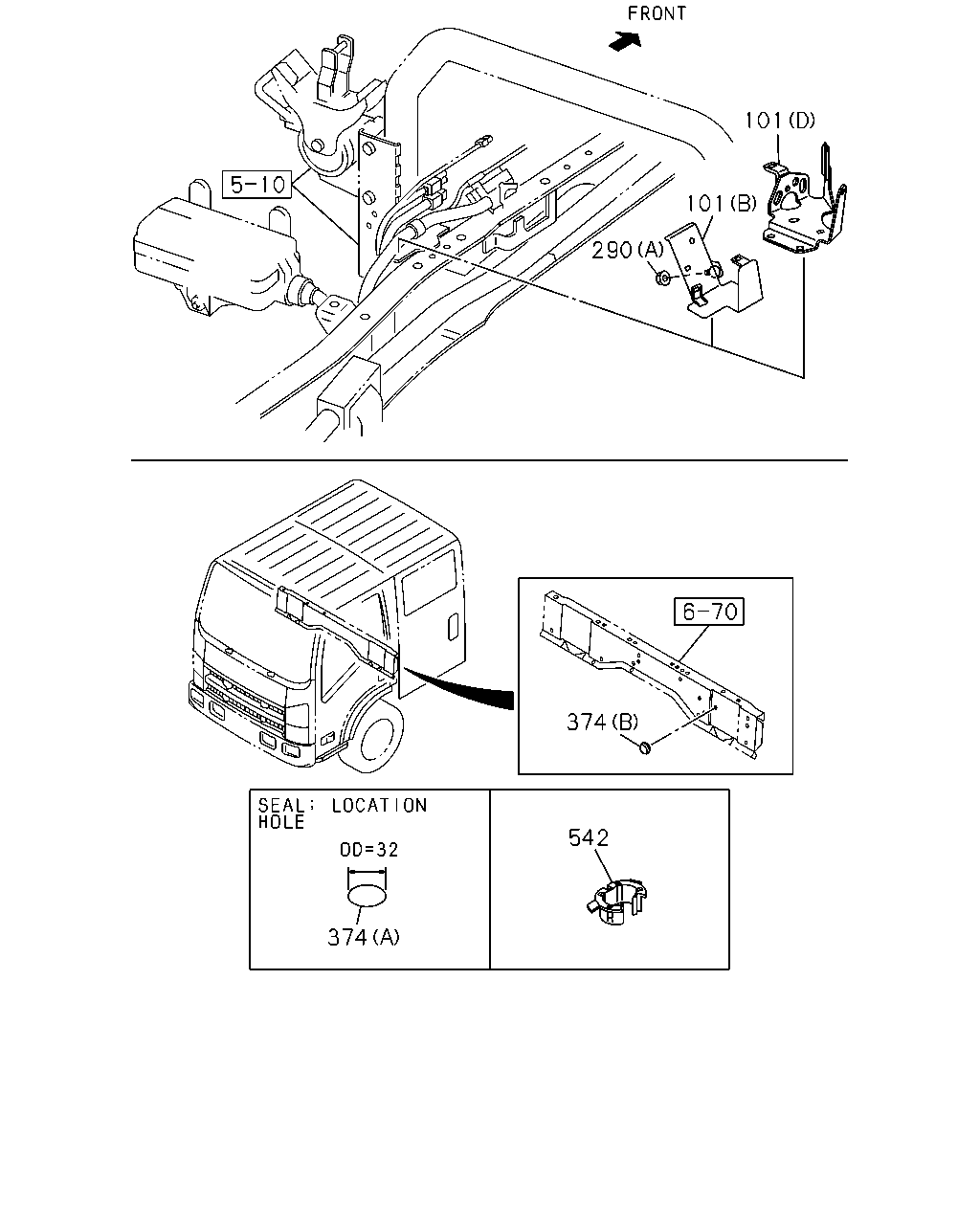

çizim 476574
101 101 290 374 542 374
BalonParca AdiParca NoAdetTipApplied Date A B C D
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-169-2 01 1 1505- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 1505- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (B) OD=24.5 T=7.5 		8-97224-683-0 01 1 1505- ● ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1505- ● ● ● ●

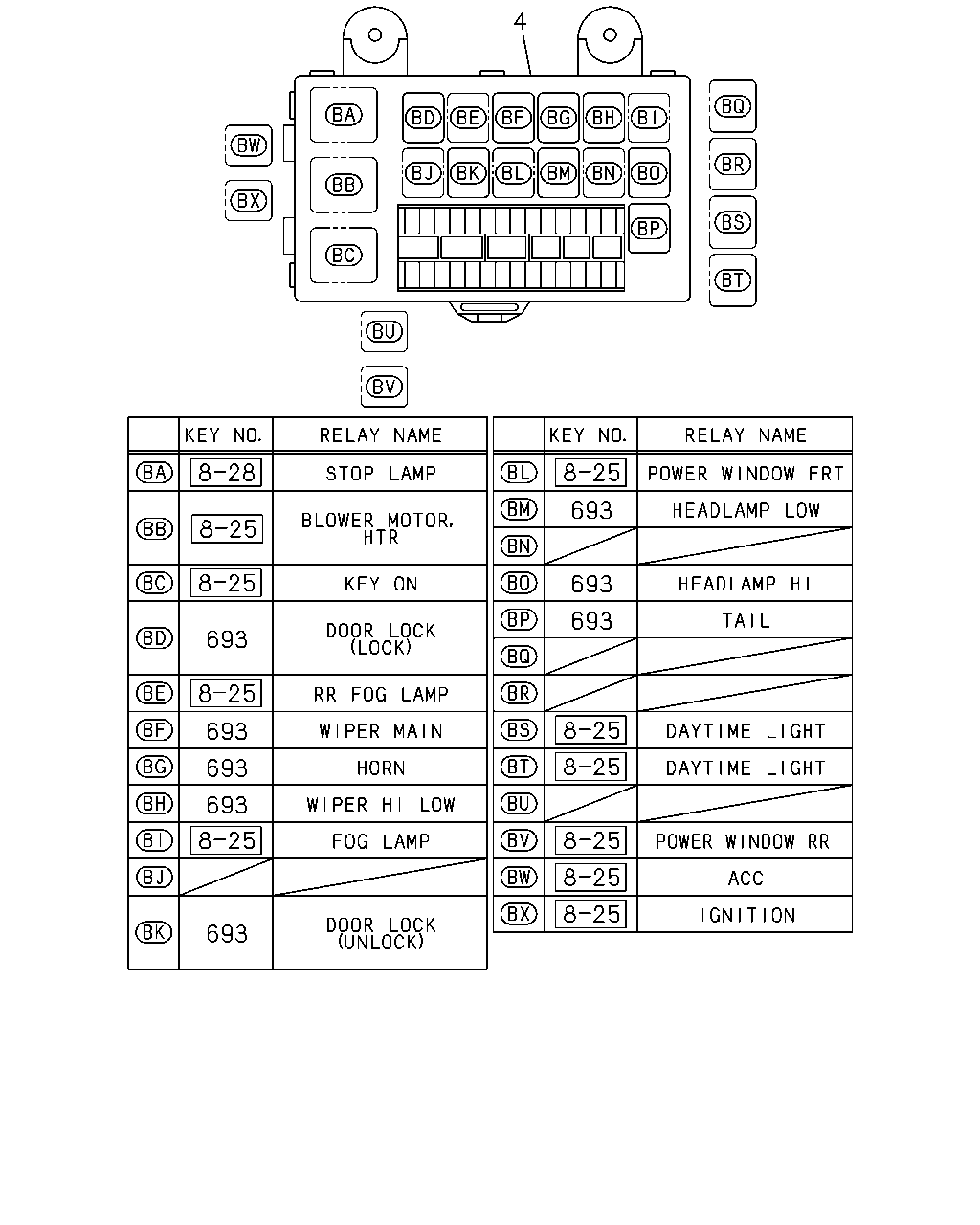

çizim 476672
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1505- ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ● ● ● ●

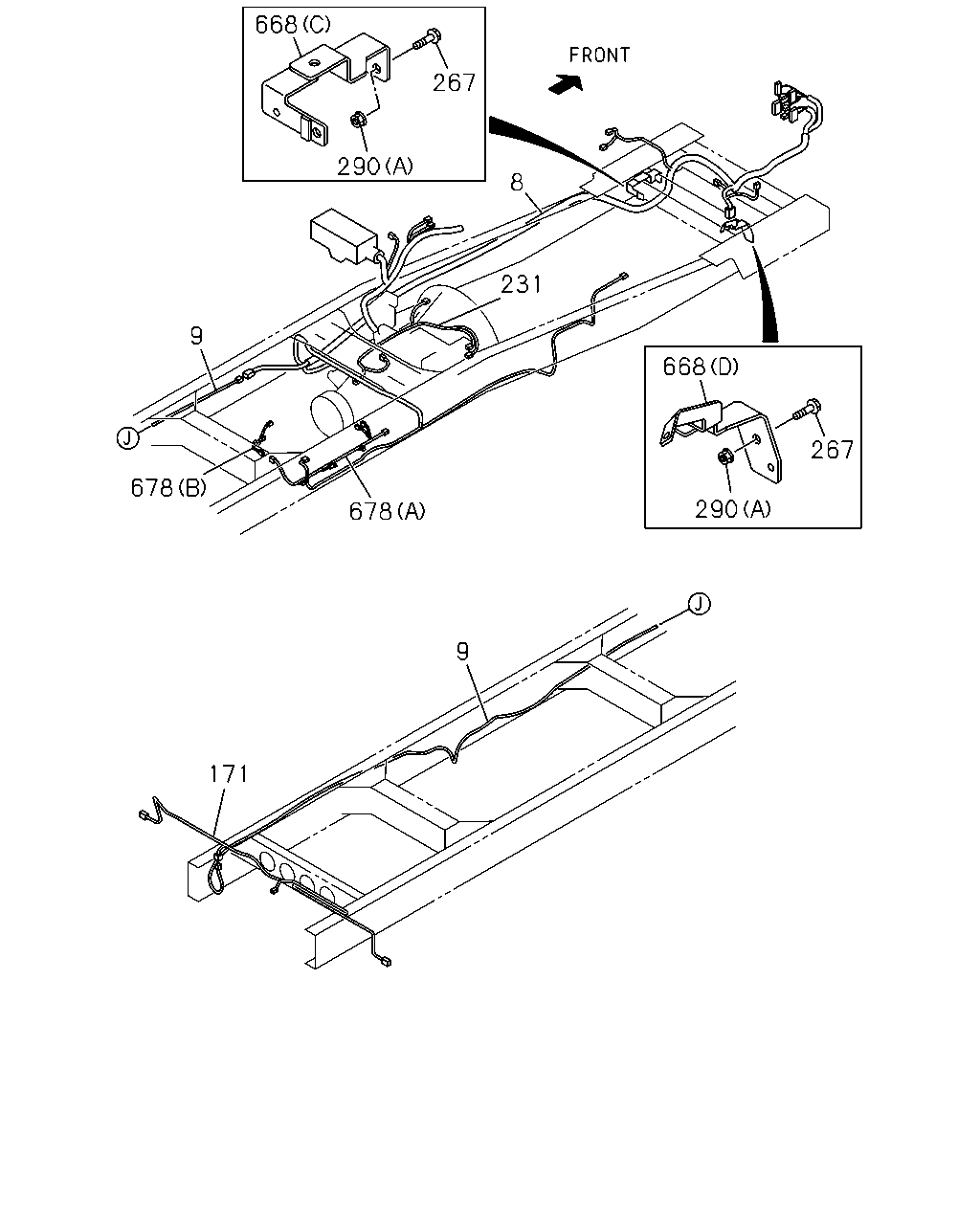

çizim 476755
668 290 267 8 231 678 678 668 290 267 9 171 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-915-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-916-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-917-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-917-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-919-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-919-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-591-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-593-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-648-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-647-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-737-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-736-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-918-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-918-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-920-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-920-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-592-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-594-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-739-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-738-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) 		8-98046-995-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) 		8-98228-338-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) 		8-98047-002-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
EURO5B+ SPECIFICATION(NT5) 		8-98047-002-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98228-339-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-339-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-935-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-936-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-937-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-341-1 01 1 1505- ●
9 02.480 HARNESS; FRAME,RR
EURO6 SPECIFICATION(NT6) 		8-98228-340-1 01 1 1505-1507 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-340-1 01 1 1505-1507 ●
9 02.480 HARNESS; FRAME,RR
EURO6 SPECIFICATION(NT6) 		8-98228-340-1 01 1 1508- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-340-1 01 1 1508- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-199-0 01 1 1505- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
ROAD SWEEPER TRUCK(Y23) 		8-98156-026-0 01 1 1505- ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. ROAD SWEEPER TRUCK(Y23) 		8-98156-025-0 01 1 1505- ● ● ● ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ● ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1505-1507 ● ●
231 02.480 HARNESS; TRANS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1505-1507 ● ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1508- ● ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 63 LITTER<6EF> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1508- ●
231 02.480 HARNESS; TRANS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98224-158-1 01 1 1505- ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ● ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.672 (C) 		8-98207-479-1 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98226-452-1 01 1 1505- ● ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-426-2 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98145-581-1 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98145-581-1 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-427-2 01 1 1505- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-430-3 01 1 1505- ●

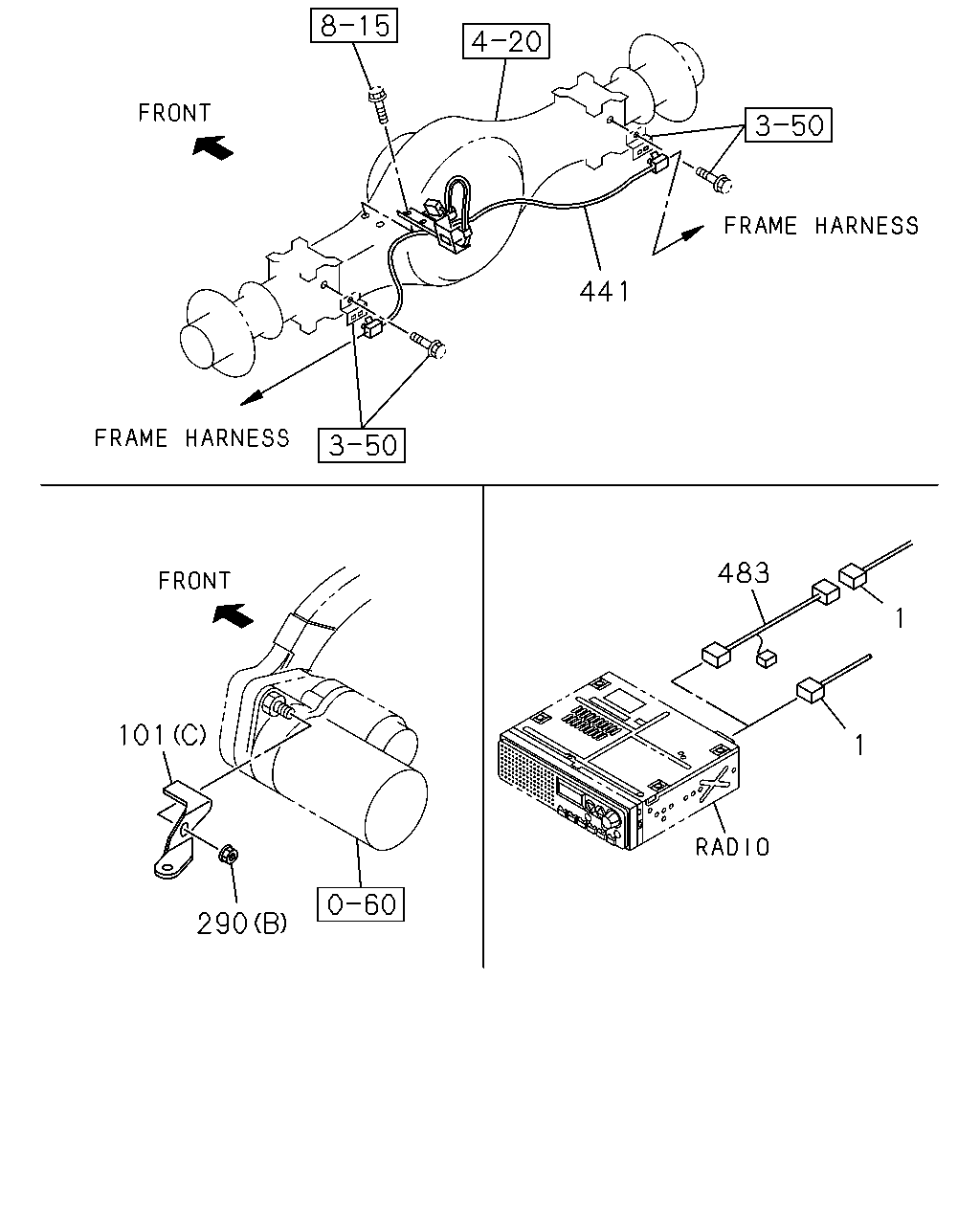

çizim 476768
441 101 290 483 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-897-3 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98287-930-4 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98287-899-3 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98287-929-4 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-898-3 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98287-931-4 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-169-2 01 1 1505- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
290 02.483 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1505-1505 ● ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-98080-697-1 01 1 1505- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98080-697-1 01 1 1505- ● ●
483 02.480 HARNESS; EXT,RADIO
IDENTIFICATION LABEL FOR KD<6UT> 		8-98116-875-0 01 1 1505- ● ● ● ●

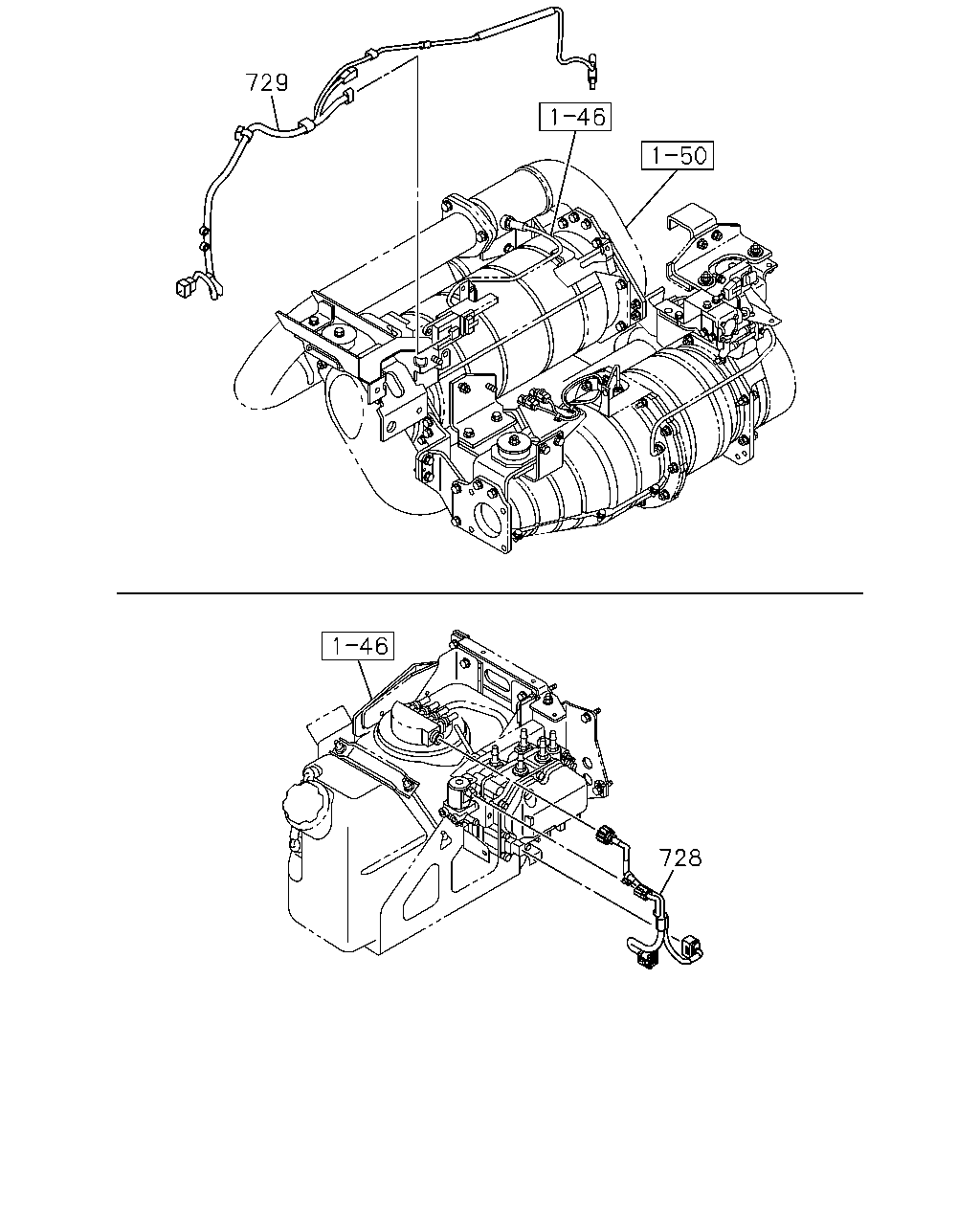

çizim 476814
729 728
BalonParca AdiParca NoAdetTipApplied Date A B C D
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1505- ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-200-2 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-201-2 01 1 1505- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-202-0 01 1 1505- ●

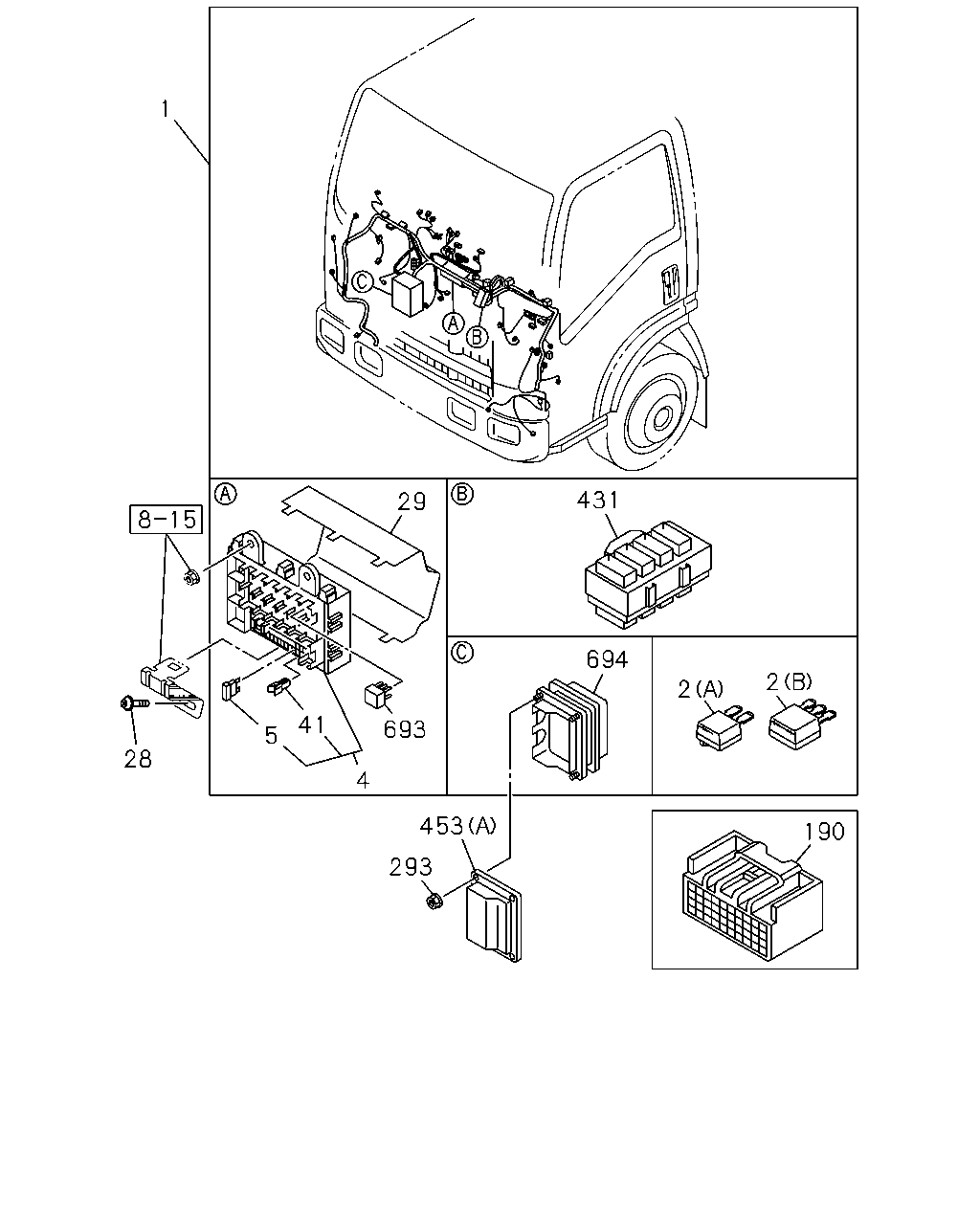

çizim 476885
1 29 28 5 41 4 693 694 431 2 2 190 453 293
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-897-3 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98287-930-4 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98287-899-3 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98287-929-4 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-898-3 01 1 1505- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98287-931-4 01 1 1505- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1505- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1505- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1505- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1505- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1505- ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1505- ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1505- ● ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1505- ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1505- ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 8-98302-775-0 01 1 1505- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1505- ● ● ● ●
431 02.530 CONNECTOR; JOINT 8-98046-205-0 01 1 1505- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1505- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) (C) 		8-94417-716-0 04 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 04 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-94417-716-0 02 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1505- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1505- ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1505- ● ● ● ●
694 02.483 BOX ASM; CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98057-772-0 01 1 1505- ● ● ● ●
694 02.483 BOX ASM; CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98190-772-0 01 1 1505- ● ● ● ●

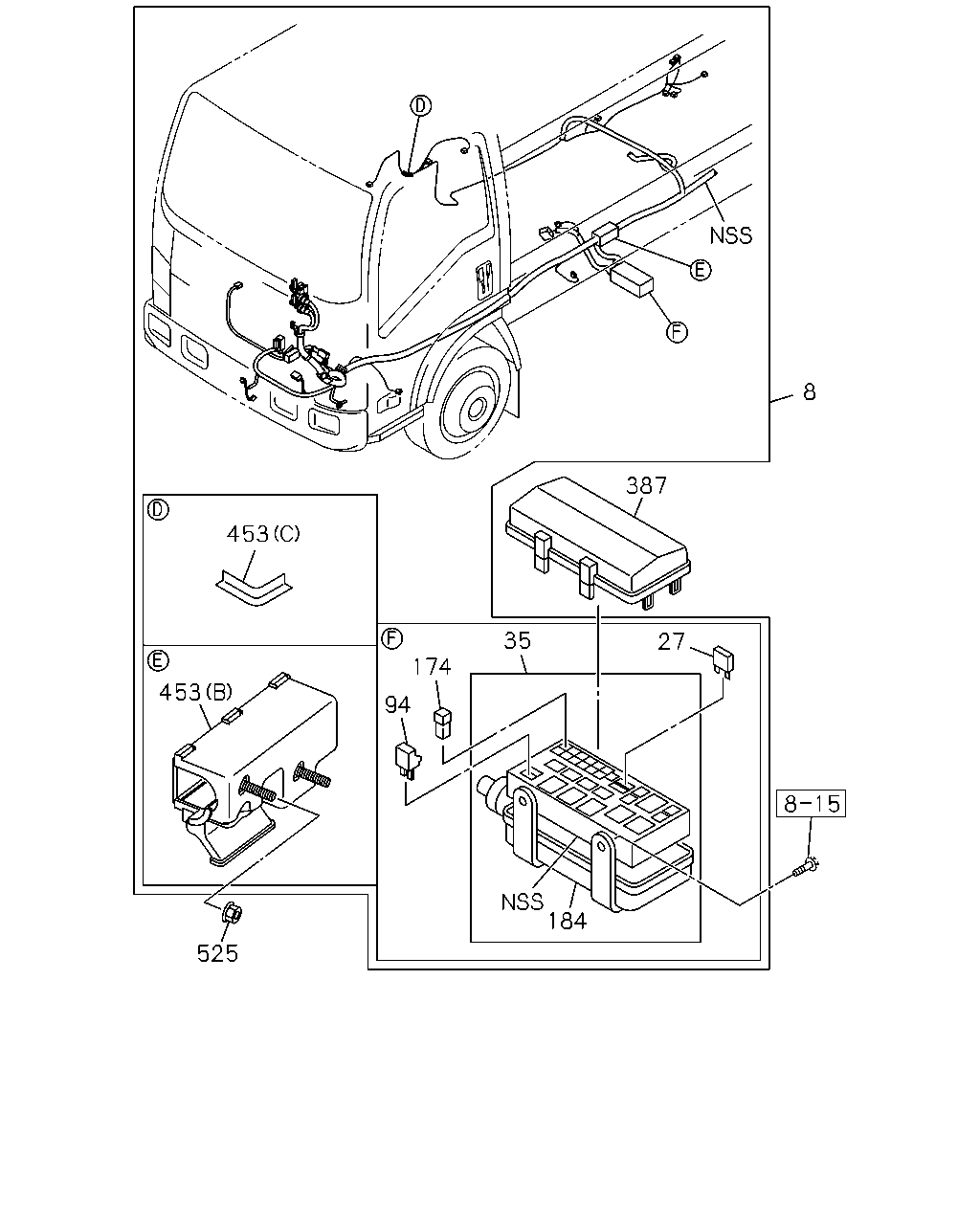

çizim 476904
387 8 27 35 174 94 184 525 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-915-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-916-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-917-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-917-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-919-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-919-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-591-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-593-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-648-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-647-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-737-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-736-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-918-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-918-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-920-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-920-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-592-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EURO5B+ SPECIFICATION(NT5) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-594-0 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98298-739-1 01 1 1505- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98298-738-1 01 1 1505- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1505- ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1505- ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1505- ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1505- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1505- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1505- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1505- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1505- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1505- ● ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1505- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1505- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) (C) 		8-94417-716-0 04 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 04 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-94417-716-0 02 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1505- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1505- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1505- ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ● ●

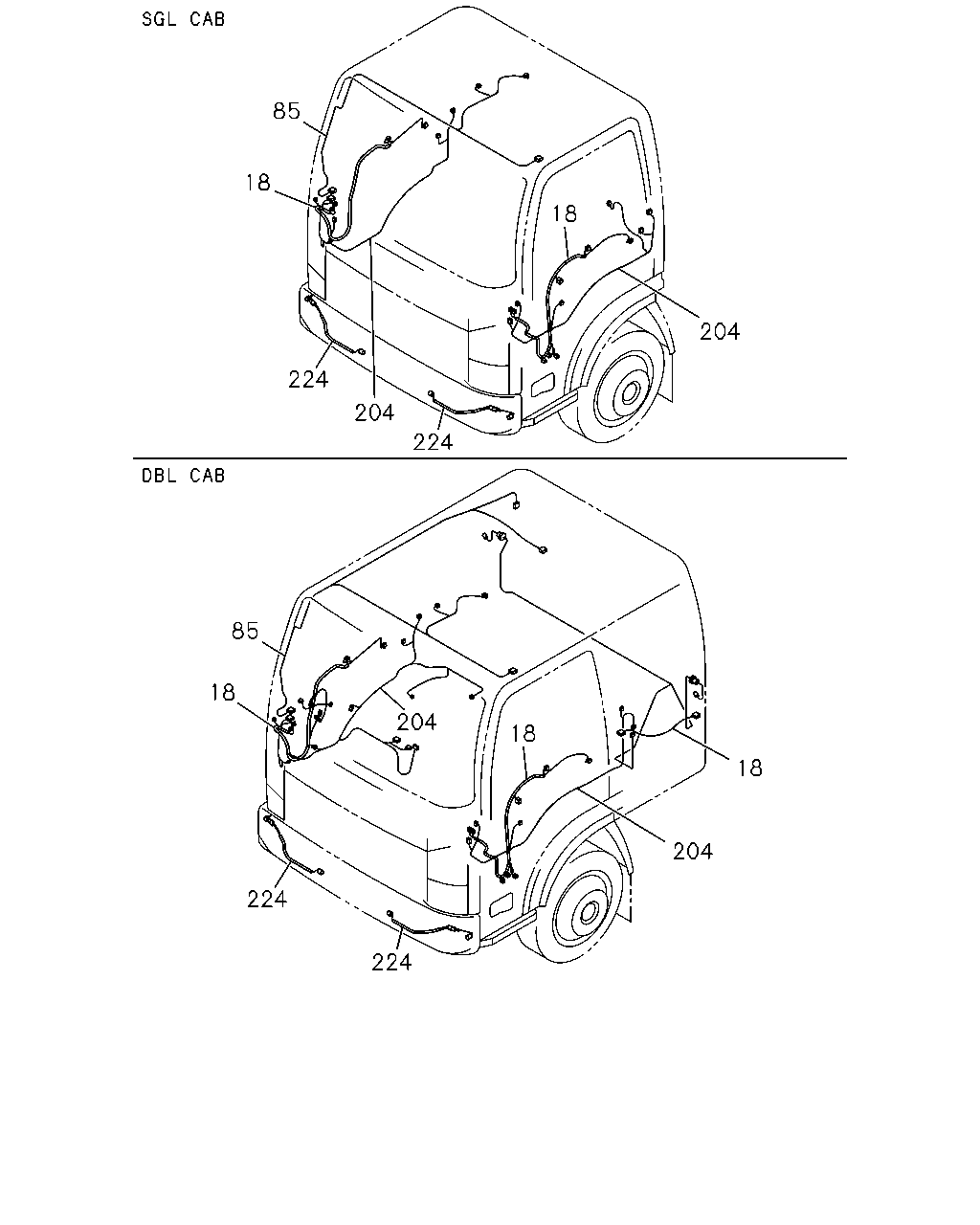

çizim 476939
85 18 224 224 204 18 204 85 18 204 18 204 18 224 224
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-082-3 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98071-080-3 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-081-3 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-580-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98286-577-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32> FRONT 		8-98286-579-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-576-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31>, POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98071-079-2 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-575-2 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98286-581-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98286-578-0 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT 		8-98286-574-2 01 1 1505- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1505- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98071-096-2 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98298-957-1 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98071-098-2 01 1 1505- ●
85 06.495 HARNESS; ROOM LAMP 8-98298-958-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98207-334-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98207-334-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-847-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-847-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-846-0 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98206-505-1 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-499-1 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-501-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98207-501-1 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-848-0 01 1 1505- ● ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-073-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-073-3 01 1 1505- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-072-3 01 1 1505- ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1505- ● ● ● ●

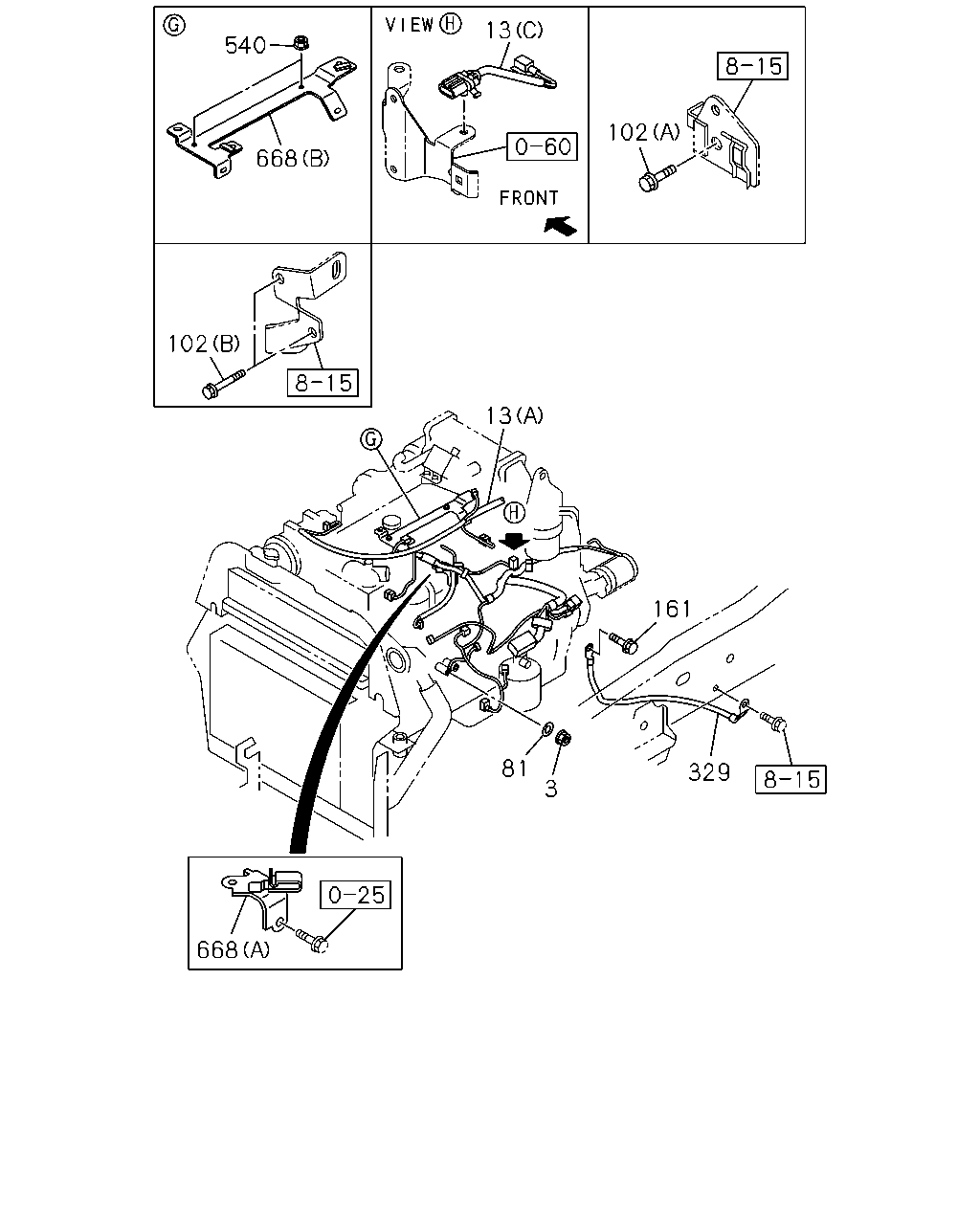

çizim 476964
540 668 13 102 102 13 161 329 3 81 668
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.559 NUT; GRAND
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1505- ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1505- ● ●
81 00.010 WASHER; PL,EARTH
4HK1-TCS ENG(RJS) 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1505- ● ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1505- ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1505- ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1505-1507 ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1508- ● ●
161 02.559 BOLT; GROUND,HARNESS
FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1508- ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1508- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98228-810-1 01 1 1505- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1505- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1505-1507 ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1508- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1505-1507 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1505-1507 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ,BATTERY 75D23L<8LZ> FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1508- ● ●
329 02.480 CABLE; ENG TO FRAME
FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 		8-98102-465-0 01 1 1508- ● ●
540 02.483 NUT; BRKT FIX
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.672 (C) 		8-98207-479-1 01 1 1505- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98226-452-1 01 1 1505- ● ●

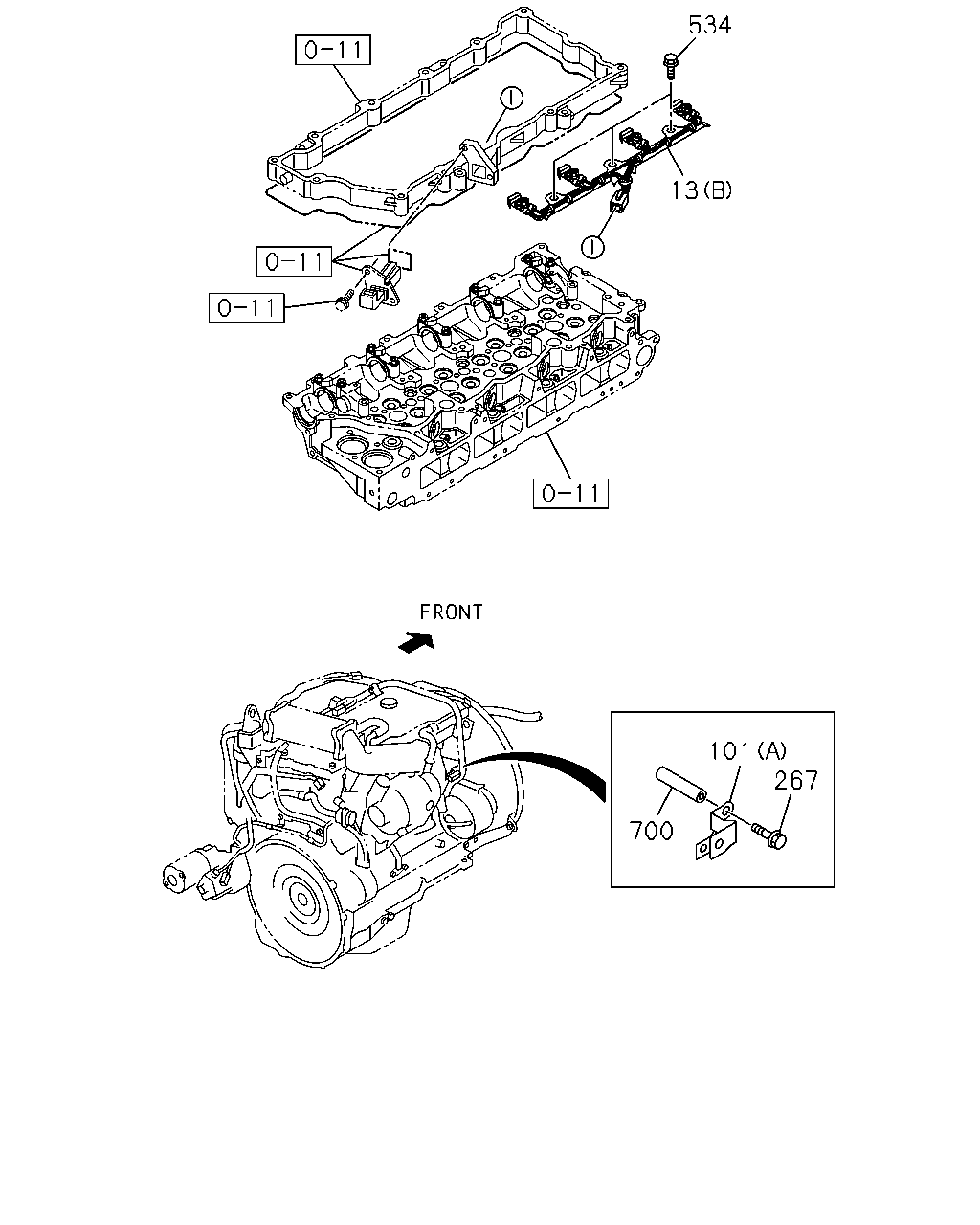

çizim 476975
13 534 101 267 700
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1505- ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1505- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1505- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98222-169-2 01 1 1505- ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ● ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1505-1505 ● ●
267 02.483 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ● ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1505- ● ●
534 02.483 BOLT
4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1505- ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
