7-50 — FRONT SEAT (#161322) — 140 parça

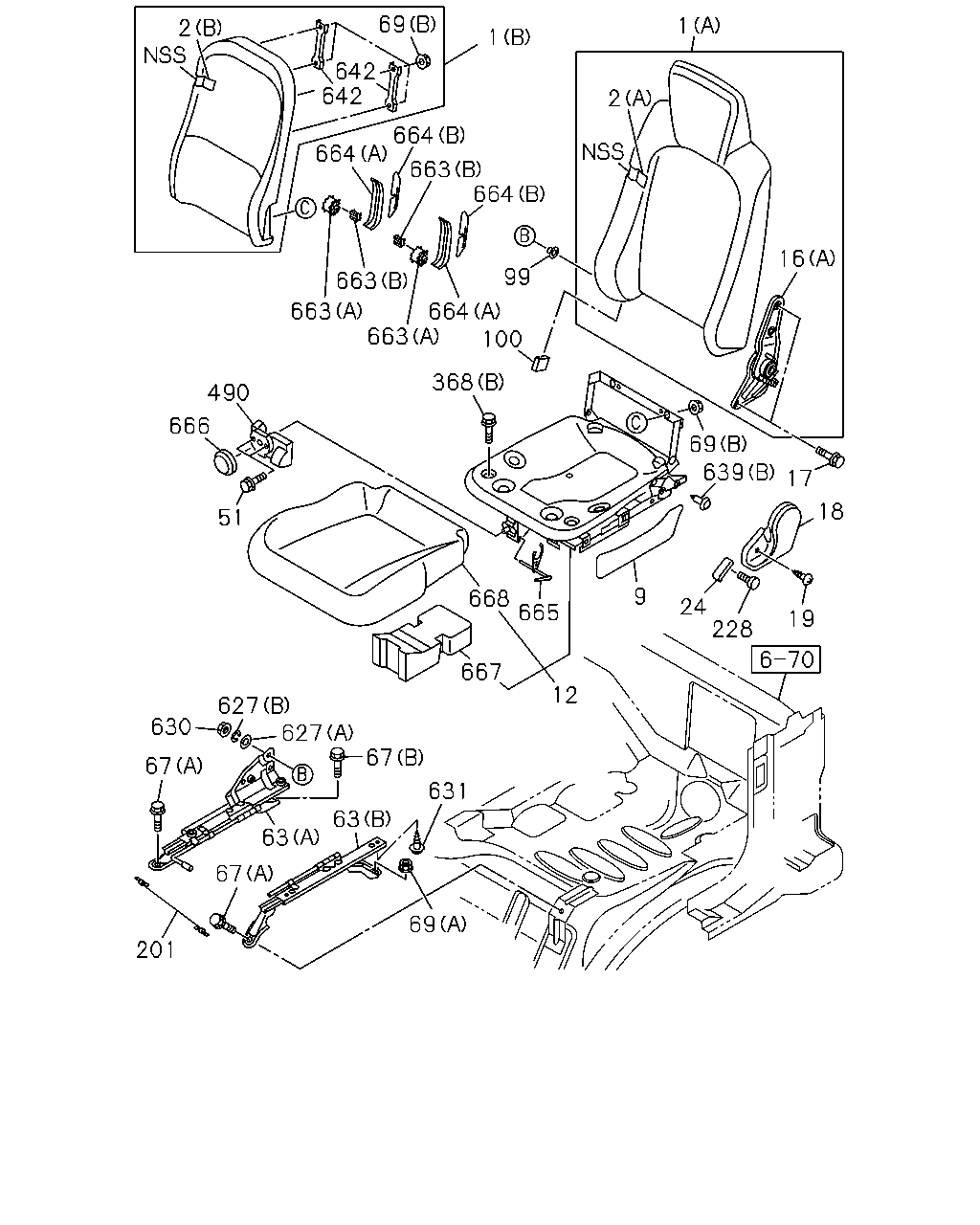

2 69 642 642 664 664 663 1 664 1 2 99 663 663 663 664 490 666 51 16 69 100 368 639 17 18 9 24 228 19 665 668 12 667 627 630 67 627 67 631 63 63 67 201 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97465-594-0	01	1	1505-	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97465-595-1	01	1	1505-	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97429-980-0	01	1	1505-	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97429-980-0	01	1	1505-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97466-506-0	01	1	1505-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97466-507-0	01	1	1505-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97429-981-0	01	1	1505-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97429-981-0	01	1	1505-			●	●
9	16.682 COVER; SIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-601-0	01	1	1505-	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-597-1	01	1	1505-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-011-0	01	1	1505-	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97465-011-0	01	1	1505-			●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-008-0	01	1	1505-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1505-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1505-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1505-	●	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1505-	●	●	●	●
18	16.682 COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-599-0	01	1	1505-	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97409-361-0	01	1	1505-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1505-			●	●
19	16.686 SCREW; COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98315-974-0	01	1	1505-	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M5	8-98062-663-0	01	1	1505-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1505-			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1505-	●	●	●	●
51	16.686 SCREW; COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98315-974-0	02	1	1505-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98306-528-0	01	1	1505-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1505-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98002-907-2	01	1	1505-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1505-			●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1505-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1505-	●	●	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-362-0	06	1	1505-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1505-	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1505-	●	●	●	●
100	16.686 COVER; HINGE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98315-969-0	01	1	1505-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1505-	●	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1505-	●	●	●	●
368	16.682 BOLT; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-986-0	06	1	1505-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1505-	●	●	●	●
490	16.682 COVER; FRONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-603-0	01	1	1505-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1505-	●	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1505-	●	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1505-	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	03	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	01	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1505-			●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1505-			●	●
639	16.679 CLIP; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-960-0	02	1	1505-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	8-98097-693-0	01	1	1505-	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1505-			●	●
642	16.716 SLIDER; CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98315-971-0	02	1	1505-	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	8-98286-369-0	02	1	1505-	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-370-0	02	1	1505-	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	8-98286-363-0	02	1	1505-	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-364-0	02	1	1505-	●	●
665	16.716 GAGE; WEIGHT,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98286-372-0	01	1	1505-	●	●
666	16.716 DIAL; WEIGHT GAGE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98286-375-0	01	1	1505-	●	●
667	16.716 PAD; SEAT SUSPENSION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98315-951-0	01	1	1505-	●	●
668	16.716 TRIM COVER & PAD; SEAT CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-97466-590-0	01	1	1505-	●	●

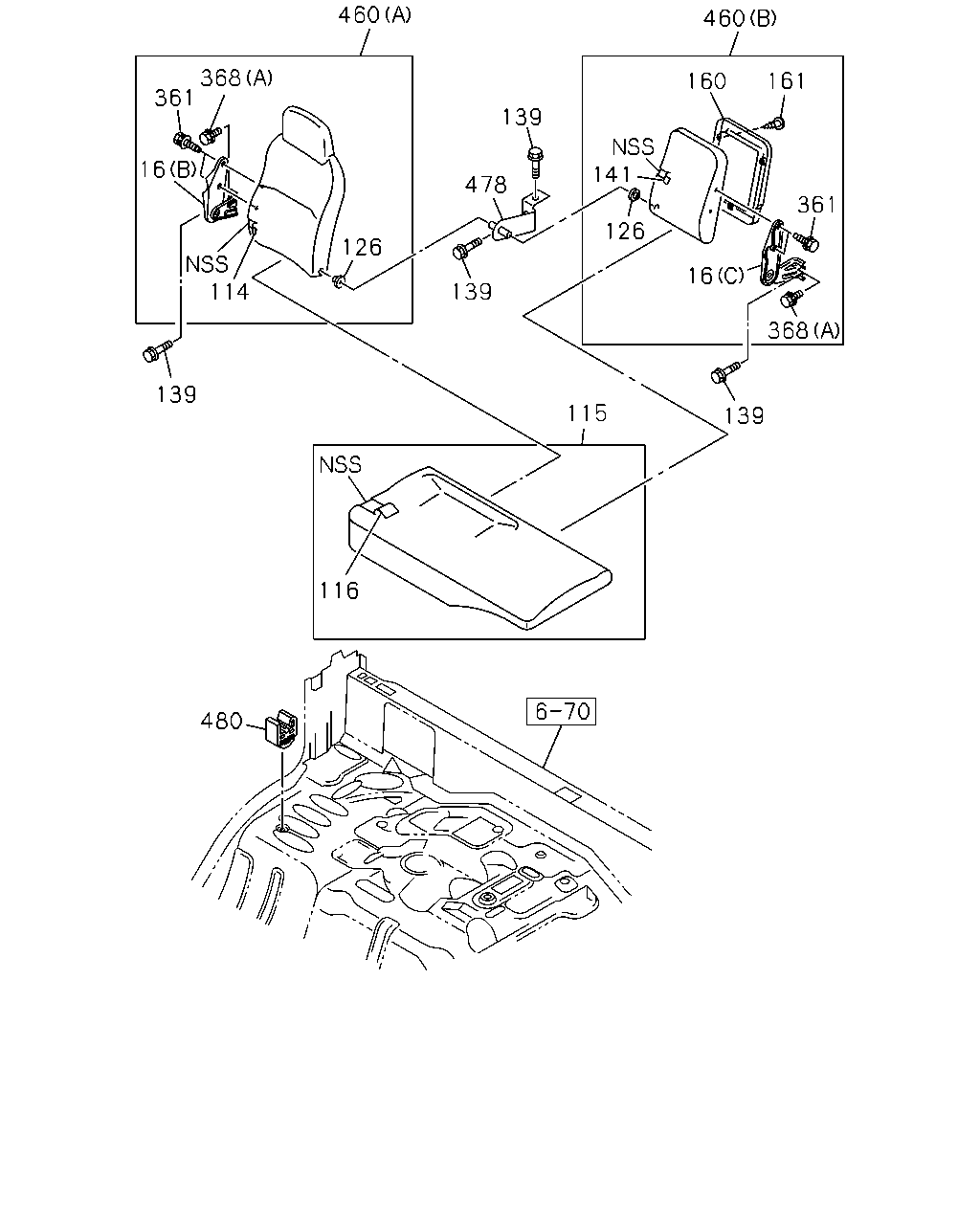

460 368 361 16 114 126 139 478 139 460 161 160 141 126 16 361 368 139 115 139 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1505-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1505-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1505-	●	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-031-0	01	1	1505-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97465-031-0	01	1	1505-			●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-030-0	01	1	1505-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-046-0	01	1	1505-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97465-046-0	01	1	1505-			●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-045-0	01	1	1505-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-055-0	01	1	1505-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97465-055-0	01	1	1505-			●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-054-0	01	1	1505-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1505-	●	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1505-	●	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-037-0	01	1	1505-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97465-037-0	01	1	1505-			●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-036-0	01	1	1505-	●	●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1505-	●	●	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1505-	●	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1505-	●	●	●	●
368	16.682 BOLT; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-986-0	06	1	1505-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1505-	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-024-0	01	1	1505-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97465-024-0	01	1	1505-			●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-034-0	01	1	1505-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97465-034-0	01	1	1505-			●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-023-0	01	1	1505-	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-033-0	01	1	1505-	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1505-	●	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1505-	●	●	●	●

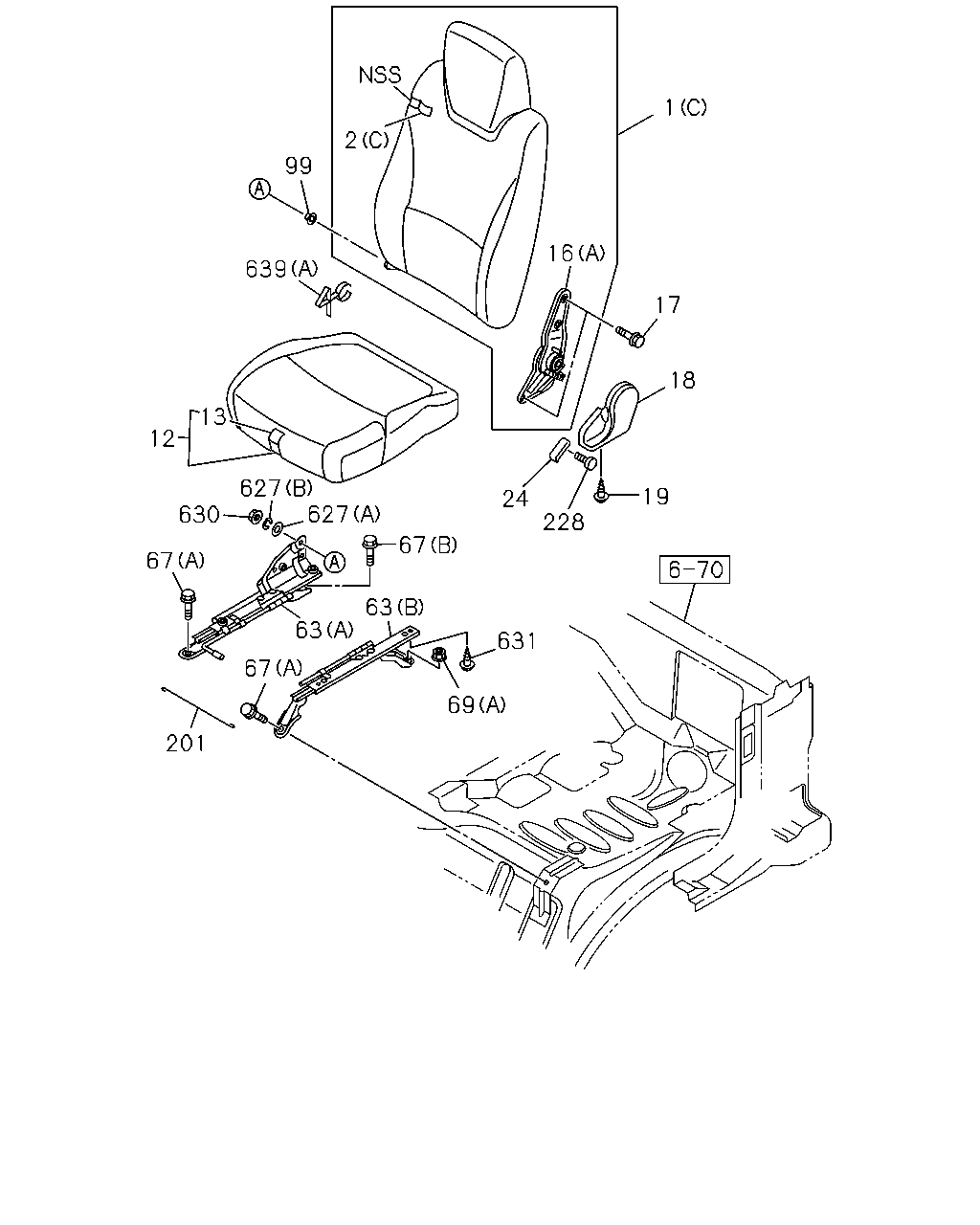

1 2 99 639 13 12 630 67 627 627 67 63 63 67 201 16 17 18 19 228 24 631 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97465-594-0	01	1	1505-	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97465-595-1	01	1	1505-	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97429-980-0	01	1	1505-	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97429-980-0	01	1	1505-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97466-506-0	01	1	1505-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97466-507-0	01	1	1505-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY	8-97429-981-0	01	1	1505-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97429-981-0	01	1	1505-			●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-597-1	01	1	1505-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-011-0	01	1	1505-	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97465-011-0	01	1	1505-			●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-008-0	01	1	1505-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-017-0	01	1	1505-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97465-017-0	01	1	1505-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-014-0	01	1	1505-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1505-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1505-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1505-	●	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1505-	●	●	●	●
18	16.682 COVER; RECLINING SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-599-0	01	1	1505-	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97409-361-0	01	1	1505-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1505-			●	●
19	16.686 SCREW; COVER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	8-98315-974-0	01	1	1505-	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M5	8-98062-663-0	01	1	1505-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1505-			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1505-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98306-528-0	01	1	1505-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1505-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98002-907-2	01	1	1505-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1505-			●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1505-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1505-	●	●	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-362-0	06	1	1505-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1505-	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1505-	●	●	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1505-	●	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1505-	●	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1505-	●	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1505-	●	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1505-	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	03	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	01	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1505-			●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1505-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1505-			●	●
639	16.679 CLIP; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-960-0	02	1	1505-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	8-98097-693-0	01	1	1505-	●	●
639	16.679 CLIP; SEAT (A)	8-98097-693-0	01	1	1505-			●	●
