◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#161308) — 71 parça

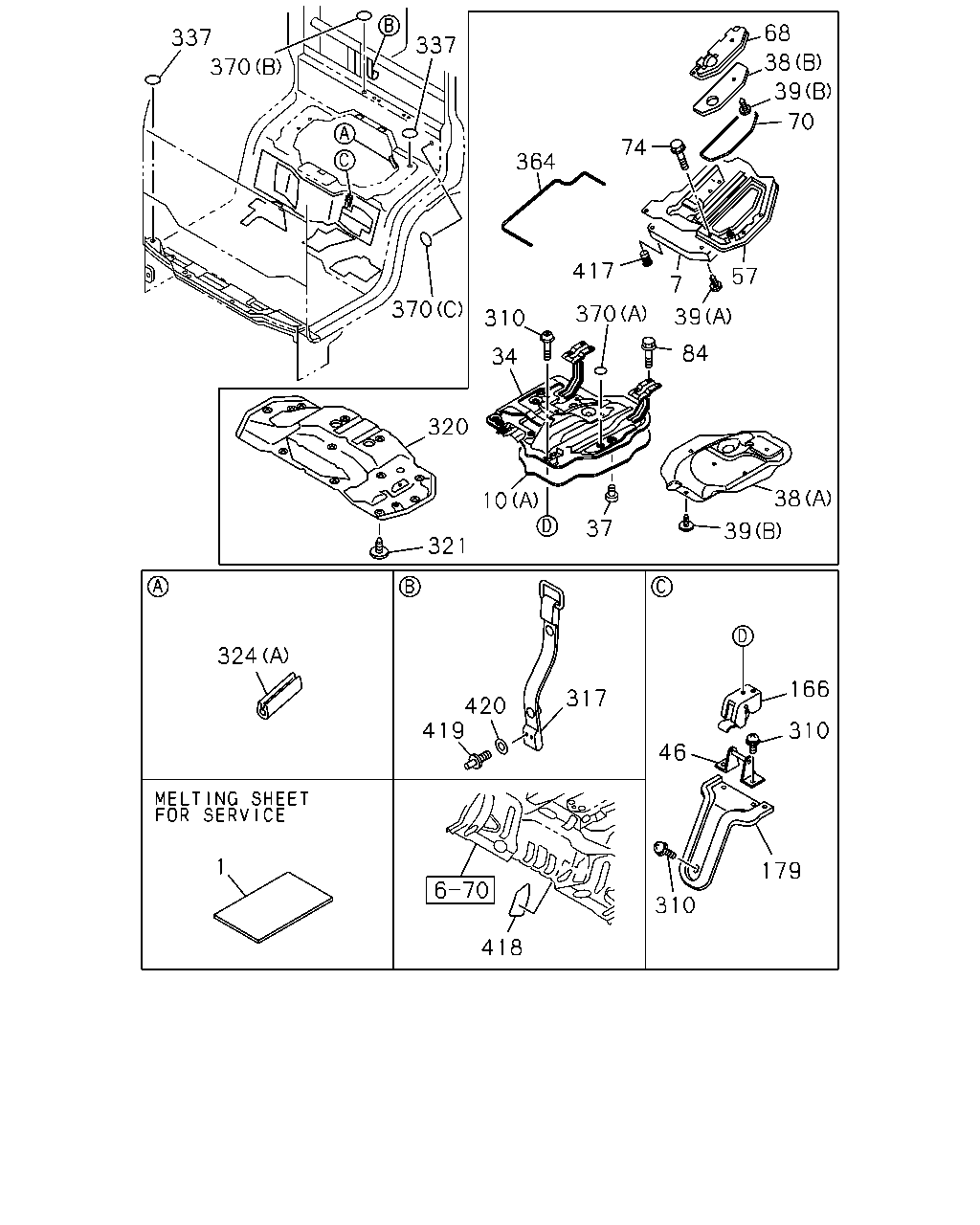

çizim 476044
68 38 70 39 39 57 7 74 417 364 310 370 84 34 10 320 37 39 321 38 317 46 166 310 179 310 418 419 324 420 370 337 370 337 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1505- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-98250-676-0 01 1 1505- ● ●
10 16.549 SEAL; ENG COVER
(B) 		8-98006-847-0 01 1 1505- ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-98103-139-0 01 1 1505- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1505- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97589-391-2 01 1 1505- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 1505- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 1505- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-98242-234-0 01 1 1505- ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-98250-672-0 01 1 1505- ● ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 1505- ● ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1505- ● ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1505- ● ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 1505- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97589-396-4 01 1 1505- ● ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1505- ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 1505- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 1505- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 1505- ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1505- ● ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1505- ● ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 1505- ● ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1505- ● ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 1505- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 1505- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 1505- ● ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1505- ● ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 1505- ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98242-225-0 01 1 1505- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 15 1 1505- ● ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 1505- ● ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 02 1 1505- ● ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 1505- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 1505- ● ●
337 16.545 SEAL; CLIP HOLE
4JJ1-TCS ENG(LFB) 16.165 OD=25 BLACK 		1-76798-019-0 21 1 1505- ● ●
337 16.545 SEAL; CLIP HOLE
CATALYSIS CONTROL WITH DPD(8JM) 16.165 OD=25 BLACK 		1-76798-019-0 23 1 1505- ●
337 16.545 SEAL; CLIP HOLE
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1505- ● ●
337 16.545 SEAL; CLIP HOLE
4HK1-TCS ENG(RJS) 16.165 OD=25 BLACK 		1-76798-019-0 20 1 1505- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 1505- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 1505- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1505- ● ●
370 16.549 SEAL; LOCATION HOLE
16.545 (C) OD=32 BLACK 		8-98031-126-0 01 1 1505- ● ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 1505- ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 1505- ● ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 1505- ● ● ● ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1505- ● ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 1505- ● ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1505- ● ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1505- ● ●

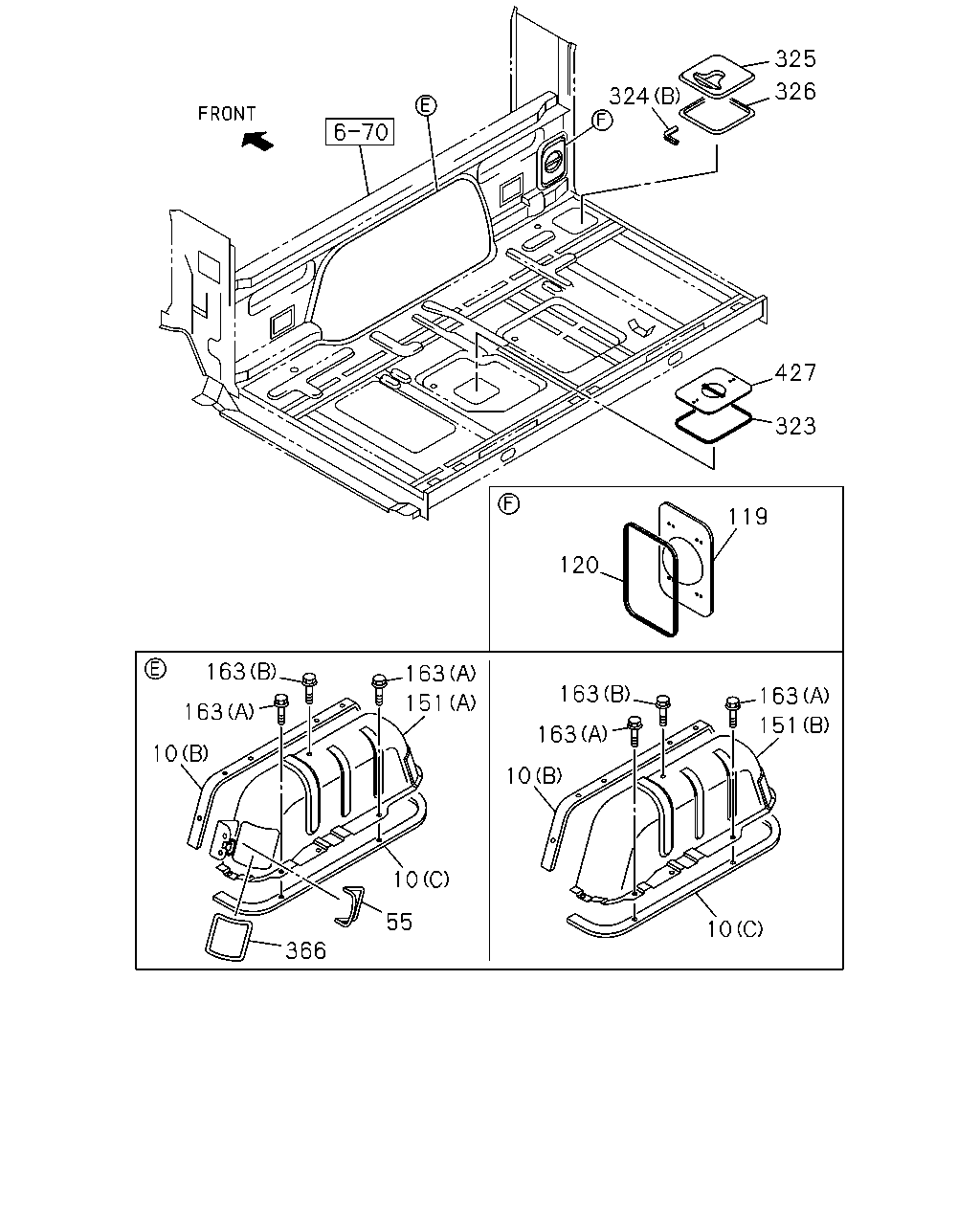

çizim 476941
324 325 326 427 323 163 163 10 163 151 10 55 366 163 10 163 163 151 10 119 120
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 16.549 SEAL; ENG COVER
(B) 		8-98006-847-0 01 1 1505- ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-98103-139-0 01 1 1505- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1505- ● ●
55 16.549 SEAL; SUPPORT COVER
4HK1-TCS ENG(RJS) 		8-97583-500-1 01 1 1505- ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 1505- ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 1505- ● ●
151 16.549 COVER ASM; ENG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-98234-119-0 01 1 1505- ●
151 16.549 COVER ASM; ENG
4JJ1-TCS ENG(LFB) (B) 		8-98234-119-0 01 1 1505- ●
151 16.549 COVER ASM; ENG
4HK1-TCS ENG(RJS) (A) 		8-98103-129-0 01 1 1505- ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 11 1 1505- ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 1505- ● ●
323 16.549 SEAL; COVER,A/T OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-97853-443-2 01 1 1505- ●
323 16.549 SEAL; COVER,A/T OIL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97853-443-2 01 1 1505- ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 1505- ● ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 02 1 1505- ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 1505- ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 1505- ● ●
366 16.545 FINISHER; COVER
4HK1-TCS ENG(RJS) 		8-97583-501-0 01 1 1505- ●
427 16.549 COVER; SMOOTHER OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-97853-442-2 01 1 1505- ●
427 16.549 COVER; SMOOTHER OIL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97853-442-2 01 1 1505- ●
