Isuzu WW
▶
TRUCKS
▶
NNR
▶
51615 - NNR/NPR LHD EUROPE ERURO5B+,6
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#161307) — 22 parça
Tümü
A - NPR6SE
B - NPR6SN
C - NPR6WE
D - NPR6WN
◀

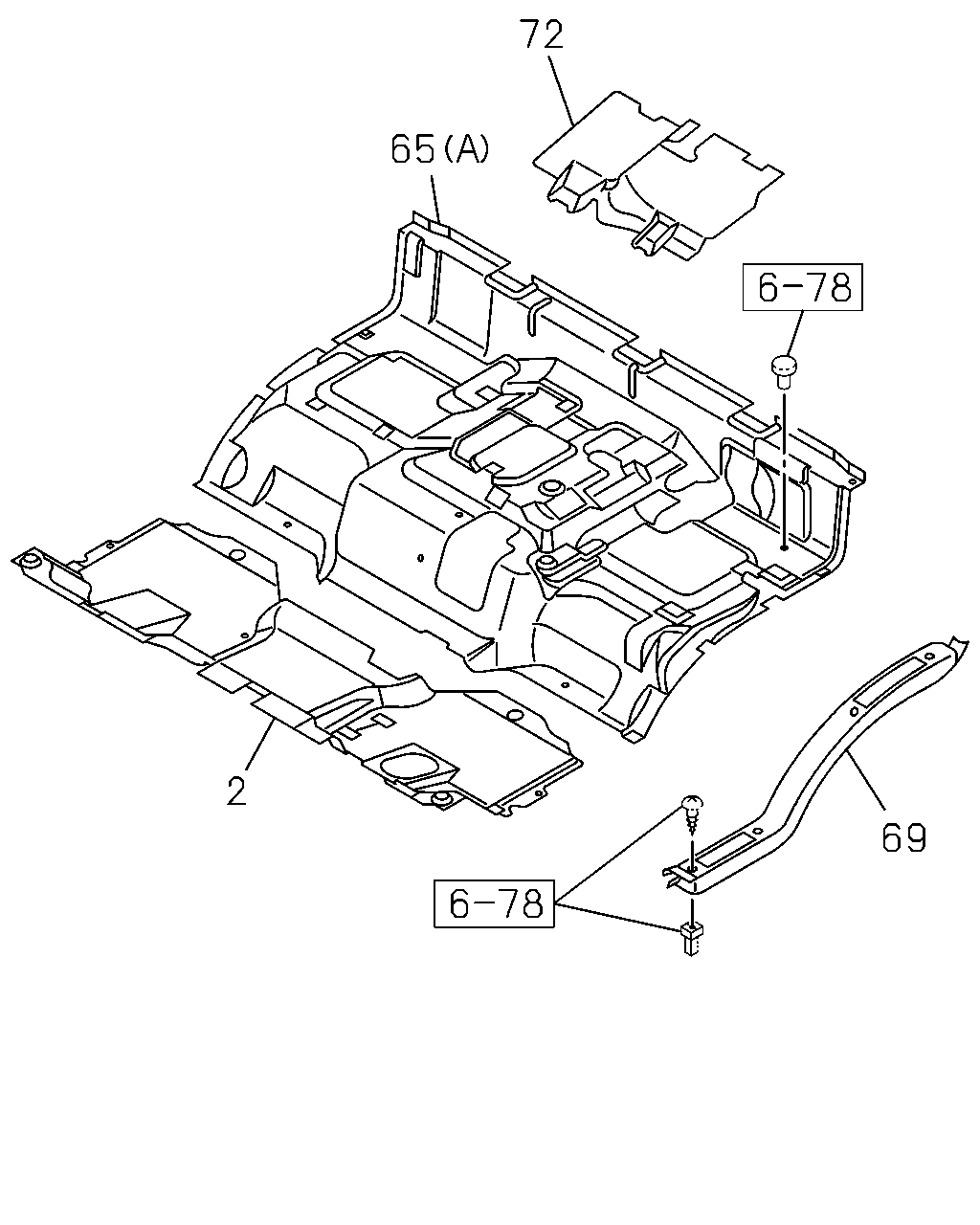

[675A] SGL CAB (7 parça)

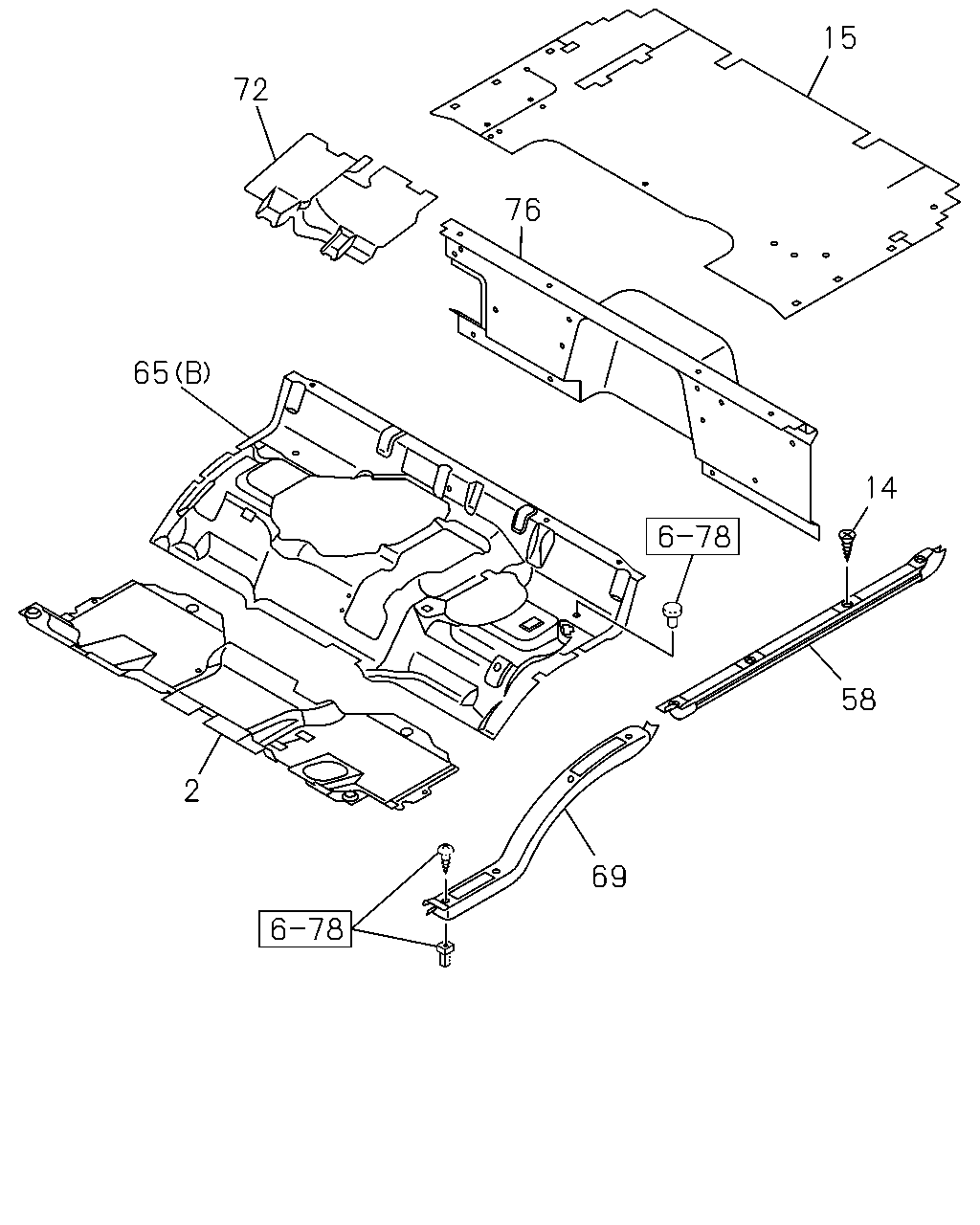

[675A] DBL CAB (15 parça)
▶
72
65
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
16.800 MAT; FLOOR
GRAY
8-97405-979-4
01
1
1505-
●
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-131-0
01
1
1505-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY
8-97425-117-0
01
1
1505-
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1505-
●
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1505-
●
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97417-599-1
01
1
1505-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97417-599-1
01
1
1505-
●
●
15
14
58
69
2
65
72
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
16.800 MAT; FLOOR
GRAY
8-97405-979-4
01
1
1505-
●
●
●
●
14
16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1505-
●
●
15
16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY
8-97423-540-0
01
1
1505-
●
●
15
16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) GRAY
8-97423-542-0
01
1
1505-
●
●
15
16.800 MAT; FLOOR REAR
4HK1-TCS ENG(RJS) GRAY
8-97424-573-0
01
1
1505-
●
58
08.153 PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
1505-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-131-0
01
1
1505-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY
8-97425-117-0
01
1
1505-
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1505-
●
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1505-
●
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97417-599-1
01
1
1505-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97417-599-1
01
1
1505-
●
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) GRAY
8-97423-550-0
01
1
1505-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1-TCS ENG(LFB) GRAY
8-97423-550-0
01
1
1505-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCS ENG(RJS) GRAY
8-97424-575-0
01
1
1505-
●
