◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51615 - NNR/NPR LHD EUROPE ERURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#161306) — 105 parça

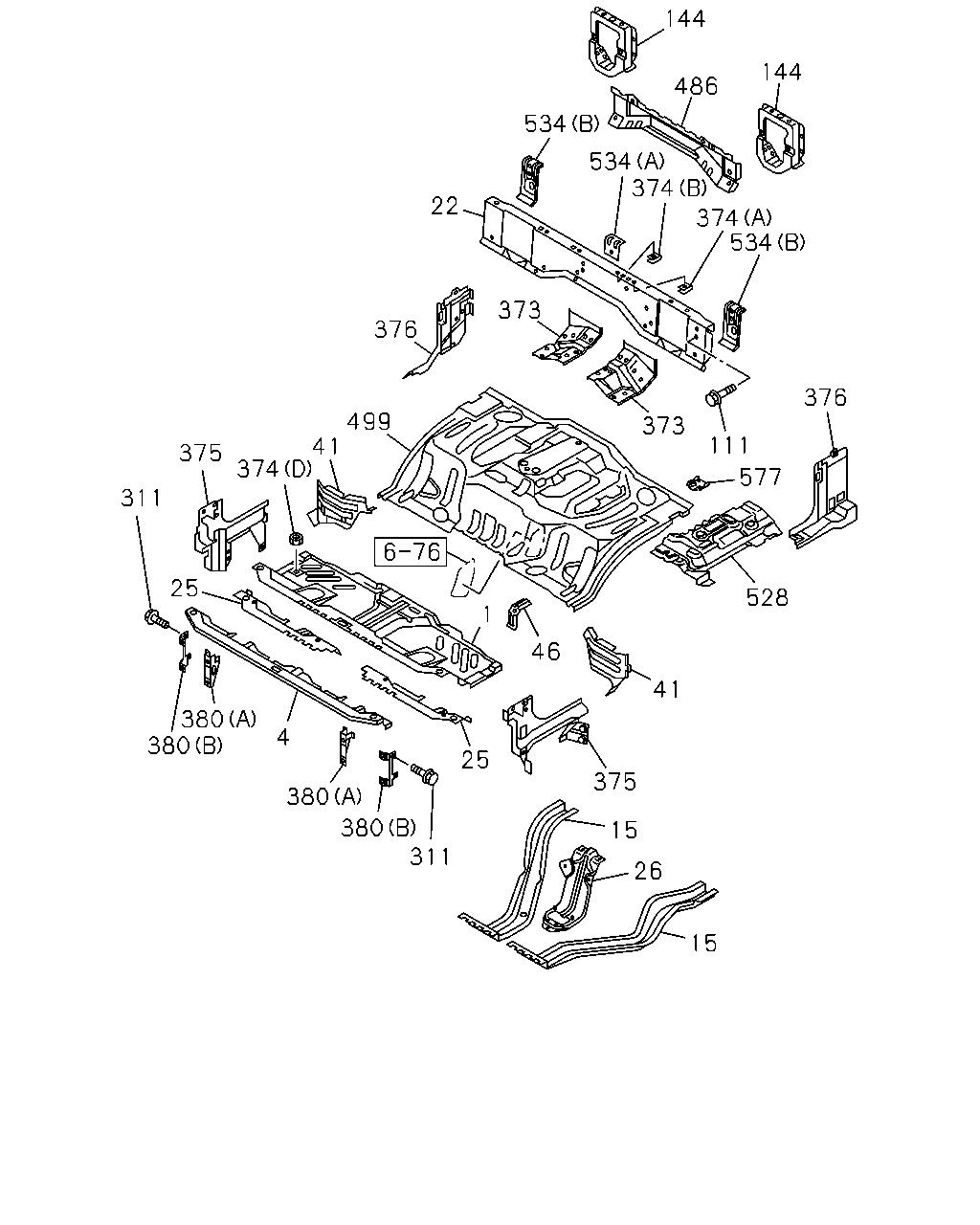

çizim 476423
373 577 111 376 528 41 375 15 26 15 311 380 380 380 380 4 311 374 375 25 41 499 376 373 22 534 374 534 46 25 1 534 374 144 486 144
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1505- ● ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1505- ● ● ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1505- ● ● ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1505- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97589-418-4 01 1 1505- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1505- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1505- ● ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1505- ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1505- ● ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1505- ● ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1505- ● ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1505- ● ● ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1505- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> 		8-97589-544-3 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1505- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-525-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-526-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98017-005-2 01 1 1505- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 1504- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1505- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1505- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97583-888-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97584-618-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-544-7 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-545-6 01 1 1505- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1505- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1505- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1505- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1505- ● ● ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> 		8-98030-613-2 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-98204-799-0 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR 8-98207-188-0 01 1 1505- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> 		8-97589-410-2 01 1 1505- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1505- ● ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1505- ● ● ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1505- ● ● ● ●

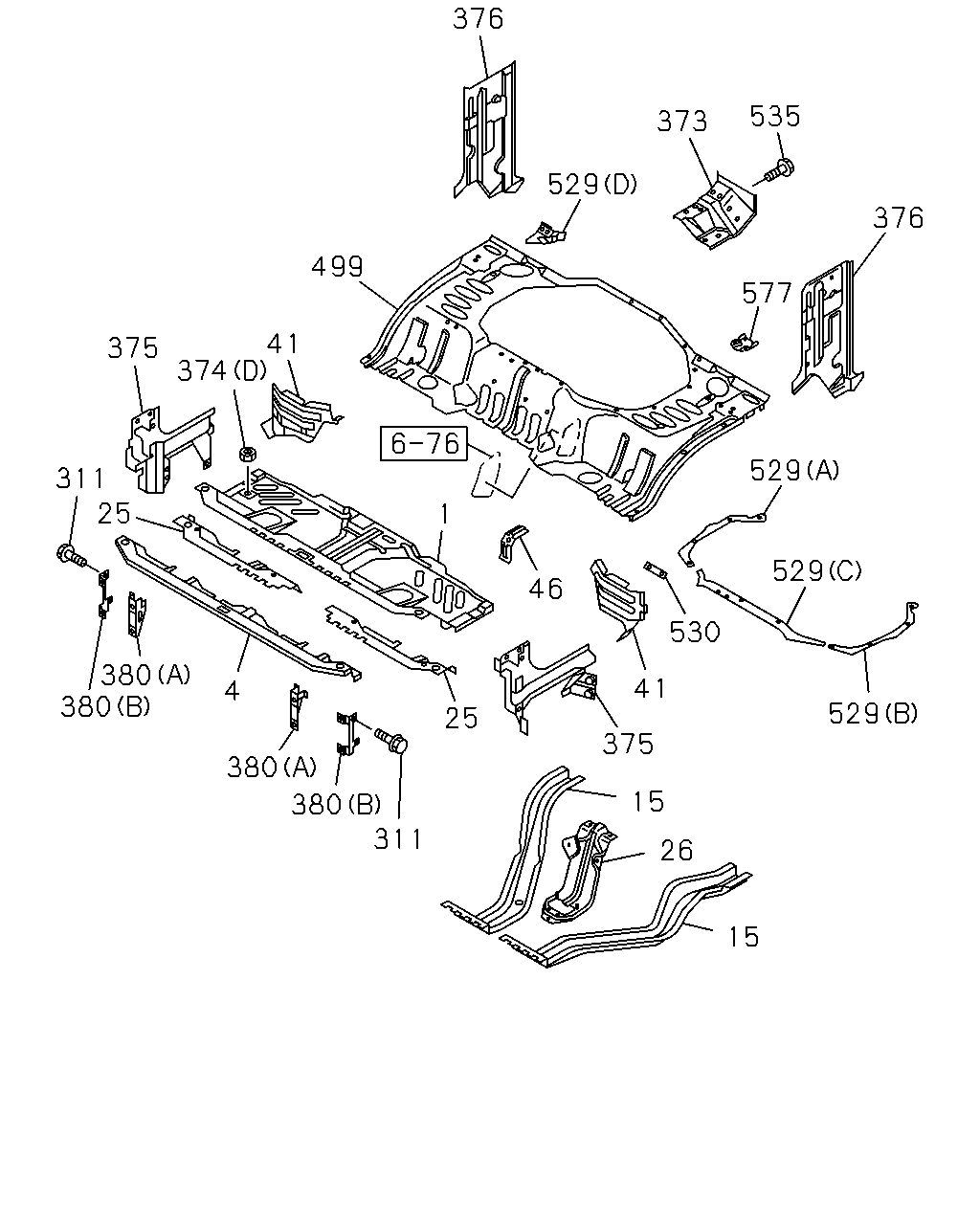

çizim 476805
529 499 374 375 311 380 380 4 380 380 311 25 375 15 26 15 46 530 529 529 41 376 373 535 577 376 41 25 1 529
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1505- ● ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1505- ● ● ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1505- ● ● ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1505- ● ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1505- ● ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1505- ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1505- ● ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1505- ● ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1505- ● ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1505- ● ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1505- ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-525-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-526-2 01 1 1505- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98017-005-2 01 1 1505- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 1504- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1505- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1505- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97583-888-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97584-618-2 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-544-7 01 1 1505- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-98024-545-6 01 1 1505- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1505- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1505- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1505- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1505- ● ● ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-98204-799-0 01 1 1505- ● ●
499 16.545 PANEL; FLOOR,RR 8-98207-188-0 01 1 1505- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1505- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1505- ● ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1505- ● ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1505- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1505- ● ●
535 16.549 BOLT; REINFORCEMENT
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 1505- ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1505- ● ● ● ●

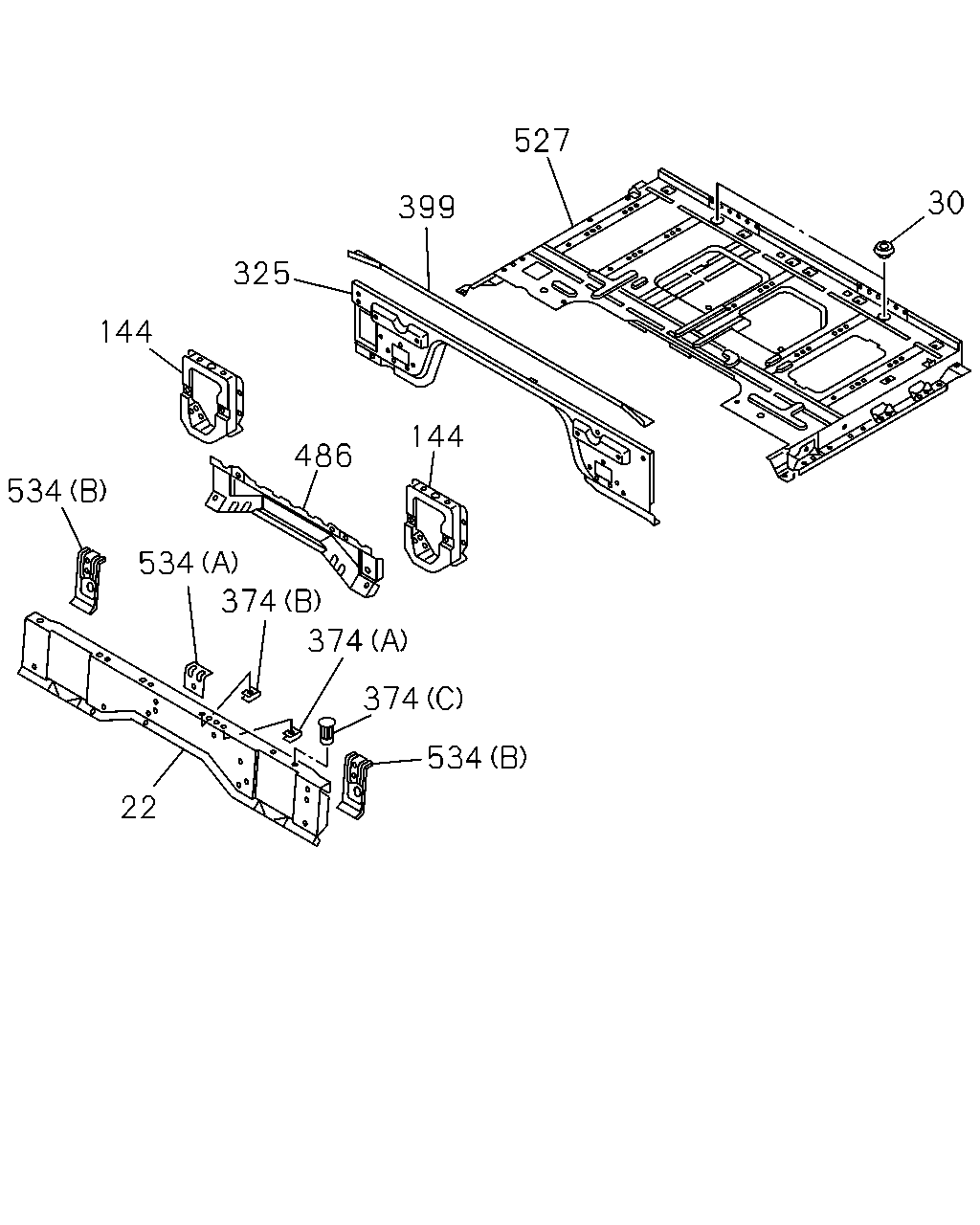

çizim 476833
534 144 325 399 527 144 486 534 374 374 374 534 22 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97589-418-4 01 1 1505- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1505- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> 		8-97589-544-3 02 1 1505- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1505- ● ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-98006-699-3 01 1 1505- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1505- ● ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1505- ● ●
374 16.545 NUT; FLOOR
09.786 (C) M6 POP NUT 		8-98013-752-0 01 1 1505- ● ●
374 16.545 NUT; FLOOR
(D) M8 		9-09114-068-0 04 1 1504- ● ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97587-702-1 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> 		8-98030-613-2 01 1 1505- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1505- ● ●
527 16.545 FLOOR; RR
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-648-1 01 1 1505- ●
527 16.545 FLOOR; RR
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98271-407-0 01 1 1505- ●
527 16.545 FLOOR; RR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-192-0 01 1 1505- ● ●
527 16.545 FLOOR; RR
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) 		8-98207-195-0 01 1 1505- ● ●
527 16.545 FLOOR; RR
4HK1-TCS ENG(RJS) 		8-98203-241-1 01 1 1505- ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1505- ● ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1505- ● ● ● ●

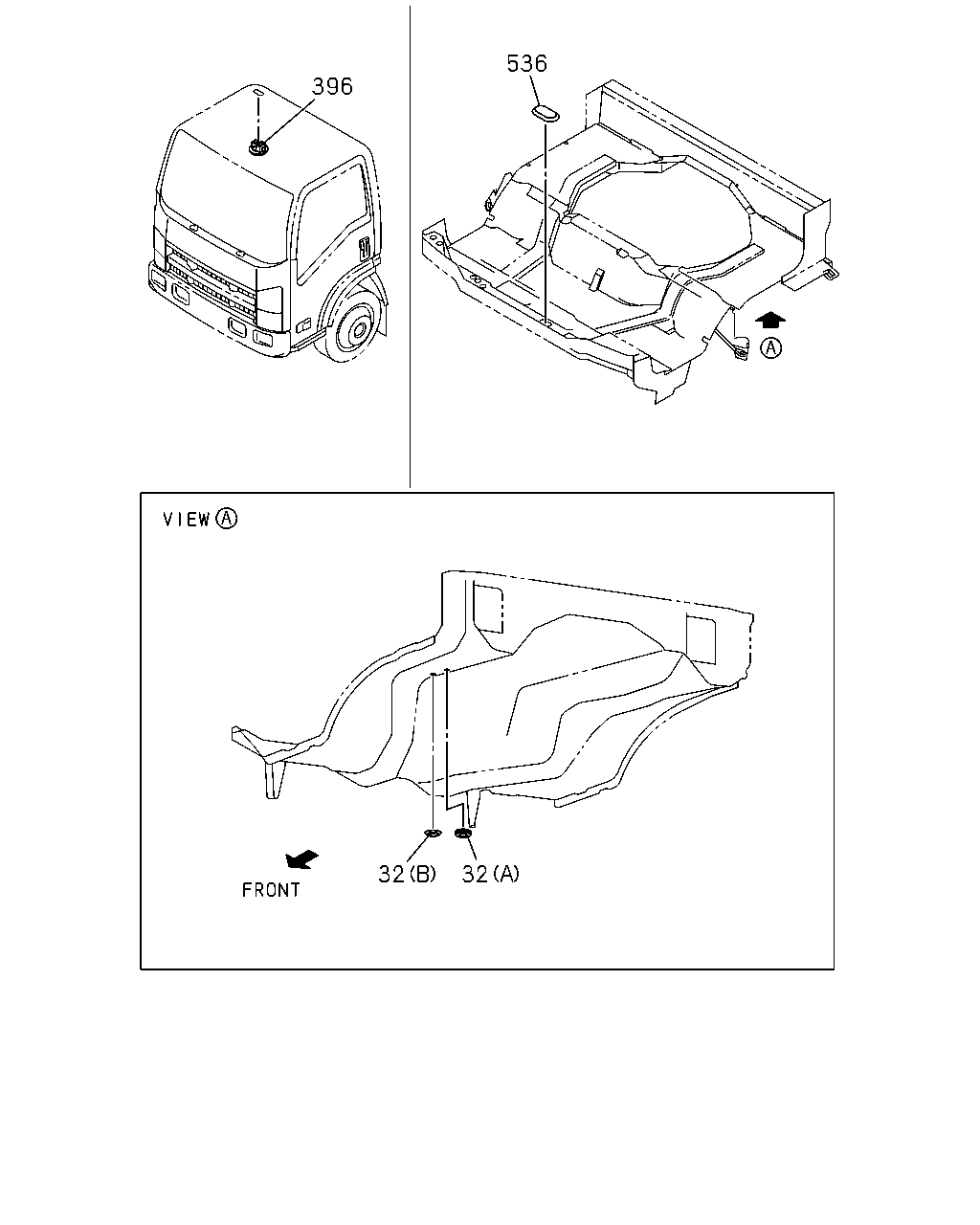

çizim 476835
536 396 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1505- ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1505- ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1505- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1505- ● ● ● ●
