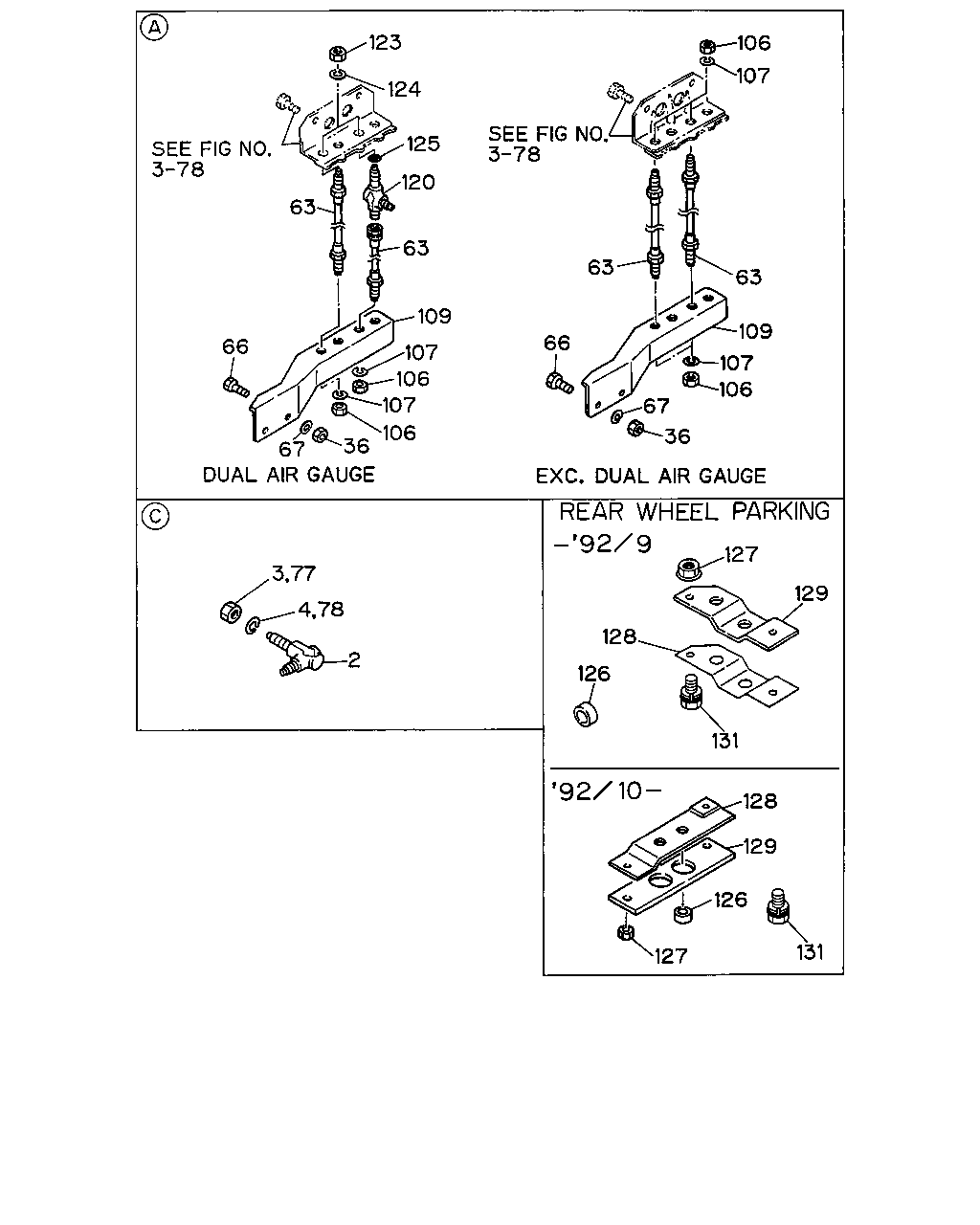

3-75 — BRAKE PIPING; AIR,FRONT (#1613) — 88 parça

123 124 125 120 63 63 66 109 107 106 107 106 36 67 66 63 106 107 63 109 106 107 67 36 127 129 128 126 131 128 129 126 131 127 2 4 78 77 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	UNION; AIR PIPE L=80	9-09235-210-1	01	1	9207-	●	●
2	UNION; AIR PIPE L=76	9-09235-110-1	01	1	9207-	●	●	●	●	●
2	UNION; AIR PIPE L=76	9-09235-110-1	01	1	9207-			●	●	●
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9207-	●	●	●	●	●
4	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9207-9312	●	●	●	●	●
36	NUT; HOSE BRKT M10	9-09110-510-0	02	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9207-		●	●	●	●
66	BOLT; HOSE BRKT M10X25 L=40	9-04411-025-0	02	1	9207-	●	●	●	●	●
67	WASHER; LK,HOSE BRKT ID=10.2	9-09150-510-0	02	1	9207-	●	●	●	●	●
77	NUT; PIPE UNION M16	9-99111-416-0	01	1	9207-	●	●	●	●	●
78	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9207-9312	●	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9207-	●	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9207-	●	●	●	●	●
109	BRACKET; FLEX HOSE	1-47475-680-2	01	1	9207-	●	●	●	●	●
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9207-		●	●	●	●
123	NUT; HOSE CONNECTOR DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9207-		●	●	●	●
124	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9207-		●	●	●	●
125	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9207-		●	●	●	●
126	SPACER; PIPE UNION REAR WHEEL PARKING(B3A)	1-09503-191-0	02	1	9207-		●	●	●	●
127	NUT; UNION PLATE,ENG HOOD REAR WHEEL PARKING(B3A) M6 FLANGE	1-09984-141-0	01	1	9207-		●	●	●	●
128	PLATE; 2 WAY UNION REAR WHEEL PARKING(B3A)	1-71998-408-1	01	1	9207-9209		●	●	●	●
128	PLATE; 2 WAY UNION REAR WHEEL PARKING(B3A)	1-71998-372-0	01	1	9210-		●	●	●	●
129	SEAL; UNION PLATE REAR WHEEL PARKING(B3A)	1-71998-409-0	01	1	9207-9209		●	●	●	●
129	SEAL; UNION PLATE REAR WHEEL PARKING(B3A)	1-71998-224-0	01	1	9210-9301		●	●	●	●
129	SEAL; UNION PLATE REAR WHEEL PARKING(B3A)	1-79998-224-0	01	1	9302-		●	●	●	●
131	BOLT; PLATE UNION REAR WHEEL PARKING(B3A) M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9207-		●	●	●	●

118 63 62 1 87 70 63 63 118 62 70 87 1 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; AIR,AIR TANK TO UNION L=482 SERVICED BY L=500	1-47434-472-0	01	1	9207-9212	●	●
1	PIPE; AIR,AIR TANK TO UNION L=482 SERVICED BY L=500	1-47426-406-0	01	1	9301-	●	●
1	PIPE; AIR,AIR TANK TO UNION L=626 SERVICED BY L=660	1-47437-964-0	01	1	9207-9212			●	●	●
1	PIPE; AIR,AIR TANK TO UNION L=620 SERVICED BY L=660	1-47426-409-0	01	1	9301-			●	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2489 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2700 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2640 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9309			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2627 SERVICED BY L=2900	1-47426-425-0	01	1	9310-9310			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2648 SERVICED BY L=2900	1-47426-425-0	01	1	9311-			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2750 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212					●
62	PIPE; AIR,UNION TO FLEX HOSE L=2701 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9310					●
62	PIPE; AIR,UNION TO FLEX HOSE L=2708 SERVICED BY L=2900	1-47426-425-0	01	1	9311-					●
63	HOSE; FLEX,BRK LINE,CAB SIDE L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9207-		●	●	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2593 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2698 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2698 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9310			●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2725 SERVICED BY L=2900	1-47426-425-0	01	1	9311-			●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2743 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212					●
70	PIPE; AIR,FLEX HOSE TO UNION L=2743 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9310					●
70	PIPE; AIR,FLEX HOSE TO UNION L=2770 SERVICED BY L=2900	1-47426-425-0	01	1	9311-					●
87	PIPE; AIR,UNION TO AIR MASTER L=403 SERVICED BY L=450	1-47437-962-0	01	1	9207-9212	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=403 SERVICED BY L=450	1-47426-405-0	01	1	9301-	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=715 SERVICED BY L=800	1-47434-475-0	01	1	9207-9212			●	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=716 SERVICED BY L=800	1-47426-412-0	01	1	9301-			●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47482-334-0	01	1	9207-9212	●	●	●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47497-112-0	01	1	9301-	●	●	●	●	●

118 63 62 70 63 1 87 1 87 70 62 63 63 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; AIR,AIR TANK TO UNION L=482 SERVICED BY L=500	1-47434-472-0	01	1	9207-9212	●	●
1	PIPE; AIR,AIR TANK TO UNION L=482 SERVICED BY L=500	1-47426-406-0	01	1	9301-	●	●
1	PIPE; AIR,AIR TANK TO UNION L=626 SERVICED BY L=660	1-47437-964-0	01	1	9207-9212			●	●	●
1	PIPE; AIR,AIR TANK TO UNION L=620 SERVICED BY L=660	1-47426-409-0	01	1	9301-			●	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2489 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2700 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2640 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9309			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2627 SERVICED BY L=2900	1-47426-425-0	01	1	9310-9310			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2648 SERVICED BY L=2900	1-47426-425-0	01	1	9311-			●	●
62	PIPE; AIR,UNION TO FLEX HOSE L=2750 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212					●
62	PIPE; AIR,UNION TO FLEX HOSE L=2701 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9310					●
62	PIPE; AIR,UNION TO FLEX HOSE L=2708 SERVICED BY L=2900	1-47426-425-0	01	1	9311-					●
63	HOSE; FLEX,BRK LINE,CAB SIDE L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9207-	●	●	●	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> L=520	0-07474-520-1	01	1	9207-		●	●	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2509 SERVICED BY L=2600	1-47437-973-0	01	1	9207-9212	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2593 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2698 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212			●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2698 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9310			●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2725 SERVICED BY L=2900	1-47426-425-0	01	1	9311-			●	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2743 SERVICED BY L=2900	1-47437-974-0	01	1	9207-9212					●
70	PIPE; AIR,FLEX HOSE TO UNION L=2743 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9310					●
70	PIPE; AIR,FLEX HOSE TO UNION L=2770 SERVICED BY L=2900	1-47426-425-0	01	1	9311-					●
87	PIPE; AIR,UNION TO AIR MASTER L=403 SERVICED BY L=450	1-47437-962-0	01	1	9207-9212	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=403 SERVICED BY L=450	1-47426-405-0	01	1	9301-	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=715 SERVICED BY L=800	1-47434-475-0	01	1	9207-9212			●	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=716 SERVICED BY L=800	1-47426-412-0	01	1	9301-			●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47482-334-0	01	1	9207-9212	●	●	●	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47497-112-0	01	1	9301-	●	●	●	●	●
