6-32 — FRONT DOOR LOCK AND HANDLE (#161296) — 138 parça

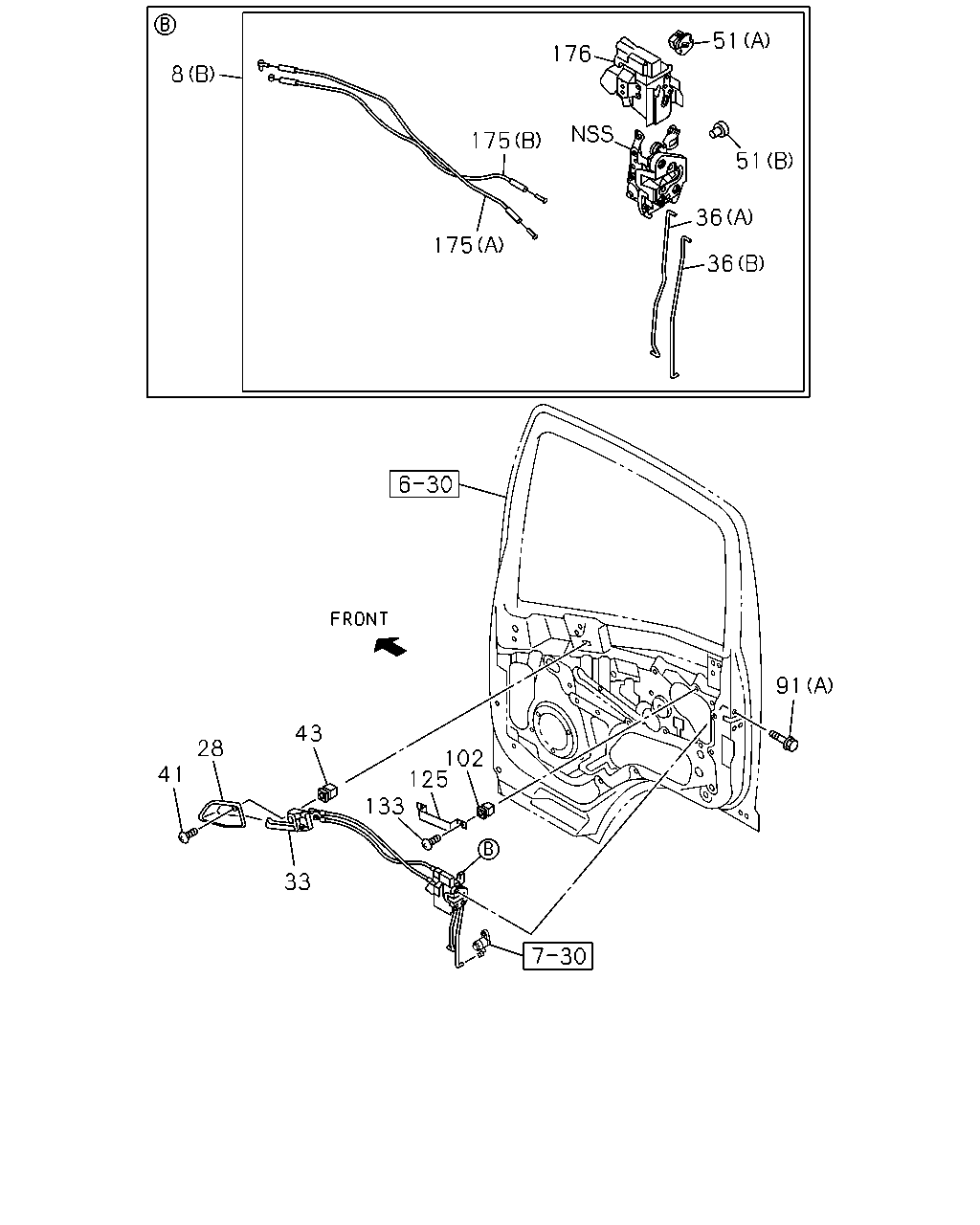

çizim 475694
176 51 175 175 51 36 36 8 41 43 28 33 133 102 125 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98017-421-0 01 1 1505- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) 		8-98017-421-0 01 1 1505- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> (A) 		8-98017-420-0 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) 		8-98017-420-0 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98017-420-0 01 1 1508- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) 		8-98017-420-0 01 1 1508- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-98017-422-1 01 1 1505- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (B) 		8-98029-052-2 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-052-2 01 1 1508- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (B) 		8-98029-053-2 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-053-2 01 1 1508- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1505- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1505- ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1505- ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1505- ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1505- ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1505- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1505- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1505- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 01 1 1505- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL 		8-98058-226-0 01 1 1505- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 01 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 01 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (A) NATURAL 		8-98058-226-0 02 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 02 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 02 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 02 1 1508- ● ●
91 16.330 BOLT; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1505- ● ●
91 16.330 BOLT; DOOR LOCK
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1505- ● ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1505-1507 ● ● ● ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1508- ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1505- ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97585-927-0 02 1 1505- ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1505- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1505- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1505- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-539-0 02 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 02 1 1508- ● ●
176 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 1505- ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 1505- ● ● ● ●
çizim 475715
131 18 14 56 89 139 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 1505- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 1505- ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-98029-173-2 02 1 1505- ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1505- ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-314-1 01 1 1505- ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-315-1 01 1 1505- ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1505- ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1505- ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 WHITE 		8-97333-303-0 01 1 1505- ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 1505- ● ● ● ●

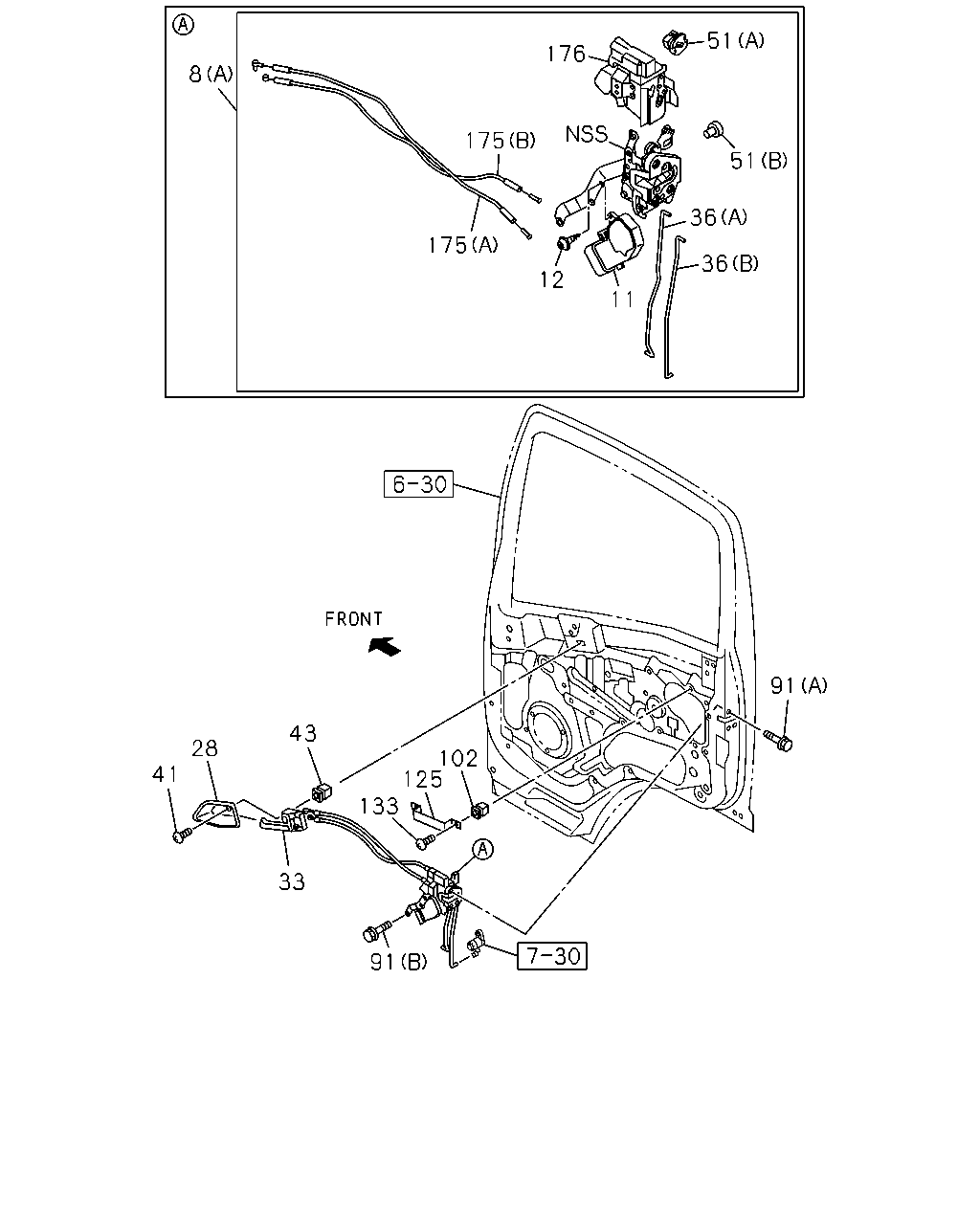

çizim 475930
8 175 12 11 36 36 175 176 51 51 43 28 41 33 133 102 125 91 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98017-421-0 01 1 1505- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) 		8-98017-421-0 01 1 1505- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> (A) 		8-98017-420-0 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) 		8-98017-420-0 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98017-420-0 01 1 1508- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) 		8-98017-420-0 01 1 1508- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-98017-422-1 01 1 1505- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (B) 		8-98029-052-2 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-052-2 01 1 1508- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (B) 		8-98029-053-2 01 1 1505-1507 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-053-2 01 1 1508- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-98089-562-0 01 1 1505- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-98089-562-0 01 1 1505- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> 		8-98089-563-0 01 1 1505-1507 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-98089-563-0 01 1 1505-1507 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<6NF> 		8-98089-563-0 01 1 1508- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-98089-563-0 01 1 1508- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98089-561-0 01 1 1505- ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97310-549-0 02 1 1505-1507 ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97310-549-0 02 1 1505-1507 ● ●
12 16.330 SCREW; DOOR LK 8-97310-549-0 02 1 1505-1507 ● ●
12 16.330 SCREW; DOOR LK 8-97310-549-0 02 1 1505-1507 ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97310-549-0 02 1 1508- ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97310-549-0 02 1 1508- ● ●
12 16.330 SCREW; DOOR LK
REMOTE CONT DOOR LOCK<6NF> 		8-97310-549-0 02 1 1508- ● ●
12 16.330 SCREW; DOOR LK 8-97310-549-0 02 1 1508- ● ●
12 16.330 SCREW; DOOR LK 8-97310-549-0 02 1 1508- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1505- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1505- ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1505- ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1505- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1505- ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1505- ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1505- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1505- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1505- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 01 1 1505- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL 		8-98058-226-0 01 1 1505- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 01 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 01 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (A) NATURAL 		8-98058-226-0 02 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 02 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (A) BLUE 		8-98058-227-0 02 1 1505-1507 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 02 1 1508- ● ●
91 16.330 BOLT; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1505- ● ●
91 16.330 BOLT; DOOR LOCK
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1505- ● ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1505-1507 ● ● ● ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1508- ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1505- ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97585-927-0 02 1 1505- ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1505- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1505- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1505- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> (B) 		8-98058-539-0 02 1 1505-1507 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 02 1 1508- ● ●
176 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 1505- ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 1505- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
