Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#161293) — 243 parça

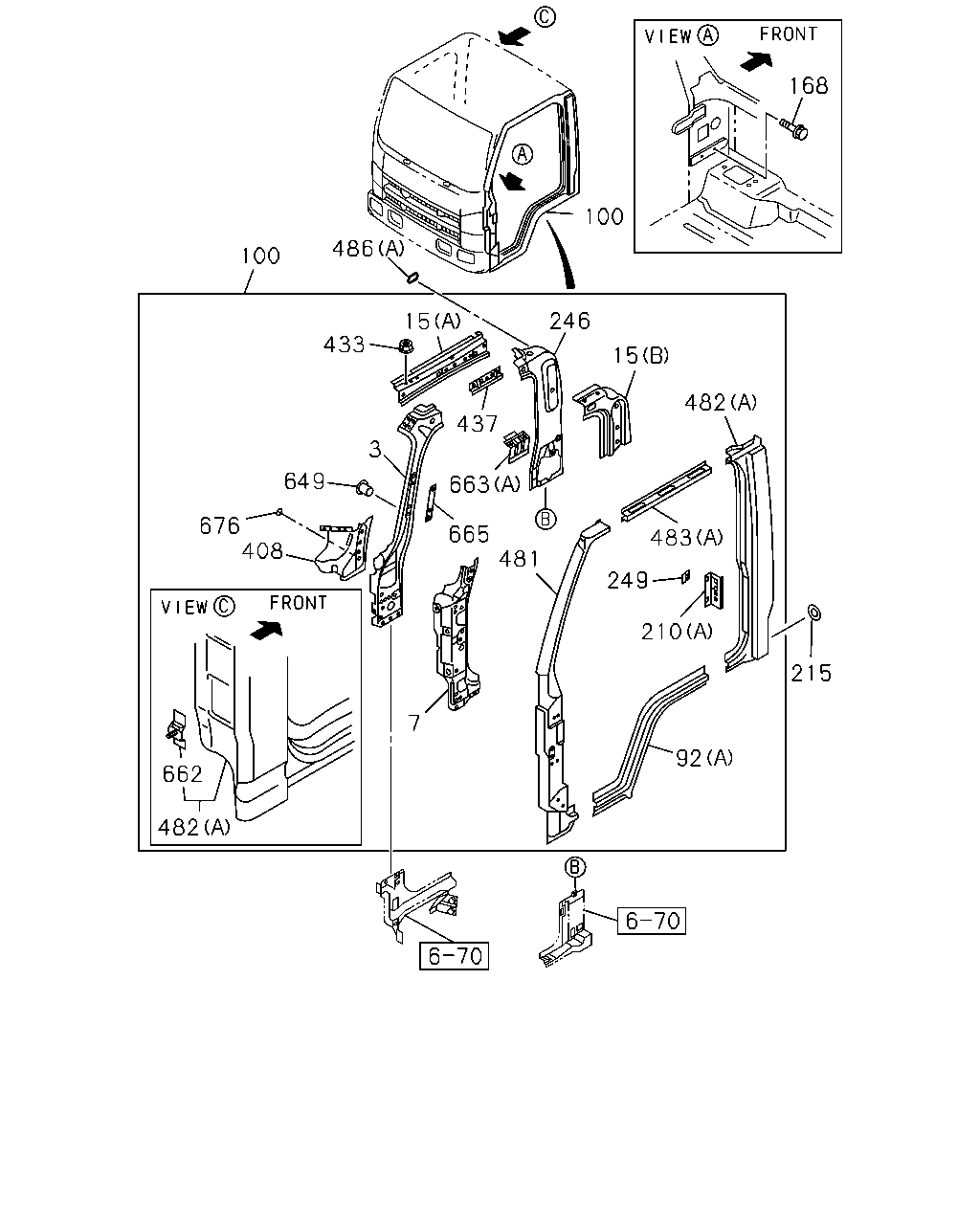

100 486 100 168 15 433 246 15 482 676 649 3 408 662 482 7 92 210 215 483 249 663 481 437 665

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	16.592 PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1505-	●	●	●	●
3	16.592 PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1505-	●	●	●	●
7	16.570 REINFORCEMENT; HINGE	8-97585-240-3	01	1	1505-	●	●	●	●
7	16.570 REINFORCEMENT; HINGE	8-97585-244-4	01	1	1505-	●	●	●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97585-294-2	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97585-295-2	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97585-302-1	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97585-303-2	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97583-739-1	01	1	1505-			●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97583-740-1	01	1	1505-			●	●
92	16.570 PANEL; SIDE SILL,CAB (A)	8-98055-461-1	01	1	1505-	●	●	●	●
92	16.570 PANEL; SIDE SILL,CAB (A)	8-98055-462-1	01	1	1505-	●	●	●	●
92	16.570 PANEL; SIDE SILL,CAB 16.507 (B)	8-98069-113-0	02	1	1505-			●	●
100	16.570 PANEL ASM; BODY SIDE	8-97586-053-9	01	1	1505-	●	●
100	16.570 PANEL ASM; BODY SIDE	8-98088-544-2	01	1	1505-	●	●
100	16.570 PANEL ASM; BODY SIDE	8-98088-544-2	01	1	1505-			●	●
100	16.570 PANEL ASM; BODY SIDE	8-97586-053-9	01	1	1505-			●	●
168	16.570 BOLT; BODY SIDE PANEL 16.650 T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1505-	●	●	●	●
210	16.588 PANEL; DOOR STRIKER REINF (A)	8-97585-260-4	01	1	1505-	●	●
210	16.588 PANEL; DOOR STRIKER REINF (A)	8-97585-261-4	01	1	1505-	●	●
210	16.588 PANEL; DOOR STRIKER REINF (B)	8-97851-445-1	01	1	1505-			●	●
210	16.588 PANEL; DOOR STRIKER REINF (B)	8-97851-446-1	01	1	1505-			●	●
210	16.588 PANEL; DOOR STRIKER REINF (C)	8-98014-548-0	01	1	1505-			●	●
210	16.588 PANEL; DOOR STRIKER REINF (C)	8-98014-549-0	01	1	1505-			●	●
215	16.674 GROMMET; RR PILLAR 15.222 OD=35	8-94122-971-0	01	1	1505-	●	●
246	16.575 PANEL; RR PILLAR,INNER	8-97585-301-3	01	1	1505-	●	●
246	16.575 PANEL; RR PILLAR,INNER	8-97586-154-3	01	1	1505-	●	●
249	16.674 REINFORCEMENT; RR PILLAR	8-98012-287-1	01	1	1505-	●	●
249	16.674 REINFORCEMENT; RR PILLAR	8-98012-287-1	01	1	1505-	●	●
408	16.570 GUSSET; PILLAR	8-97585-316-3	01	1	1505-	●	●	●	●
408	16.570 GUSSET; PILLAR	8-97585-317-4	01	1	1505-	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1505-1507	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1505-1507	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1508-	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1508-	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	04	1	1505-1507			●	●
437	08.155 BRACKET; ROOF RAIL	8-98039-019-0	01	1	1505-	●	●	●	●
437	08.155 BRACKET; ROOF RAIL	8-98039-020-0	01	1	1505-	●	●	●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-98072-715-1	01	1	1505-	●	●	●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-98093-581-0	01	1	1505-	●	●	●	●
482	16.570 PANEL; SIDE RR PILLAR (A)	8-98055-464-0	01	1	1505-	●	●
482	16.570 PANEL; SIDE RR PILLAR (A)	8-98092-920-0	01	1	1505-	●	●
482	16.570 PANEL; SIDE RR PILLAR (B)	8-98097-237-0	01	1	1505-			●	●
482	16.570 PANEL; SIDE RR PILLAR (B)	8-98097-238-0	01	1	1505-			●	●
483	16.570 PANEL; SIDE CANTRAIL (A)	8-98055-458-0	01	1	1505-	●	●
483	16.570 PANEL; SIDE CANTRAIL (A)	8-98055-460-0	01	1	1505-	●	●
483	16.570 PANEL; SIDE CANTRAIL (B)	8-98056-608-0	01	1	1505-			●	●
483	16.570 PANEL; SIDE CANTRAIL (B)	8-98056-609-0	01	1	1505-			●	●
483	16.570 PANEL; SIDE CANTRAIL 16.592 (C)	8-98069-095-0	02	1	1505-			●	●
486	16.570 SEAL; BODY SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE (B)	8-98154-664-0	02	1	1505-			●	●
649	16.570 NUT; POP 09.647 M5 POP NUT	8-97249-574-0	02	1	1505-	●	●	●	●
662	16.570 BRACKET; DUCT	8-97584-611-1	01	1	1505-	●	●
662	16.570 BRACKET; DUCT	8-98006-778-1	01	1	1505-			●	●
663	08.228 BRACKET; AIR (A)	8-97585-207-2	01	1	1505-	●	●	●	●
663	08.228 BRACKET; AIR (A)	8-97585-208-2	01	1	1505-	●	●	●	●
663	08.228 BRACKET; AIR (B)	8-98020-643-1	02	1	1505-1507			●	●
663	08.228 BRACKET; AIR (B)	8-98020-643-1	01	1	1508-			●	●
663	08.228 BRACKET; AIR (B)	8-98020-643-1	01	1	1508-			●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1505-1507	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1505-1507	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1508-	●	●	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1508-	●	●	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	02	1	1505-1507			●	●
676	16.520 SEAL EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1505-	●	●	●	●

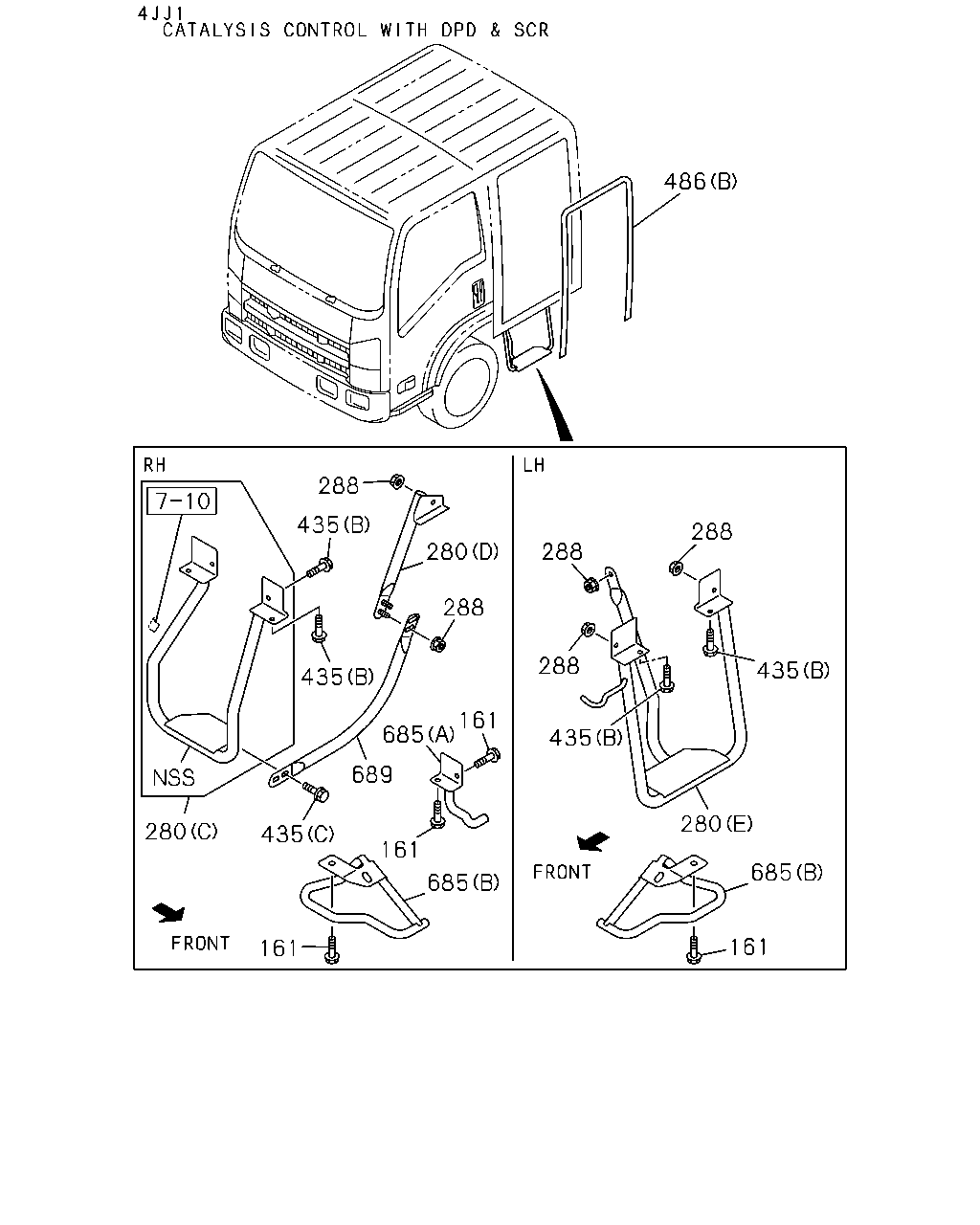

486 435 288 435 288 435 685 435 161 161 280 161 288 288 435 435 161 685 280 435 435 435 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
161	08.225 BOLT; FIX 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-			●	●
161	08.225 BOLT; FIX 4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1505-			●
161	08.225 BOLT; FIX 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1505-				●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (E)	8-98279-450-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (C)	8-98302-928-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (D)	8-98304-010-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCC ENG(RDU) (B)	8-98081-587-2	01	1	1505-			●
280	08.225 STEP ASM; RR 4JJ1-TCC ENG(RDU) (B)	8-98081-588-2	01	1	1505-			●
280	08.225 STEP ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98202-894-0	01	1	1505-				●
280	08.225 STEP ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98222-528-0	01	1	1505-				●
288	08.225 NUT; STEP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-			●	●
288	08.225 NUT; STEP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-			●	●
288	08.225 NUT; STEP CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-			●
288	08.225 NUT; STEP 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-				●
435	08.225 BOLT; RR STEP (A) M8X18	8-98004-345-0	12	1	1505-	●	●	●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE	0-28650-820-0	06	1	1505-			●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-			●	●
435	08.225 BOLT; RR STEP CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE	0-28650-820-0	08	1	1505-			●
435	08.225 BOLT; RR STEP 4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE	0-28650-820-0	09	1	1505-				●
486	16.570 SEAL; BODY SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE (B)	8-98154-664-0	02	1	1505-			●	●
685	08.225 BAR ASM; GUARD CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98206-929-0	01	1	1505-			●
685	08.225 BAR ASM; GUARD (A)	8-98206-929-0	01	1	1505-				●
685	08.225 BAR ASM; GUARD (B)	8-98240-398-0	01	1	1505-			●	●
685	08.225 BAR ASM; GUARD 4JJ1-TCS ENG(LFB) (B)	8-98240-399-0	01	1	1505-			●
685	08.225 BAR ASM; GUARD (B)	8-98240-399-0	01	1	1505-				●

486 435 435 280 685 288 288 435 435 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
161	08.225 BOLT; FIX 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-			●	●
161	08.225 BOLT; FIX 4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1505-			●
161	08.225 BOLT; FIX 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1505-				●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (E)	8-98279-450-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (C)	8-98302-928-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (D)	8-98304-010-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCC ENG(RDU) (B)	8-98081-587-2	01	1	1505-			●
280	08.225 STEP ASM; RR 4JJ1-TCC ENG(RDU) (B)	8-98081-588-2	01	1	1505-			●
280	08.225 STEP ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98202-894-0	01	1	1505-				●
280	08.225 STEP ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98222-528-0	01	1	1505-				●
288	08.225 NUT; STEP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-			●	●
288	08.225 NUT; STEP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-			●	●
288	08.225 NUT; STEP CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-			●
288	08.225 NUT; STEP 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-				●
435	08.225 BOLT; RR STEP (A) M8X18	8-98004-345-0	12	1	1505-	●	●	●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE	0-28650-820-0	06	1	1505-			●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-			●	●
435	08.225 BOLT; RR STEP CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE	0-28650-820-0	08	1	1505-			●
435	08.225 BOLT; RR STEP 4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE	0-28650-820-0	09	1	1505-				●
486	16.570 SEAL; BODY SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE (B)	8-98154-664-0	02	1	1505-			●	●
685	08.225 BAR ASM; GUARD CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98206-929-0	01	1	1505-			●
685	08.225 BAR ASM; GUARD (A)	8-98206-929-0	01	1	1505-				●
685	08.225 BAR ASM; GUARD (B)	8-98240-398-0	01	1	1505-			●	●
685	08.225 BAR ASM; GUARD 4JJ1-TCS ENG(LFB) (B)	8-98240-399-0	01	1	1505-			●
685	08.225 BAR ASM; GUARD (B)	8-98240-399-0	01	1	1505-				●

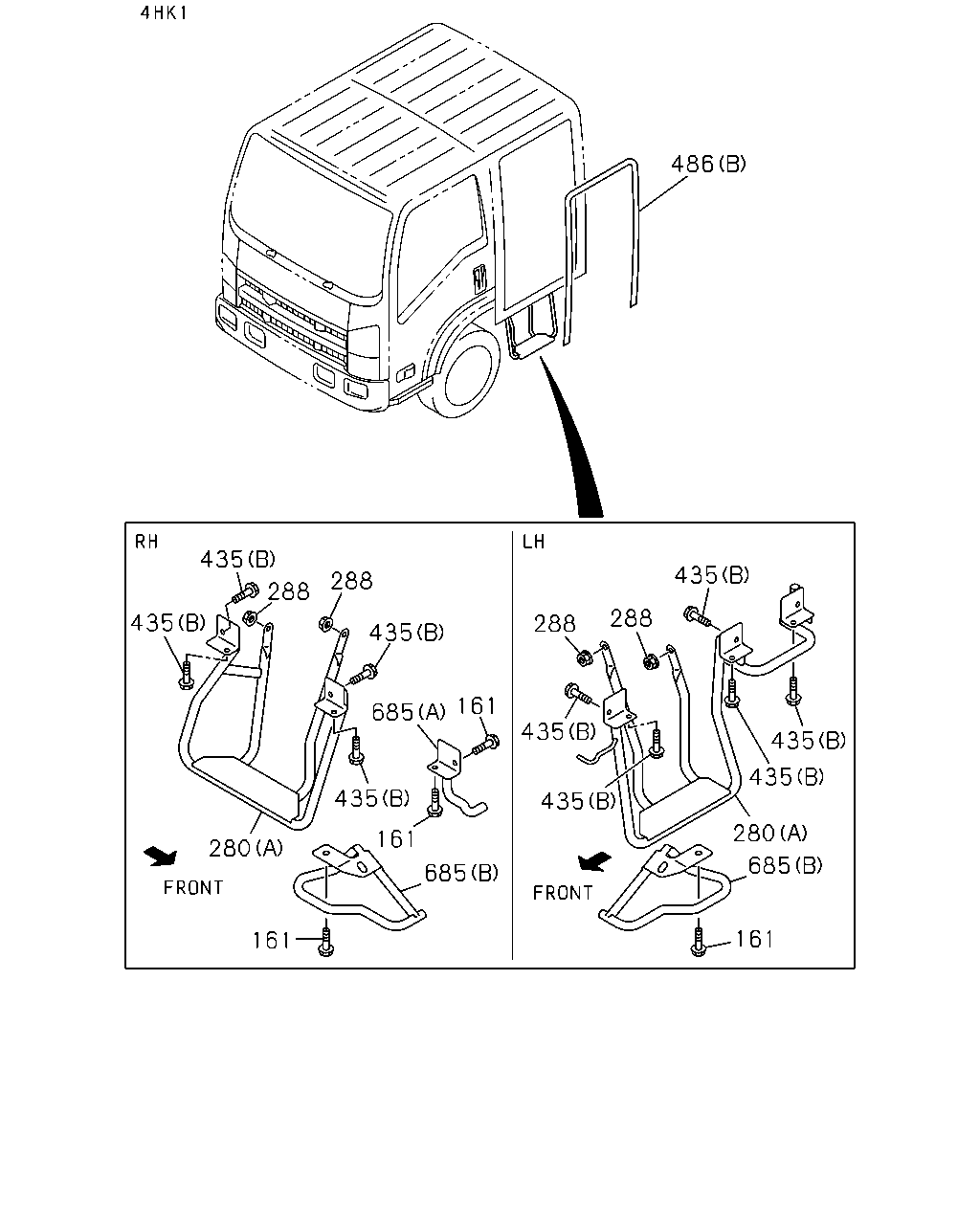

486 288 288 435 288 435 280 685 161 288 435 280 288 435 280 161 435 161 685 689 685 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
161	08.225 BOLT; FIX 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1505-			●	●
161	08.225 BOLT; FIX 4JJ1-TCS ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1505-			●
161	08.225 BOLT; FIX 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1505-				●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (E)	8-98279-450-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (C)	8-98302-928-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCS ENG(LFB) (D)	8-98304-010-0	01	1	1505-			●	●
280	08.225 STEP ASM; RR 4JJ1-TCC ENG(RDU) (B)	8-98081-587-2	01	1	1505-			●
280	08.225 STEP ASM; RR 4JJ1-TCC ENG(RDU) (B)	8-98081-588-2	01	1	1505-			●
280	08.225 STEP ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98202-894-0	01	1	1505-				●
280	08.225 STEP ASM; RR 4HK1-TCS ENG(RJS) (A)	8-98222-528-0	01	1	1505-				●
288	08.225 NUT; STEP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-			●	●
288	08.225 NUT; STEP 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	03	1	1505-			●	●
288	08.225 NUT; STEP CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-			●
288	08.225 NUT; STEP 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	04	1	1505-				●
435	08.225 BOLT; RR STEP (A) M8X18	8-98004-345-0	12	1	1505-	●	●	●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE	0-28650-820-0	06	1	1505-			●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-			●	●
435	08.225 BOLT; RR STEP CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE	0-28650-820-0	08	1	1505-			●
435	08.225 BOLT; RR STEP 4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE	0-28650-820-0	09	1	1505-				●
486	16.570 SEAL; BODY SIDE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1505-	●	●
486	16.570 SEAL; BODY SIDE (B)	8-98154-664-0	02	1	1505-			●	●
685	08.225 BAR ASM; GUARD CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98206-929-0	01	1	1505-			●
685	08.225 BAR ASM; GUARD (A)	8-98206-929-0	01	1	1505-				●
685	08.225 BAR ASM; GUARD (B)	8-98240-398-0	01	1	1505-			●	●
685	08.225 BAR ASM; GUARD 4JJ1-TCS ENG(LFB) (B)	8-98240-399-0	01	1	1505-			●
685	08.225 BAR ASM; GUARD (B)	8-98240-399-0	01	1	1505-				●
689	08.225 SUPPORT; STEP REAR 4JJ1-TCS ENG(LFB)	8-98303-882-0	01	1	1505-			●	●

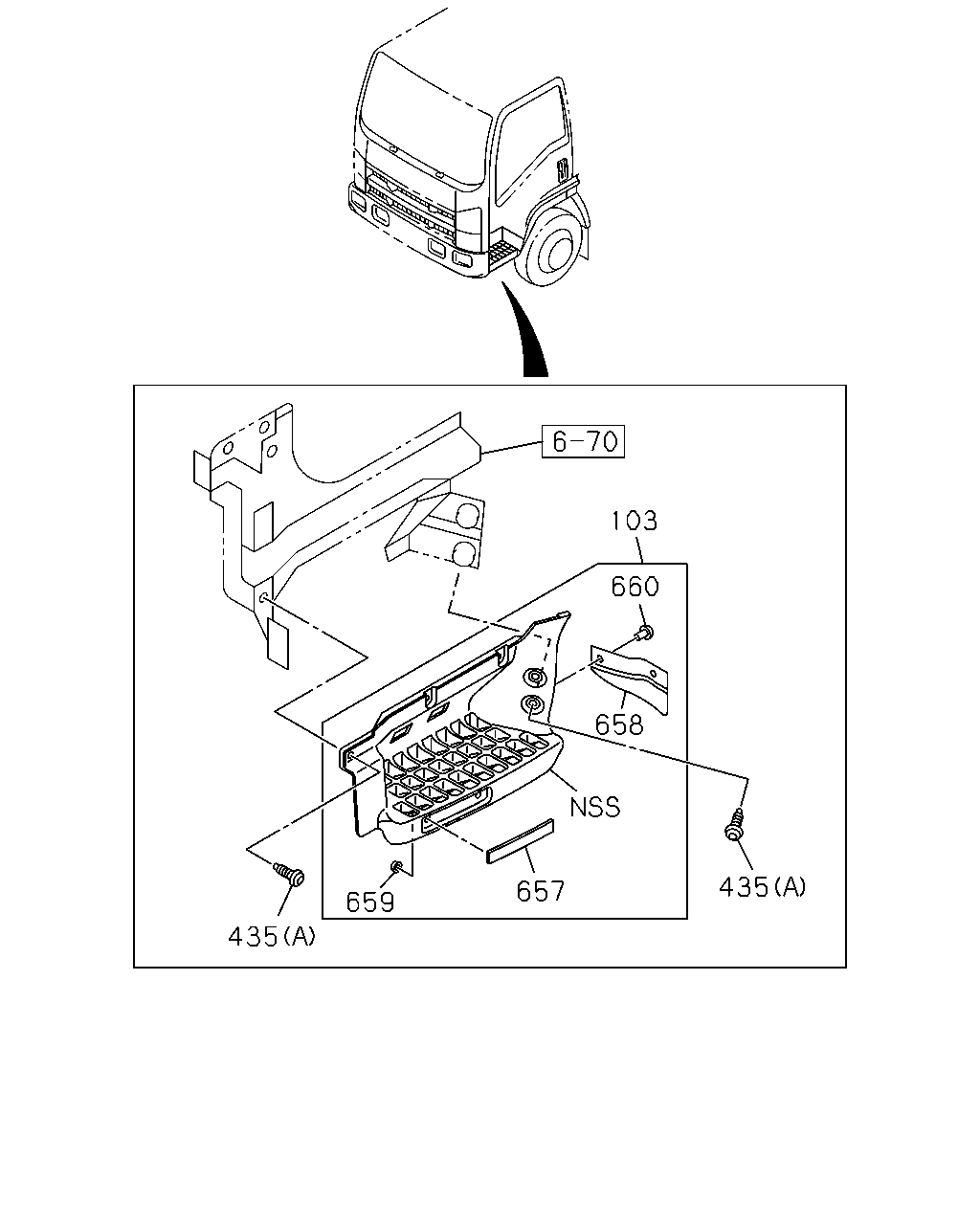

103 660 658 435 657 659 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
103	08.228 PLATE; STEP	8-98022-774-3	01	1	1505-	●	●	●	●
103	08.228 PLATE; STEP	8-98022-775-3	01	1	1505-	●	●	●	●
435	08.225 BOLT; RR STEP (A) M8X18	8-98004-345-0	12	1	1505-	●	●	●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 01.531 (B) M8X20 FLANGE	0-28650-820-0	06	1	1505-			●	●
435	08.225 BOLT; RR STEP 4JJ1-TCS ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1505-			●	●
435	08.225 BOLT; RR STEP CATALYSIS CONTROL WITH DPD(8JM) 01.531 (B) M8X20 FLANGE	0-28650-820-0	08	1	1505-			●
435	08.225 BOLT; RR STEP 4HK1-TCS ENG(RJS) 01.531 (B) M8X20 FLANGE	0-28650-820-0	09	1	1505-				●
657	16.585 REFLECTOR; REFLEX AMBER	8-97378-910-0	02	1	1505-	●	●	●	●
658	08.228 FLAP; STEP	8-98037-560-1	02	1	1505-	●	●	●	●
659	08.131 CLIP; SPRING NUT	8-97811-510-0	04	1	1505-	●	●	●	●
660	08.131 CLIP; FLAP	8-98111-558-0	04	1	1505-	●	●	●	●

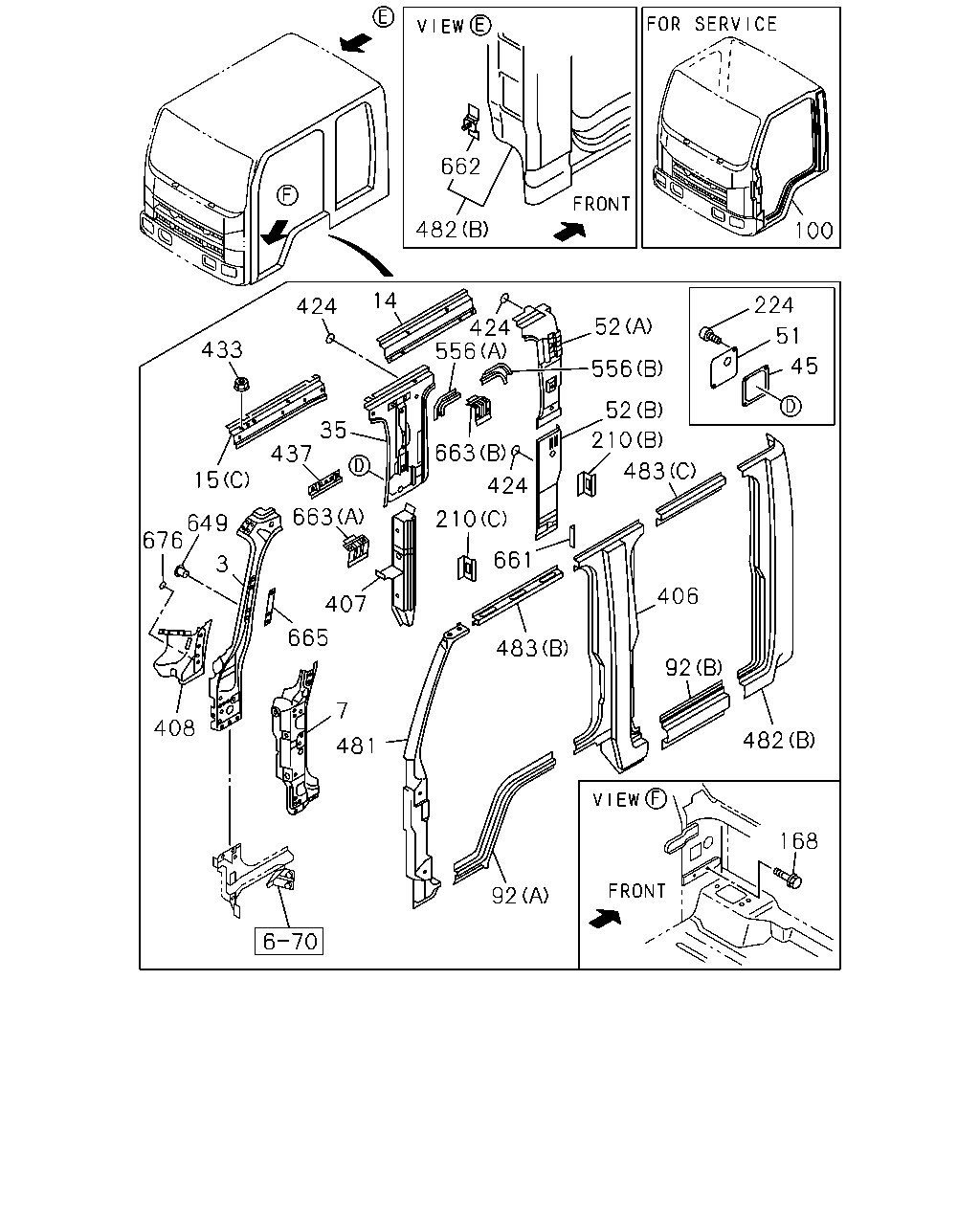

662 482 14 424 433 35 437 15 676 3 408 481 7 665 663 407 210 661 663 556 424 52 556 52 210 224 45 51 483 406 92 482 168 92 483 649 100 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	16.592 PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1505-	●	●	●	●
3	16.592 PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1505-	●	●	●	●
7	16.570 REINFORCEMENT; HINGE	8-97585-240-3	01	1	1505-	●	●	●	●
7	16.570 REINFORCEMENT; HINGE	8-97585-244-4	01	1	1505-	●	●	●	●
14	16.592 PANEL; REINF,SIDE DRIP	8-97583-706-2	02	1	1505-1507			●	●
14	16.592 PANEL; REINF,SIDE DRIP	8-97583-706-2	01	1	1508-			●	●
14	16.592 PANEL; REINF,SIDE DRIP	8-97583-706-2	01	1	1508-			●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97585-294-2	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (A)	8-97585-295-2	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97585-302-1	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (B)	8-97585-303-2	01	1	1505-	●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97583-739-1	01	1	1505-			●	●
15	16.592 PANEL; CANT RAIL SIDE (C)	8-97583-740-1	01	1	1505-			●	●
35	16.570 PANEL; CENTER PILLAR,INNER	8-97583-703-4	01	1	1505-			●	●
35	16.570 PANEL; CENTER PILLAR,INNER	8-98013-489-4	01	1	1505-			●	●
45	16.570 SEAL; B-C POST	8-97853-731-2	02	1	1505-			●	●
51	16.570 COVER; HOLE,B-C POST	8-94273-658-0	02	1	1505-			●	●
52	16.588 PANEL; D-POST UPR (A)	8-97583-707-4	01	1	1505-			●	●
52	16.588 PANEL; D-POST UPR (A)	8-97583-708-4	01	1	1505-			●	●
52	16.588 PANEL; D-POST UPR (B)	8-97583-779-2	01	1	1505-			●	●
52	16.588 PANEL; D-POST UPR (B)	8-98006-251-3	01	1	1505-			●	●
92	16.570 PANEL; SIDE SILL,CAB (A)	8-98055-461-1	01	1	1505-	●	●	●	●
92	16.570 PANEL; SIDE SILL,CAB (A)	8-98055-462-1	01	1	1505-	●	●	●	●
92	16.570 PANEL; SIDE SILL,CAB 16.507 (B)	8-98069-113-0	02	1	1505-			●	●
100	16.570 PANEL ASM; BODY SIDE	8-97586-053-9	01	1	1505-	●	●
100	16.570 PANEL ASM; BODY SIDE	8-98088-544-2	01	1	1505-	●	●
100	16.570 PANEL ASM; BODY SIDE	8-98088-544-2	01	1	1505-			●	●
100	16.570 PANEL ASM; BODY SIDE	8-97586-053-9	01	1	1505-			●	●
168	16.570 BOLT; BODY SIDE PANEL 16.650 T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1505-	●	●	●	●
210	16.588 PANEL; DOOR STRIKER REINF (A)	8-97585-260-4	01	1	1505-	●	●
210	16.588 PANEL; DOOR STRIKER REINF (A)	8-97585-261-4	01	1	1505-	●	●
210	16.588 PANEL; DOOR STRIKER REINF (B)	8-97851-445-1	01	1	1505-			●	●
210	16.588 PANEL; DOOR STRIKER REINF (B)	8-97851-446-1	01	1	1505-			●	●
210	16.588 PANEL; DOOR STRIKER REINF (C)	8-98014-548-0	01	1	1505-			●	●
210	16.588 PANEL; DOOR STRIKER REINF (C)	8-98014-549-0	01	1	1505-			●	●
224	16.570 SCREW; COVER M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1505-			●	●
406	16.570 PILLAR; CENTER	8-98069-086-0	01	1	1505-			●	●
406	16.570 PILLAR; CENTER	8-98097-233-0	01	1	1505-			●	●
407	16.570 PILLAR; HINGE,RR DOOR	8-97410-822-2	01	1	1505-			●	●
407	16.570 PILLAR; HINGE,RR DOOR	8-97410-824-2	01	1	1505-			●	●
408	16.570 GUSSET; PILLAR	8-97585-316-3	01	1	1505-	●	●	●	●
408	16.570 GUSSET; PILLAR	8-97585-317-4	01	1	1505-	●	●	●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1505-			●	●
424	16.570 SEAL; CLOSING BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE	8-98059-421-0	12	1	1505-			●	●
424	16.570 SEAL; CLOSING BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1505-			●	●
424	16.570 SEAL; CLOSING BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	12	1	1505-			●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1505-1507	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1505-1507	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1508-	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	02	1	1508-	●	●	●	●
433	16.585 NUT; HEADER SHELF 16.545 M6	9-09114-086-0	04	1	1505-1507			●	●
437	08.155 BRACKET; ROOF RAIL	8-98039-019-0	01	1	1505-	●	●	●	●
437	08.155 BRACKET; ROOF RAIL	8-98039-020-0	01	1	1505-	●	●	●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-98072-715-1	01	1	1505-	●	●	●	●
481	16.570 PANEL; SIDE FRT PILLAR	8-98093-581-0	01	1	1505-	●	●	●	●
482	16.570 PANEL; SIDE RR PILLAR (A)	8-98055-464-0	01	1	1505-	●	●
482	16.570 PANEL; SIDE RR PILLAR (A)	8-98092-920-0	01	1	1505-	●	●
482	16.570 PANEL; SIDE RR PILLAR (B)	8-98097-237-0	01	1	1505-			●	●
482	16.570 PANEL; SIDE RR PILLAR (B)	8-98097-238-0	01	1	1505-			●	●
483	16.570 PANEL; SIDE CANTRAIL (A)	8-98055-458-0	01	1	1505-	●	●
483	16.570 PANEL; SIDE CANTRAIL (A)	8-98055-460-0	01	1	1505-	●	●
483	16.570 PANEL; SIDE CANTRAIL (B)	8-98056-608-0	01	1	1505-			●	●
483	16.570 PANEL; SIDE CANTRAIL (B)	8-98056-609-0	01	1	1505-			●	●
483	16.570 PANEL; SIDE CANTRAIL 16.592 (C)	8-98069-095-0	02	1	1505-			●	●
556	16.570 PATCH; ROOF SIDE (A)	8-98024-390-0	01	1	1505-			●	●
556	16.570 PATCH; ROOF SIDE (A)	8-98024-391-0	01	1	1505-			●	●
556	16.570 PATCH; ROOF SIDE (B)	8-98024-392-0	01	1	1505-			●	●
556	16.570 PATCH; ROOF SIDE (B)	8-98024-393-0	01	1	1505-			●	●
649	16.570 NUT; POP 09.647 M5 POP NUT	8-97249-574-0	02	1	1505-	●	●	●	●
661	16.570 BRACKET; SIDE PANEL	8-98012-621-1	01	1	1505-			●	●
661	16.570 BRACKET; SIDE PANEL	8-98012-623-1	01	1	1505-			●	●
662	16.570 BRACKET; DUCT	8-97584-611-1	01	1	1505-	●	●
662	16.570 BRACKET; DUCT	8-98006-778-1	01	1	1505-			●	●
663	08.228 BRACKET; AIR (A)	8-97585-207-2	01	1	1505-	●	●	●	●
663	08.228 BRACKET; AIR (A)	8-97585-208-2	01	1	1505-	●	●	●	●
663	08.228 BRACKET; AIR (B)	8-98020-643-1	02	1	1505-1507			●	●
663	08.228 BRACKET; AIR (B)	8-98020-643-1	01	1	1508-			●	●
663	08.228 BRACKET; AIR (B)	8-98020-643-1	01	1	1508-			●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1505-1507	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1505-1507	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1508-	●	●	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	01	1	1508-	●	●	●	●
665	16.575 REINFORCEMENT; GRIP,ASSIST	8-97585-314-0	02	1	1505-1507			●	●
676	16.520 SEAL EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1505-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
